EMU Infos
dumper f205v
date 26/07/2018
emulator
dev
PCB Infos
name 1619
description Lady Gum
year 1995
manufacturer

Technical references

CPUs

QTY Type clock position function
1x MC68HC705C8 1D 8-bit EPROM Microcomputer Unit - main (dumped)
1x HD46505SP-2 HD68B45SP 1B CRT Controller (CRTC)
1x NEC D7759C 1A ADPCM Speech Synthesizer LSIs - sound
1x TDA2002 0F Audio Amplifier - sound
1x oscillator 10.000MHz 9D

ROMs

QTY Type position status
3x 27C64 5B,7B,8B dumped
1x 27512 5A dumped

RAMs

QTY Type position
1x HY6116ALP-12 2B
1x HM6116LP-3 3B

PLDs

QTY Type position status
1x PAL ST 16AS15HB1 9C dumped

Others

1x 36x2 thin edge connector
1x red LED (9D)
1x trimmer (volume) (1F)
1x trimmer (unknown) (9A)
1x 8 DIP switches bank (2F)
1x 3x2 jumpers IMP (9A)
1x battery 3.6V (1F)

Notes

PCB is marked: "VIDEOS A A"
It's manufactured in Italy
very similar to Paradar, Winner and Joker Lady

Files

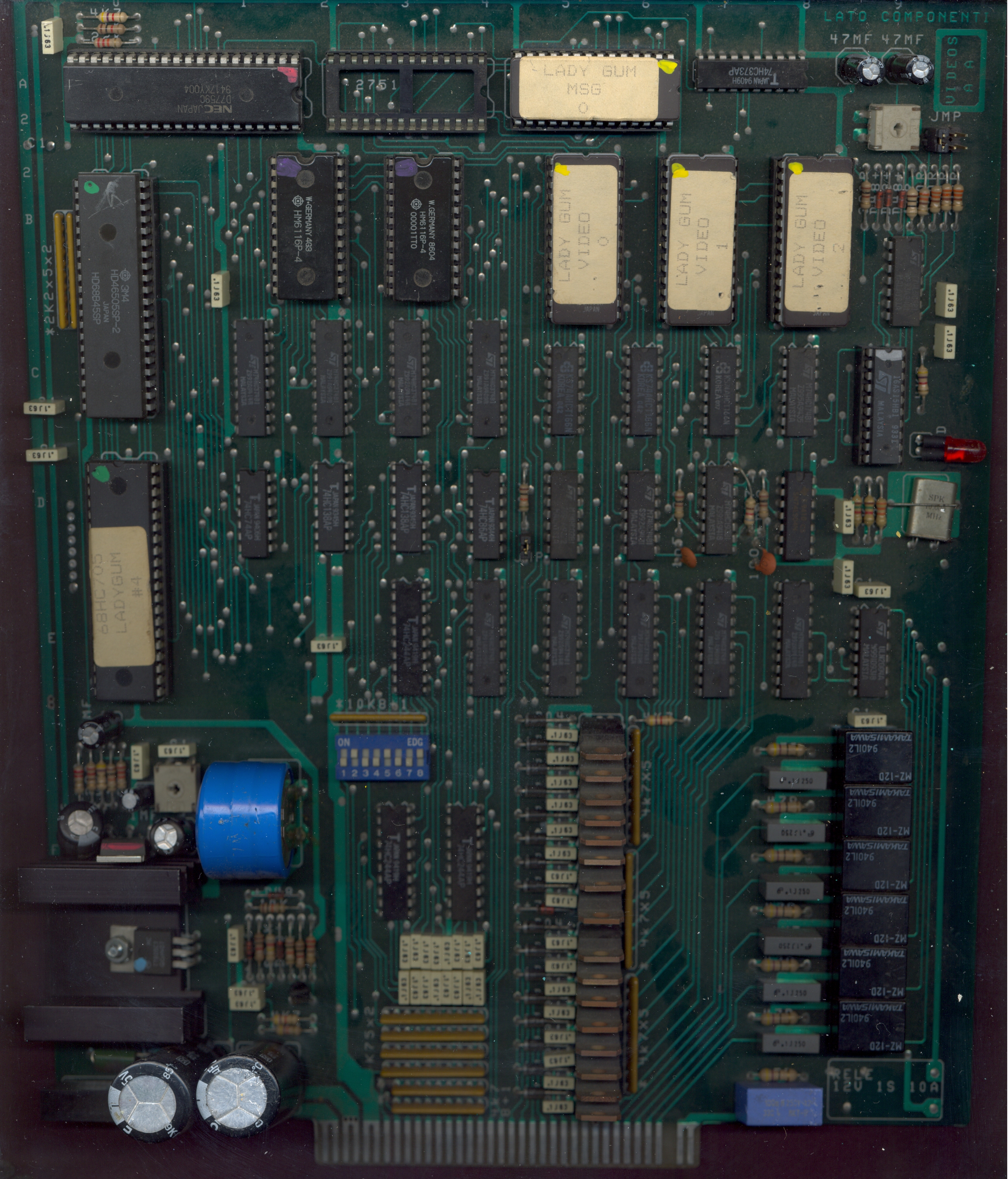

  • PCB component side

    PCB component side

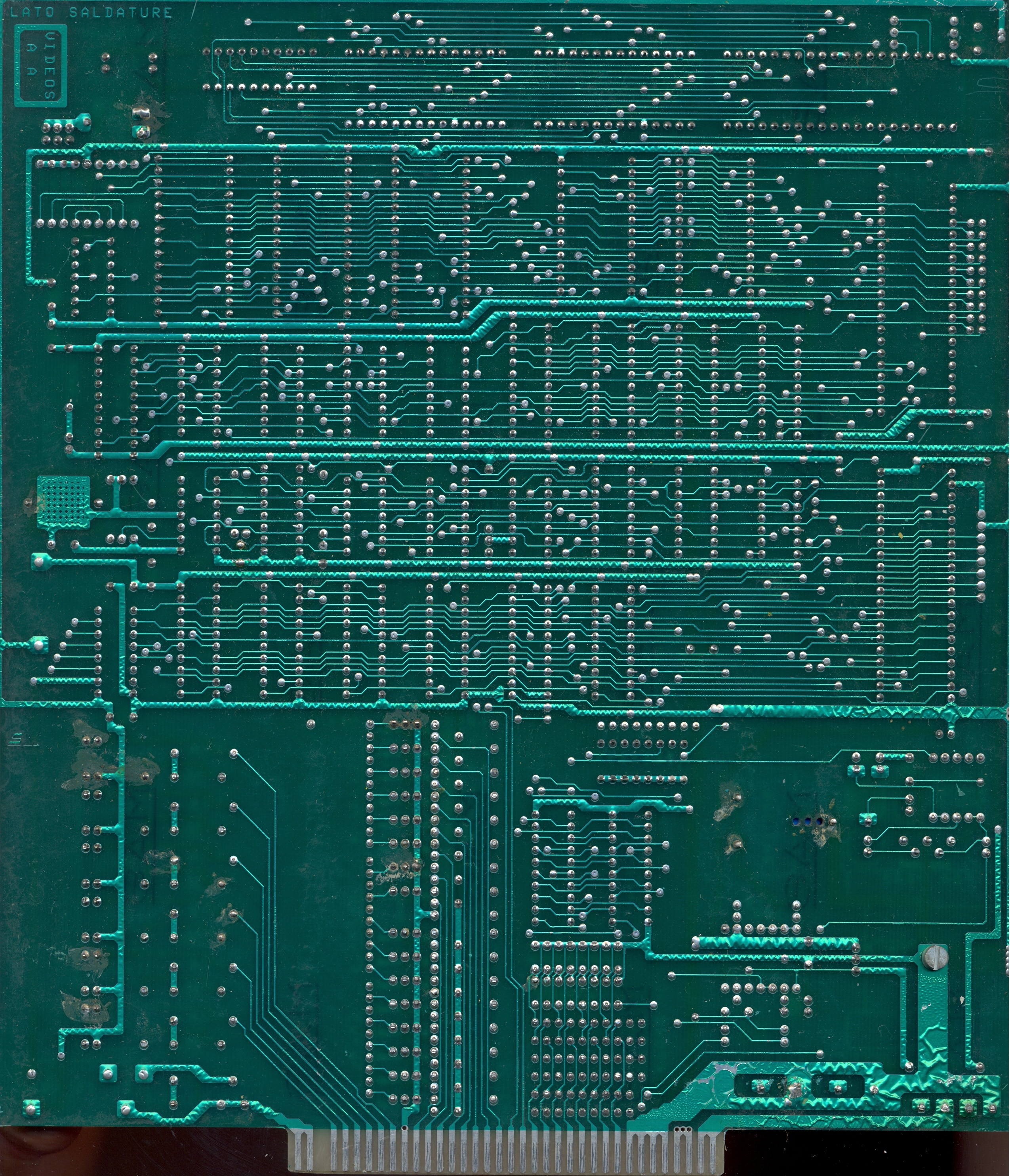

  • PCB solder side

    PCB solder side

  • ROMs

    ROMs
