Joker Lady
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 24/07/2018 |
| emulator | MAME 0.201 |
| dev | Osso |
| name | jokrlady on ProgettoEMMA jokrlady on Arcade Database |
| description | Joker Lady |
| year | 1995 |
| manufacturer | Videos A A |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68HC705C8 | 1D | 8-bit EPROM Microcomputer Unit - main (missing, internal ROM not dumped) | |
| 1x | HD46505SP-2 HD68B45SP | 1B | CRT Controller (CRTC) | |
| 1x | NEC D7759C | 1A | ADPCM Speech Synthesizer LSIs - sound | |
| 1x | TDA2002 | 0F | Audio Amplifier - sound | |
| 1x | oscillator | 10.000MHz | 9D |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | 27C64 | 7B,8B | dumped |
| 1x | 27C64 | 5B | not dumped (EPROM is fried, totally un-consistent reads) |
| 1x | 27512 | 5A | not dumped (EPROM is fried, totally un-consistent reads) |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | HY6116ALP-12 | 2B |
| 1x | HM6116LP-3 | 3B |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL ST 16AS15HB1 | 9C | not dumped |
Others
1x 36x2 thin edge connector
1x red LED (9D)
1x trimmer (volume) (1F)
1x trimmer (unknown) (9A)
1x 8 DIP switches bank (2F)
1x 3x2 jumpers IMP (9A)
1x battery 3.6V (1F)
Notes
PCB is marked: "VIDEOS A A"
It's manufactured in Italy
very similar to Lady Gum, Paradar and Winner
Files
-

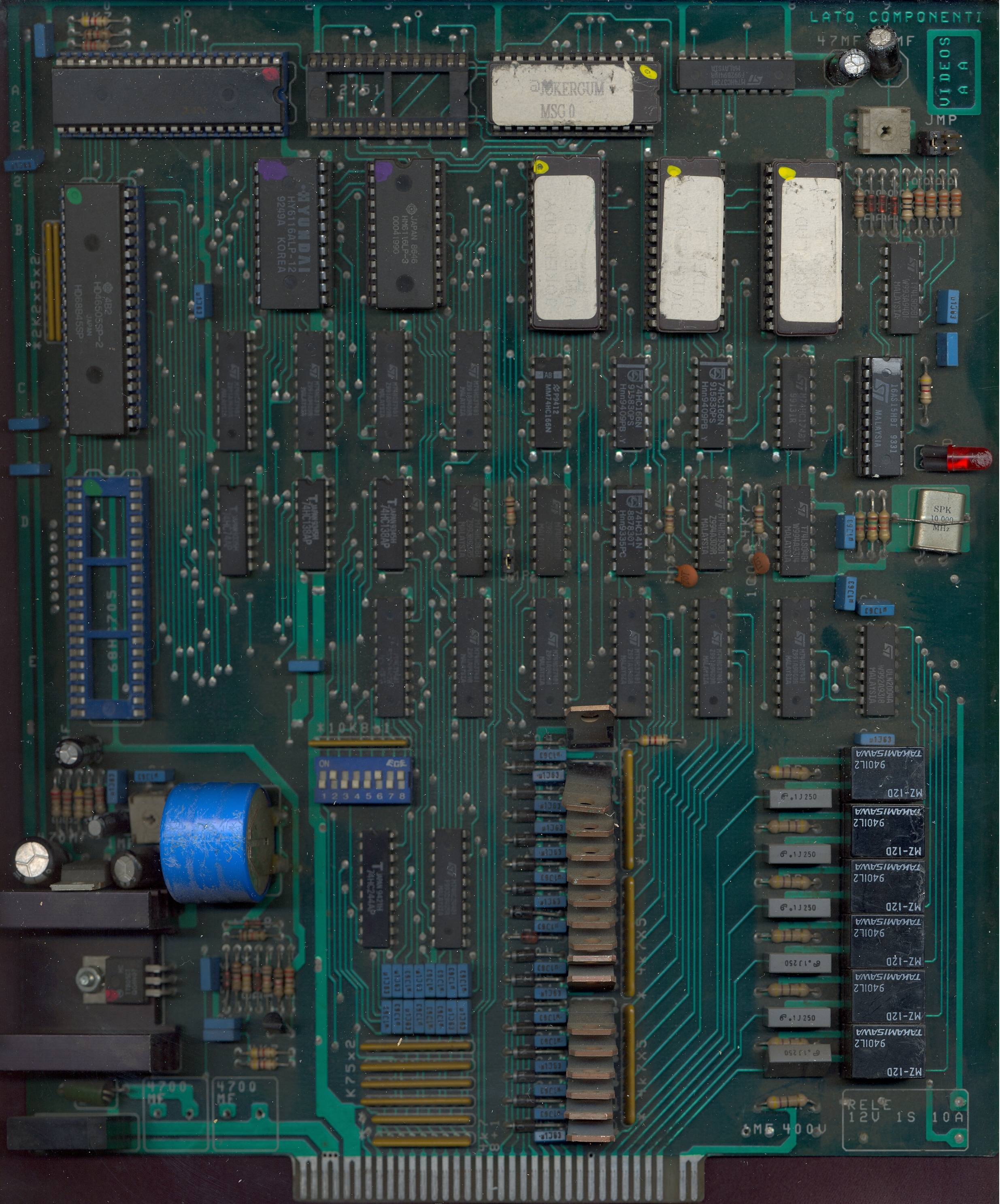

PCB component side
-

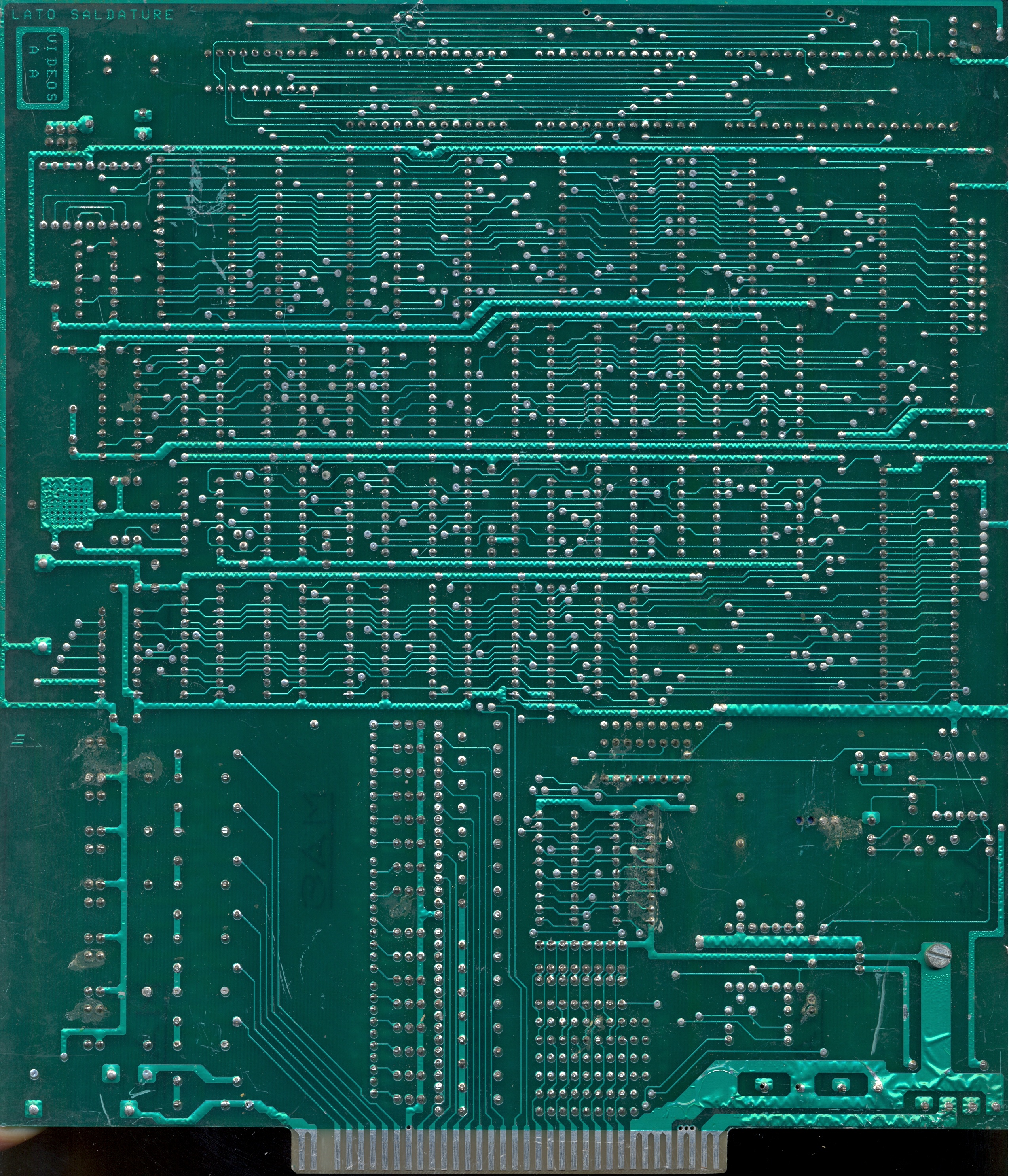

PCB solder side
