Super Game Mega Type 1
| dumper | Tirino73 |
| date | 05/09/2013 |
| emulator | MAME 0.150 |
| dev | Mariusz Wojcieszek |
| name | sgmt1 on ProgettoEMMA sgmt1 on Arcade Database |
| description | Super Game Mega Type 1 |
| year | 1994 |
| manufacturer | Kim |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | UA6527 | 8-bit Microprocessor - main | ||
| 1x | UA6528 | Picture Processing Unit (PPU) - Video | ||
| 1x | uPD1352C | NTSC to RGB decoder - video | ||
| 1x | unknown DIP24-600mil | MCU or PLD that simulate the memory mapper (MMC1) | ||
| 1x | unknown DIP40-600mil | MCU or PLD that simulate the memory mapper (MMC3) | ||
| 1x | oscillator | 21.47727 | ||
| 1x | oscillator | 3.579545 | for decoder |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C512 | 1 | dumped |
| 1x | 27C010 | 4 | dumped |
| 4x | 27C040 | 2,3,6,7 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | SRAM 2k x 8 | |
| 3x | SRAM 8k x 8 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | unknown | used as protection. PCB doesn't boot without it. | |
| 2x | PAL16V8 | 2,3 | read protected |
Others
1x JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank
Notes
Super Game Mega Type 1 by Kim 1994
This romset comes from an "original" pcb.Like Multigame series,this is another Nintendo PlayChoice-10 hacked clone but hardware based on the Nes/Famicom console.This one supports 7 games only but all with memory size of 2 megabit and over and all platform game type.
Games are:
1) Rockman 5 (Megaman 5)
2) Ninja 2 (Ninja Ryukenden)
3) Tom & Jerry and Tuffy
4) Island II (Adventure Island II-Hudson's Wonder Boy II)
5) Rainbow (Time Zone)
6) Super Mario Bros 3
7) Swap (Super Rescue Solbrain)
Hardware info:
Main cpu UA6527 (RP2A03 clone)
Video PPU UA6528 (RP2C02 clone)
There are present 3 custom ic,all with ID code erased:
-Custom 1 is a 24 pin DIP (probably a PAL) that simulates the Memory Mapper Chip #1 (MMC1) used by Ninja Ryukenden
-Custom 2 is a 40 pin DIP (a MCU or PLD) that simulates the Memory Mapper Chip #3 (MMC3) used by all other games
-Custom 3 is a 44 pin chip,used as protection.Pcb doesn't boot without it.
Other ic NEC upc1352C NTSC to RGB decoder
PAL16V8 x2 (pal2,pal3) There is space for a pal1 but it is unpopulated
OSC: 21,47727 Mhz and 3,58 Mhz (used by decoder)
RAMs:
Work 16kb (6264 x2)
Video 10kb (6116 + 6264)
Rom info:
sg1_rom1 main program
sg1_rom2 to sg1_rom7 games data.There are spaces for rom5 and rom8 but they are unpopulated.
Eproms are 27512,27010,274001
DIP Switch settings (by direct test):
SW 1 2
OFF OFF 10 minutes game (per credit)
ON OFF 5 minutes game
OFF ON 8 minutes game
ON ON 3 minutes game
SW 3 4
OFF OFF 3 coin 1 credit
ON OFF 2 coin 1 credit
OFF ON 1 coin 2 credits
ON ON 1 coin 1 credit
SW 5,6,7,8 not used
update 20220302: better description
Files
-

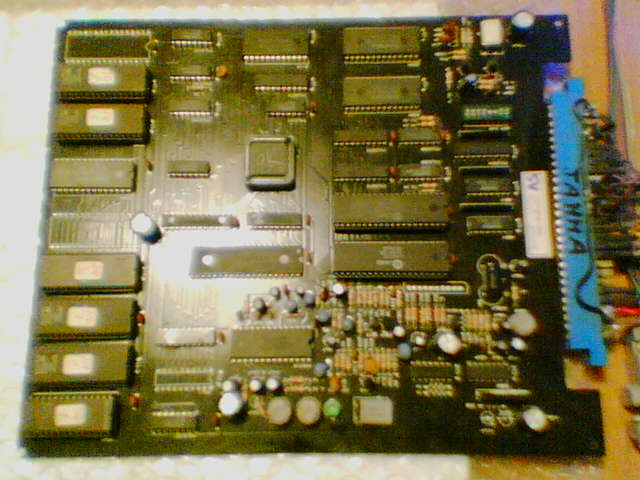

PCB component side 1
-

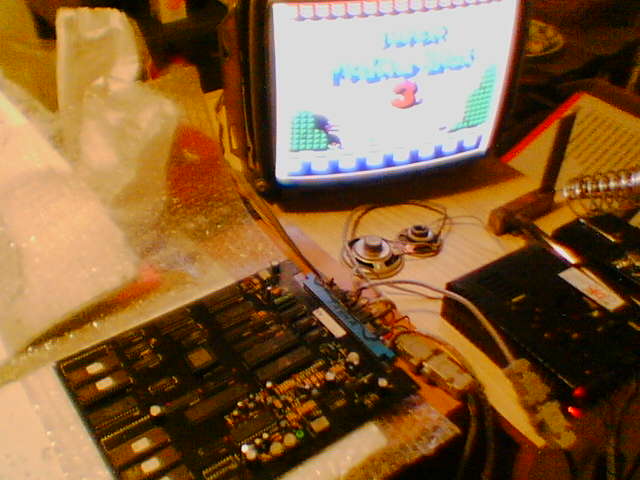

PCB component side 2
-

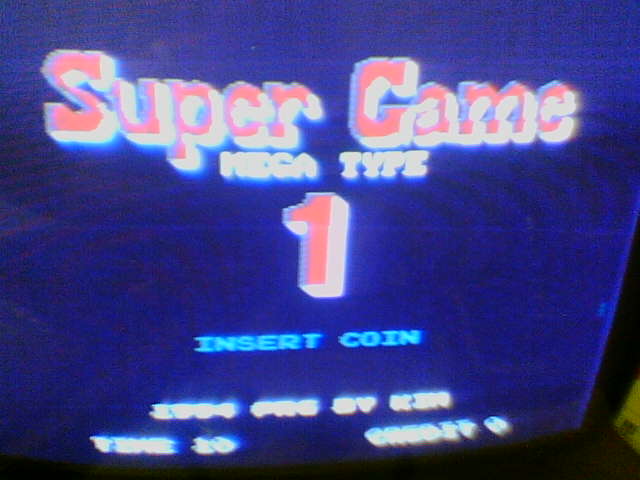

Title 1
-

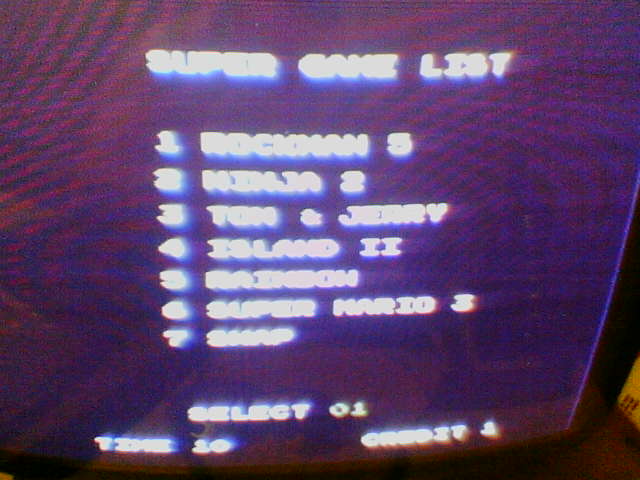

Title 2
-

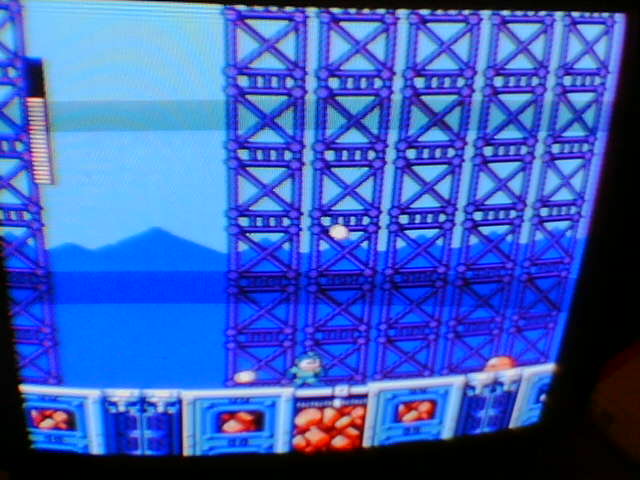

In game 1
-

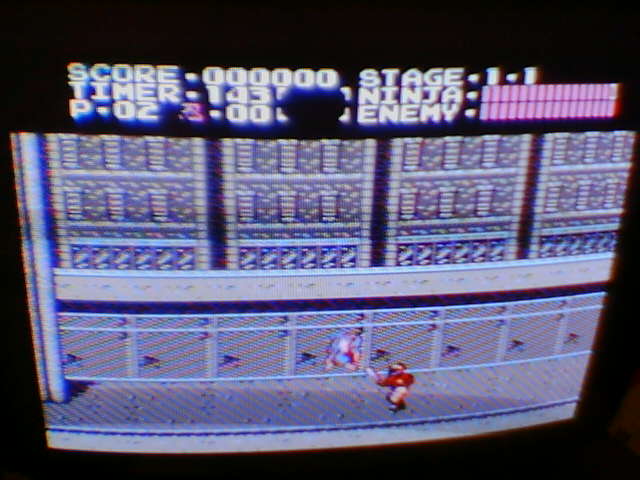

In game 2
-

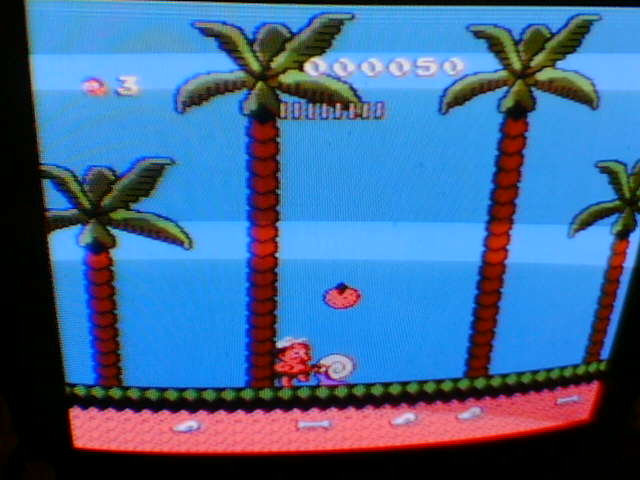

In game 3
-

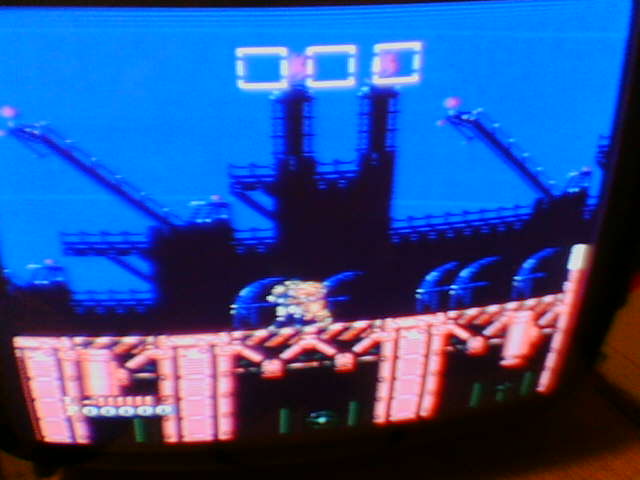

In game 4
-
Read me
