EMU Infos
dumper f205v, Corrado Tomaselli, Gnoppi
date 17/02/2005
emulator MAME 0.115u2
dev Mariusz Wojcieszek
PCB Infos
name multigam on Arcade Database
description Multi Game (set 1)
year 1992.06.15
manufacturer

Technical references

CPUs

QTY Type clock position function
1x RP2A03 2010 8-bit Microprocessor - main
1x RP2C02 2011 Picture Processing Unit (PPU) - Video
1x AN5310K NTSC to RGB decoder - video
1x uPC1241 - Audio Amplifier - sound
1x oscillator 21.47727
1x oscillator 3.579545 for decoder

ROMs

QTY Type position status
1x 27C256 7 dumped
9x 27C010A 1-2-3-4-5-6-8-9-10 dumped

RAMs

QTY Type position
1x GM76C28-10
1x HY6264AP-

PLDs

QTY Type position status
1x PAL20L8PC15 read protected
1x 16CV8 read protected
1x PAL16L8 read protected

Others

1x 28x2 JAMMA edge connector
1x trimmer (volume)
1x 8 DIP switches bank

Notes

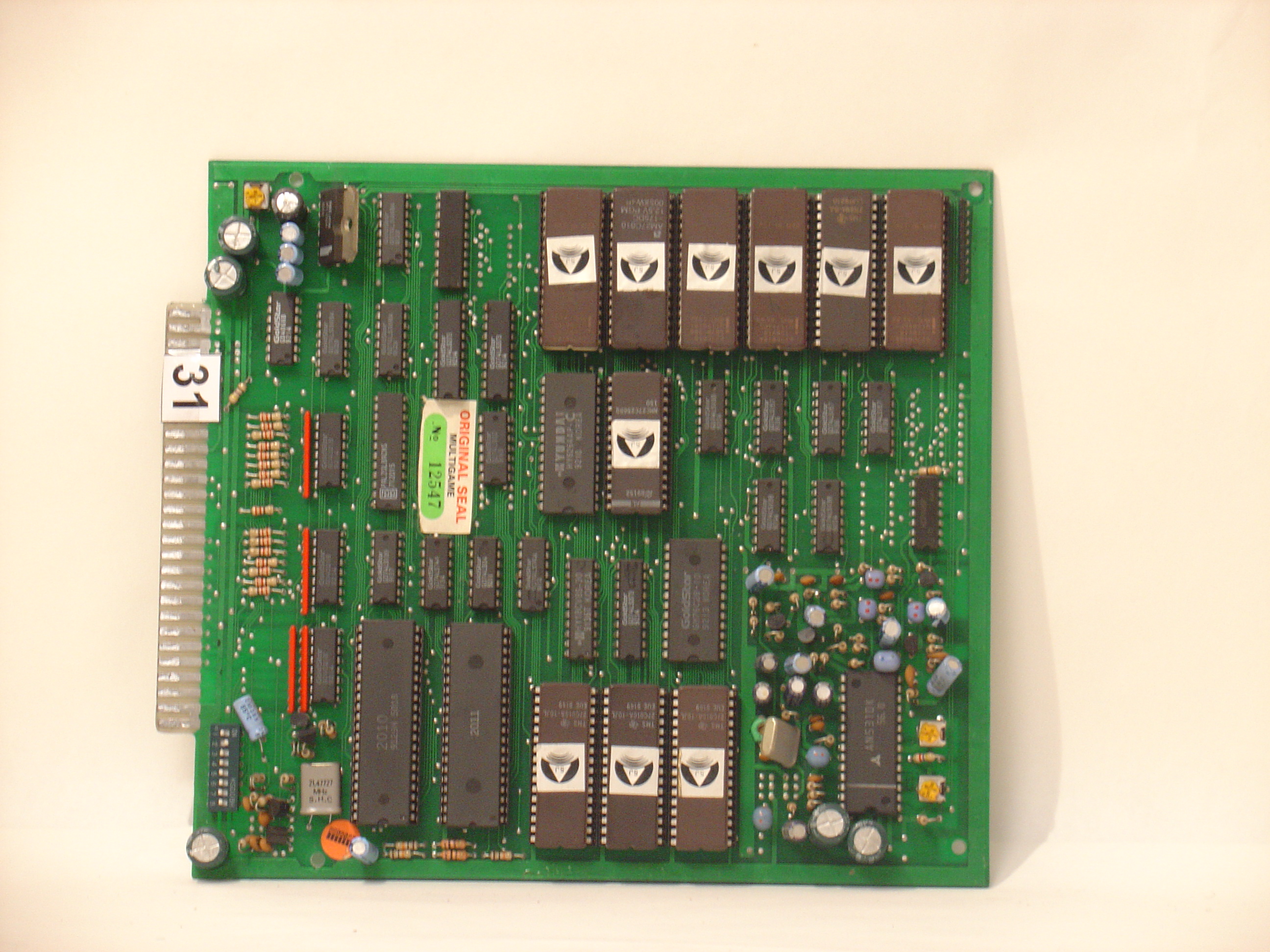

PCB is labeled: "ORIGINAL SEAL MULTIGAME N° 12547" on component side

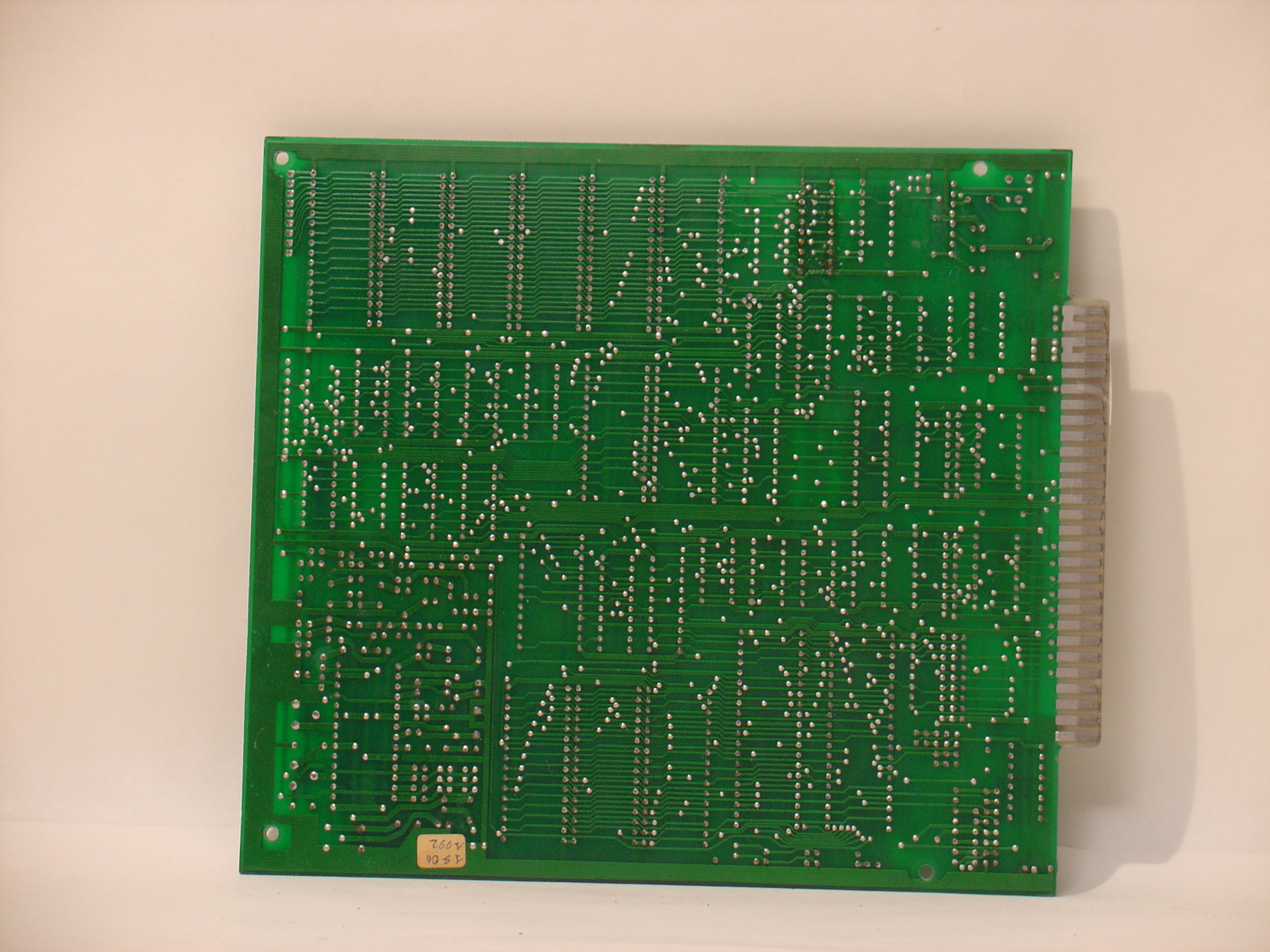

PCB is labeled: "15061992" on solder side


update 20220302: better description
