Ultimate Tennis
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 24/06/2018 |
| emulator | MAME 0.64 |
| dev | Aaron Giles |
| name | ultennis on ProgettoEMMA ultennis on Arcade Database |
| description | Ultimate Tennis |
| year | 1993.10 |
| manufacturer | Art & Magic |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MC68000P12 | MHz | u100 | 16/32-bit Microprocessor - main |
| 1x | TMS34010FNL-40 | MHz | u700 | Graphics System Processor - Video |
| 1x | UM70C171-80 | MHz | u140 | Color Palette with Triple 6-bit DAC |
| 1x | PIC16C54-Xt/P | MHz | u125 | 8bit CMOS Microcontroller (internal ROM not dumped) |
| 1x | M6295 | MHz | u150 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound |
| 1x | LM224N | u160 | Quad Operational Amplifier - sound | |
| 1x | TDA1519 | u161 | Audio Amplifier - sound | |
| 1x | oscillator | 25.0 | u113 | |
| 1x | oscillator | 40.0000 | u114 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS27C020 | u101 | dumped |
| 2x | M27C2001 | u102, u151 | dumped |
| 1x | MaskROM | u133 | dumped (read as OKI MR27V1602D) |
| 1x | CAT28C16A | u105 | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 12x | UD61464DC | u300-u303, u800-u807 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TPC1020AFN-084C | u110 | read protected (label A&M001B1093 16A U110) |
| 1x | XC9572-PC44C | u111 | read protected (label A&M001B1093 15A U111) |
| 1x | PAL16L8ACN | u205 | read protected (label A&M001B1093 01A U205) |
| 1x | PAL16R8ACN | u310 | read protected (label A&M001B1093 02A U310) |
| 1x | PAL16L8ACN | u311 | read protected (label A&M001B1093 03A U311) |
| 1x | PALCCE16V8H-15PC/4 | u604 | read protected (label A&M001B1093 04A U604) |
| 1x | PAL16R4ACN | u206 | read protected (label A&M001B1093 05A U206) |
| 1x | PAL16L8ACN | u126 | read protected (label A&M001B1093 06A U126) |
| 1x | PAL16L8ACN | u705 | read protected (label A&M001B1093 07B U705) |
| 1x | PAL16R4BCN | u916 | read protected (label A&M001B1093 08A U916) |
| 1x | PAL16L8BCN | u903 | read protected (label A&M001B1093 09B U903) |
| 1x | PAL16L8BCN | u917 | read protected (label A&M001B1093 10B U917) |
| 1x | PALCE16V8H-10Pc/4 | u112 | read protected (label A&M001B1093 11A U112) |
Others
1x 28x2 JAMMA edge connector
1x trimmer (SPEAKER VOLUME)
2x 8 DIP switches banks (CONFIGURATION SWITCHES)
1x green LED (OK)
2x red LEDs (ERROR, FATAL)
Notes
PCB is marked: "A PRODUCT OF ART & MAGIC MADE IN BELGIUM" and "COMPONENT SIDE" on component side
PCB is marked: "PCD/2795/182/1.1" and "DELTATEC 1993 MADE IN BELGIUM" and "SOLDER SIDE"on solder side
PCB is labeled: "AM001B1093" and "1203" on component side
label format is: --------------- | A&M001B1093 | -> manufacturer + game number + date | 14A U151 | -> component number and position ---------------
Files
-

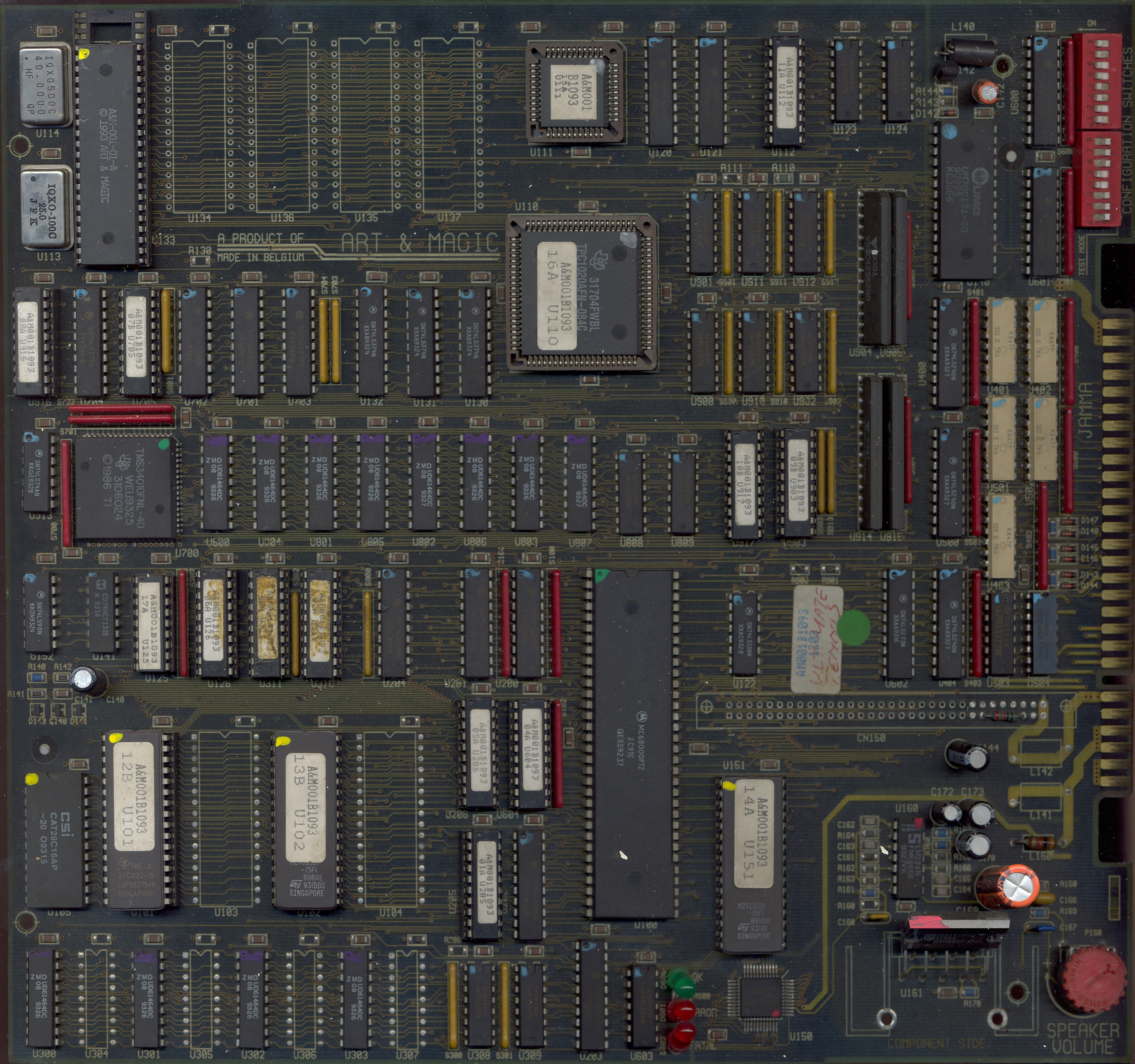

PCB component side
-

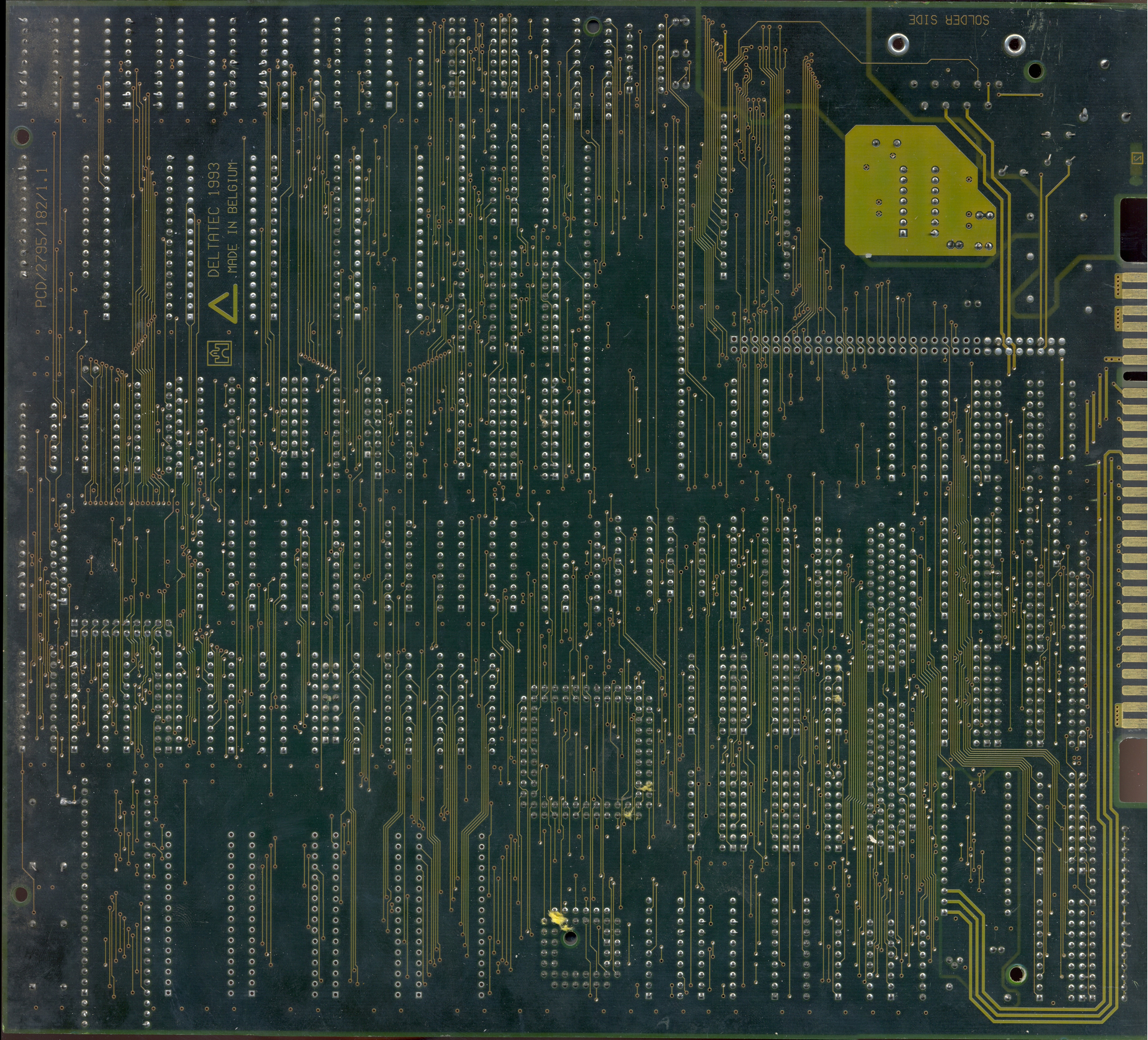

PCB solder side
-

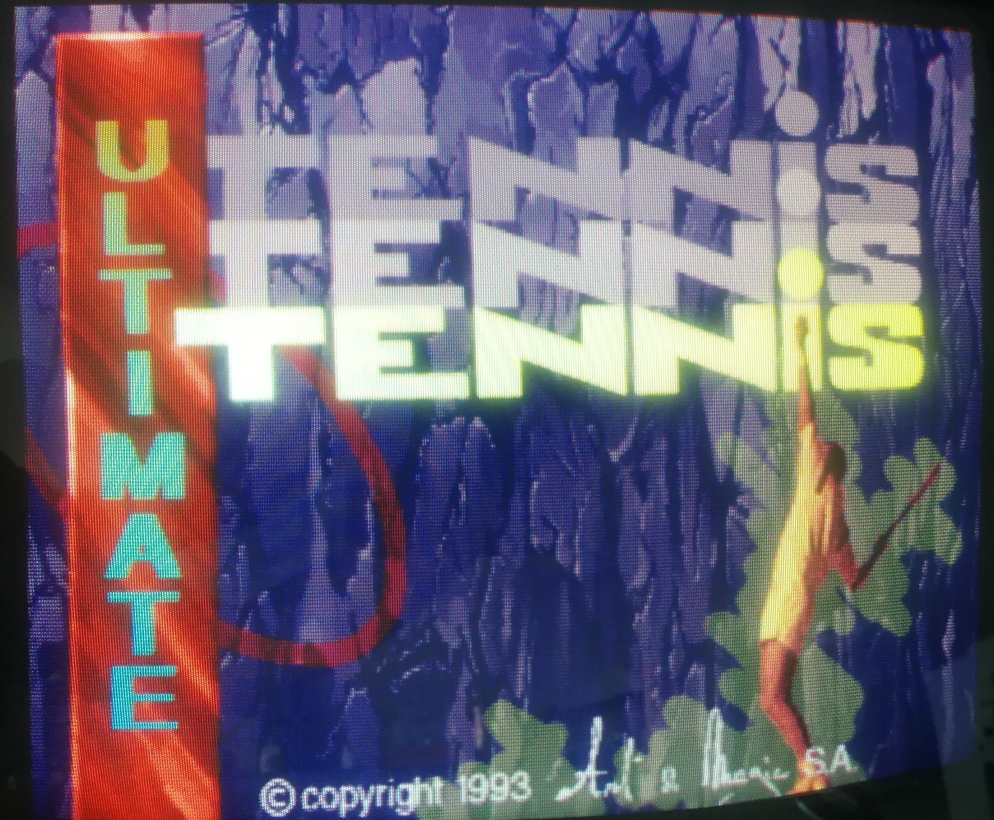

Title
-
