dumper  f205v
date  24/10/2021
emulator
dev
name  1742
description  T.V. Poker (alt)
year  1979
manufacturer  Sircoma
Technical references
CPUs
QTY  Type  clock  position  function

1x  P4040  MHz(@10)  MHz(@11)  4  4bit Microprocessor
1x  P4201A  MHz(@7)  MHz(@8)  3  Clock Generator
1x  P4289  8  Standard Memory Interface
1x  oscillator  4.000MHz  Y1
1x  oscillator  9.072MHz  Y2
ROMs
QTY  Type  position  status

1x  2732  11  dumped
2x  IM5623CPE  38,68  dumped
1x  DM74S287N  26  dumped
2x  N82S23N  17,69  dumped
1x  SN74S188N  20  dumped
1x  MMI63301J  21,22  dumped
1x  N82S123N  62  dumped
1x  SN74S288N  71  dumped
1x  DM74S474N  48  dumped
1x  M376415  59  dumped
3x  SN74186N  36,39,47  not dumped yet, no compatible reader
1x  PROMs  12  not dumped, missing chips
RAMs
QTY  Type  position

1x  DM7489N  61
5x  SRAM 256 x 1  30,31,32,33,34
3x  S2111A2  42
2x  P40021  6,7
PLDs
QTY  Type  position  status

0x
Others
2x 25x2 edge connector (J1,J2)
Notes
PCB is marked: "T.V POKER", "ASSY  510075", and "A1 SUPPLY RENO,NV,U.S.A." on component side
PCB is marked: "WS510073" on solder side
Full components list:
position  marking1  marking2  date  label  socket  size  type  number  notes  dumped

1  NE555P  soldered  DIP8300mil  other  555  timer
2  SN7445N  7806  soldered  DIP16300mil  TTL  7445  decimal decoder driver, inverted output
3  P4201A  3704B  socketed  DIP16300mil  CPU support  4201  clock generator
4  P4040  Philippines  7806  socketed  DIP24600mil  CPU  4040
5  empty  socketed  DIP16300mil
6  P40021  2338B  socketed  DIP16300mil  SRAM  4002  320bit RAM (4 regs of 20x4bits)
7  P40021  2338B  socketed  DIP16300mil  SRAM  4002  320bit RAM (4 regs of 20x4bits)
8  D4289  INTEL ‘75  3264B  soldered  DIP40600mil  CPU support  4289  standard memory interface
9  SN74LS04N  7732  soldered  DIP14300mil  TTL  7404  6x NOT
10  SN74LS04N  7732  soldered  DIP14300mil  TTL  7404  6x NOT
11  scratched  socketed  DIP24600mil  ROM  2732  on a small piggyback PCB “ASSY 510120 REV B MADE IN U.S.A.”  dumped
12  empty  socketed  DIP24600mil  ROM  not dumped, missing
13  SN7404N  7740  socketed  DIP14300mil  TTL  7404  6x NOT
14  GD74LS04  9143  socketed  DIP14300mil  TTL  7404  6x NOT
15  SN7404N  7749  soldered  DIP14300mil  TTL  7404  6x NOT
16  SN74107N  BHA  7810  soldered  DIP14300mil  TTL  74107  2x FlipFlop JK c/ Clear
17  N82S23N  7910  750098  socketed  DIP16300mil  ROM  32x8 OC  dumped
18  SN74107N  BHA  7810  soldered  DIP14300mil  TTL  74107  2x FlipFlop JK c/ Clear
19  SN74107N  7731  soldered  DIP14300mil  TTL  74107  2x FlipFlop JK c/ Clear
20  SN74S188N  7749  700124  soldered  DIP16300mil  ROM  32x8 OC  dumped
21  MMI63301J  8002  socketed  DIP16300mil  ROM  32x8 OC  dumped
22  MMI63301J  8024  socketed  DIP16300mil  ROM  32x8 OC  dumped
23  SN7404N  7749  soldered  DIP14300mil  TTL  7404  6x NOT
24  SN7404N  7749  soldered  DIP14300mil  TTL  7404  6x NOT
25  SN74193N  CHA  7721  soldered  DIP16300mil  TTL  74193  Syncronous 4 Bits Up/Down Binary Counters with DualClock
26  DM74S287N  N82S129N  B8306  90100600  socketed  DIP16300mil  ROM  256x4 TS  dumped
27  SN74157N  7740  soldered  DIP16300mil  TTL  74157  4x Mux 21 Bits
28  SN74157N  7740  soldered  DIP16300mil  TTL  74157  4x Mux 21 Bits
29  SN7404N  7749  soldered  DIP14300mil  TTL  7404  6x NOT
30  scratched  soldered  DIP16300mil  SRAM  256x1 TS
31  scratched  soldered  DIP16300mil  SRAM  256x1 TS
32  scratched  soldered  DIP16300mil  SRAM  256x1 TS
33  scratched  soldered  DIP16300mil  SRAM  256x1 TS
34  scratched  soldered  DIP16300mil  SRAM  256x1 TS
35  SN7400N  M7740  soldered  DIP14300mil  TTL  7400  4x NAND 2
36  SN74186N  P7710  700118  soldered  DIP24600mil  ROM  64x8 OC  not dumped, soldered
37  SN74151AN  7740  soldered  DIP16300mil  TTL  74151  Mux 81 Bits
38  IM5623CPE  8031S1  750142  socketed  DIP16300mil  ROM  256x4 TS  dumped
39  SN74186N  AP7515  700119A  soldered  DIP24600mil  ROM  64x8 OC  not dumped, soldered
40  T74LS04B1  98929N  socketed  DIP14300mil  TTL  7404  6x NOT
41  F74193PC  INDONESIA  8040  socketed  DIP16300mil  TTL  74193  Syncronous 4 Bits Up/Down Binary Counters with DualClock
42  S2111A2  7802D  soldered  DIP18300mil  SRAM  256x4 TS
43  SN7404N  AHA  7744  soldered  DIP14300mil  TTL  7404  6x NOT
44  SN74125N  M7740  soldered  DIP14300mil  TTL  74125  4x Buffer TS enable lowactive
45  not present
46  N8234N  7806  soldered  DIP16300mil  TTL  2 Input 4Bit Digital Multiplexer
47  SN74186N  AP7515  700120  soldered  DIP24600mil  ROM  64x8 OC  not dumped, soldered
48  DM74S474N  B8644  socketed  DIP24600mil  ROM  512x8 TS  dumped
49  F74193PC  INDONESIA  8040  socketed  DIP16300mil  TTL  74193  Syncronous 4 Bits Up/Down Binary Counters with DualClock
50  SN74175N  7723  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
51  SN74175N  A4  7807  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
52  SN74175N  7736  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
53  SN74175N  7723  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
54  SN74175N  AZ  7806  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
55  SN74175N  AZ  7806  soldered  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
56  F74175PC  INDONESIA  QM7940  socketed  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
57  F74175PC  INDONESIA  QM7940  socketed  DIP16300mil  TTL  74175  4x FlipFlop D c/ Clear
58  SN7442AN  7806  soldered  DIP16300mil  TTL  7442  4Line BCD to 10Line Decimal Decoders
59  M376415  8021  750143  socketed  DIP24600mil  ROM  512x8 TS  dumped
60  74193F  7914  socketed  DIP16300mil  TTL  74193  Syncronous 4 Bits Up/Down Binary Counters with DualClock
61  DM7489N  8015B  socketed  DIP16300mil  SRAM  16x4 TS
62  N82S123N  8225  socketed  DIP16300mil  ROM  32x8 TS  dumped
63  DM7425N  009  socketed  DIP14300mil  TTL  7425  2x 4 input NOR gates with strobe
64  SN7442AN  7806  soldered  DIP16300mil  TTL  7442  4Line BCD to 10Line Decimal Decoders
65  scratched  soldered  DIP16300mil  TTL  2 Input 4Bit Digital Multiplexer
66  N8234N  soldered  DIP16300mil  TTL  2 Input 4Bit Digital Multiplexer
67  SN74151AN  7749  soldered  DIP16300mil  TTL  74151  Mux 81 Bits
68  IM5623CPE  INDIA  8013  socketed  DIP16300mil  ROM  256x4 TS  dumped
69  N82S23N  7948  socketed  DIP16300mil  ROM  32x8 OC  dumped
70  GD704LS04  9143  socketed  DIP14300mil  TTL  7404
71  SN74S288N  EL SALVADOR  7932  14610  socketed  DIP16300mil  ROM  32x8 TS  dumped
72  SN74279N  EL SALVADOR  8014  socketed  DIP16300mil  TTL  74279  4x Latch SR
73  SN7442AN  7806  soldered  DIP16300mil  TTL  7442  4Line BCD to 10Line Decimal Decoders
74  SN74279N  7806  soldered  DIP16300mil  TTL  74279  4x Latch SR
75  SN74279N  7806  soldered  DIP16300mil  TTL  74279  4x Latch SR
76  7400N  8044  socketed  DIP14300mil  TTL  7400  4x NAND 2
77  UA79MG  KOREA  207804  soldered  ZIP3  other  337  voltage regulator
Y1  4.000  ECS  soldered  ZIP2  clock  4.000MHz
Y2  9.0720 MHZ  soldered  ZIP2  clock  9.072MHz
update 20211107: dumped one of the 4 soldered PROMs. The other 3 are not compatible with my EPROM reader.
Files

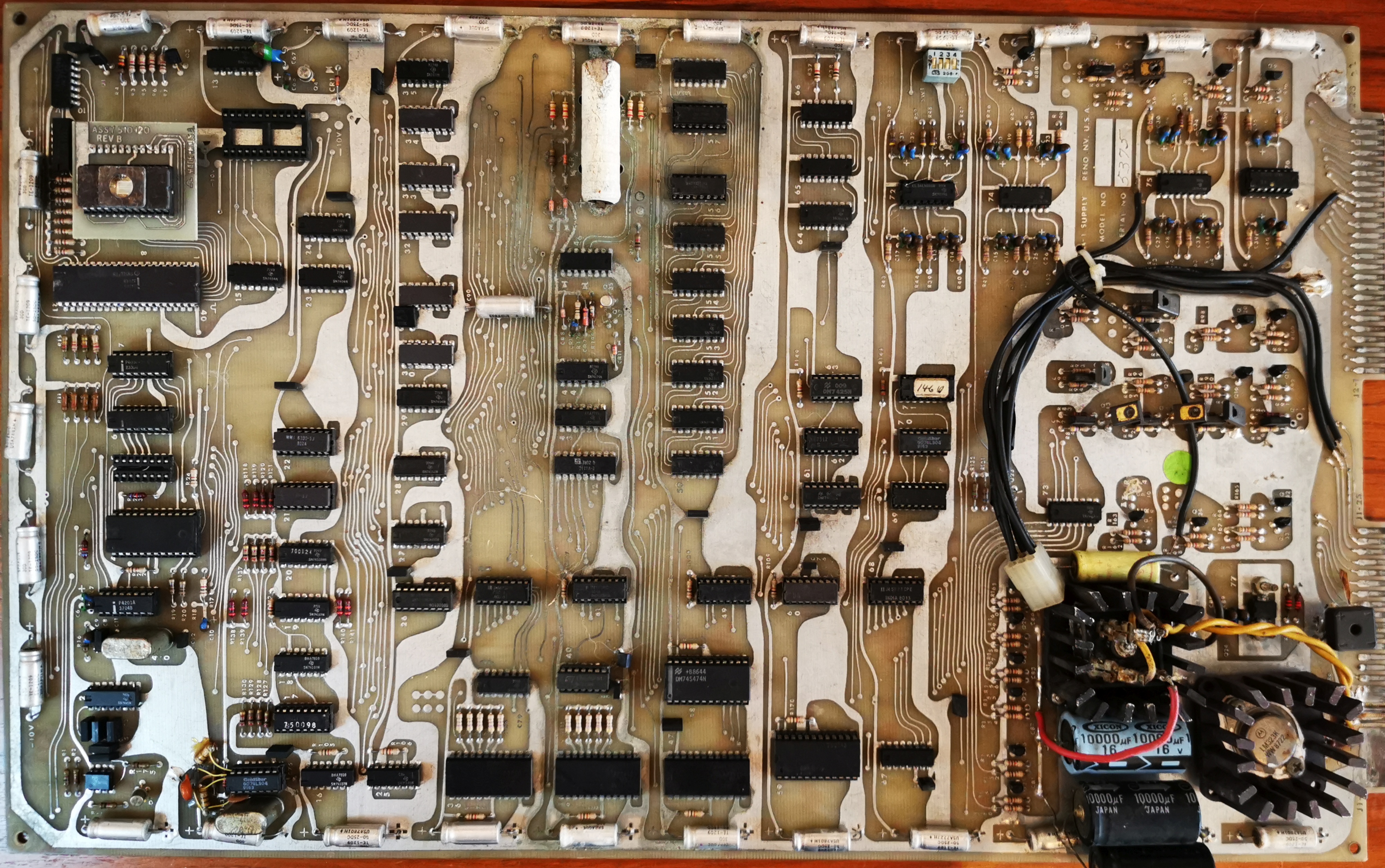

PCB component side
