Star Fighter (bootleg of Astro Fighter)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 07/01/2017 |
| emulator | MAME 0.182 |
| dev | Osso |
| name | strfight on ProgettoEMMA strfight on Arcade Database |
| description | Star Fighter (bootleg of Astro Fighter) |
| year | 1979 |
| manufacturer | VGG |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R6502-13 | 2a | 8-bit Microprocessor - main | |
| 1x | TBA810 | 2f | Audio Amplifier - sound | |
| 1x | oscillator | 10595 | 9c |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | TMS2716 | 0-5 | dumped |
| 1x | MMI6341-1J | 12c | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 19x | ITT4027 | 1-19 |
| 2x | 2114L3PC | 5b,6b |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)(1f)
1x 8 DIP switches bank (1e)
1x 4 DIP switches bank (6e)
Notes
PCB markings: "SI1499" and "BL"
PCB label: "SF G 637" (G is handwritten)
Files
-

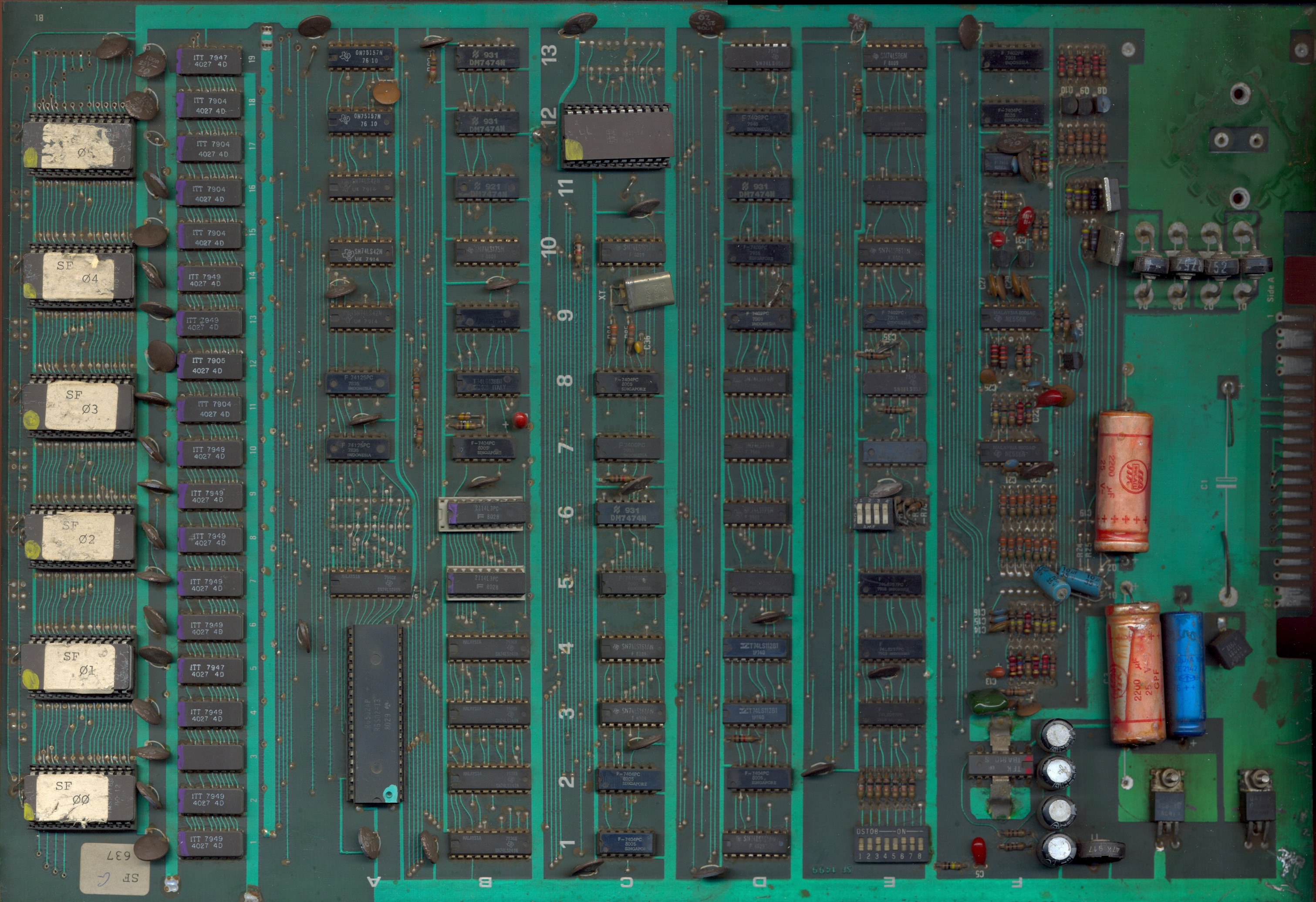

PCB component side
-

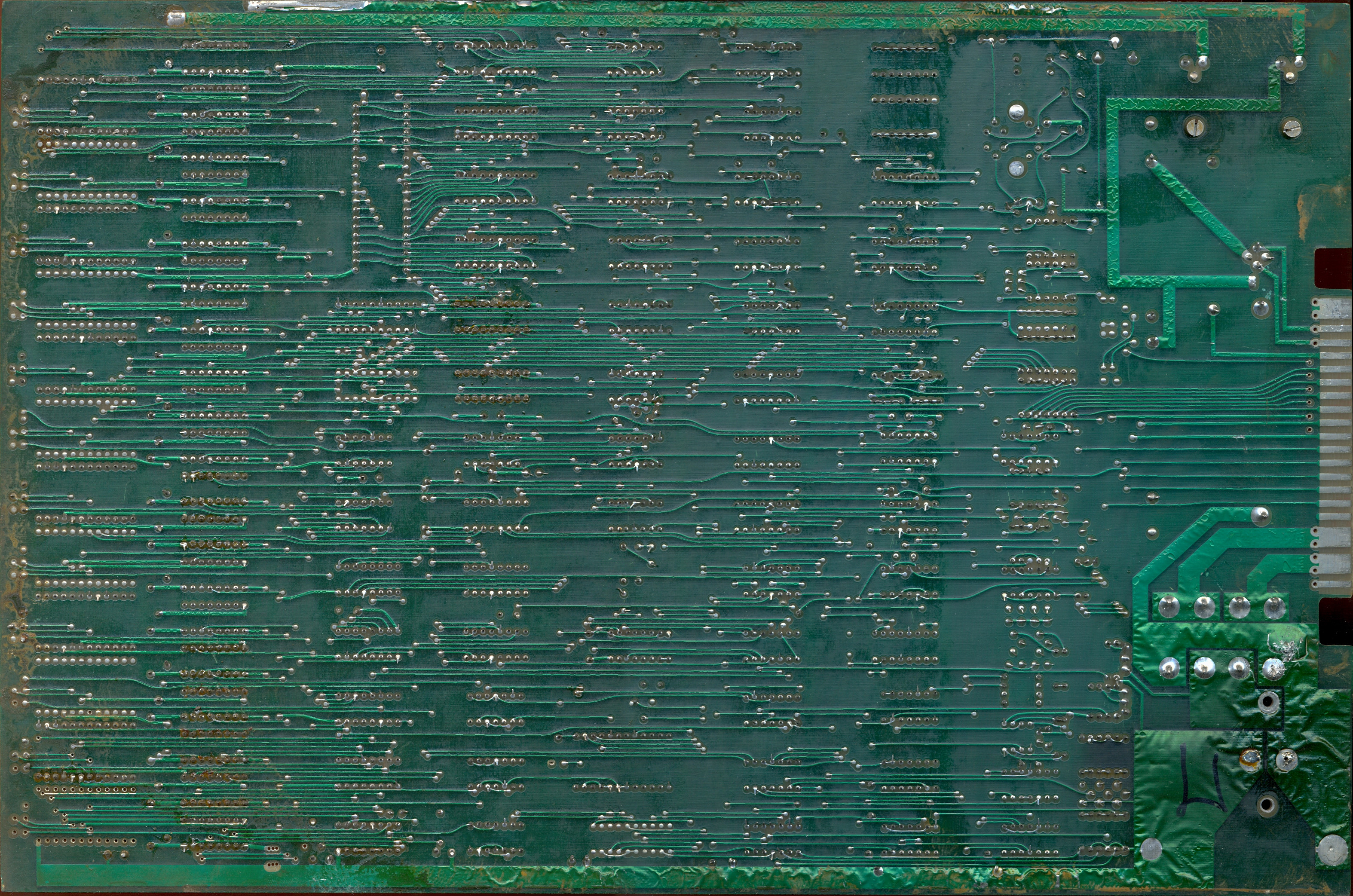

PCB solder side
