Space Attack (upright set 1)
| dumper | f205v, Corrado Tomaselli |
| date | 20/07/2005 |
| emulator | MAME 0.35b12 |
| dev | Nicola Salmoria |
| name | sspaceat on ProgettoEMMA sspaceat on Arcade Database |
| description | Space Attack (upright set 1) |
| year | 1979 |
| manufacturer | Gremlin |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80-CPU | u53 | 8-bit Microprocessor - main | |
| 1x | 315-0042 DIP40-600mil | u48 | custom - main | |
| 1x | oscillator | 18 MHz | u69 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | TMS2708JL | 1st PCB 155.u27 - 162.u20 | dumped |
| 2x | MMI6331-1 | 1st PCB u65,u66 | dumped |
| 8x | AM2708DC | 2nd PCB 155.u27 - 162.u20 | dumped |
| 1x | IM5610 | 2nd PCB 316-0043.u65 | dumped |
| 1x | MMI6331-1 | 2nd PCB 316-042.u66 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | 4027 | 1st PCB u56-u63 |
| 4x | MK4015N | 2nd PCB u56,u58,u60,u61 |
| 4x | TMS4027-30NH | 2nd PCB u57,u59,u62,u63 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 10 legs connector (power)
1x 4 legs connector (video)
3x 1 leg connector (gnd)
1x 10 legs connector (p1)
1x 10 legs connector (p3)
1x 4 legs connector (coin ctr)
1x 10 legs connector (coin door)
1x 12 legs connector (sound out)
1x 1 leg connector (ip1)
1x 1 leg connector (ip3)
1x 1 leg connector (ip4)
1x trimmer
Notes
PCB is marked: "Gremlin (R) - MADE IN U.S.A. - C.V.Logic" on component side
PCB is marked: "PCB 170-0150A" on solder side
PCB is labeled: "3-15-79" on component side
Not working - identified by Alessio I do know that MAME says it's manufactured by Sega, nevertheless my PCB is CLEARLY marked by Gremlin!
update 20110402 Finally dumped both PROMs. This is confirmed to be the B&W version.
update 20170524 I just found a 2nd PCB for the same game. Re-dumped and confirmed. Better pics.
Files
-

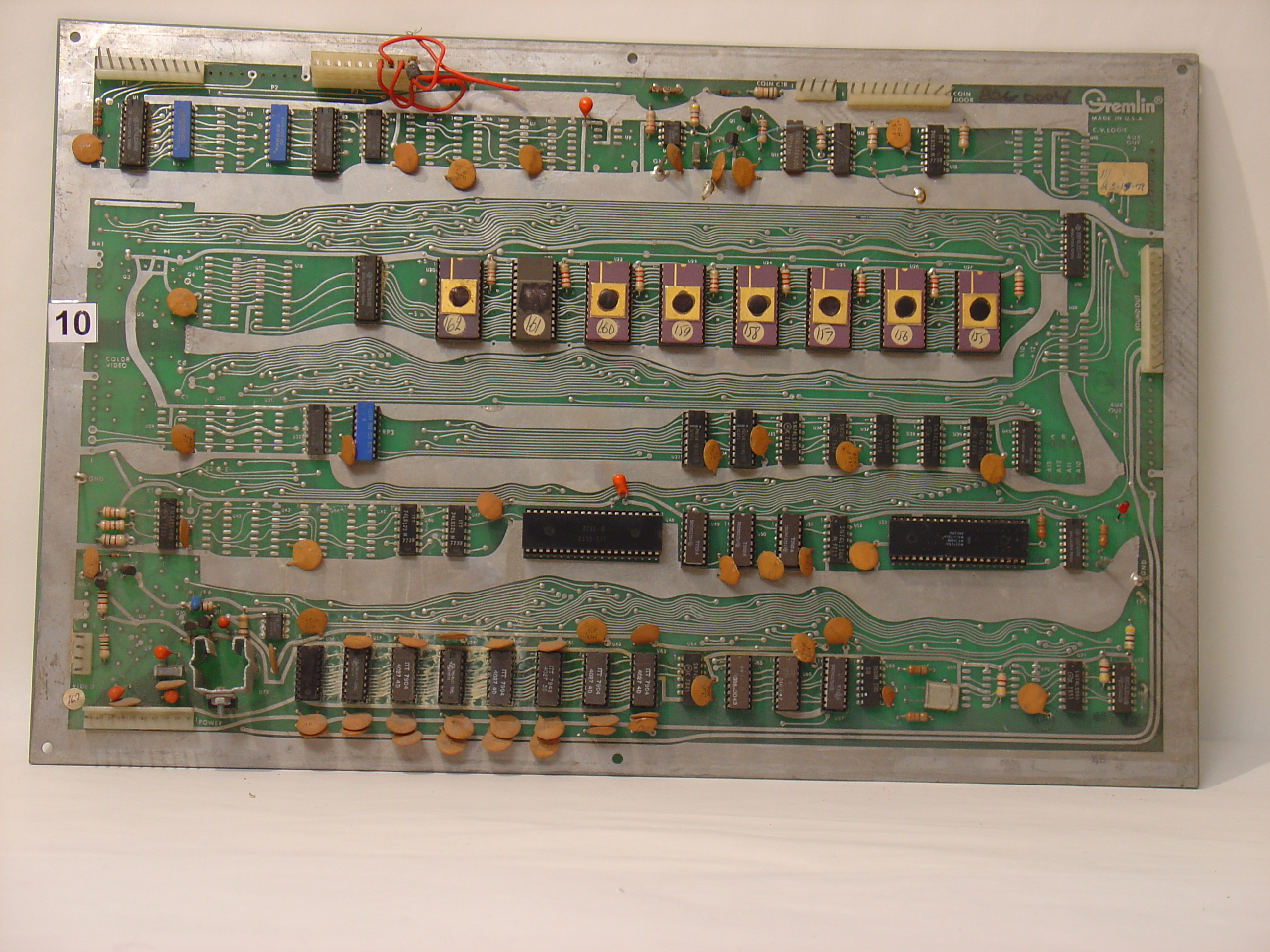

PCB component side 1
-

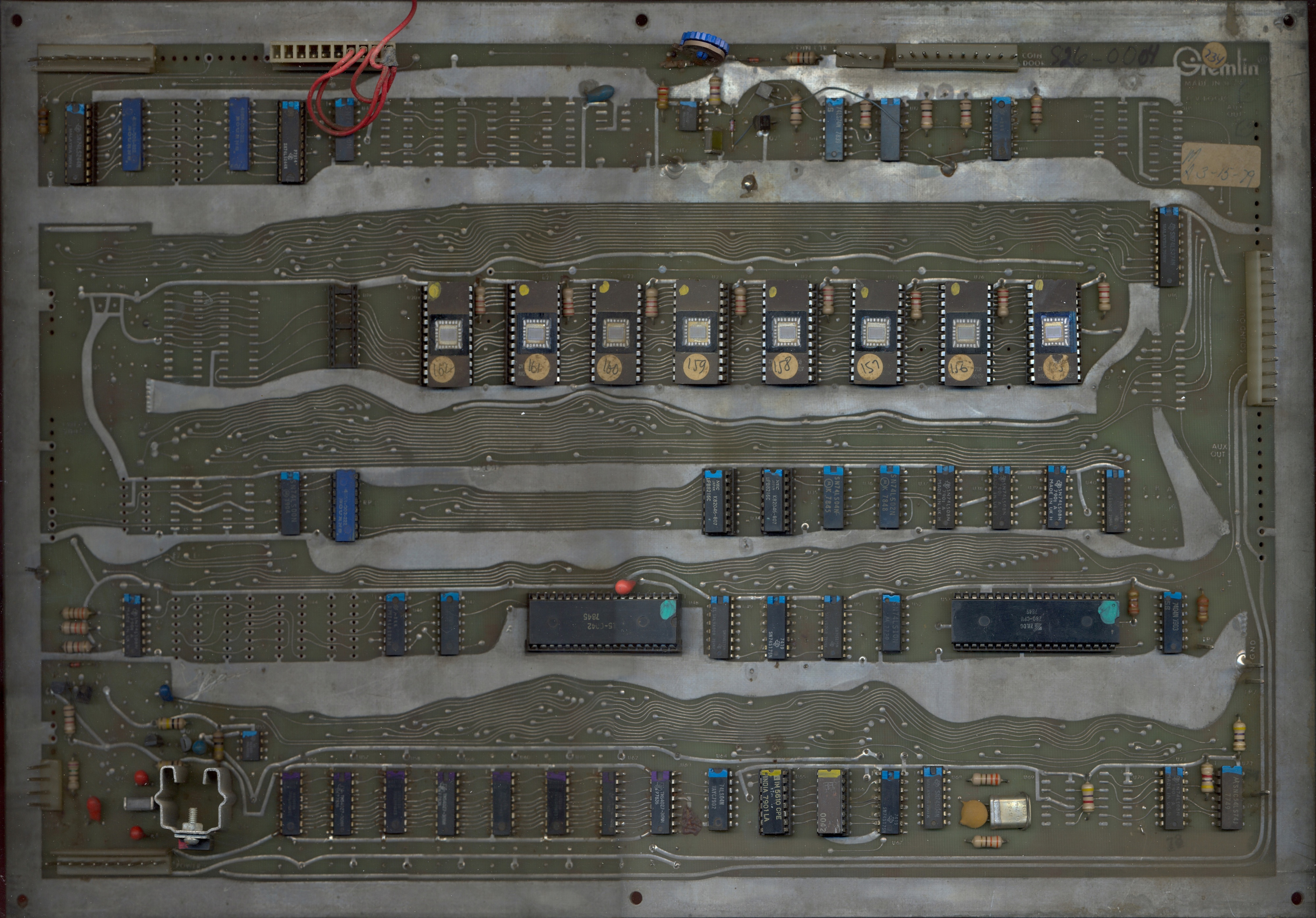

PCB component side 2
-

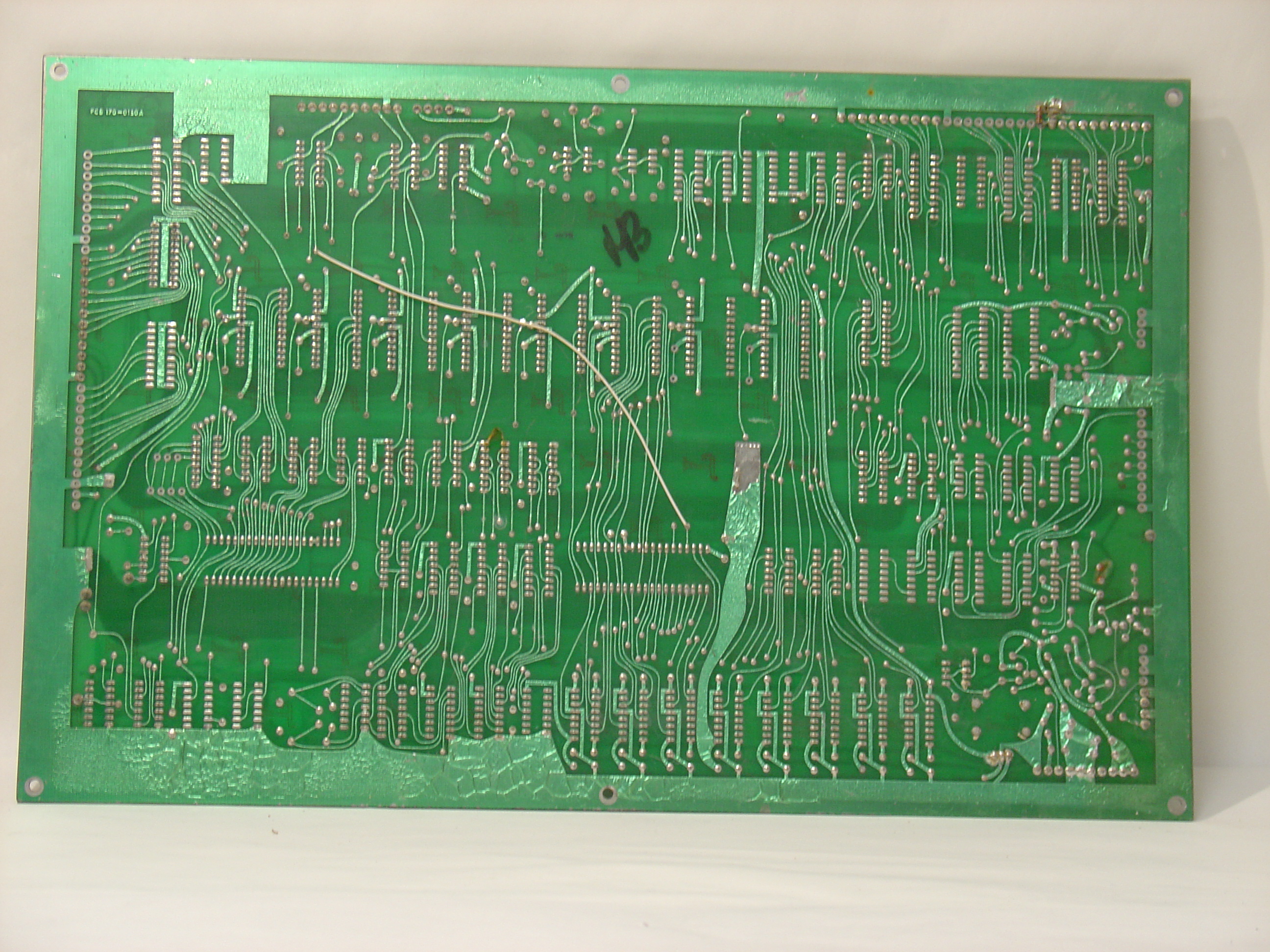

PCB solder side 1
-

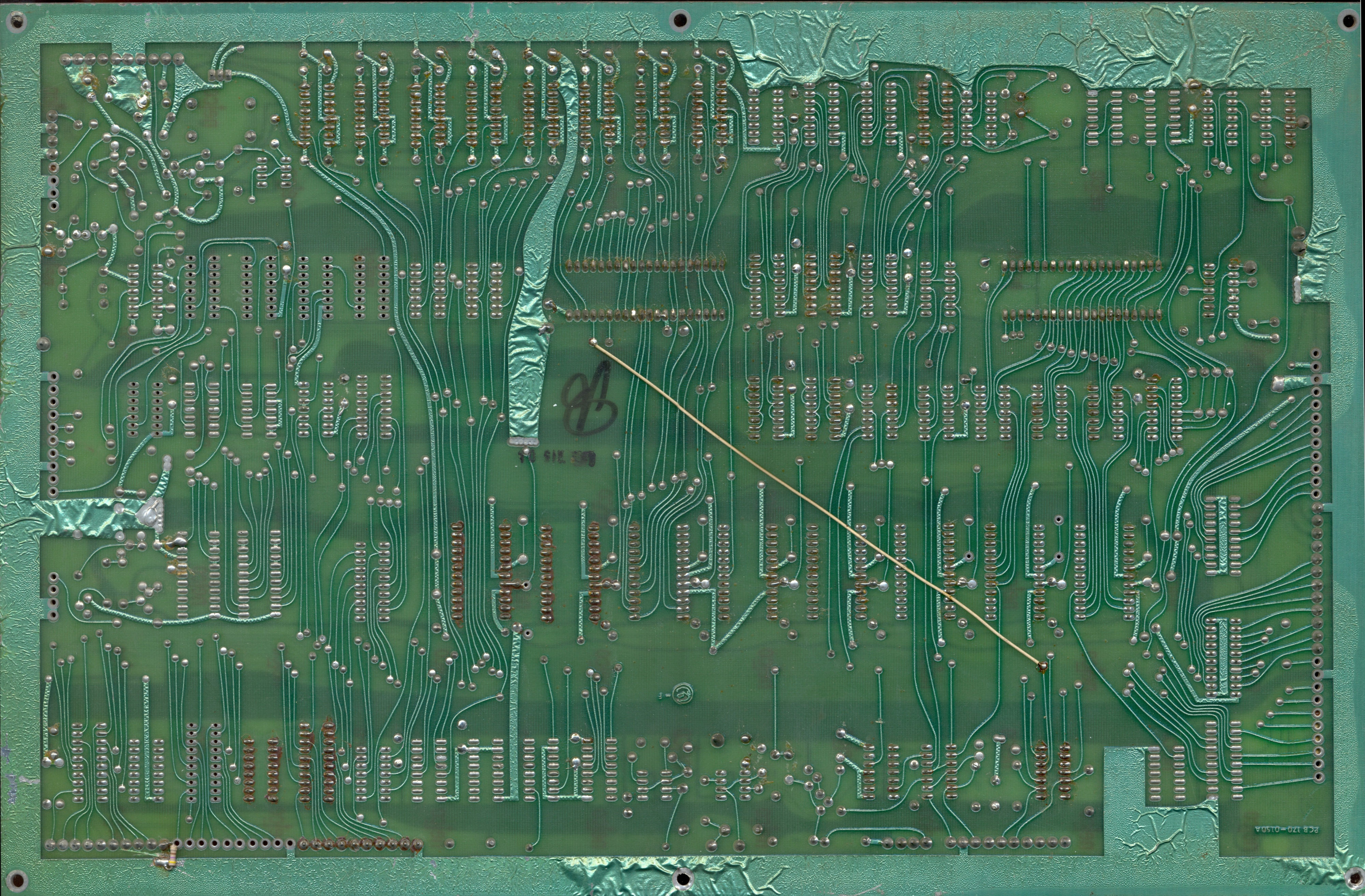

PCB solder side 2
