Rumba Lumber (rev 1)
From Citylan
Jump to navigationJump to search
| dumper | Corrado Tomaselli |
| date | 08/12/2010 |
| emulator | MAME 0.140u3 |
| dev | Corrado Tomaselli, David Haywood, Angelo Salese |
| name | rumba on Arcade Database |
| description | Rumba Lumber (rev 1) |
| year | 1984 |
| manufacturer | Taito |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | D780C-1 | 4MHz | 8-bit Microprocessor - main | |
| 1x | MC68705P5S | 3.072MHz | A23-11 | 8-bit EPROM Microcomputer Unit - main (not dumped) |
| 1x | D780C-1 | 4MHz | 8-bit Microprocessor - sound | |
| 1x | YM2149 | 2MHz | Programmable Sound Generator - sound (pin 26 high) | |
| 1x | M5232 | 2MHz | 8 Channel Tone Generator - sound | |
| 1x | oscillator | 8MHz | main | |
| 1x | oscillator | 8MHz | sound | |
| 1x | oscillator | 18.432MHz | video |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | 2764 | 8,9,10 sound board | dumped |
| 3x | 27128 | 1,2,3 video board | dumped |
| 4x | 2764 | 4,5,6,7 CPU board | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
Hardware similar to Fairyland Story except for the video board.
Wiring is the classic Taito one.
All clocks has been verified using a frequency counter.
Hardware is capable of playing samples (TTL circuit)
VSYNC = 60.55hz
Files
-

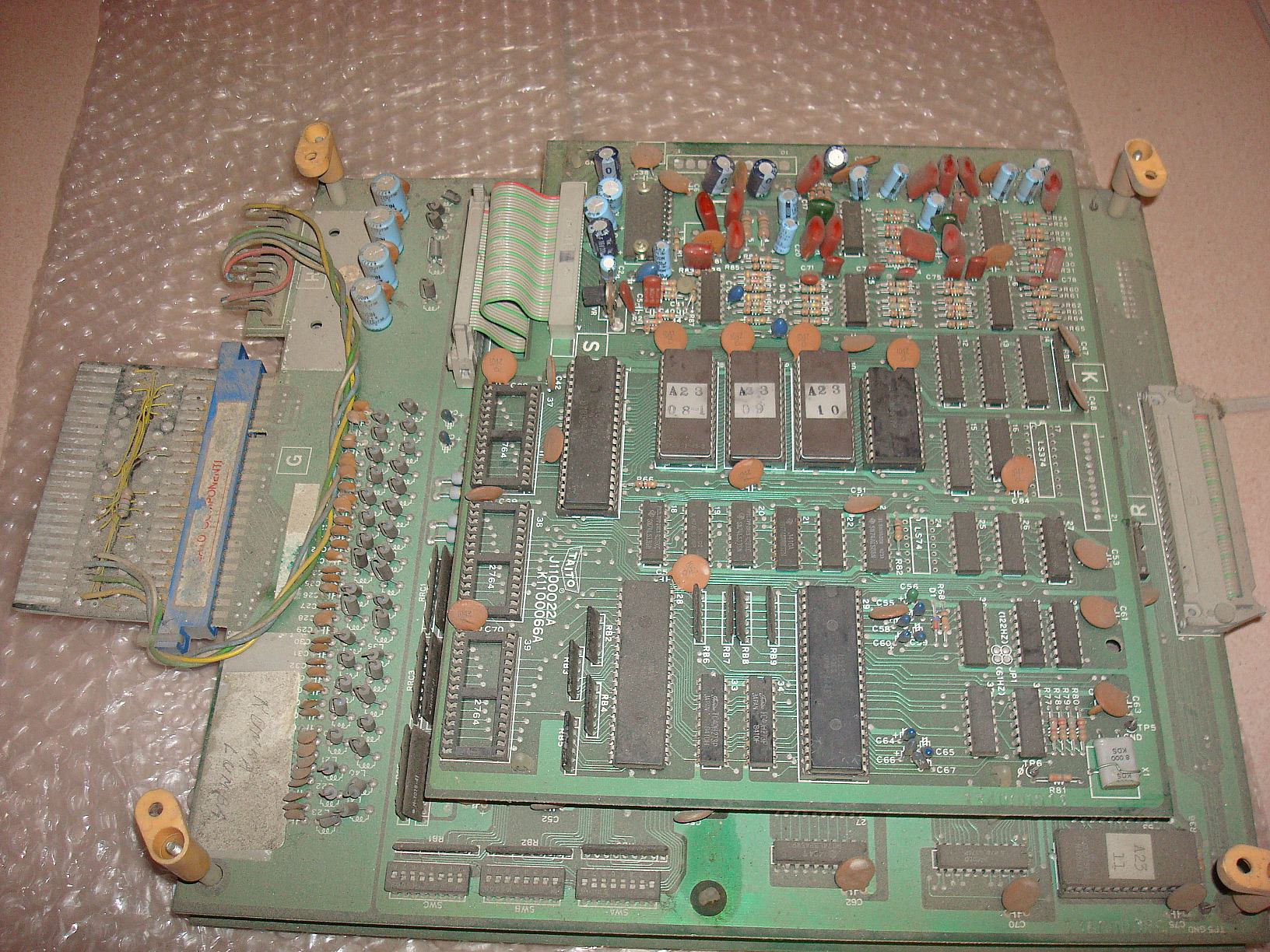

PCB component side
-

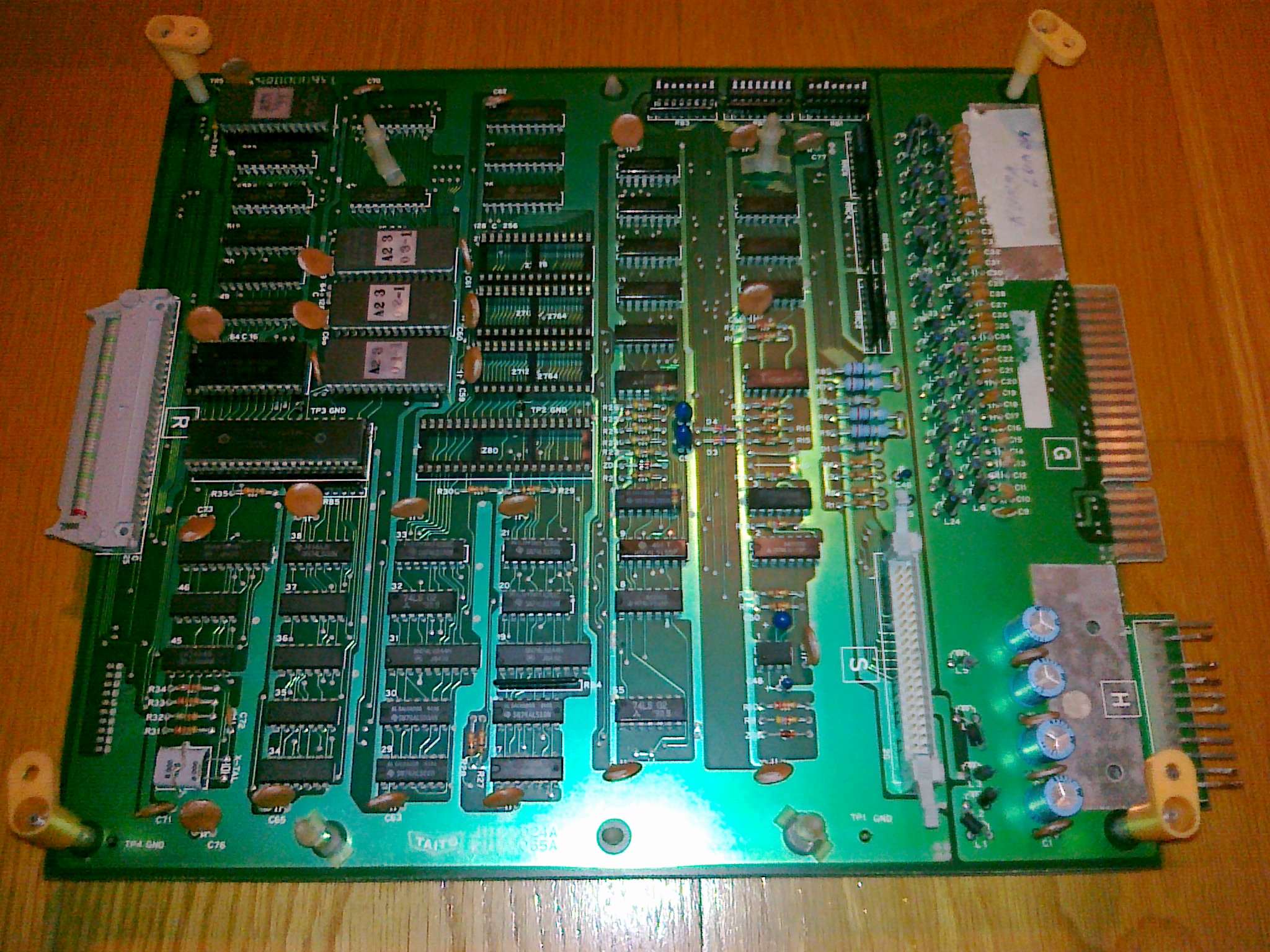

sound PCB component side
-

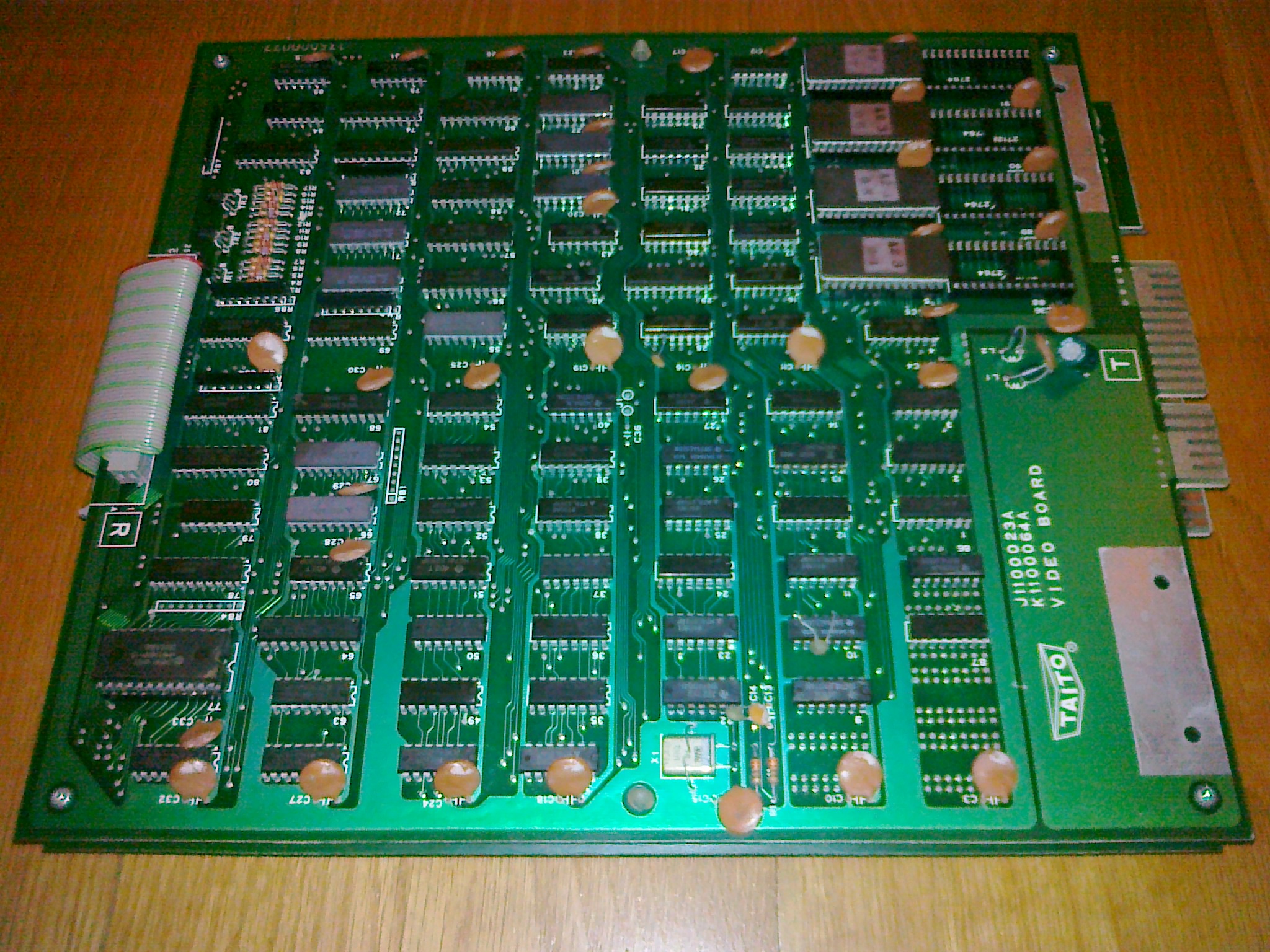

video PCB component side
-

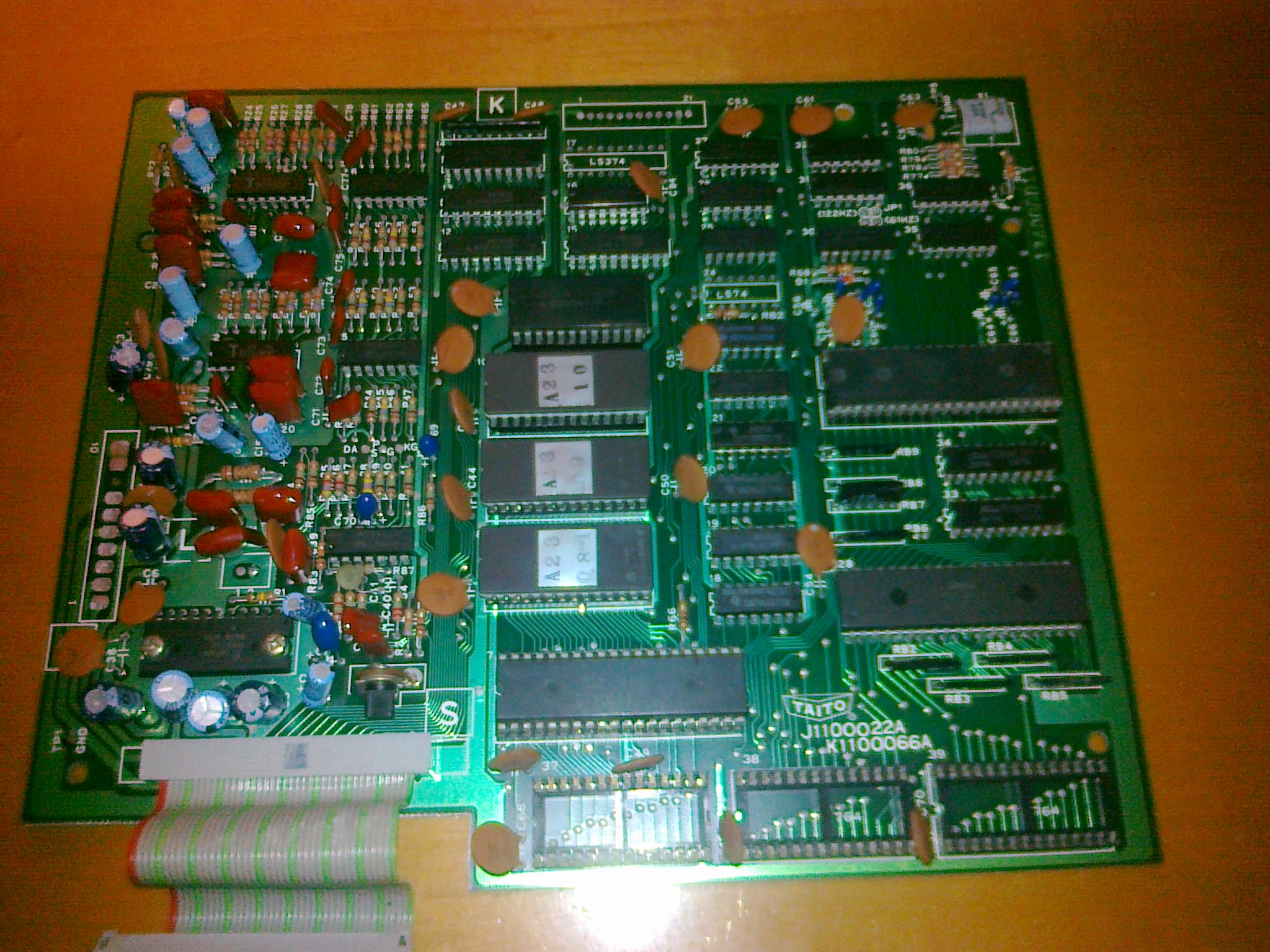

CPU PCB component side
-
Title
-

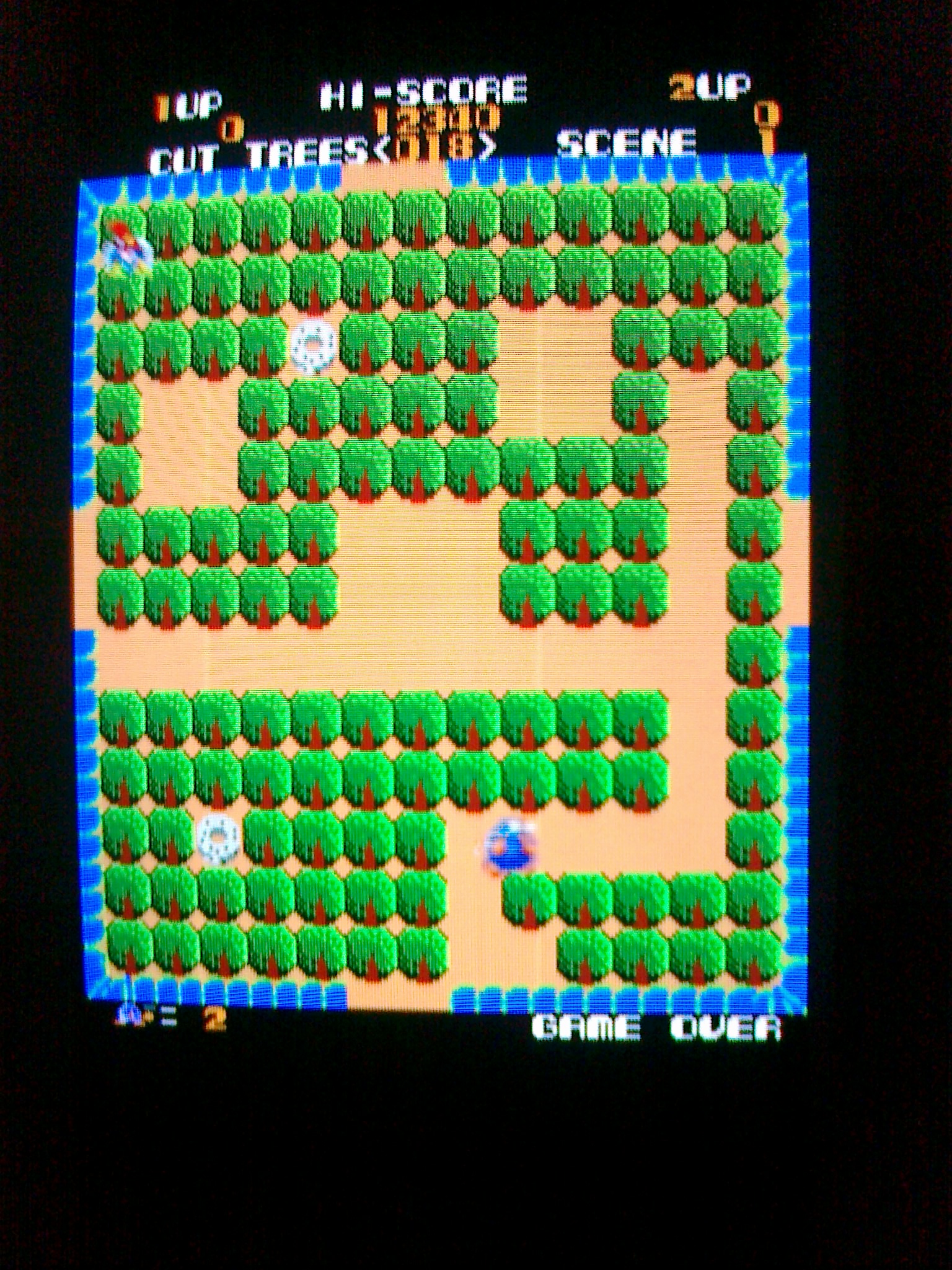

Attract mode
-

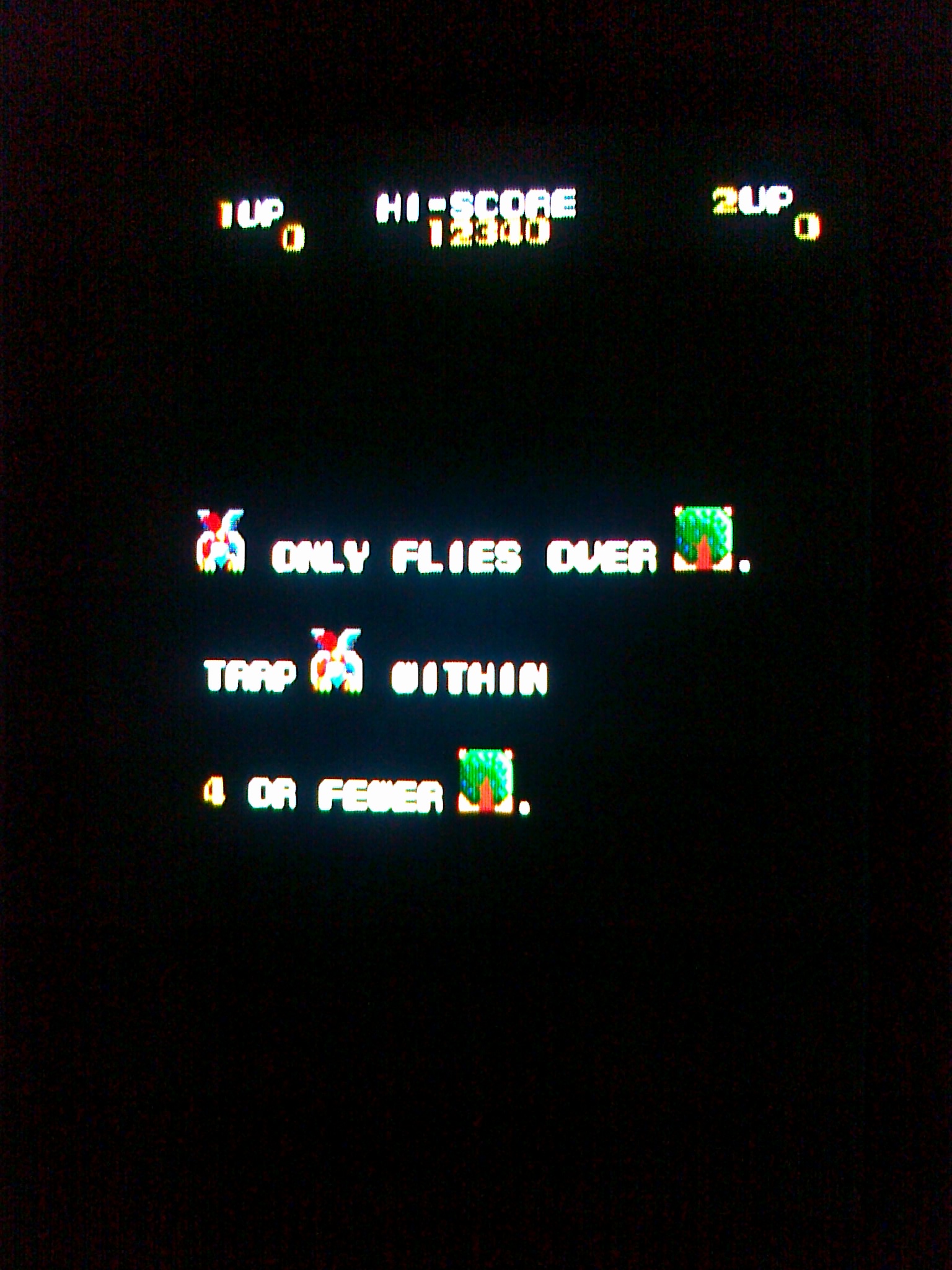

Intro
-

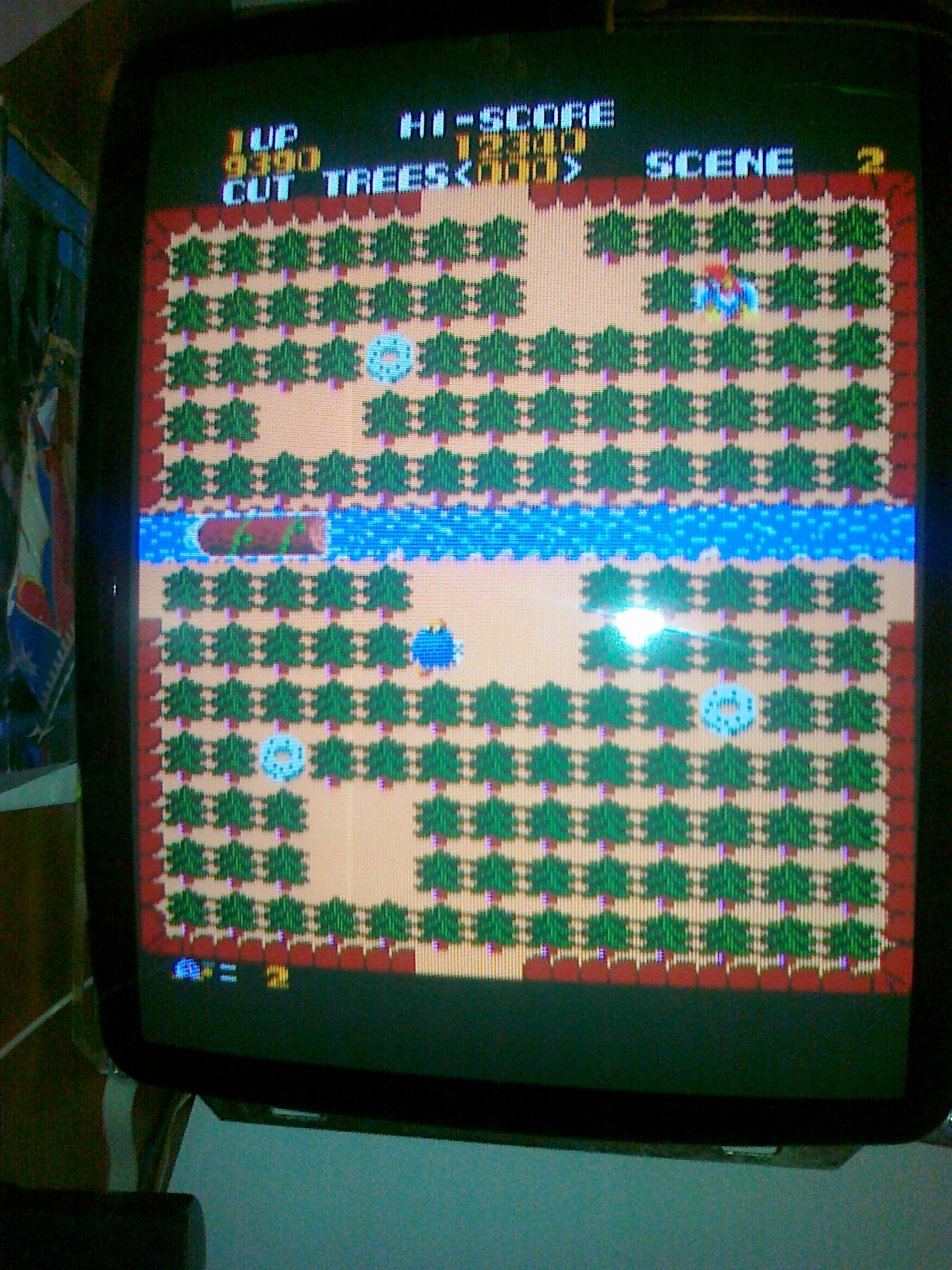

In game level 02
-

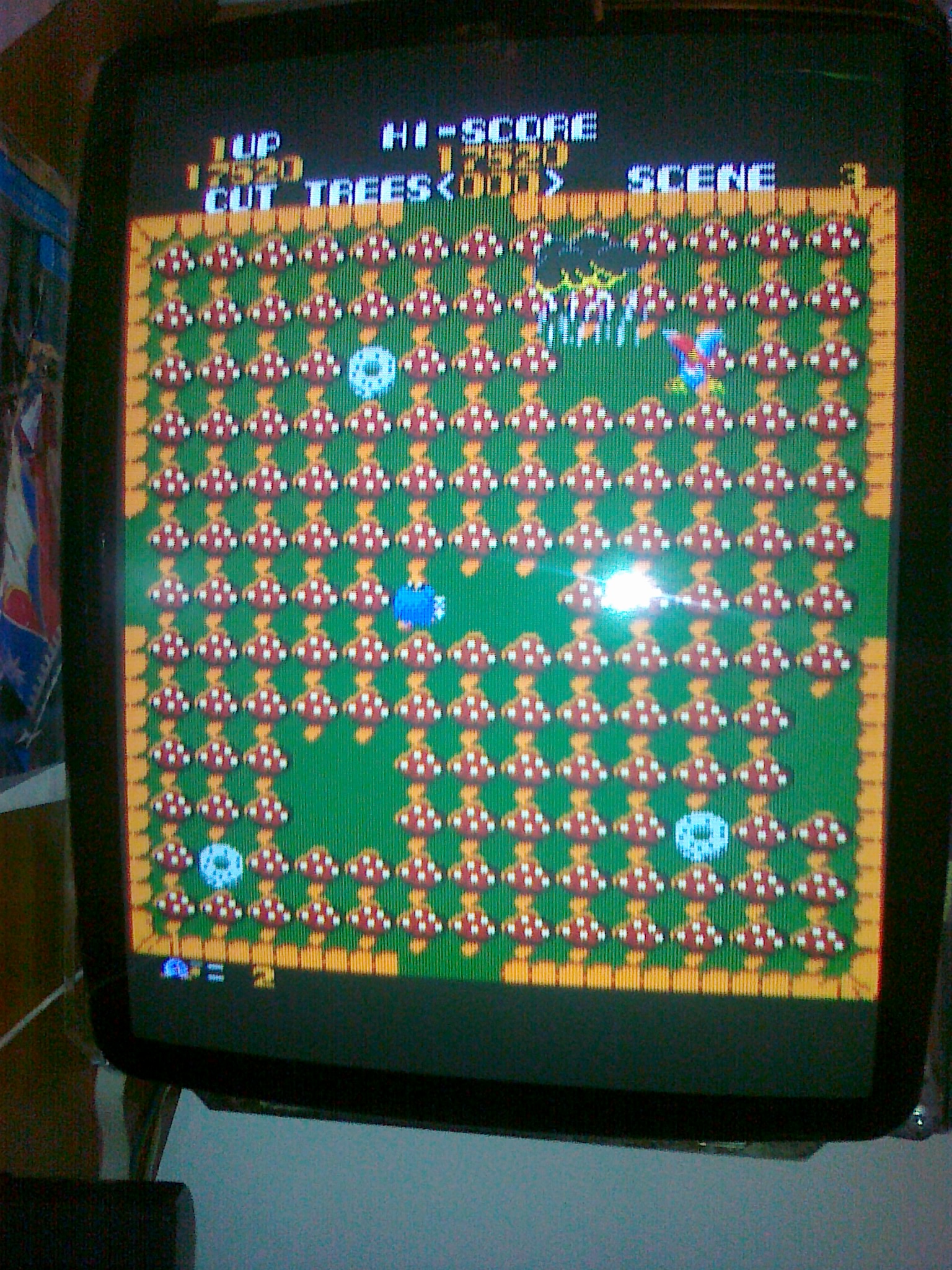

In game level 03
-

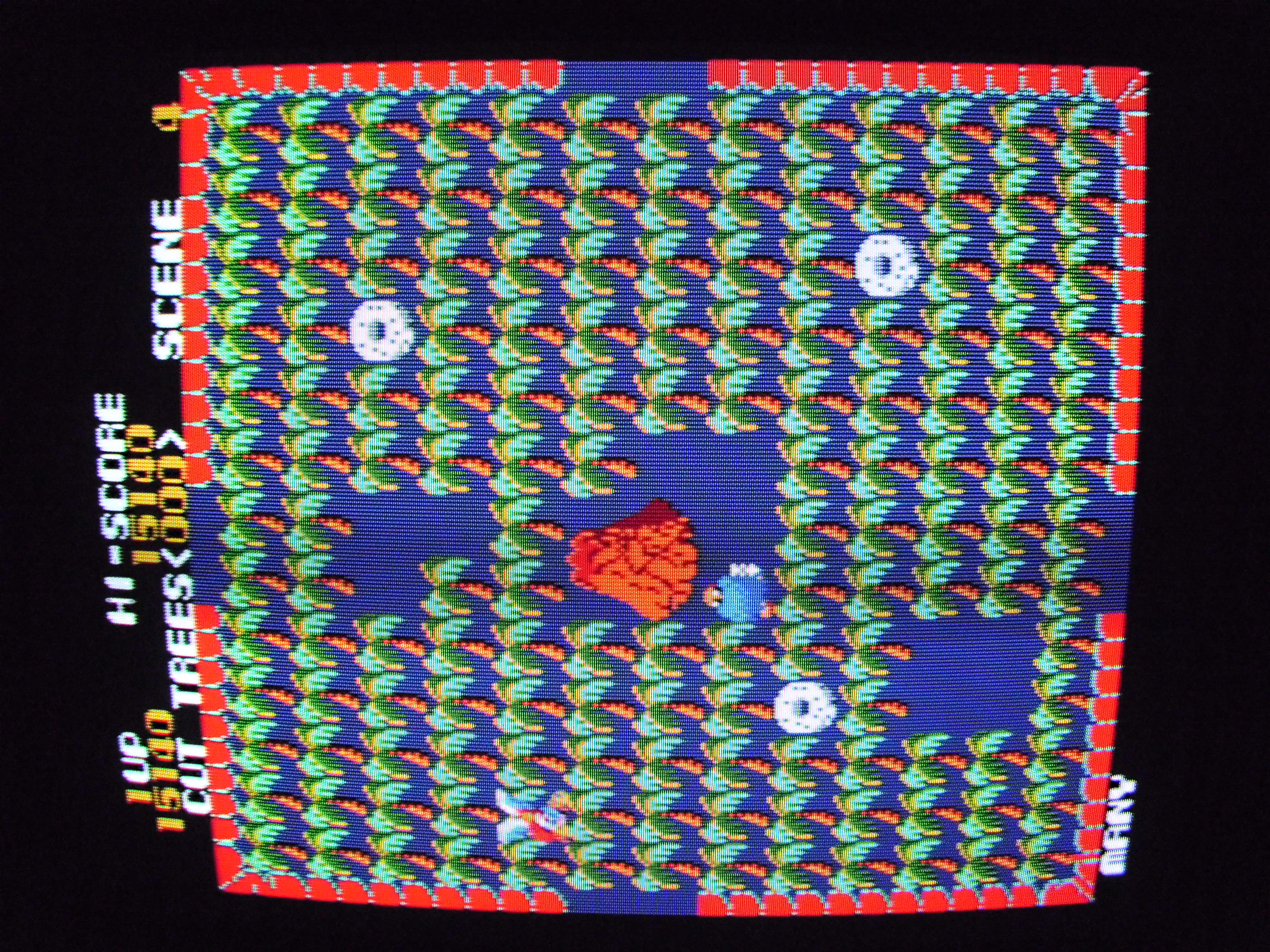

In game level 04
-

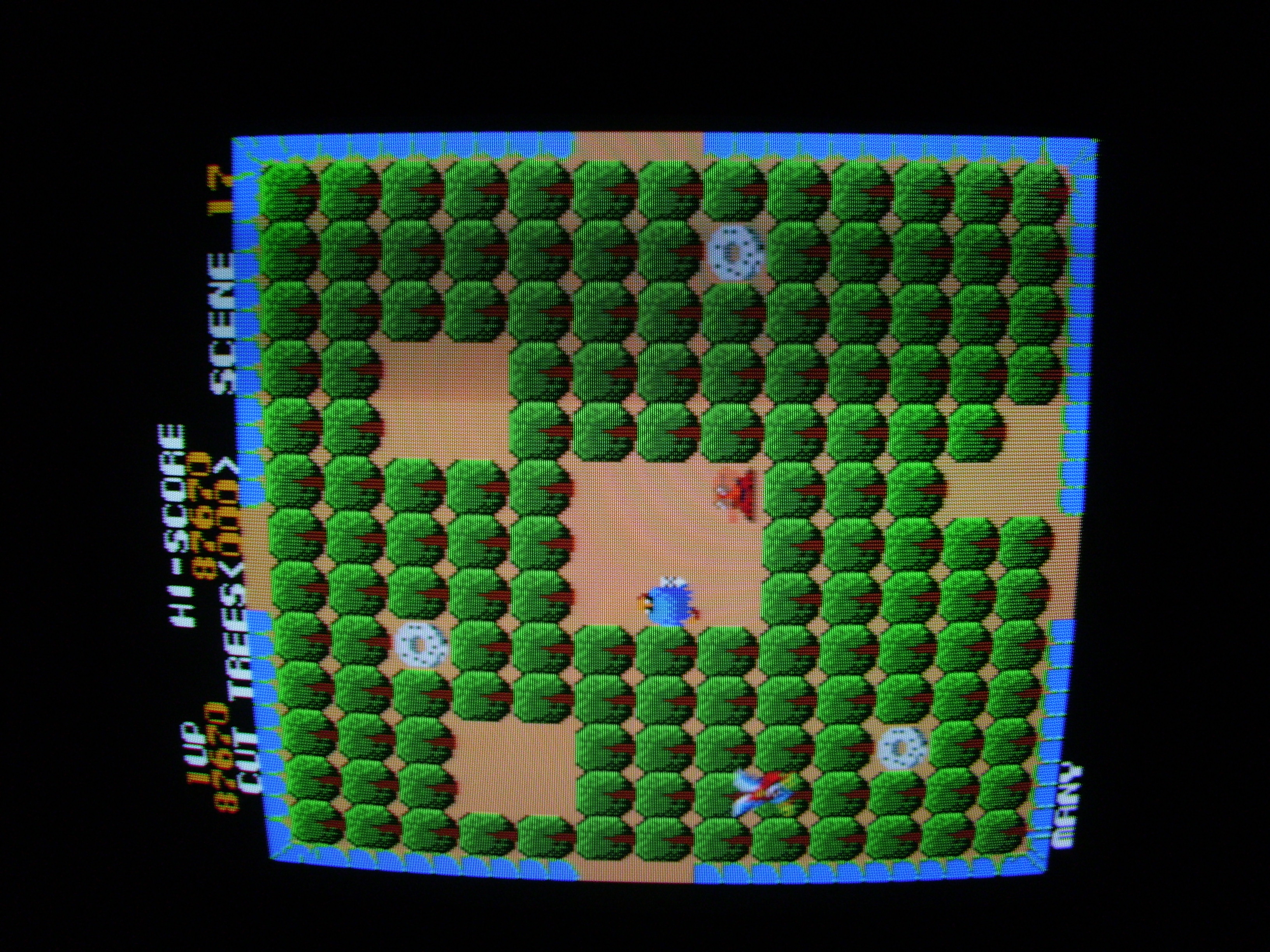

In game level 17
-

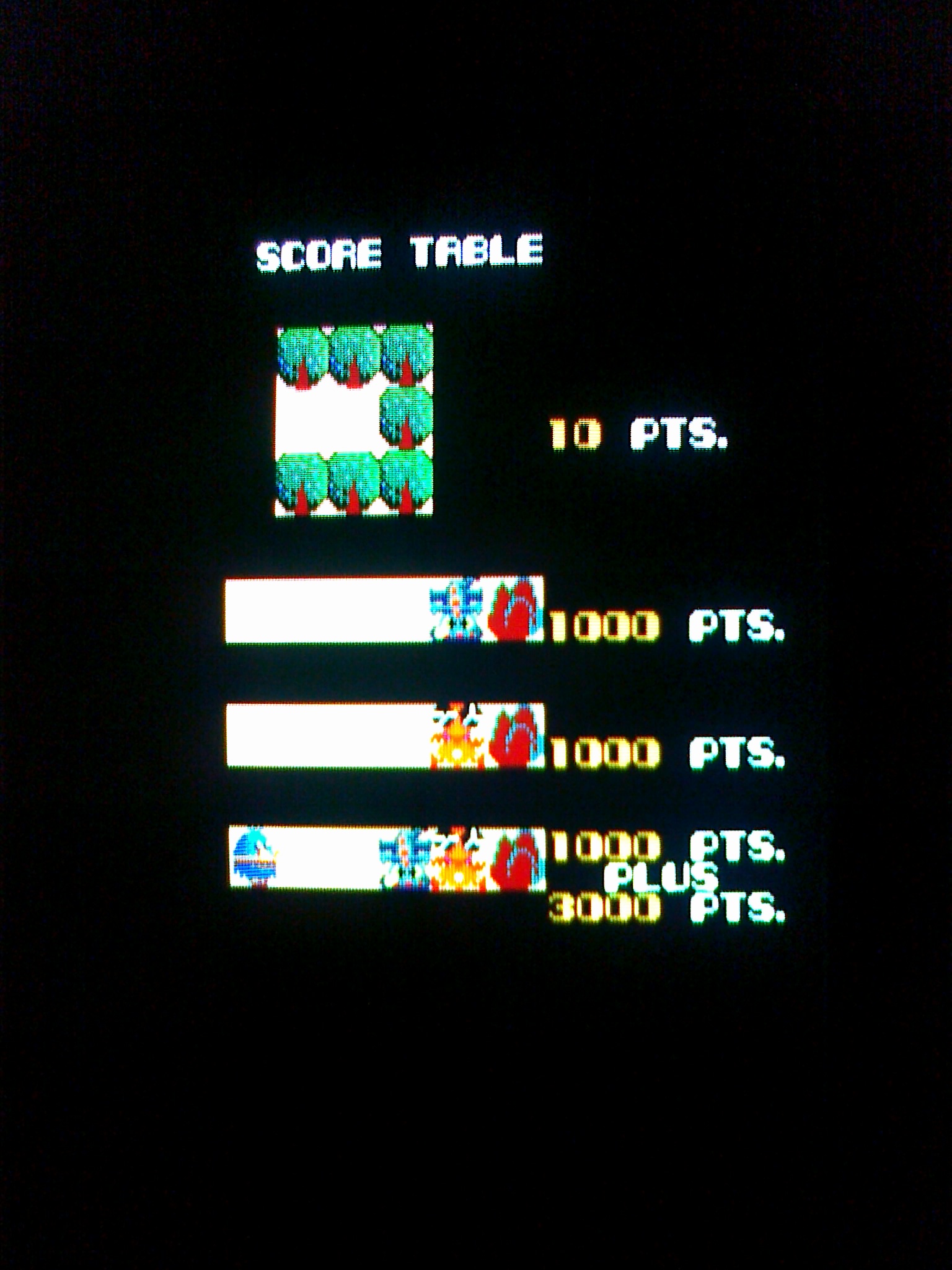

Hiscore 1
-

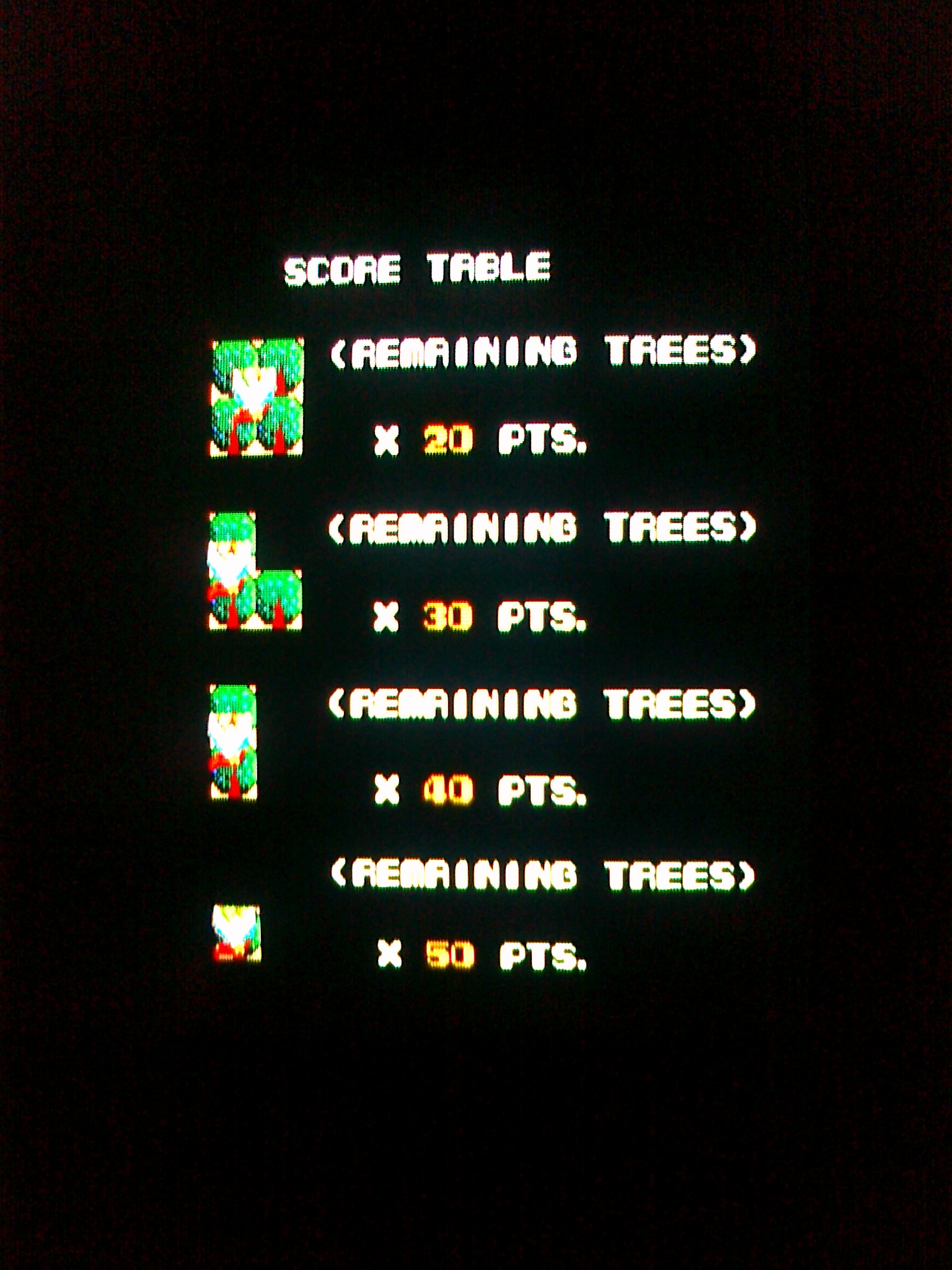

Hiscore 2
-
