Ozma Wars (Play-Kit bootleg)
| dumper | f205v |
| date | 13/06/2007 |
| emulator | MisfitMAME 0.122.D (retired in HBMAME) |
| dev |
| name | 563 |
| description | Ozma Wars (Play-Kit bootleg) |
| year | 1979 |
| manufacturer | Play-Kit |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 8080 | 2h | 8-bit Microprocessor - main | |
| 4x | LM3401 | - | 2b,4b,6b,8b | Quad Operational Amplifier - sound |
| 1x | TCA940 | - | 2a | Audio Amplifier - sound |
| 1x | oscillator | 1279 | 10fh |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS2516JL | 4k,5k,6k,7k,8k,9k | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 14x | D2107 | 3h-8h,3j-8j |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x 4x2 switches DIP
1x trimmer (volume)
Notes
PCB is marked: "S.I." on component side
PCB is marked: "S.I." on solder side
Black and white bootleg of Ozma Wars by SNK, copyright notice and title have been removed/altered.
Sound circuitry is far simpler than original, missing the SN76477 sound chip.
This game was firstly emulated by MisfitMAME 0.122.D as:
name ozmawar3 wrong description "Ozma Wars (set 3) [E563]" right sourcefile 8080bw.c right year 1979 right manufacturer Play-Kit
Later on in MisfitMAME 0.127.F it was arbitrary changed to:
name spcworld right description "Space World [E563]" wrong sourcefile invaders.c right year 1979 right manufacturer Play-Kit
with the addition for loading 2 PROMs that do not exist on the original motherboard, just to give it some fancy colors (not present in the original)
When MisfitMAME became HBMAME, it was removed.
I think it is time to have it correctly supported by MAME as a B&W 8080 game.
update 20210123: better pics, confirmed dump.
Files
-

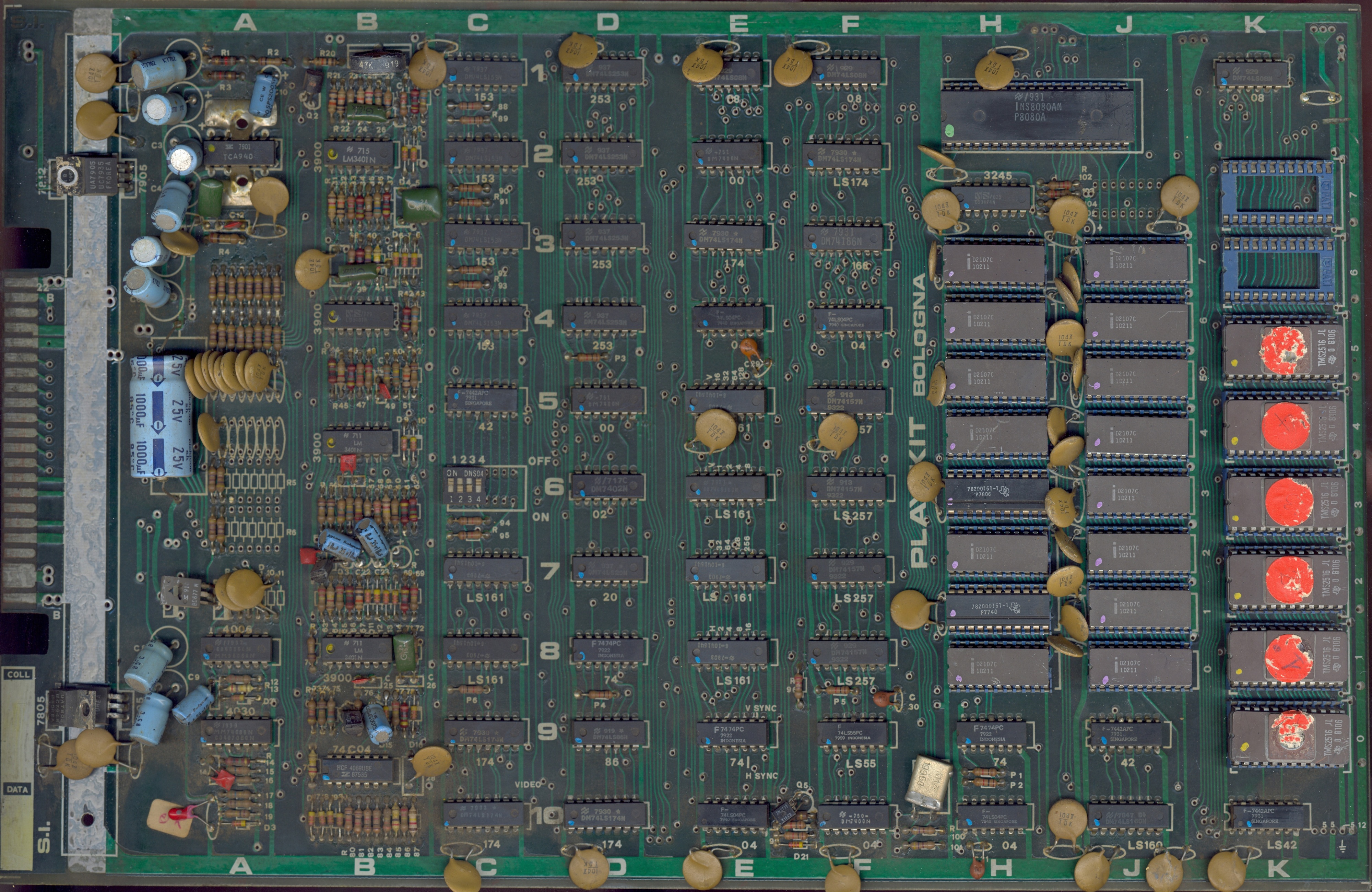

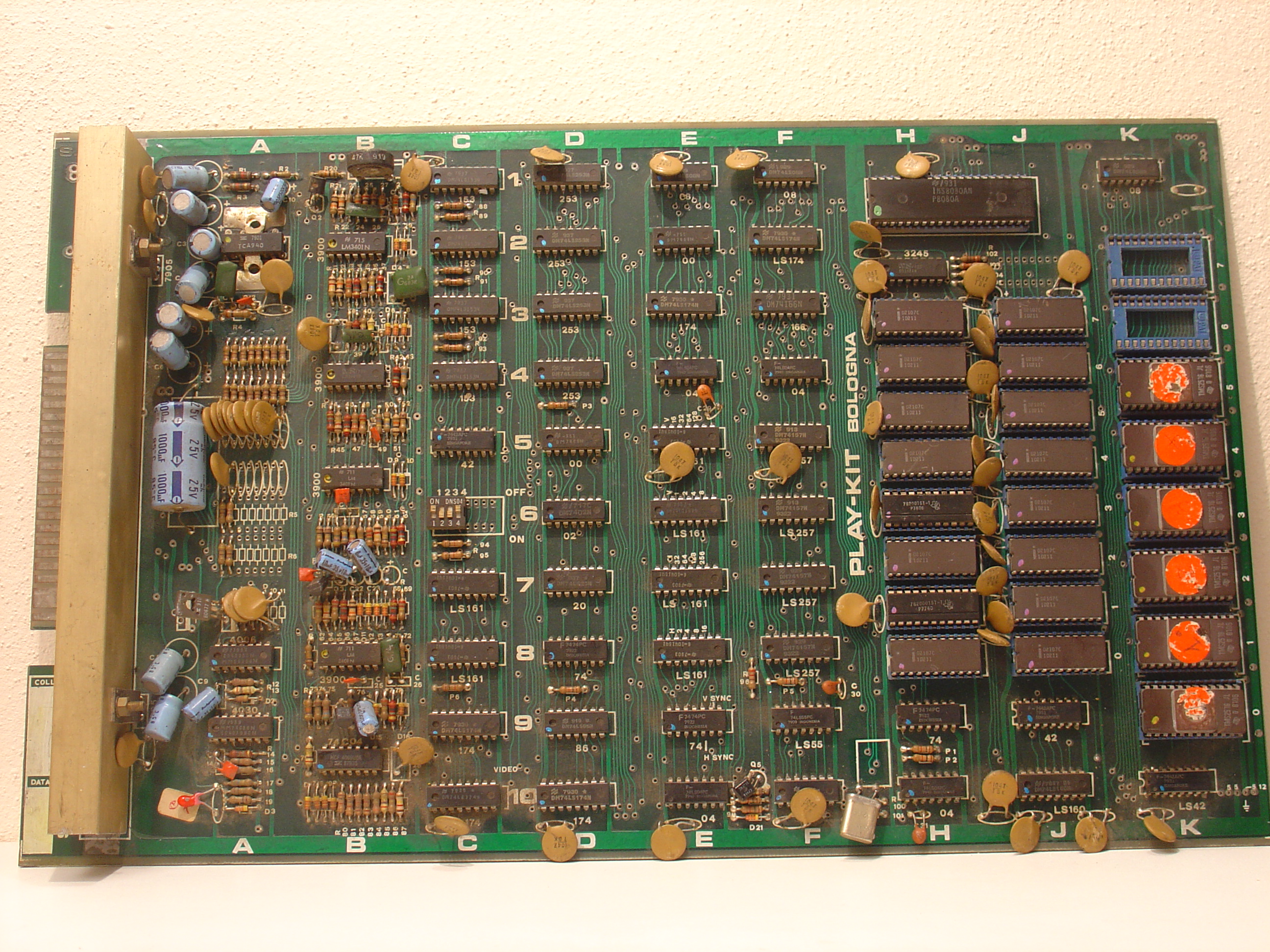

PCB component side 1
-
PCB component side 2
-

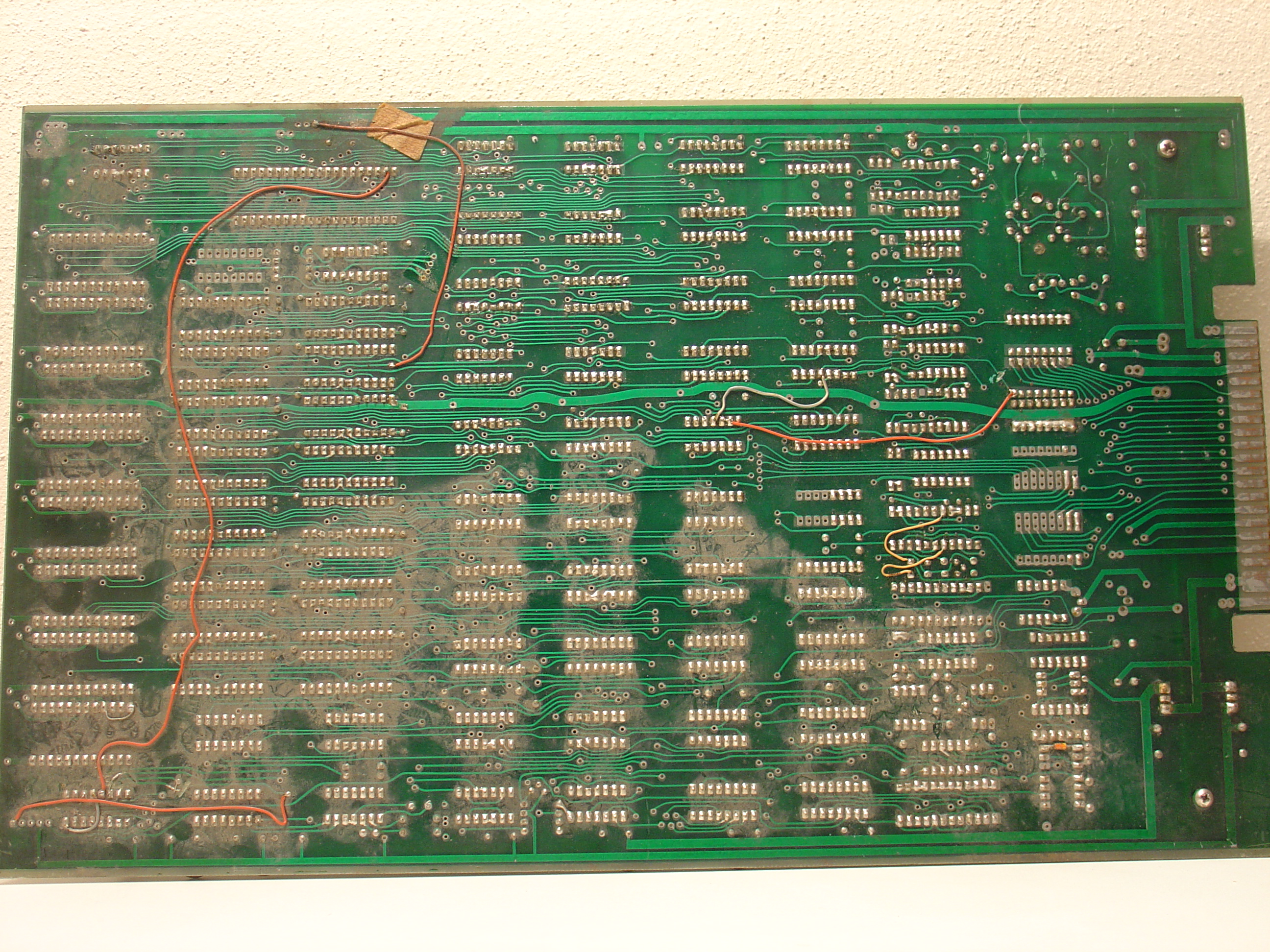

PCB solder side 1
-

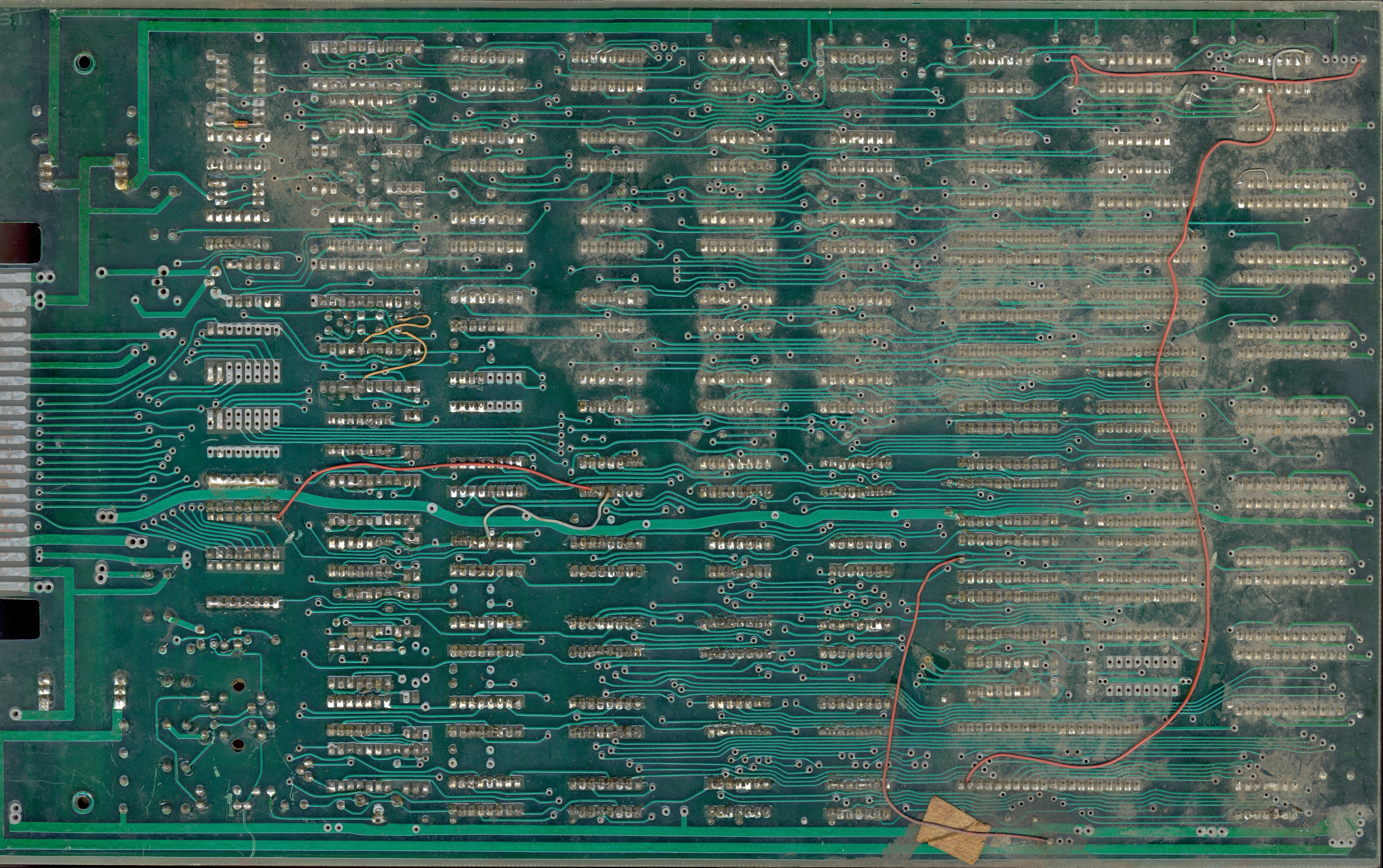

PCB solder side 2
-
