Ozma Wars (Model Racing bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/11/2016 |
| emulator | MAME 0.180 |
| dev | Osso |
| name | ozmawarsmr on ProgettoEMMA ozmawarsmr on Arcade Database |
| description | Ozma Wars (Model Racing bootleg) |
| year | 1979 |
| manufacturer | Model Racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | AM9080APC/P8080A | 2n | 8-bit Microprocessor - main | |
| 1x | oscillator | 20MHz | 8b xtal |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | F2708 | 73-84 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 16x | TMS4060NL | 0-15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 18x2 edge connector
1x 36x2 female edge connector
Notes
PCB is marked:"CS210" and "t26.15"
PCB is labeled: "CS 210 = 080302", "06807549" and "09800441". on solder side: "06807549" and "09800441"
Files
-

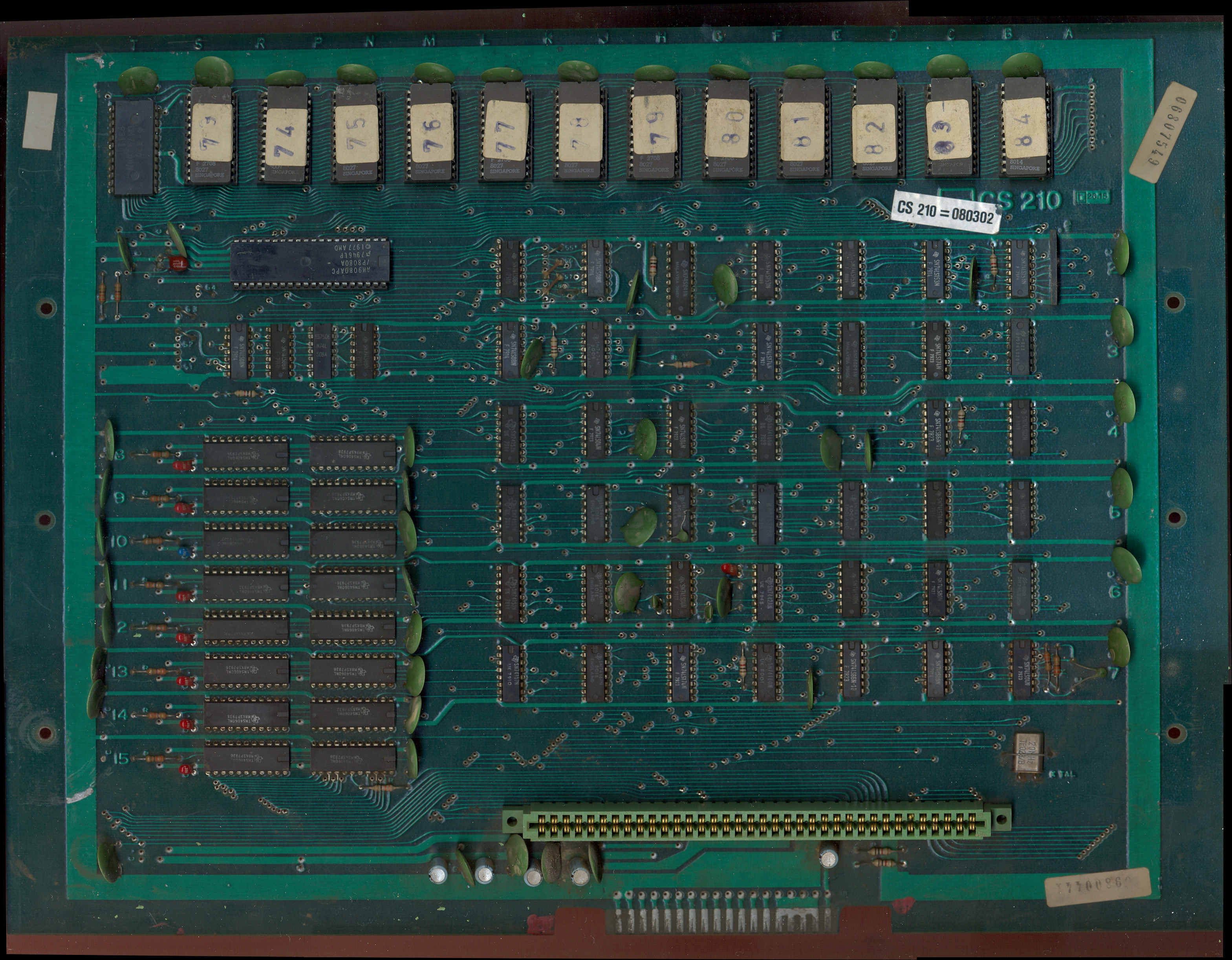

PCB component side
-

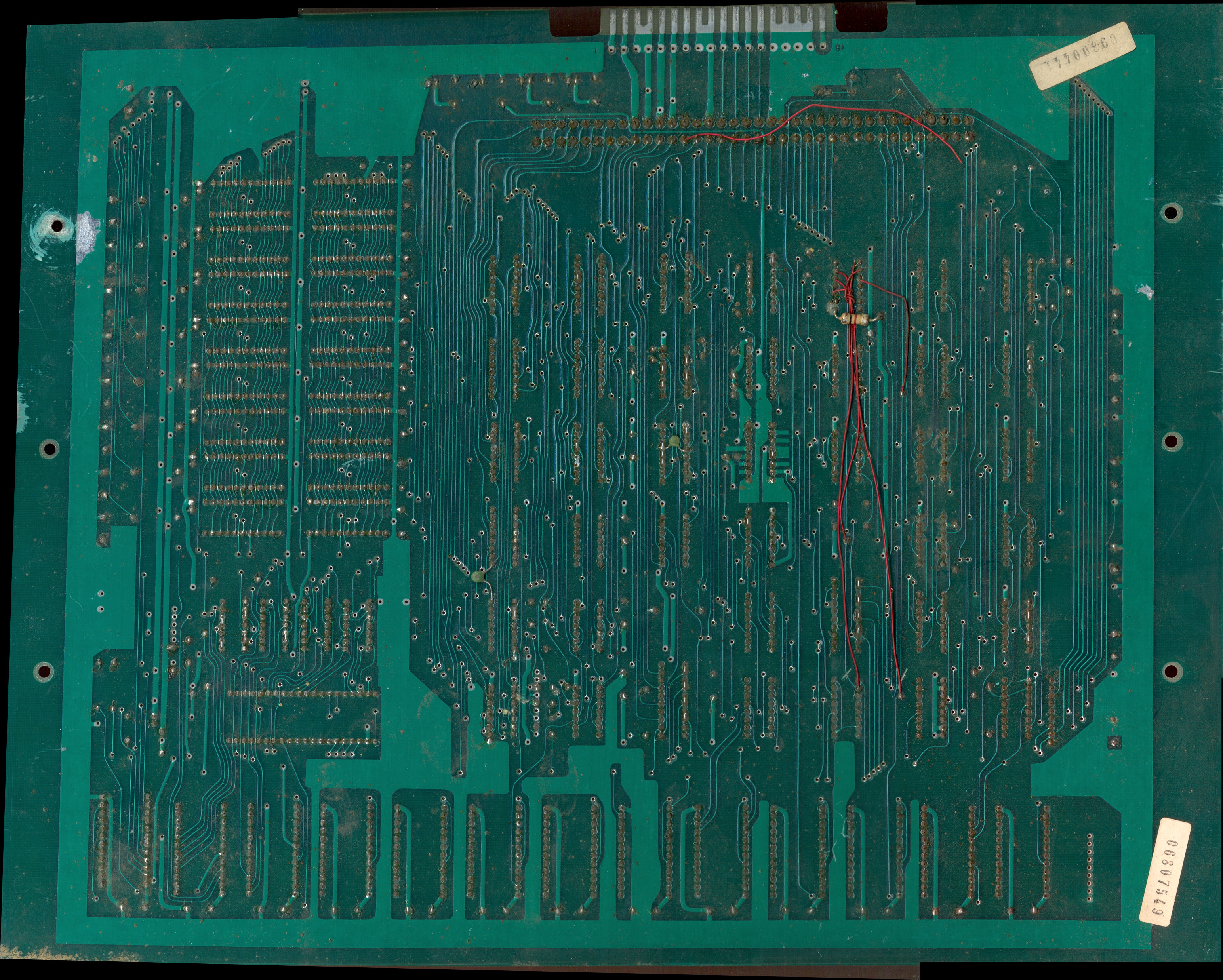

PCB solder side
