Missile Attack (U.Games bootleg of Missile Command)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 12/03/2016 |
| emulator | MAME 0.183 |
| dev | Osso |
| name | missilea on ProgettoEMMA missilea on Arcade Database |
| description | Missile Attack (U.Games bootleg of Missile Command) |
| year | 1981 |
| manufacturer | U.Games |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 6502 | 2B | 8-bit Microprocessor - main | |
| 1x | LM380 | 12B | Audio Amplifier - sound | |
| 1x | oscillator | 10.000 | 6C |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | F2708 | 10C, 10E | dumped |
| 6x | MCM2716C | 1-6 | dumped |
| 1x | DM74S288N | 6L | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | TMS4116 | 4F,4H,4J,4K,4L,4M,4N,4P |
| 1x | 74S189N | 7L |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)(12E)
2x 8x2 switches DIP(8R,10R)
Notes
This is a clone of "Missile Command (Rev 1)" (missile1) with the addition of 2x EPROM 2708
update 20180326: PaTrYcK found a 2nd PCB for the same game. Confirmed dump.
Files
-

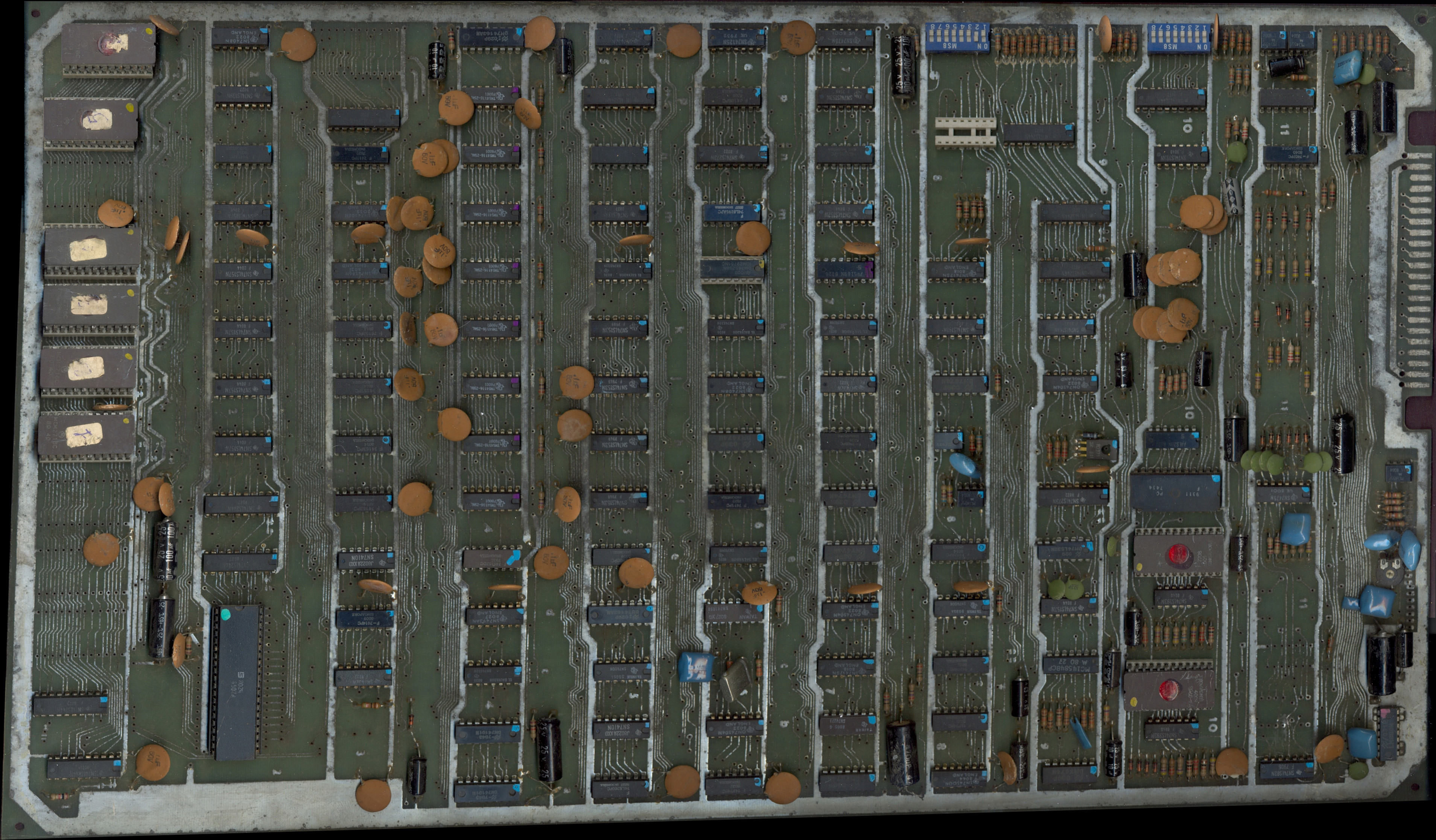

1st PCB component side
-

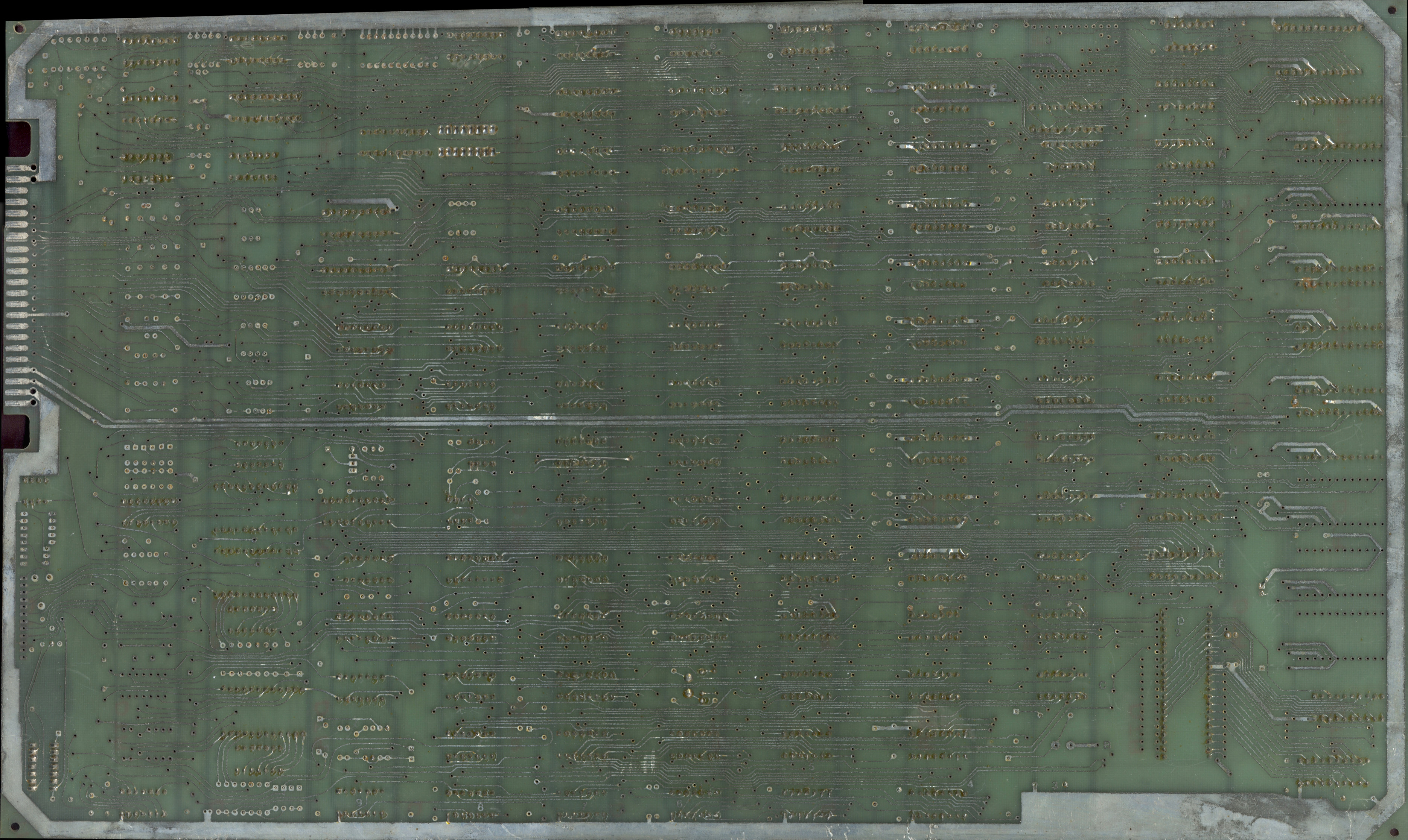

1st PCB solder side
-
