Jungler (Olympia)
| dumper | f205v |
| date | 02/05/2006 |
| emulator | MAME 0.220 |
| dev | Osso |
| name | junglero on ProgettoEMMA junglero on Arcade Database |
| description | Jungler (Olympia) |
| year | 1981 |
| manufacturer | Olympia (Konami licensed) |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | MK3880N-Z80CPU | sound PCB | 8-bit Microprocessor - sound | |
| 2x | AY-3-8910 | sound PCB | Programmable Sound Generator - sound | |
| 1x | oscillator | 14318 | sound PCB | |
| 1x | MK3880N-Z80CPU | main PCB | 8-bit Microprocessor - main | |
| 1x | oscillator | 18000 | main PCB |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MB2732K | sound PCB js1 | dumped |
| 4x | ET2732Q | main PCB j1,j2,j3,j4 | dumped |
| 2x | AM2732DC | main PCB j5,j6 | dumped |
| 2x | DM74S288N | main PCB jn1,jn2 | dumped |
| 1x | MB7051 | main PCB jn3 | dumped |
| 1x | AM27S21DC | main PCB jn4 | dumped |
| 1x | TBP24S10 or equivalent | main PCB missing | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | TMS2114-45JDL | sound PCB |
| 1x | SN74S289 | main PCB |
| 4x | SN74S201N | main PCB (wire modification, with pin 3&4 soldered together) |
| 2x | F93425DC | main PCB |
| 3x | MK4802N-3IRL | main PCB |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 18x2 edge connector (sound PCB)
1x 34 pins flat cable connector from main PCB to sound PCB
1x 2 pins power cable connector from main PCB to sound PCB
1x trimmer (volume) (sound PCB)
1x 8 DIP switches bank (sound PCB)
1x 8 DIP switches bank (sound PCB)
Notes
sound PCB is marked: "OLYMPIA", "[C] 15-82", "Konami LICENSED", "CE" and "22 B" on component side
main PCB is marked: "OLYMPIA", "[C] 13-53", "Konami LICENSED", "CE" and "22 A" on solder side
sound PCB is labelled: "treno modificato in verme" on component side (Italian for "train modified into worm")
sound PCB is hand written: "serpente" on component side (Italian for "snake")
update 20200309: confirmed dump, added pics and better description
Files
-

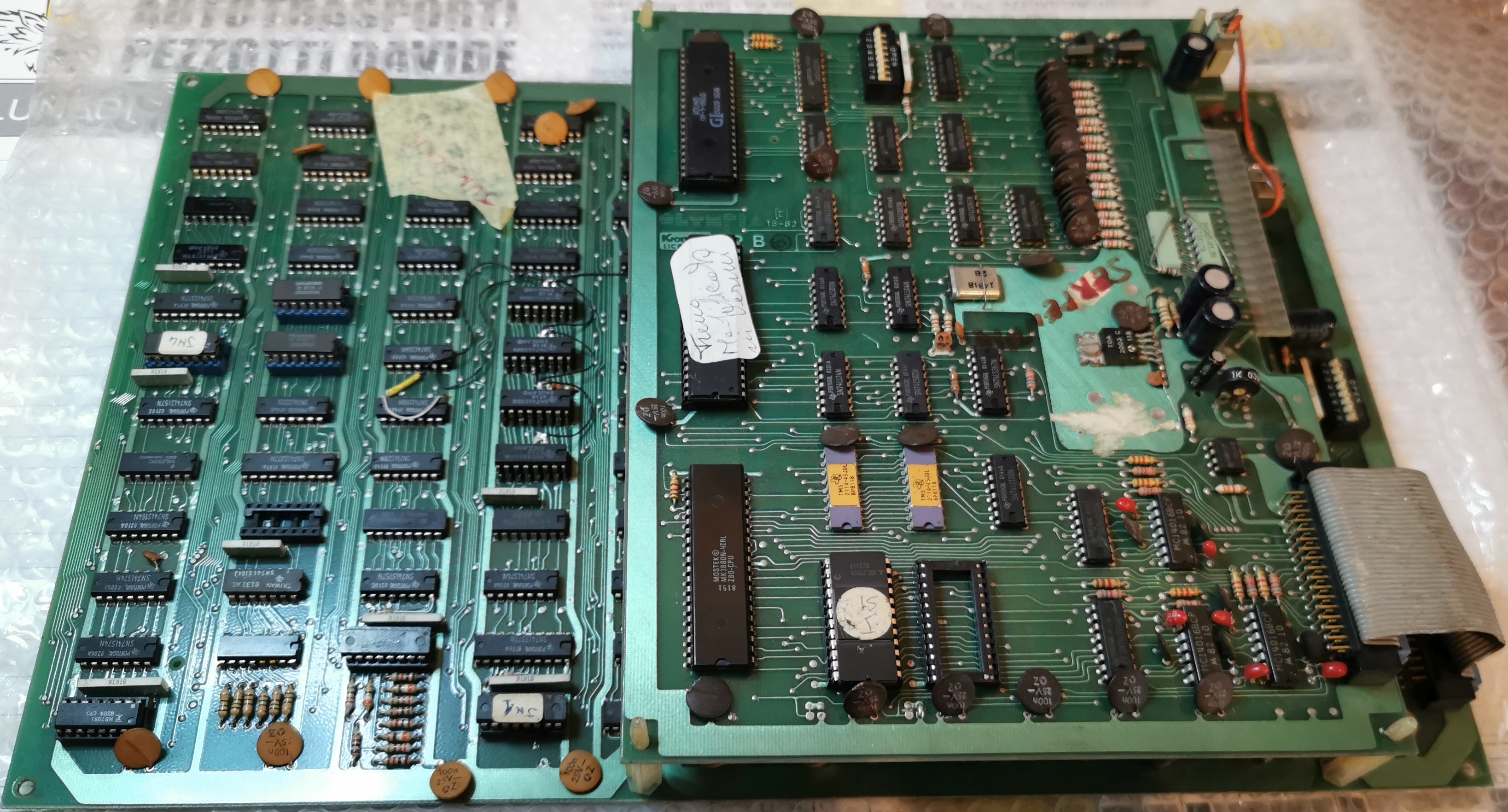

assembled PCBs
-

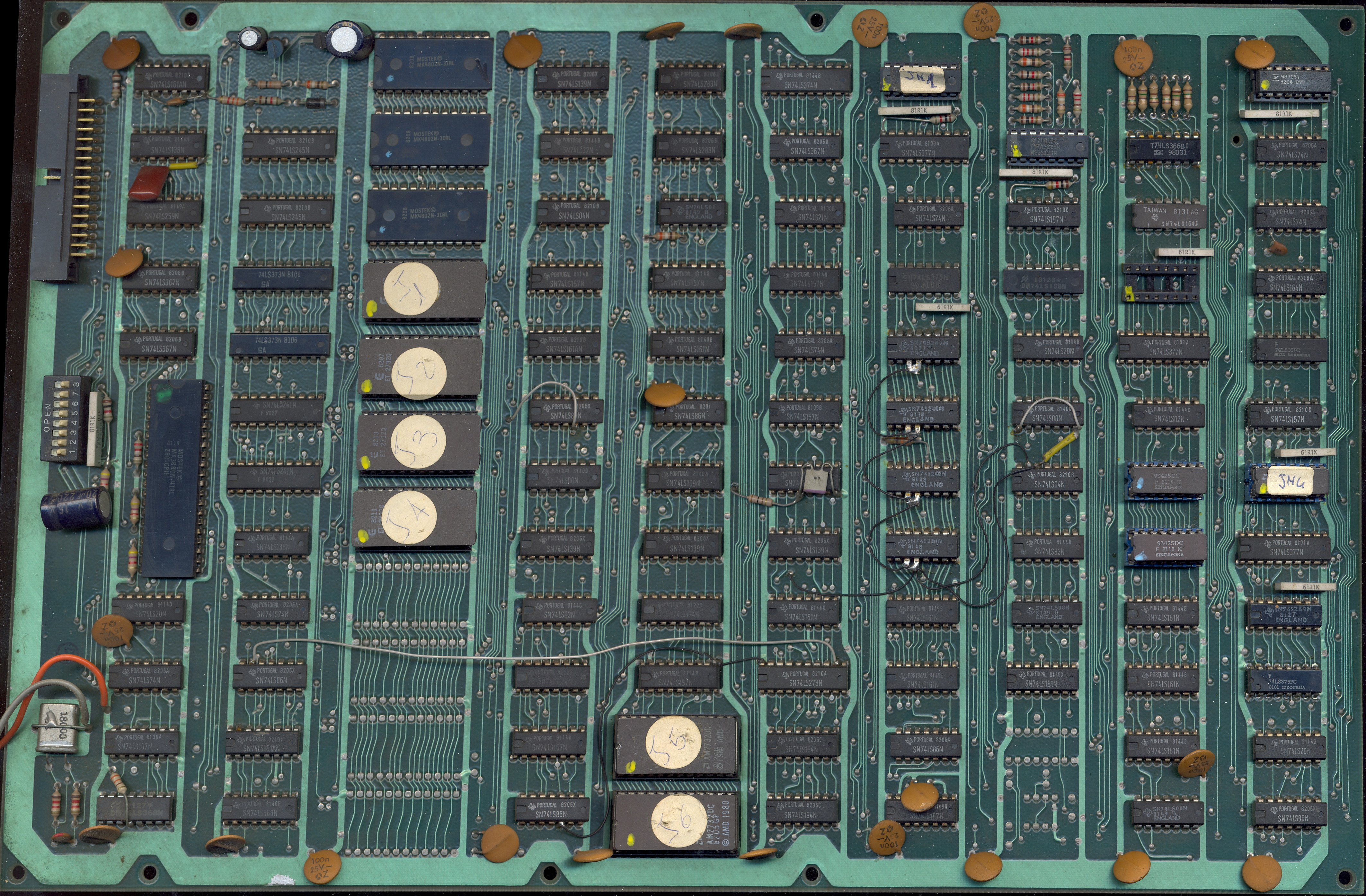

main PCB component side
-

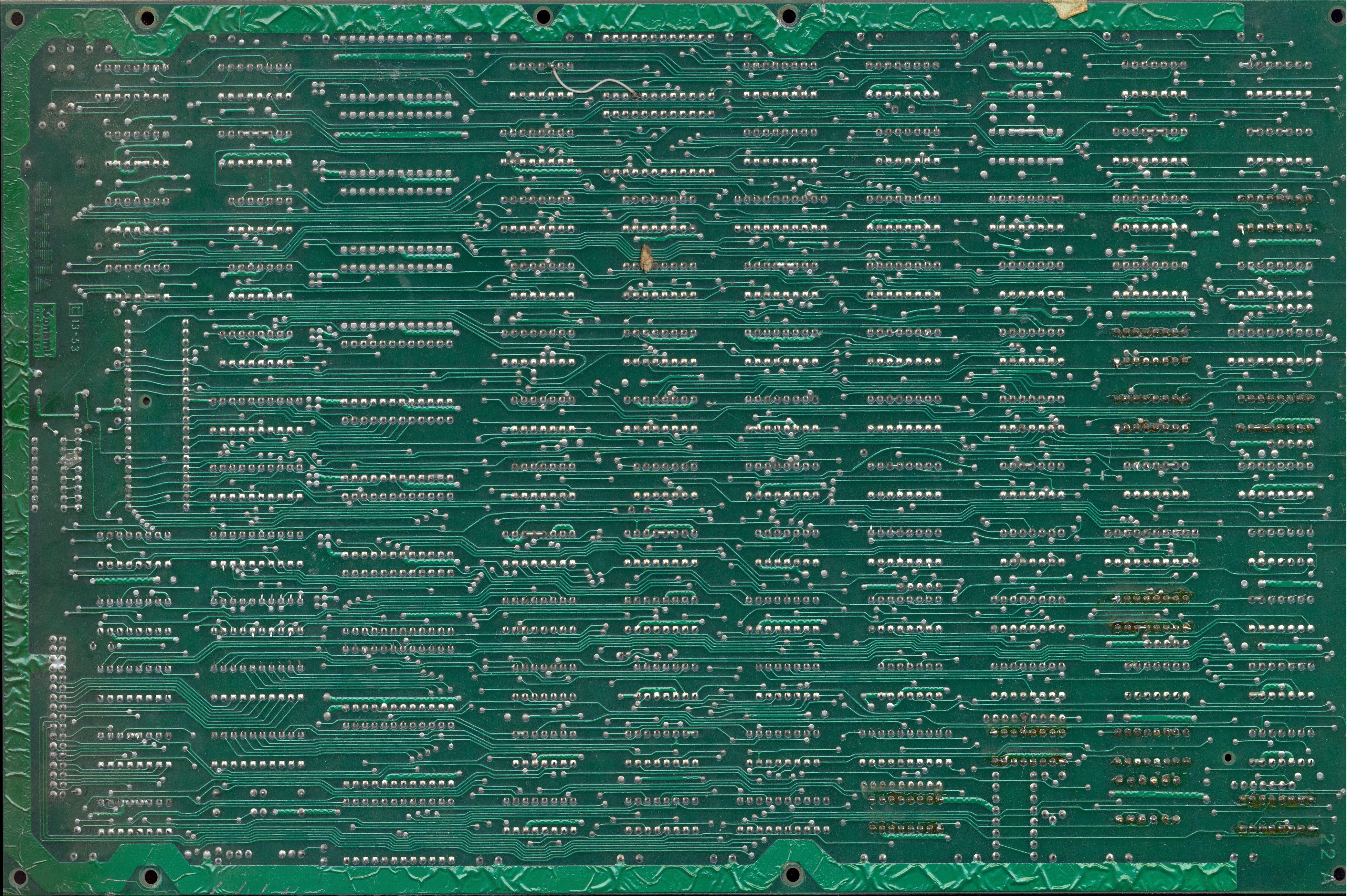

main PCB solder side
-

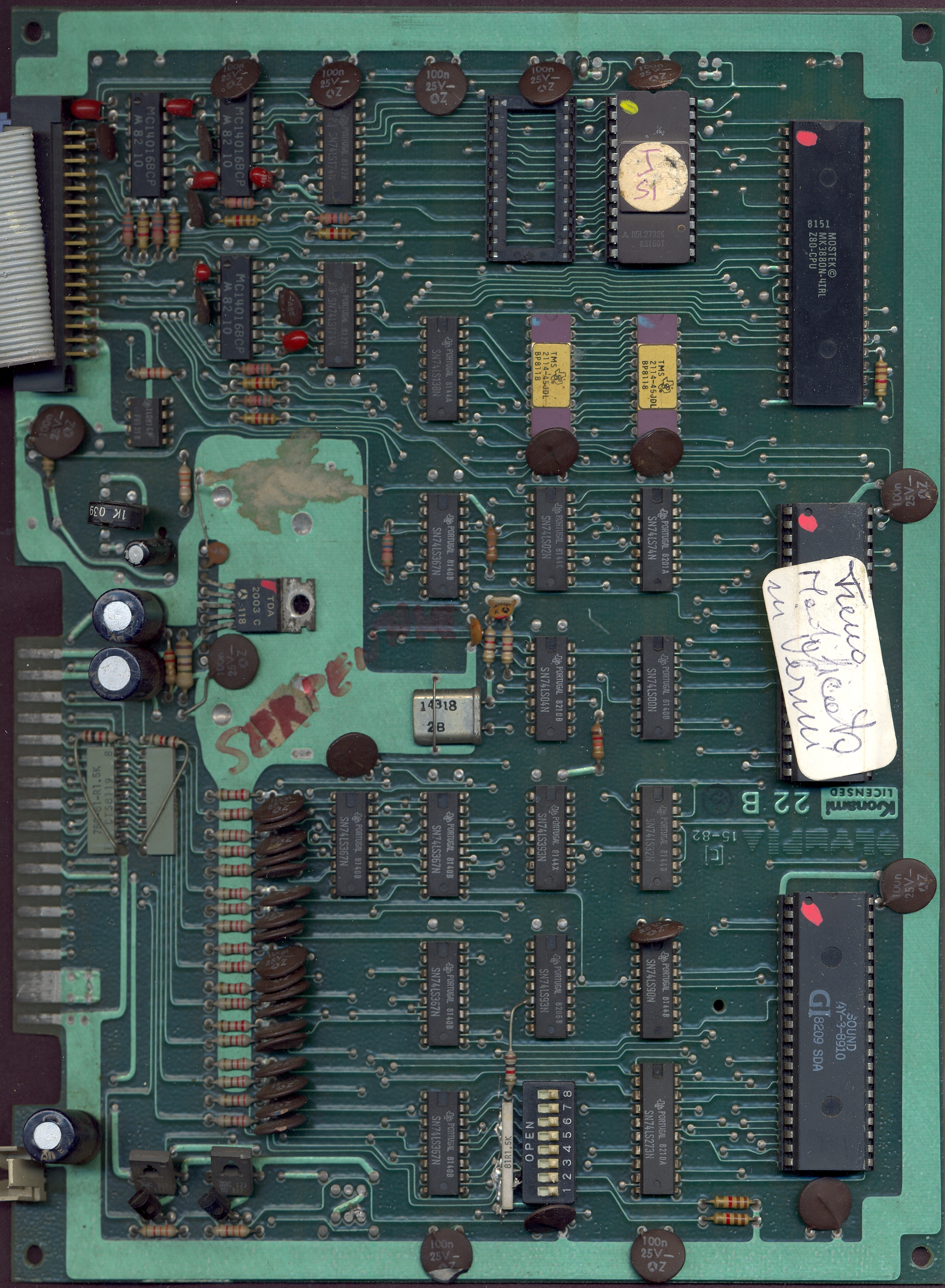

sound PCB component side
-

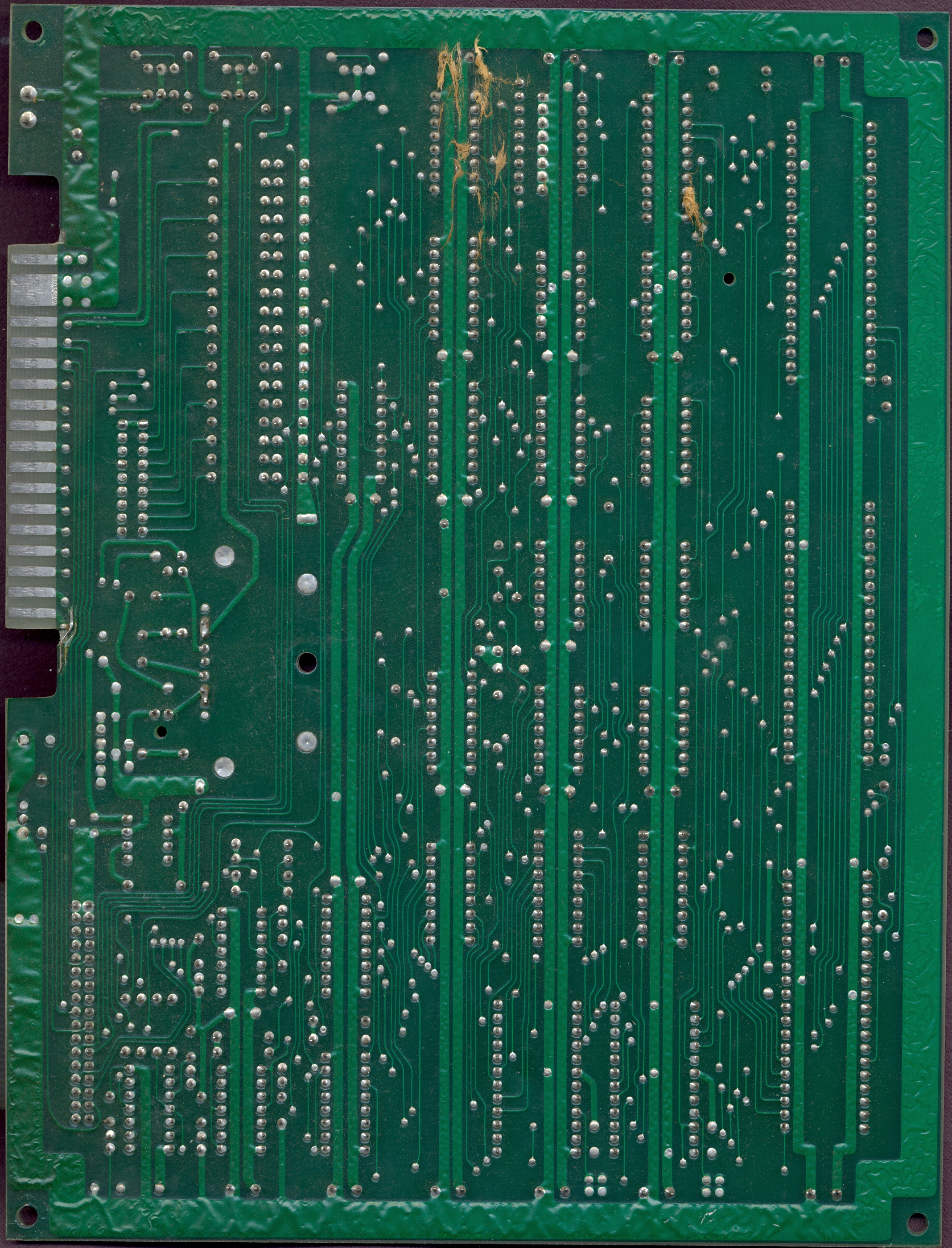

sound PCB solder side
