Drews Revenge (v.2.89, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 02/03/2011 |
| emulator | MAME 0.135u2 |
| dev | Roberto Fresca, Siftware |
| name | drhl on Arcade Database |
| description | Drews Revenge (v.2.89, set 1) |
| year | 1986 |
| manufacturer | Drews |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | AM9080APC | 2 MHz | u6 | 8-bit Microprocessor - main |
| 1x | INS-DP8224N | u4 | Clock Generator and Driver | |
| 1x | P8228 | u11 | System Controller and BUS Driver | |
| 3x | P8255A | u17,u20,u27 | Programmable Peripheral Interface | |
| 1x | oscillator | 18.000 | 1Y |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | TMS2732A | u12,u18,u19,u26,u31 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | AM9111DPC | u23,u24 |
| 1x | HM3-6116-5 | u33 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | PAL16L8ACN | u51 | dumped |
Others
1x 36x2 edge connector (thin)
1x trimmer (volume)
1x 8x2 switches DIP
1x battery
Notes
Files
-

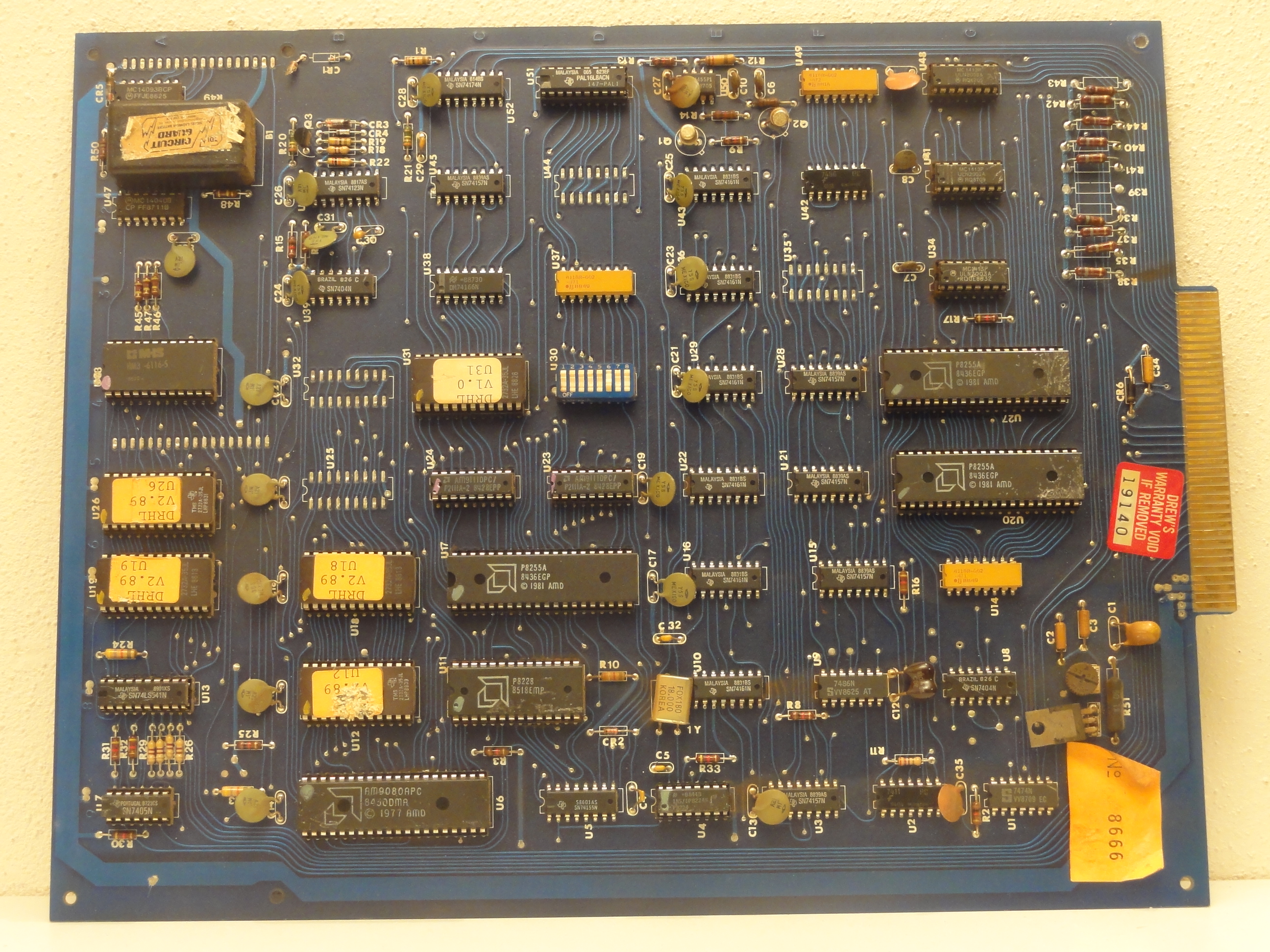

PCB component side
-

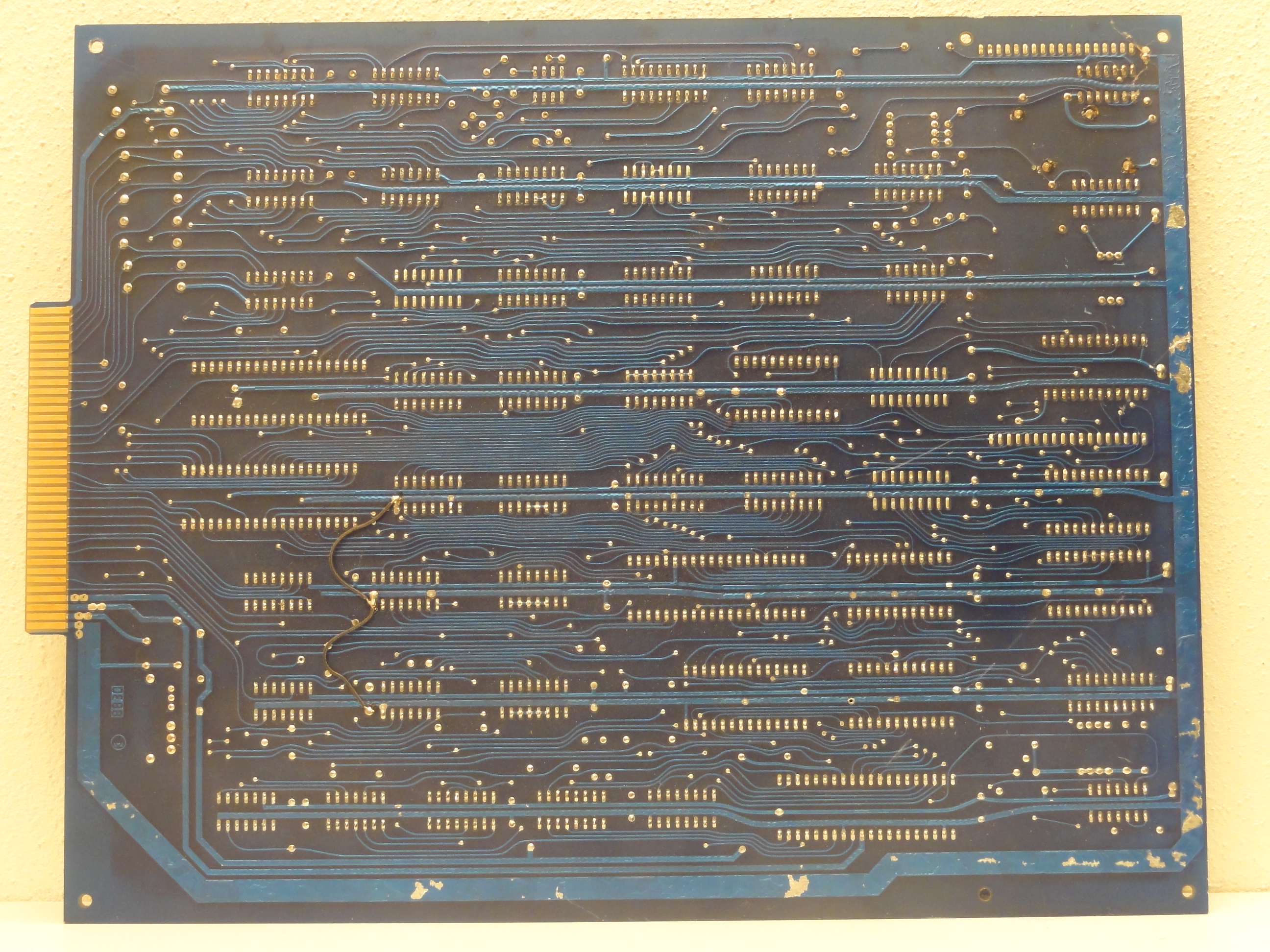

PCB solder side
-
ROMs
