Cosmic Alien (version II, set 2)
From Citylan
Jump to navigationJump to search
dumper | f205v |
date | 08/11/2019 |
emulator | MAME 0.216 |
dev | Osso |
name | cosmica3 on ProgettoEMMA cosmica3 on Arcade Database |
description | Cosmic Alien (version II, set 2) |
year | 1980 |
manufacturer | Universal |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | Z80CPU-8400W20 | 10h main PCB | 8-bit Microprocessor - main | |
4x | LM324N | - | ic4,ic8,ic9,ic12 sound PCB | Quad Operational Amplifier - sound |
1x | oscillator | 10.816 | 8s main PCB |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | AM4708-6 | 8 sub PCB | dumped |
1x | AM4708-6 | 9 main PCB | dumped |
7x | TMS2516 | 1-7 main PCB | dumped |
1x | IM5610CPE | 9d main PCB | impossible to dump, fully rusted with broken legs |
RAMs
QTY | Type | position |
---|---|---|
1x | MB8116E | 2c-9c main PCB |
1x | M83289P | 7l-10l main PCB |
3x | AM27LS00PC | 7p-10p main PCB |
PLDs
QTY | Type | position | status |
---|---|---|---|
0x |
Others
1x 28x2 edge connector
1x 24 pins (DIP24-600mil) connector from main PCB (2m) to sound PCB
1x 40 pins (DIP40-600mil) connector from main PCB (2h) to sub PCB
2x trimmer (volume)(sound PCB VR1, VR2)
1x 8 DIP switches bank (7b main PCB)
Notes
main PCB is marked: "7910-AII UNIVERSAL" on component side
main PCB is marked: "UNIVERSAL" on solder side
sub PCB is marked: "7910-BII UNIVERSAL" on component side
sound PCB is marked: "UNIVERSAL 7910-S" on component side
sound PCB is marked: "UNIVERSAL" on solder side
Files
-

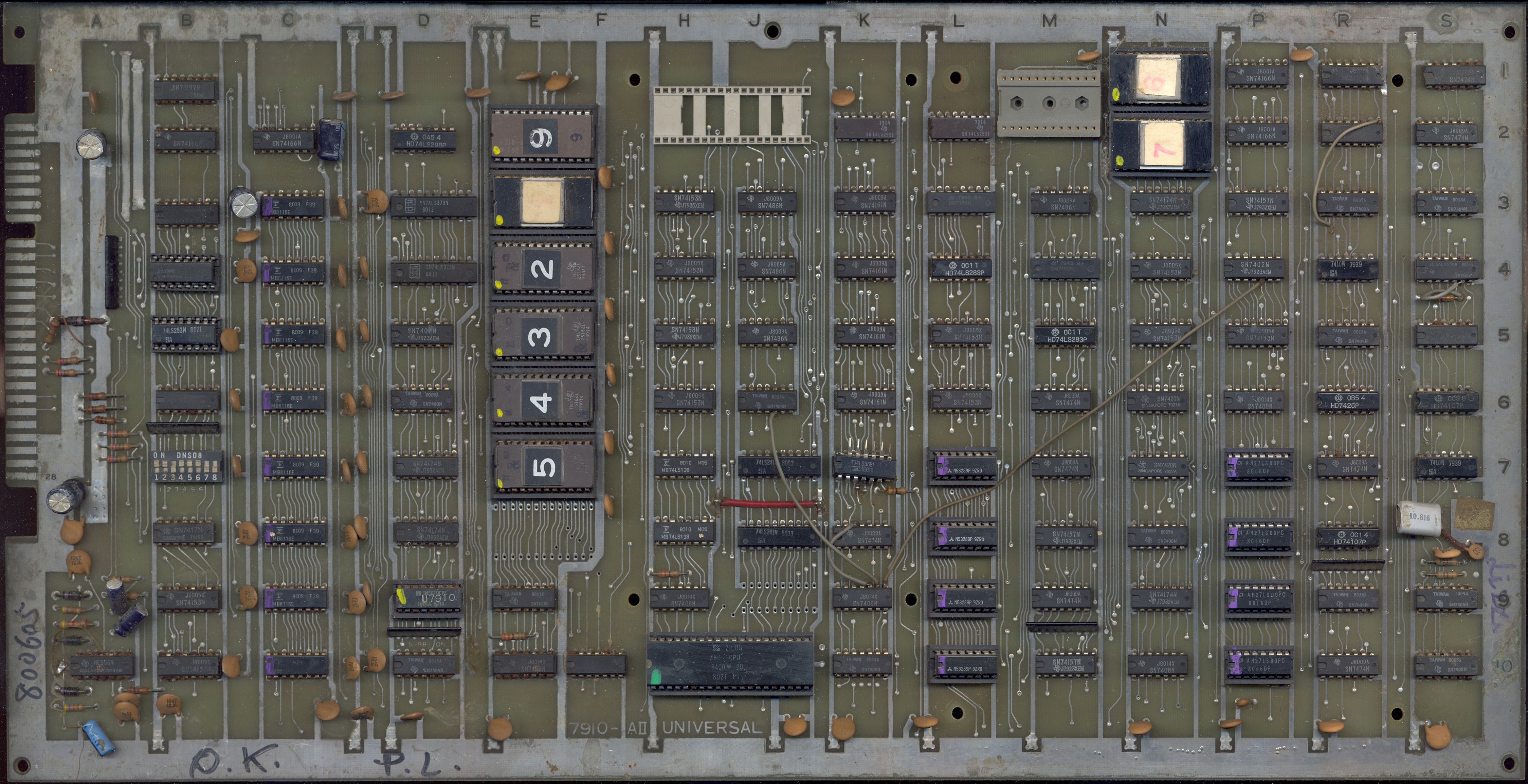

main PCB component side
-

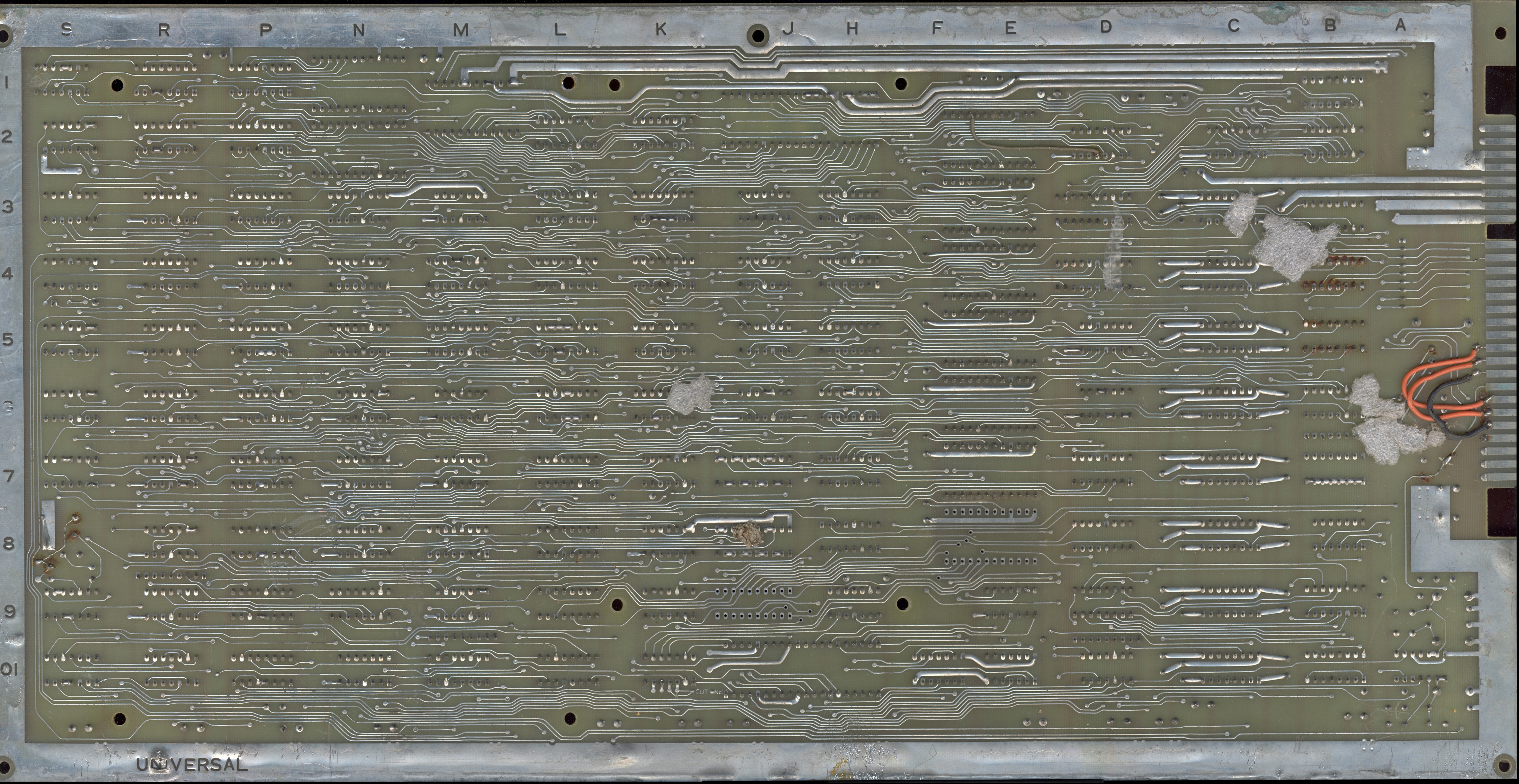

main PCB solder side
-

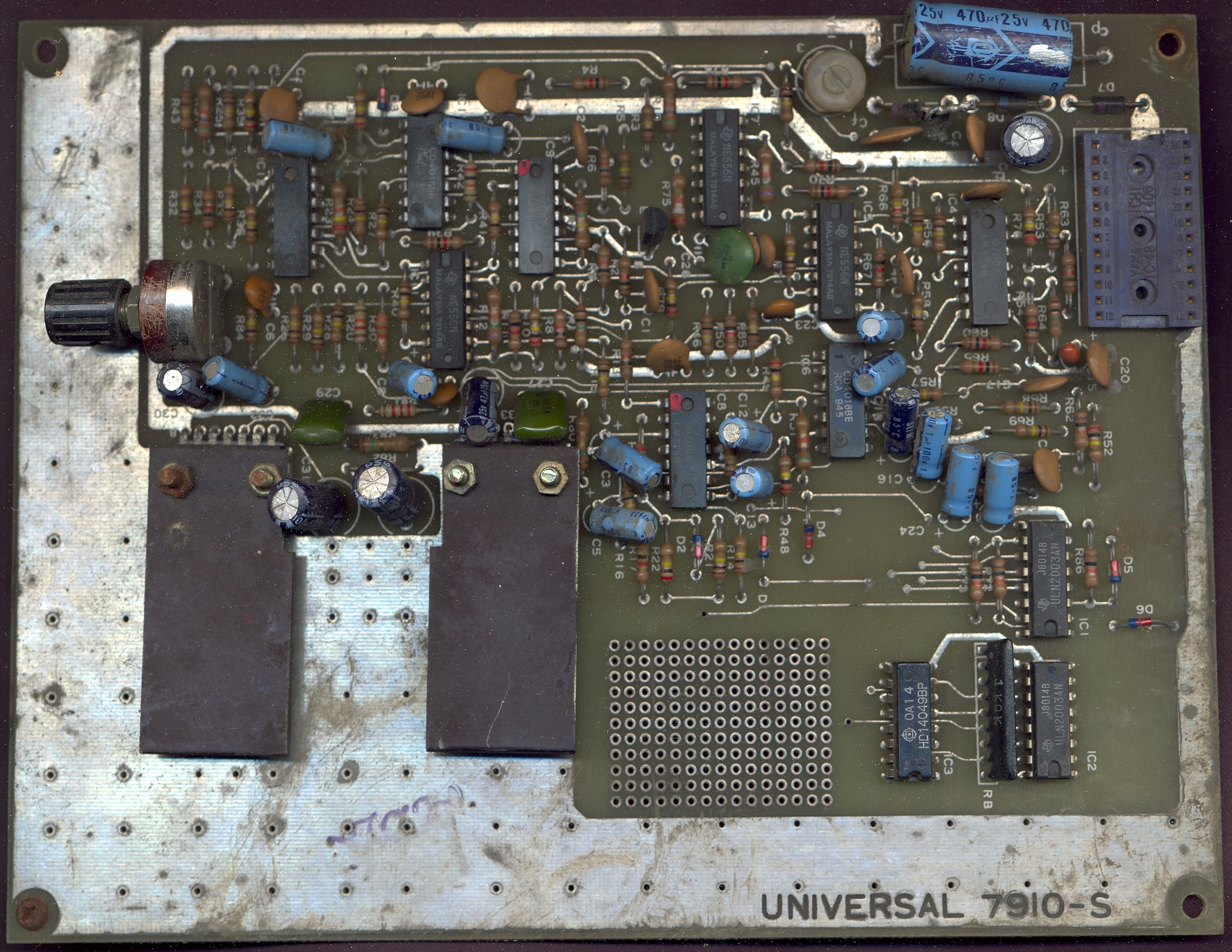

sound PCB component side
-

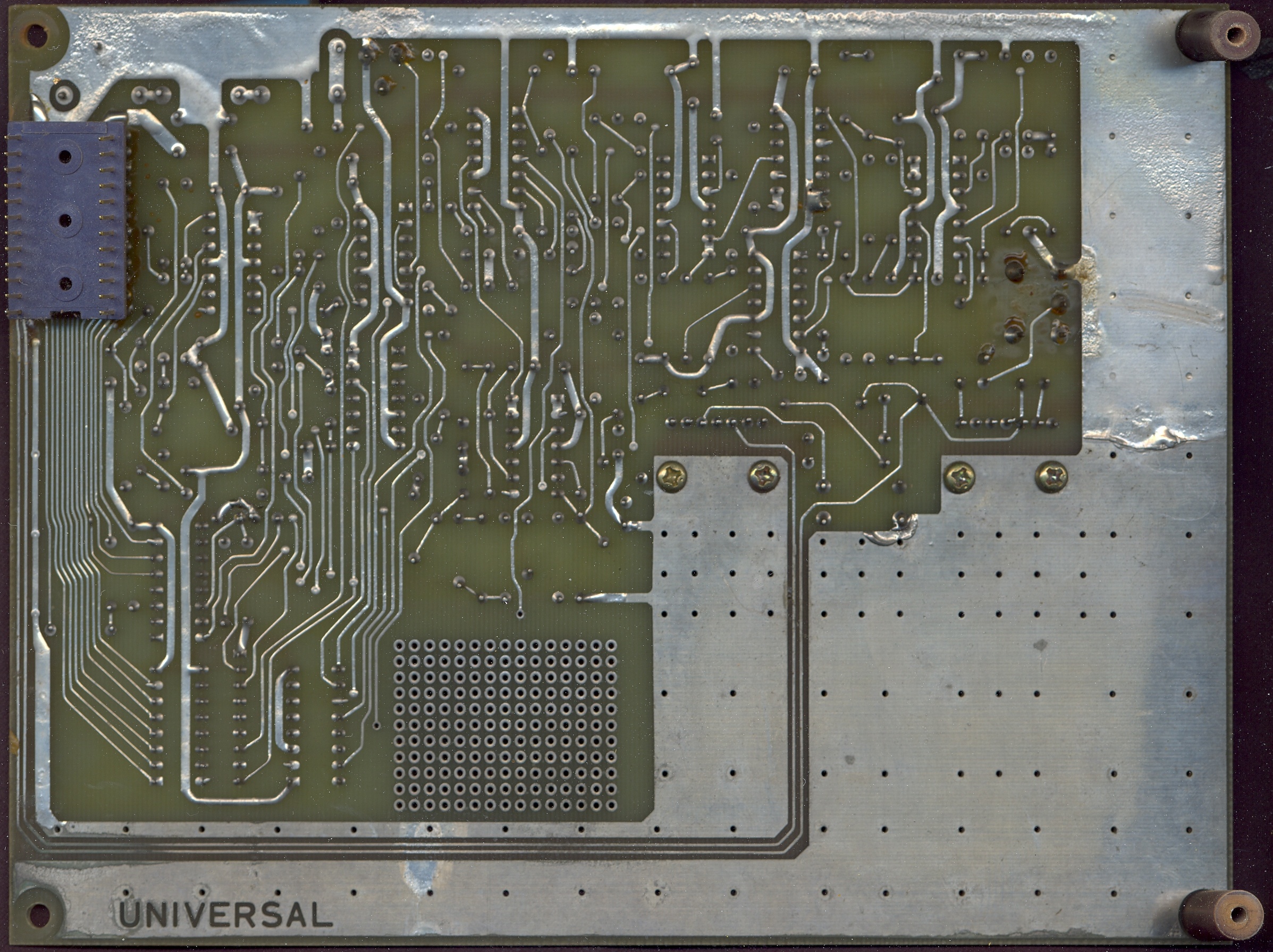

sound PCB solder side
-

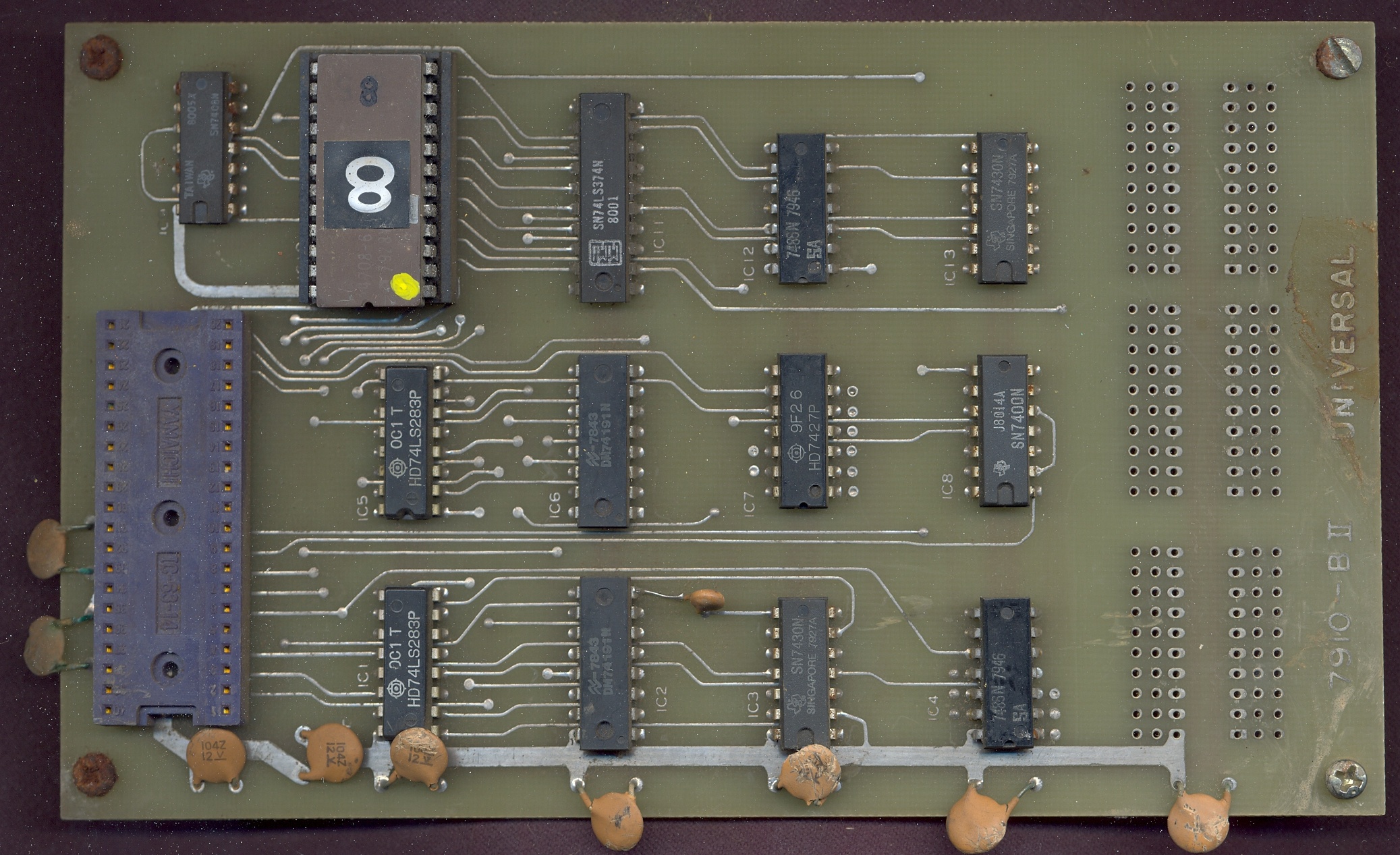

sub PCB component side
-

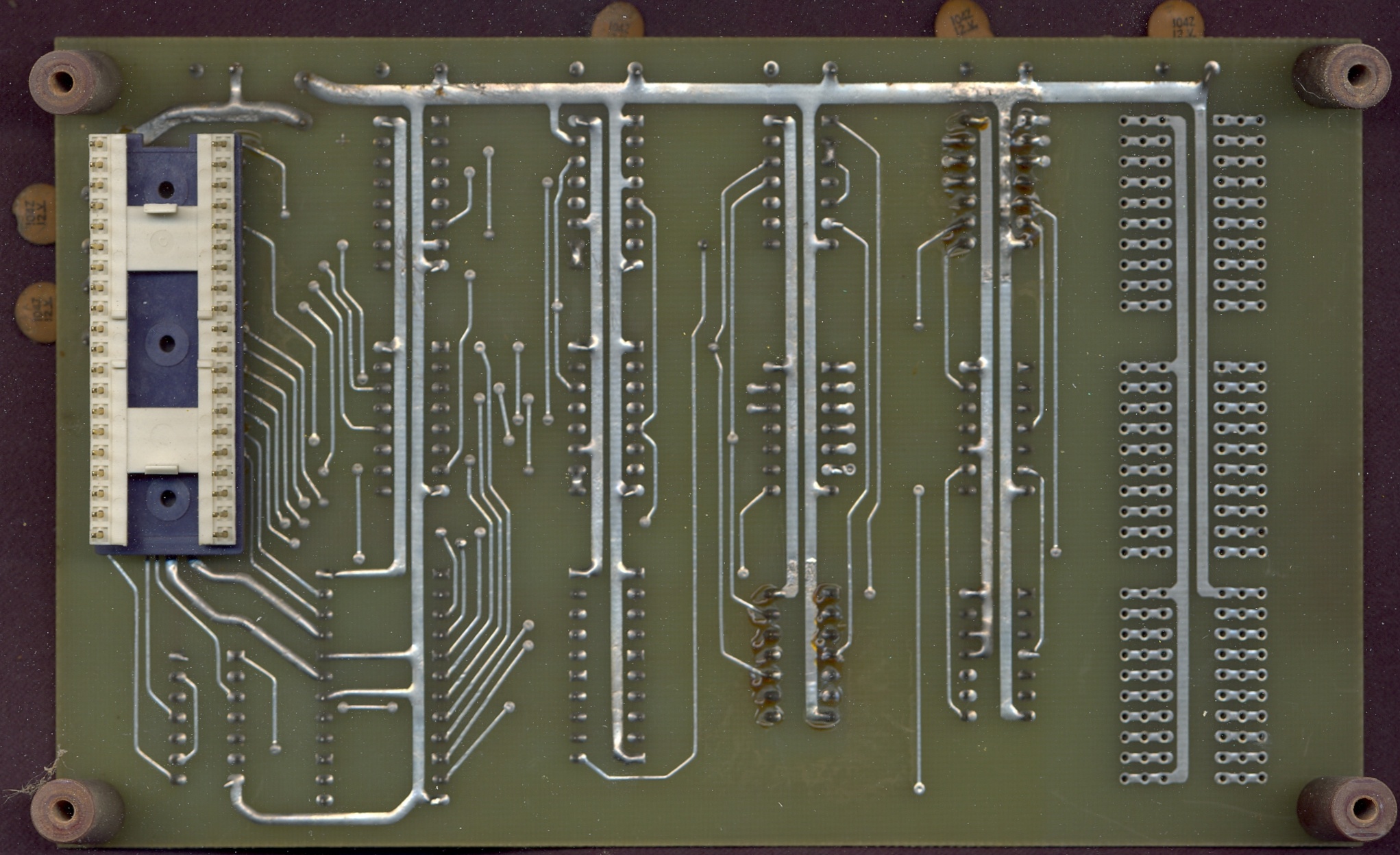

sub PCB solder side
