Car 2 (bootleg of Head On 2)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| dump date | 17/06/2007 |
| emulator | MAME 0.166u3 |
| dev | David Haywood |
| name | car2 on ProgettoEMMA car2 on Arcade Database |
| description | Car 2 (bootleg of Head On 2) |
| year | 1979 |
| manufacturer | Play Car Bologna |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | 8b | 8-bit Microprocessor - main | |
| 1x | TDA2002 | Audio Amplifier - sound | ||
| 1x | oscillator | 15468.48 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | TMS2708JL | 0,1,2,4,5 | dumped |
| 3x | F2708 | 3,6,7 | dumped |
| 2x | DM74S288N | 2e(10302),3e(10303) | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | 4027 | 1b-5b |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x 4x2 switches DIP (6h)
Notes
Not working
This PCB is based on the classical design of Sidam hardware.
Files
-

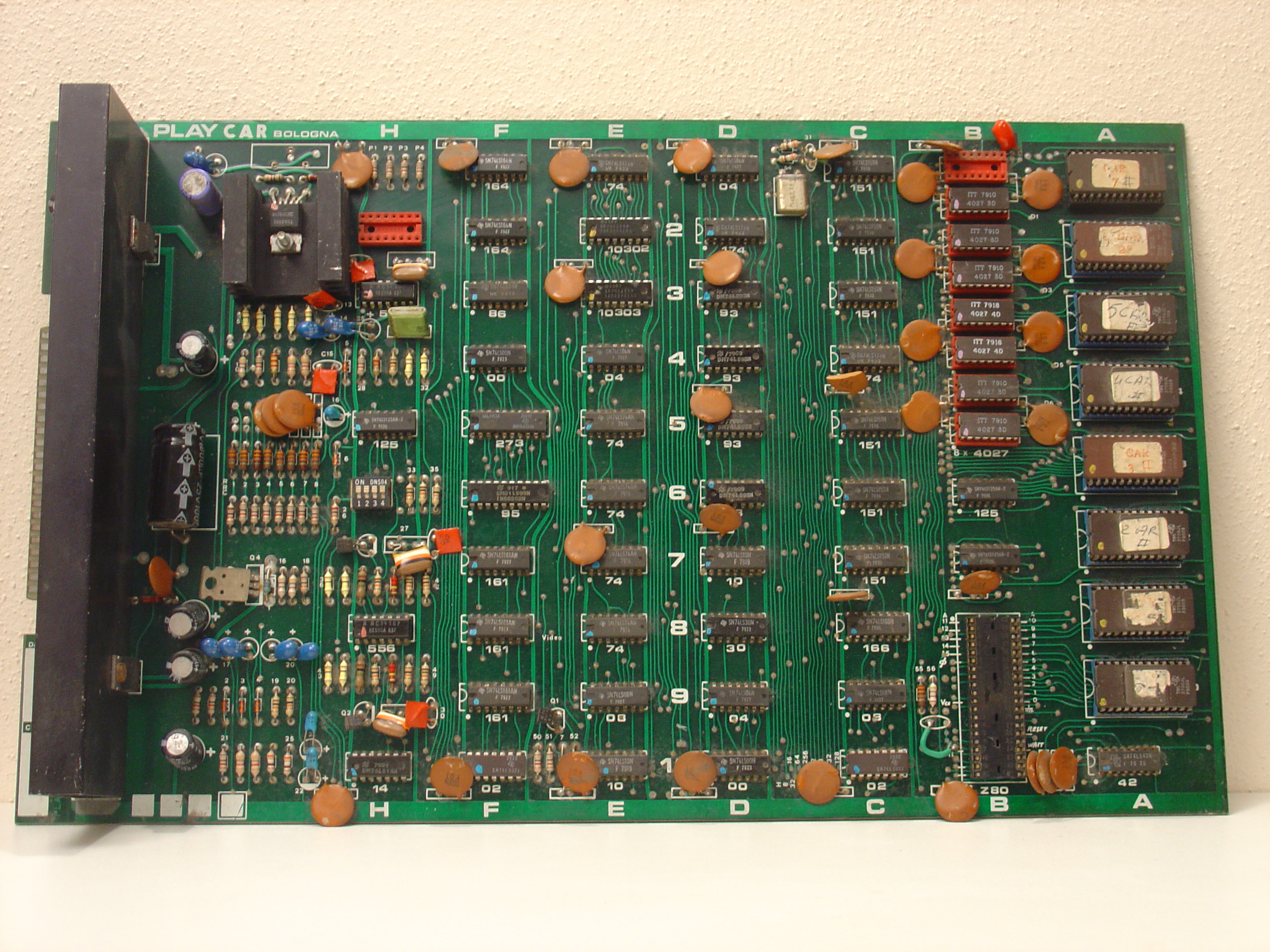

PCB component side
-

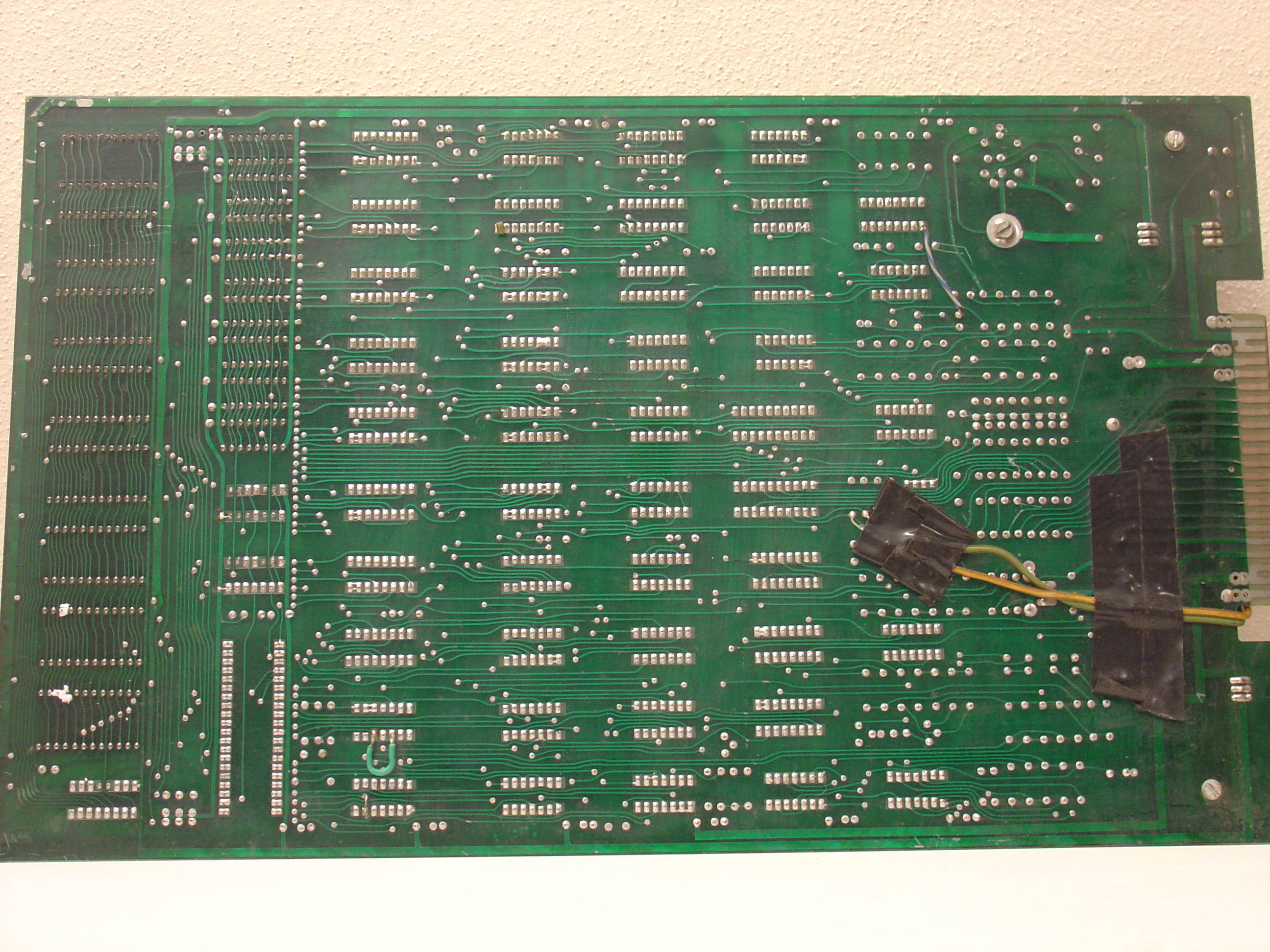

PCB solder side
