Bull Fighter
From Citylan
Jump to navigationJump to search
| dumper | f205v, Mame Italia Forum |
| date | 21/03/2005 |
| emulator | MAME 0.94u5 |
| dev | Brian Troha |
| name | bullfgtr on ProgettoEMMA bullfgtr on Arcade Database |
| description | Bull Fighter |
| year | 1984 |
| manufacturer | Alpha Denshi |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | HD68000-8 | main PCB 13e | 16/32-bit Microprocessor - main | |
| 1x | ALPHA-8303-44801B42-3M-3 | main PCB 4a | 4-bit Microcomputer - main (internal ROM not dumped) | |
| 1x | M5L8085AP | sound PCB 2p | 8-bit Microprocessor - sound | |
| 1x | MSM5232RS | sound PCB 2c | 8 Channel Tone Generator - sound | |
| 1x | AY-3-8910 | sound PCB 2a | Programmable Sound Generator - sound | |
| 5x | LM324 | - | sound PCB 4m,5m,4k,5j,5h | Quad Operational Amplifier - sound |
| 1x | uPC1181 | - | sound PCB 5n | Audio Amplifier - sound |
| 1x | oscillator | unmarked | X-TAL sound PCB 1p |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS2732 | main PCB 3e | dumped |
| 4x | 2764 | sound PCB 1h,1k,1l,1m | dumped |
| 6x | 2764 | main PCB 10b,10d,12b,12d,13b,13d | dumped |
| 12x | 2764 | lower PCB 4h,6h,7h,8h2f,3f 4f,6f,7f,8f,10f,11f |
dumped |
| 1x | 10S030N | sound PCB 3h | dumped |
| 3x | 24S10 | main PCB 1a,2a,3a | dumped |
| 4x | 24S10 | lower PCB 6b,7b,9b,10b | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | MSM8155P | sound PCB 3d |
| 4x | M58725P | main PCB 5e,7c,7b,6a |
| 4x | HM6116-3 | lower PCB 2h,3h,10h,11h |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 18x2 edge connector (main PCB)
1x 20 pins flat cable connector from main PCB to sound PCB (CN1)
2x 50 pins flat cable connector from main PCB to lower PCB (J1,J2)
2x trimmer (volume)(sound PCB VOICE,MUSIC)
1x 6 DIP switches bank (main PCB 14a)
Notes
sound PCB is marked: "ALFA DENSHI CO, LTD. SOUND BOARD NO.59MC07" on component side
main PCB is labelled: "SERIAL NO. 116379" on component side
Working
there is room for HP4 and HP8 on main board, but sockets are empty (nevertheless the game is working)
label format is: --- -------------- | HV4 | -> rom function and NUMBER | | |ALPHA DENSHI| -> copyright --------------
update 20220221: better description
Files
-
PCB component side
-

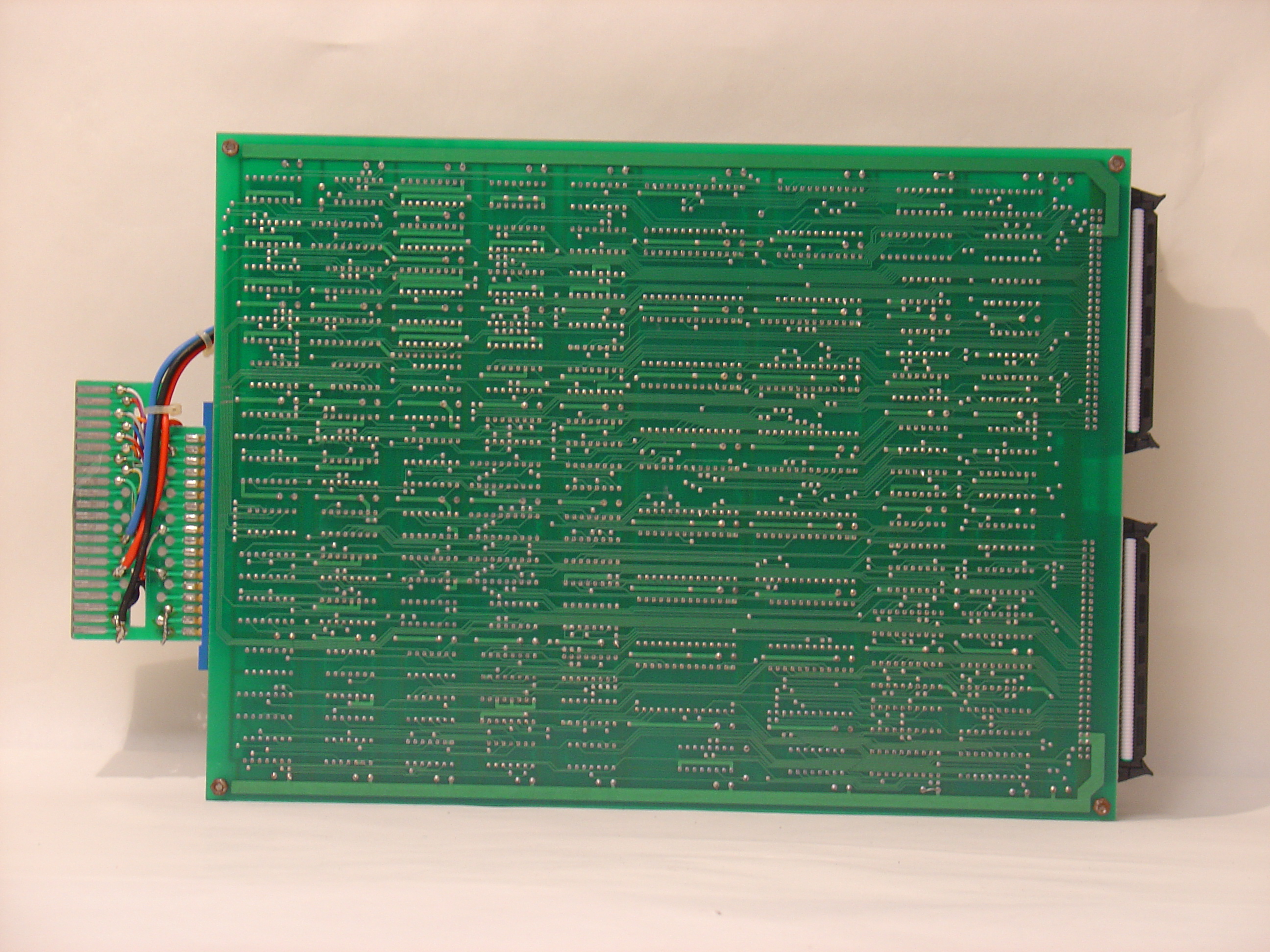

PCB solder side
-

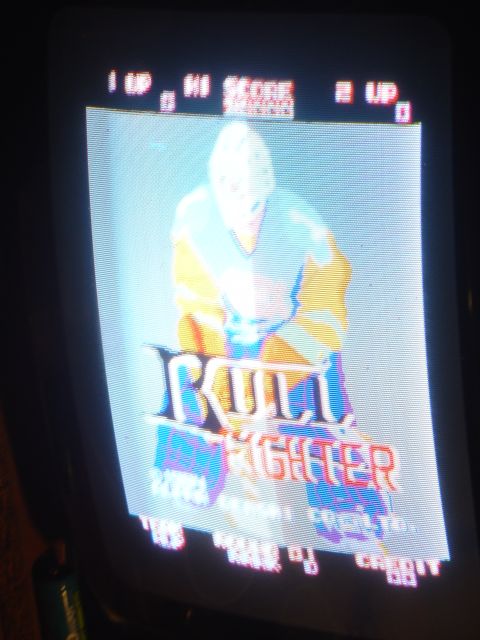

Title
-

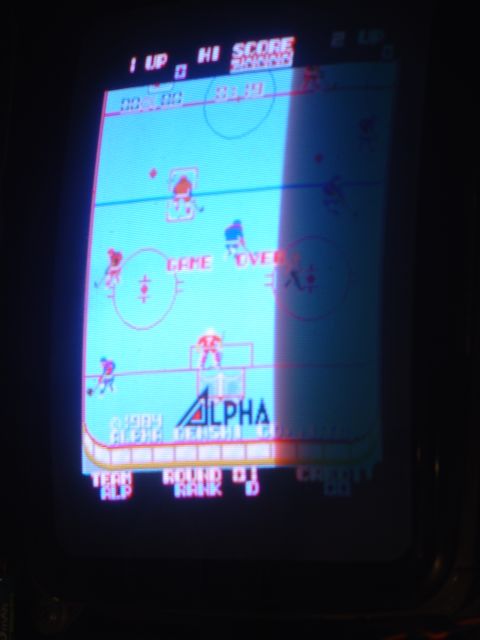

In game
-
PCBs layout
