Asterion
From Citylan
Jump to navigationJump to search
| dumper | Lorenzo Fongaro, Xadhoom, Paolo Bolognesi, Paolo Rinoldi |
| date | 21/09/2020 |
| emulator | MAME 0.225 |
| dev | Osso |
| name | asterion on Arcade Database |
| description | Asterion |
| year | 1980 |
| manufacturer | Olympia |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R6502P | 8-bit Microprocessor - main | ||
| 1x | TCA940 | - | Audio Amplifier - sound | |
| 1x | oscillator | 10595 | clock to be verified |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 12x | F2708 | dumped | |
| 1x | SN74S472N | dumped | |
| 1x | SN74S470N | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 19x | M4027P-4F1 | |
| 1x | MM2114UCE |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8 DIP switches bank
1x 4 DIP switches bank
Notes
update 20201004: -> PROMs dump
Files
-

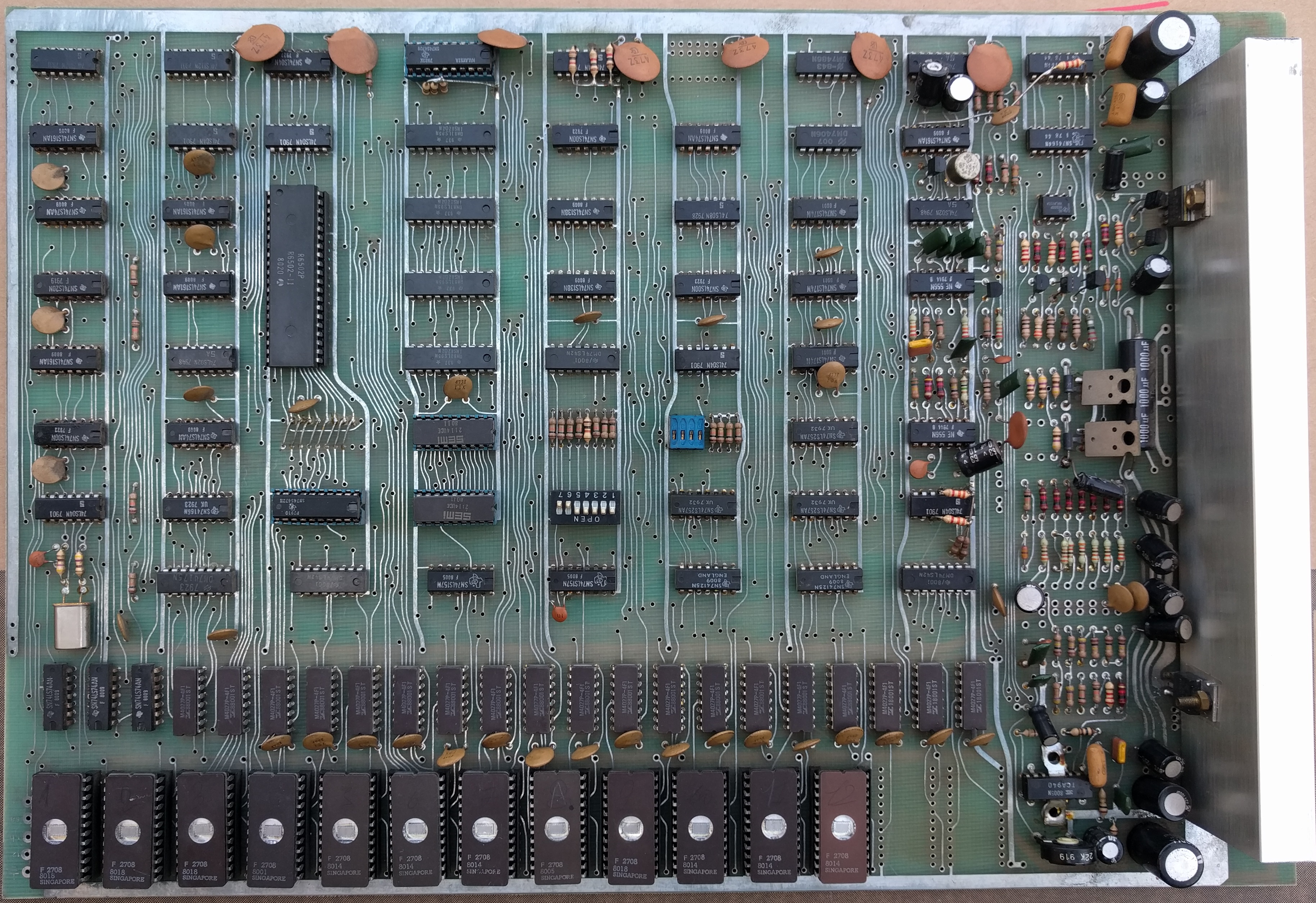

PCB component side
-

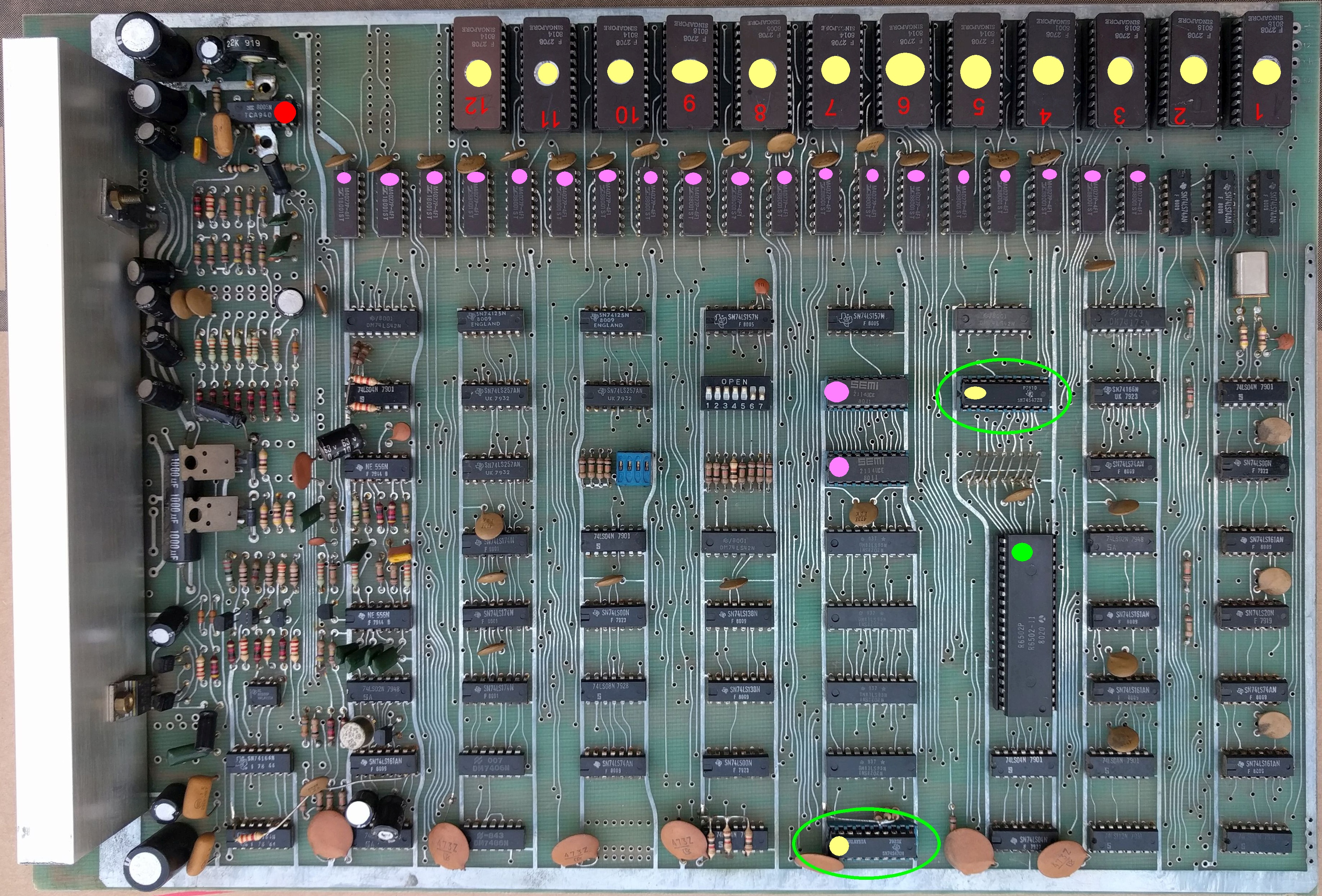

PCB component side notes
-

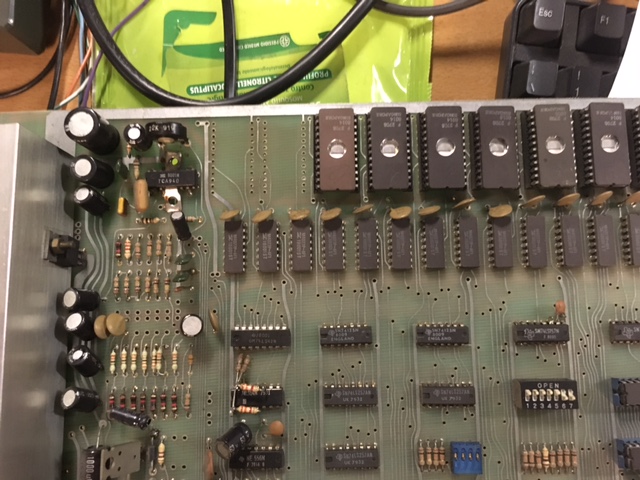

PCB component side detail 1
-

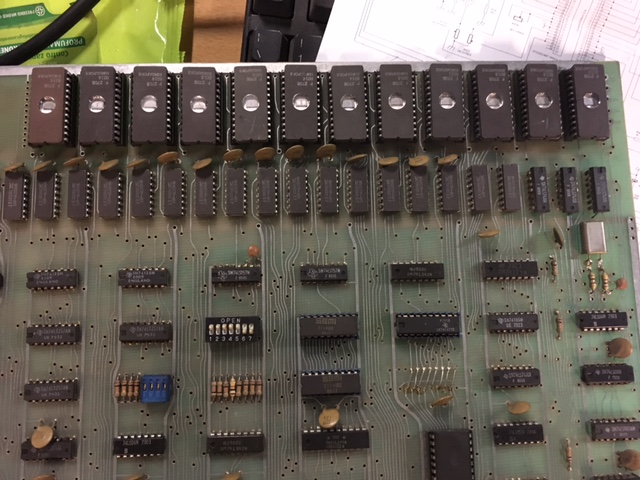

PCB component side detail 2
-

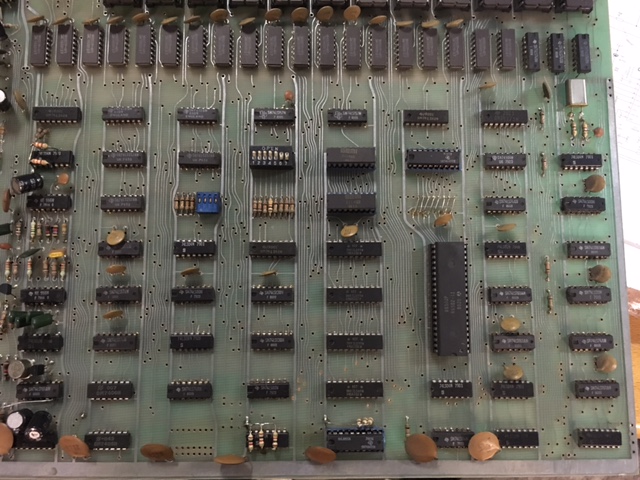

PCB component side detail 3
-

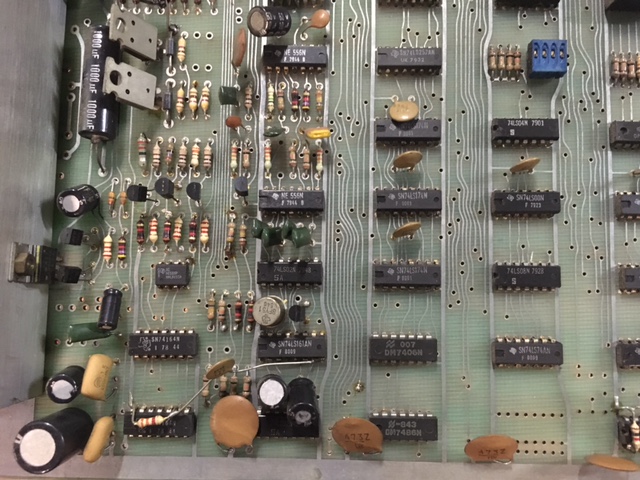

PCB component side detail 4
-

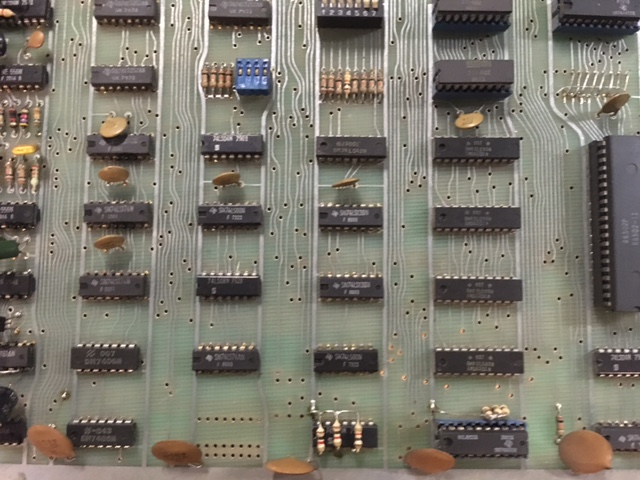

PCB component side detail 5
-

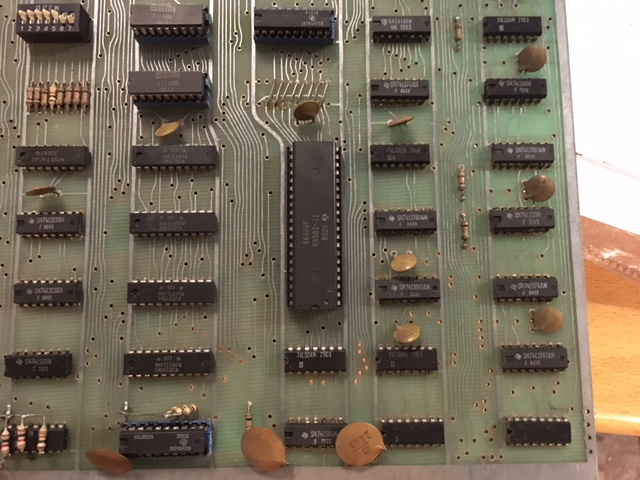

PCB component side detail 6
-

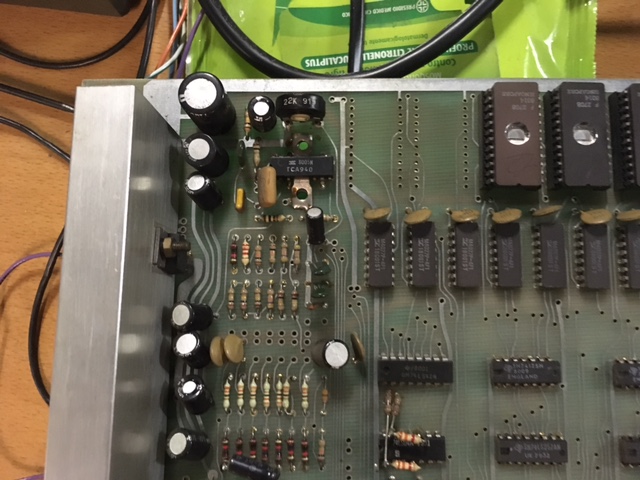

PCB component side detail 7
-

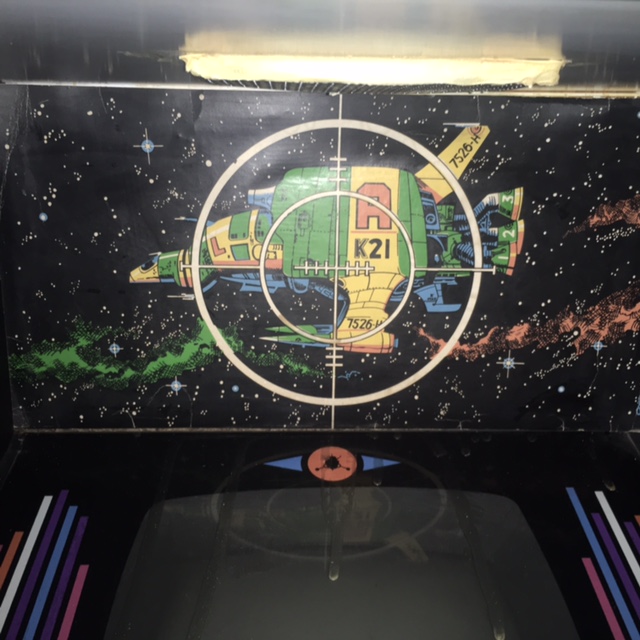

bezel
-

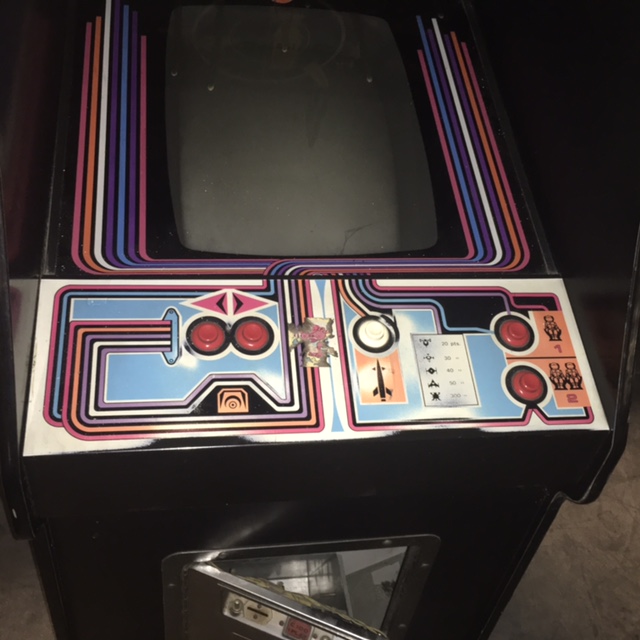

control panel
-

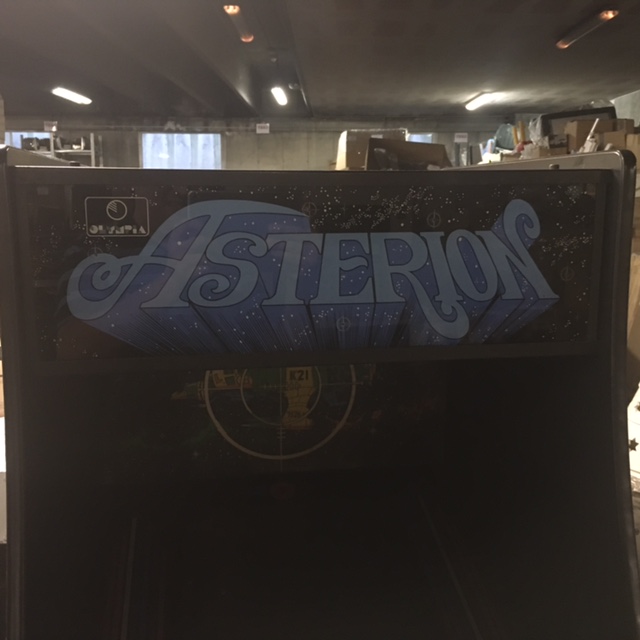

marquee 1
-
marquee 2
-
side art left 1
-
side art left 2
-
side art right
-
PROMs
