EMU Infos
| dumper |
Tirino73
|
| date |
16/12/2007
|
| emulator |
MAME 0.125u6
|
| dev |
david haywood
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
68000 |
|
|
16/32-bit Microprocessor - main
|
| 1x |
Z80B |
|
|
8-bit Microprocessor - main
|
| 1x |
Z80B |
|
|
8-bit Microprocessor - sound
|
| 1x |
YM3812 |
|
|
FM Operator Type-L II (OPL II) - sound
|
| 1x |
oscillator |
16 |
|
|
| 1x |
oscillator |
24 |
|
|
ROMs
RAMs
PLDs
Others
Notes
The custom mcu of original was been replaced by a small daughterboard inversely connected to the main cpu board.
It has a Z80B*,which uses 2kb of ram (6116 SRAM x1),and some standard TTL ics.
tfb-1 to 3 and tfb-6 to 8 main program
tfb-10 Z80B* program (mcu hack)
the rest of roms (sound program and gfx data) are the same of existing set
All roms are 24128,24256,27512
This romset comes from a bootleg/hacked pcb.
Game differences from original are: Company logo and copyright string removed.
Files
-

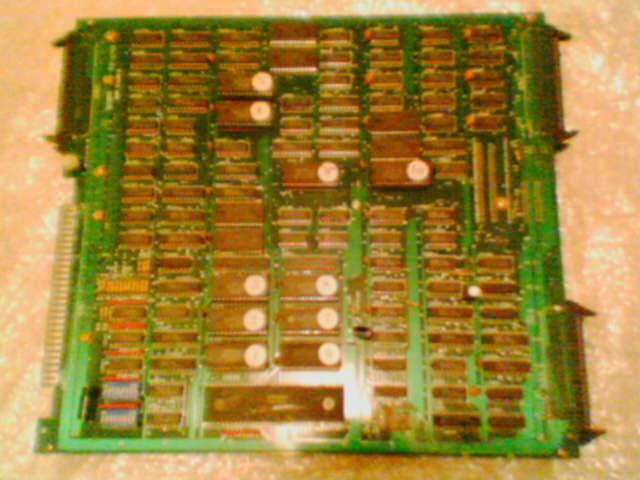

main PCB component side
-

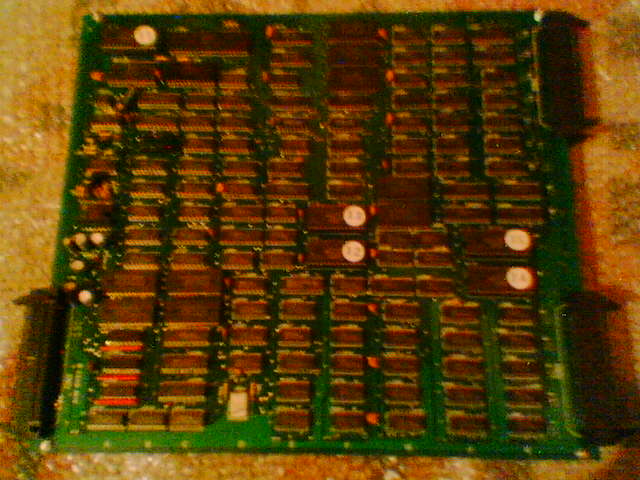

lower PCB component side
-

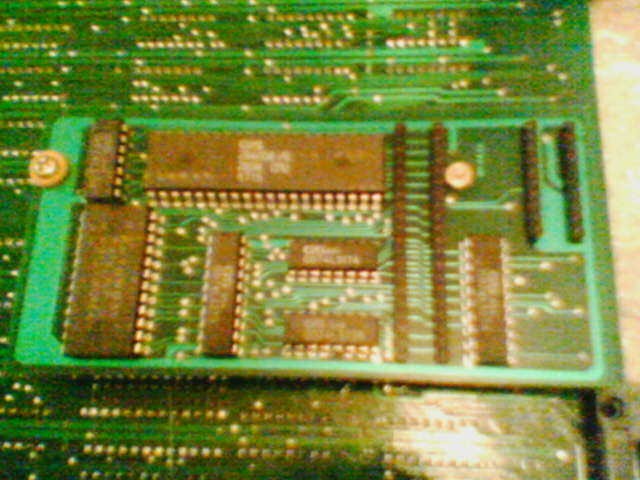

MCU PCB component side
-
Read me
628
main PCB component side
lower PCB component side
MCU PCB component side
Read me
