Street Fighter II': Champion Edition (bootleg, USA 920313, set 9)

PCB Infos
name	sf2ceuab9 on FB Neo
description	Street Fighter II': Champion Edition (bootleg, USA 920313, set 9)
year	1992
manufacturer

Technical references

QTY	Type	clock	position	function
1x	68000			16/32-bit Microprocessor - main
1x	Z0840006PSC			8-bit Microprocessor - sound
1x	M6295			4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	YM2151			FM Operator Type-M (OPM) - sound
1x	YM3012			D/A Converter (DAC) - sound
2x	LM324N			Quad Operational Amplifier - sound
1x	uPC1241			Audio Amplifier - sound
1x	oscillator	12.000	12M
1x	oscillator	3.579545	3.58M
1x	oscillator	16.00MHz	16M

QTY	Type	position	status
2x	TMS ZA2880JL	1,2	dumped
2x	AM27C512	3,8	dumped
2x	TMS27C010A	4,6	dumped
2x	M27C4001	5,7	dumped
4x	AM27C1024	8,9,10,11	dumped
6x	MASKROM	A-F	dumped (read as uPD27C8000)

QTY	Type	position
11x	MCM2018AN35
4x	KM62256BLS-10

QTY	Type	status
6x	GAL16V8-20HB1	read protected
4x	GAL16V8-25HB1	read protected
2x	GAL16V8-25LP	read protected
4x	HY18CY8S-25	read protected
9x	PALCE20V8H-25PC	read protected
1x	PALCE22V10H-25PC/4	read protected
1x	TIBPAL22V10CNT	read protected

1x 28x2 JAMMA edge connector
1x 10 legs connector (MOLEX 10P)
1x trimmer (volume)
3x 8 DIP switches banks (SWA,SWB,SWC)

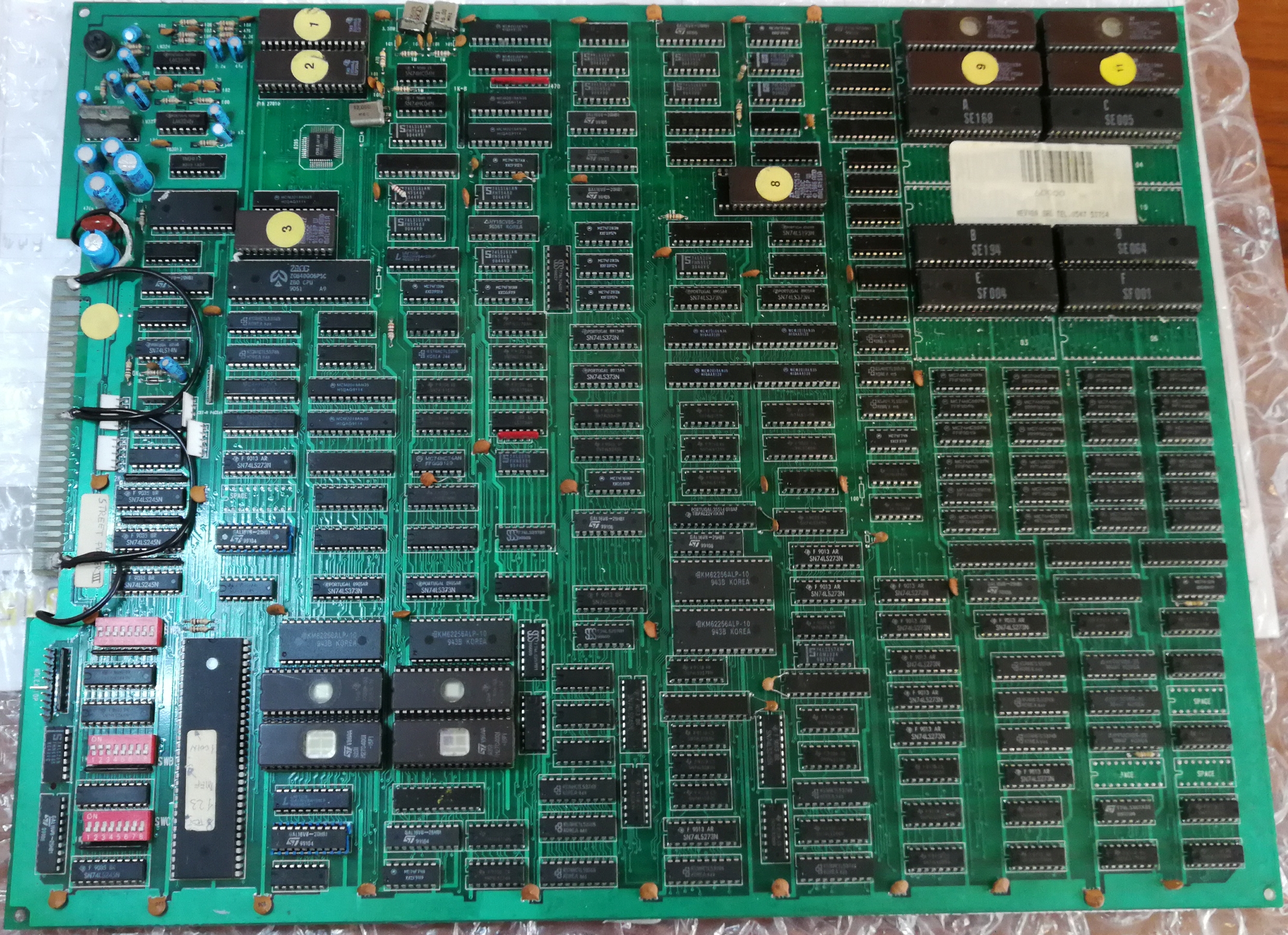

PCB is marked: "STF REV.3" on component side
PCB is labeled: "STREET FIGHTER III" on component side
