EMU Infos
| dumper |
f205v, Maru79
|
| date |
10/02/2022
|
| emulator |
FB Neo v1.0.0.03
|
| dev |
JacKc
|
PCB Infos
| name |
sf2amf14 on FB Neo
|
| description |
Street Fighter II': Champion Edition (L735 Test Rom, bootleg, set 12)
|
| year |
1992
|
| manufacturer |
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
MC68000P10 |
|
|
16/32-bit Microprocessor - main
|
| 1x |
M6295 |
|
|
4-Channel Mixing ADCPM Voice Synthesis LSI - sound
|
| 1x |
AY-3-8912 |
|
|
Programmable Sound Generator - sound
|
| 1x |
LM324N |
- |
|
Quad Operational Amplifier - sound
|
| 1x |
uPC1242H |
- |
|
Audio Amplifier - sound
|
| 1x |
oscillator |
16.000MHz |
|
|
| 1x |
oscillator |
12.000MHz |
|
|
| 1x |
oscillator |
6.000MHz |
|
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 1x |
27C512 |
27c512 |
dumped
|
| 4x |
AM27C010 |
E, F, G, H |
dumped
|
| 2x |
M27C1001 |
1, 3 |
dumped
|
| 2x |
AM27C040 |
2, 4 |
dumped
|
| 1x |
27040 |
JYG-4 |
dumped
|
| 1x |
27040 |
JYG-5 |
dumped (probably bad, gives error on pin 1,31)
|
RAMs
PLDs
| QTY
|
Type
|
position
|
status
|
| 11x |
PALCE16V8H-25/4 |
1, 4, 9, md7, m10, m11, m12, m13, m14, m17, m21 |
read protected
|
| 1x |
PALCE16V8H-25/4 |
2 |
missing
|
| 1x |
GAL16V8A-25LP |
5 |
read protected
|
| 1x |
HY18CV8S-30 |
m7 |
read protected
|
| 9x |
PALCE20V8H-25/4 |
8, m6, m15, m18, m19, m20, m22, m23, m24 |
read protected
|
| 2x |
PALCE22V10H-25/4 |
m3, m16 |
read protected
|
Others
1x 28x2 JAMMA edge connector
1x 10 legs connector
1x trimmer (volume)
3x 8 DIP switches banks
Notes
PCB is labelled: "MES" and "91031A" on component side
Files
-

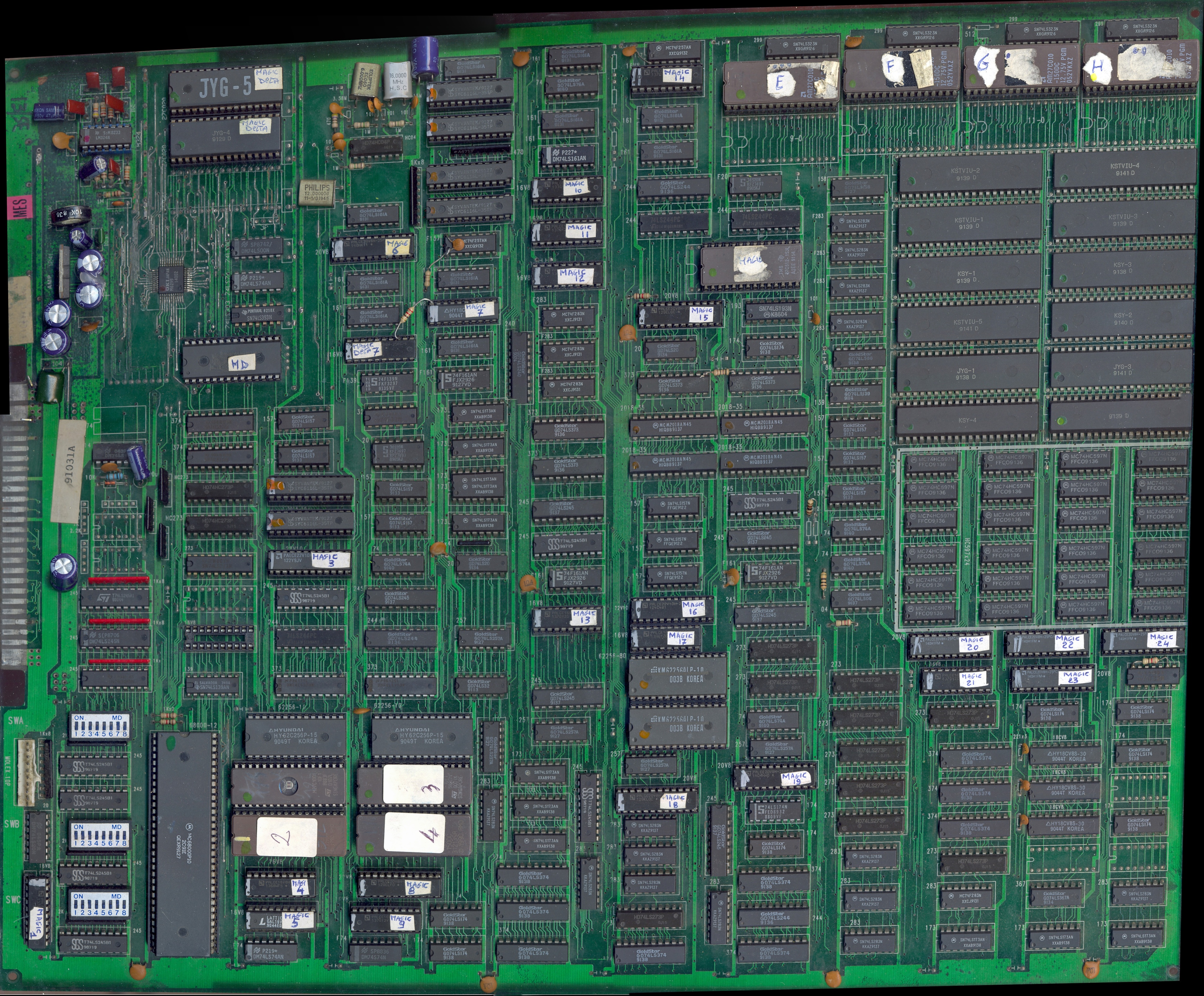

PCB component side
-

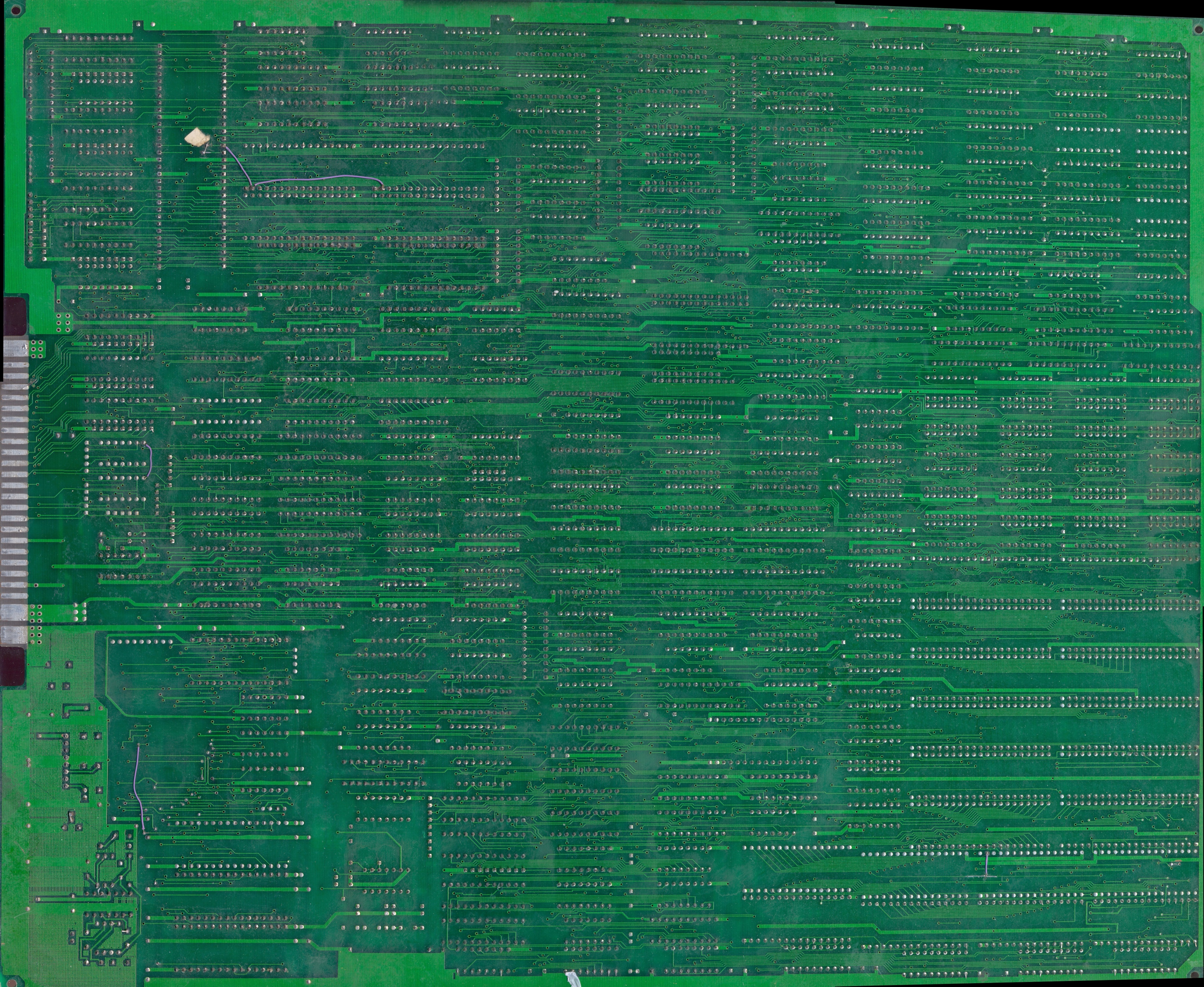

PCB solder side
