EMU Infos
dumper |
f205v
|
date |
16/01/2017
|
emulator |
MAME 0.34b1
|
dev |
Al Kossow
|
Technical references
CPUs
QTY
|
Type
|
clock
|
position
|
function
|
2x |
Z80CPU-8400W00 |
|
CPUA(missing),CPUB |
8-bit Microprocessor - main
|
1x |
AY-3-8910 |
|
|
Programmable Sound Generator - sound
|
1x |
SN76477NF |
|
SGNI |
Complex Sound Generator - sound
|
1x |
oscillator |
10.000 |
|
|
ROMs
QTY
|
Type
|
position
|
status
|
8x |
MB8516 |
S1-S8 |
dumped
|
2x |
MB7052 |
62,64 |
dumped
|
RAMs
PLDs
QTY
|
Type
|
position
|
status
|
0x |
|
|
|
Others
1x 18x2 edge connector
2x trimmer (volume)(VR3,VR4)
1x 8 DIP switches bank (SW)
Notes
1x DIP24 socket (ROM B5 ソケツト) is empty, probably a small piggyback board (missing) should be fitted here.
Files
-

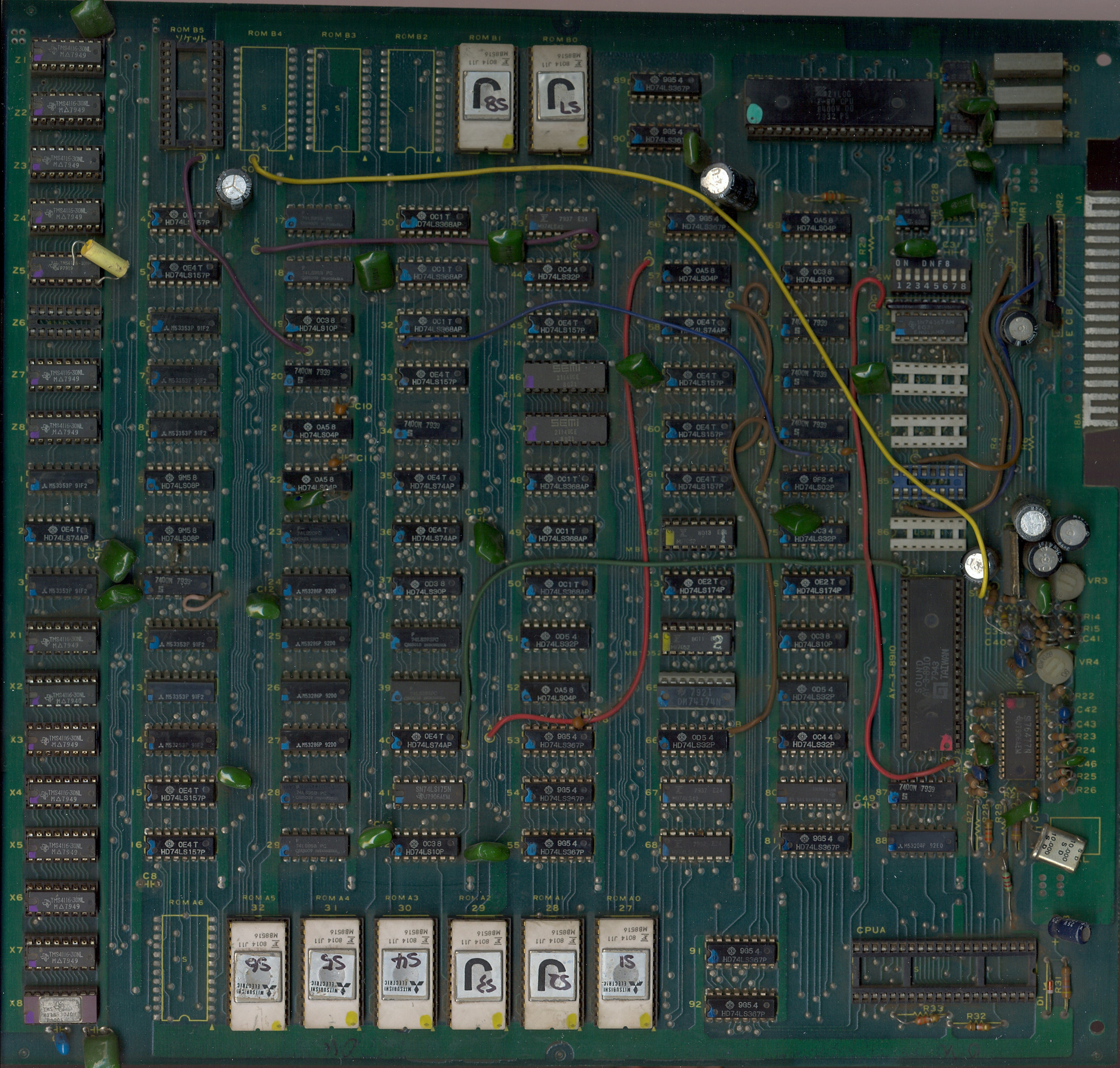

PCB component side
-

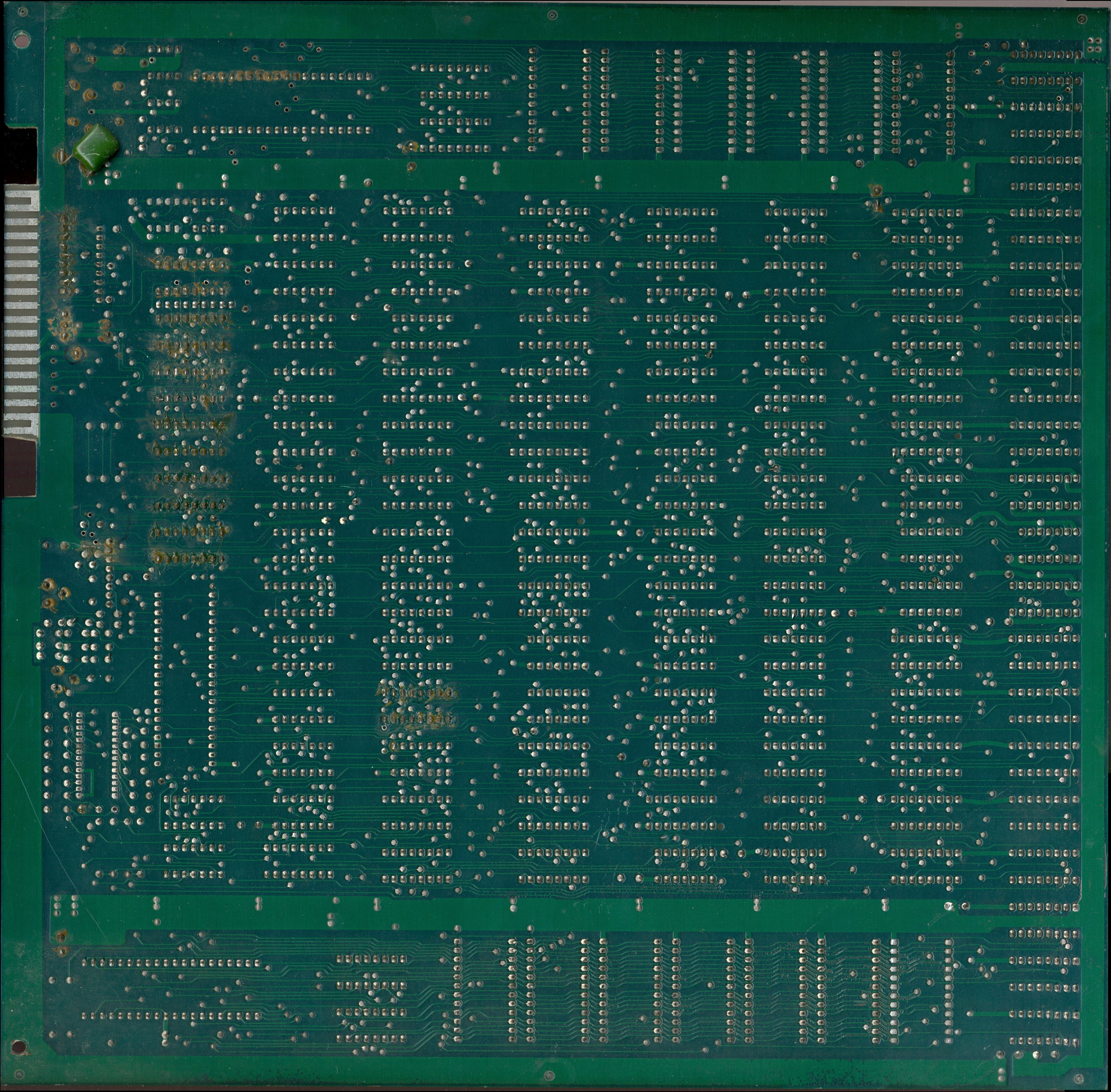

PCB solder side
