EMU Infos
dumper |
f205v
|
date |
08/02/2007
|
emulator |
MAME 0.112u1
|
dev |
Pierpaolo Prazzoli
|
Technical references
CPUs
QTY
|
Type
|
clock
|
position
|
function
|
1x |
MC68000P10 |
|
|
16/32-bit Microprocessor - main
|
1x |
OKI M6295 |
|
|
4-Channel Mixing ADCPM Voice Synthesis LSI - sound
|
1x |
LM324N |
|
|
Quad Operational Amplifier - sound
|
1x |
blank DIP28 |
|
|
FM Operator Type-L II (OPL II) - sound
|
1x |
oscillator |
8.000MHz |
close to sound |
|
1x |
oscillator |
10.000MHz |
close to main |
|
1x |
oscillator |
14.000MHz |
close to main |
|
ROMs
QTY
|
Type
|
position
|
status
|
2x |
AM27C010 |
main |
dumped
|
2x |
MASK |
10,20 |
dumped
|
2x |
MASK |
30,40 |
dumped
|
RAMs
PLDs
Others
1x 28x2 JAMMA edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
Files
-

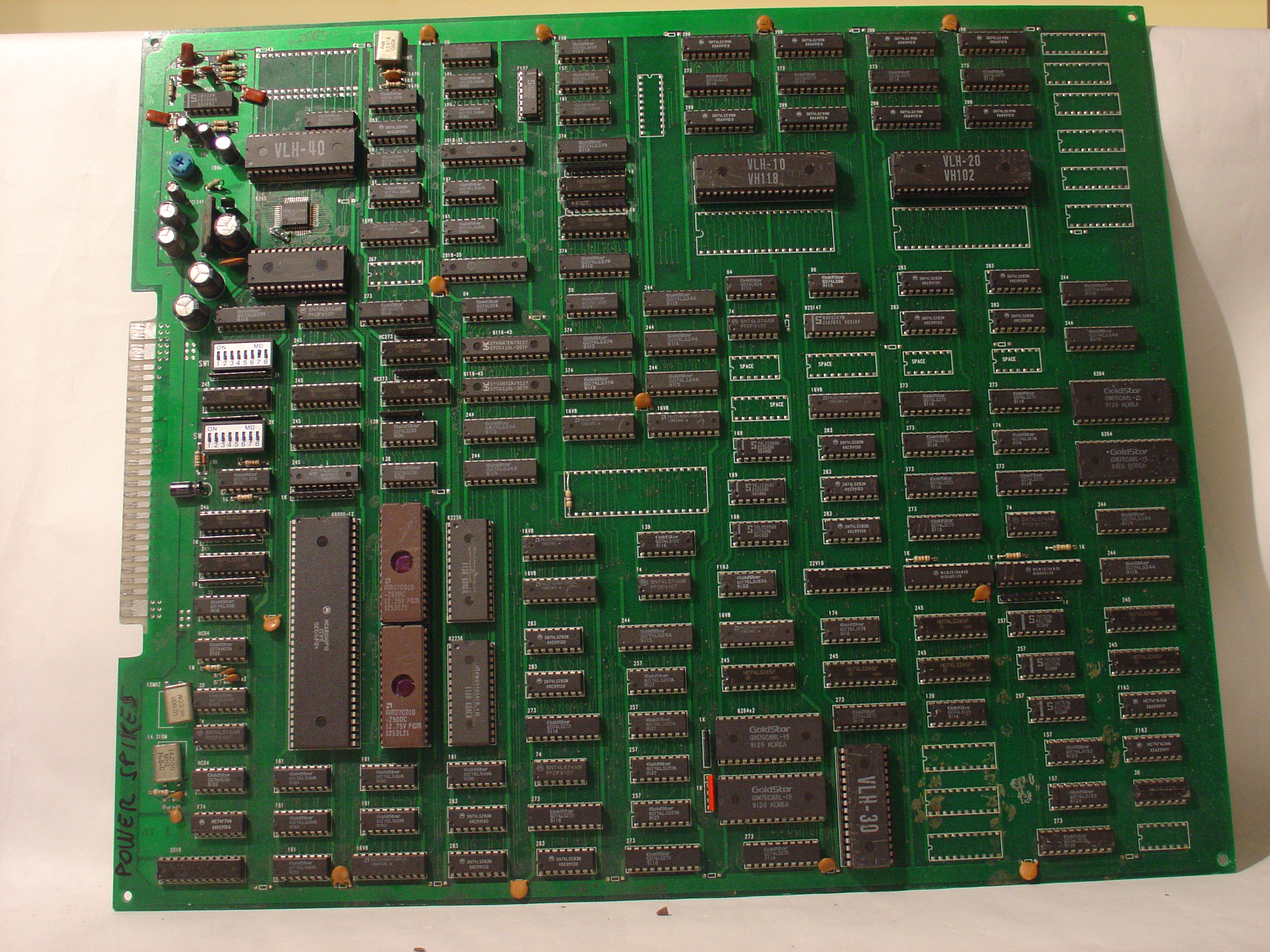

PCB component side
-

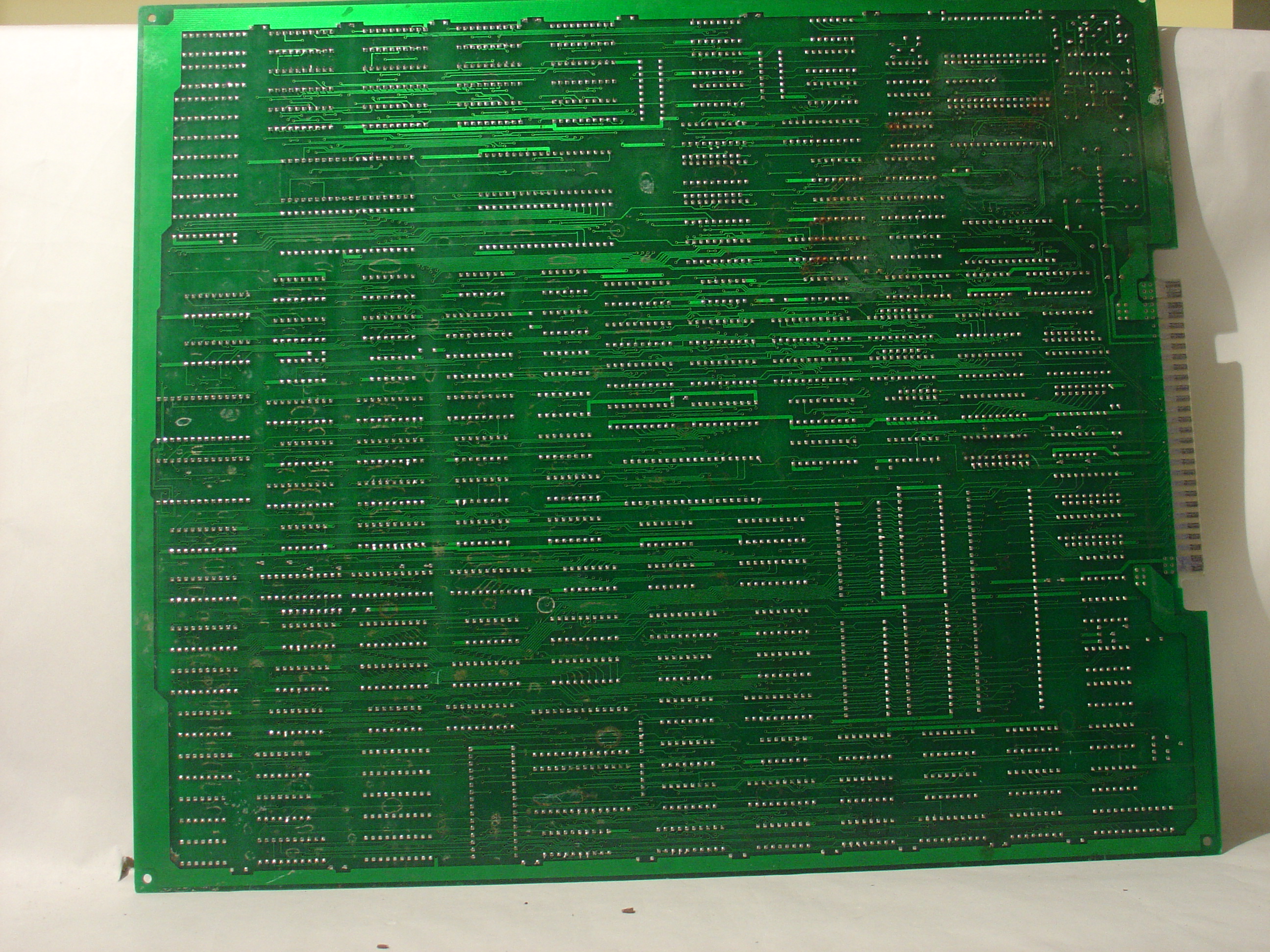

PCB solder side
-

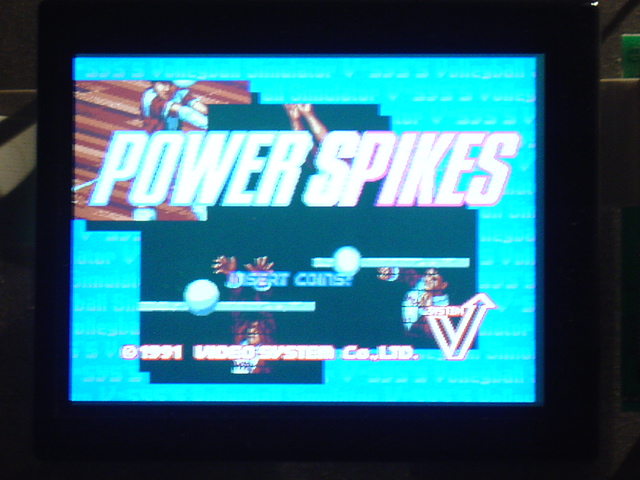

Title
-

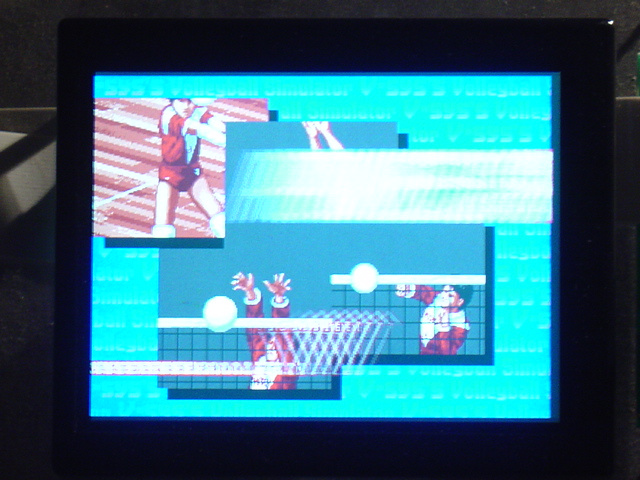

Attract mode
-

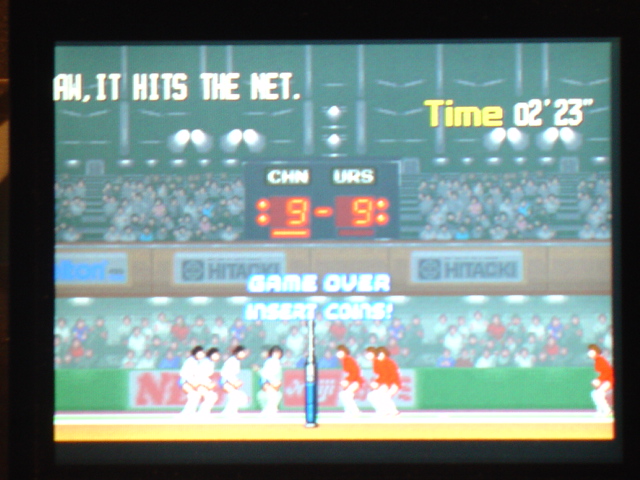

In game 1
-

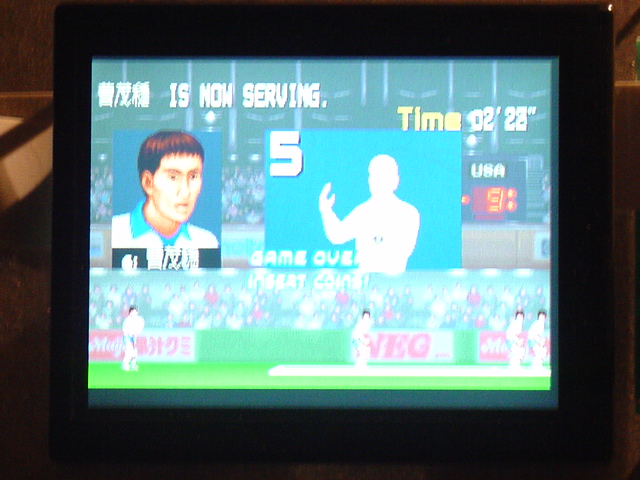

In game 2
-
In game 3
-

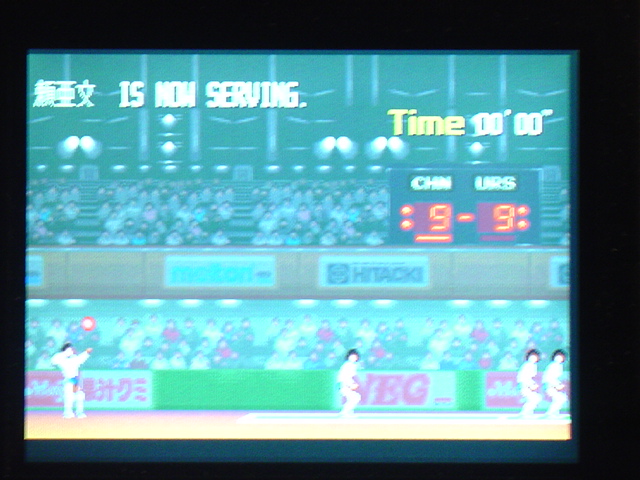

In game 4
-

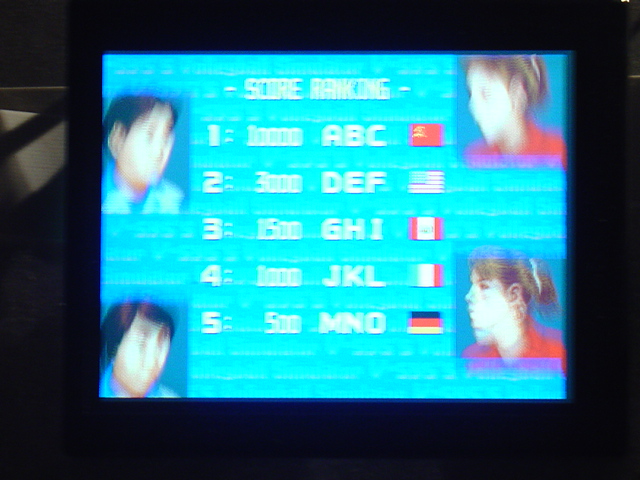

Hiscore
