EMU Infos
| dumper |
f205v, robotype
|
| date |
24/07/2011
|
| emulator |
MAME 0.143u4
|
| dev |
f205v, robotype
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
8085 |
|
ic9 main PCB |
8-bit Microprocessor - main
|
| 2x |
LM324N |
|
ic46,ic52 main board |
Quad Operational Amplifier - sound
|
| 1x |
LM380N |
|
ic43 main board |
Audio Amplifier - sound
|
| 1x |
oscillator |
|
8f ROMs PCB |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 12x |
2716 |
1a,2a,3a,4a,5a,6a,7a,8a,3b,4b,3d,4d ROMs PCB |
dumped
|
| 2x |
MMI6301-1 |
ic40,ic41 main PCB |
dumped
|
| 3x |
TBP24SA10N |
piggyback PCB - used for sound |
dumped
|
RAMs
| QTY
|
Type
|
position
|
| 8x |
MM2114N-3 |
5b,6b,7b,8b,5d,6d,7d,8d ROMs board
|
PLDs
| QTY
|
Type
|
position
|
status
|
| 0x |
|
|
|
Others
1x 22x2 edge connector (main board)
2x 50 pins flat cable connector from main board to ROMs board (cn1,cn2)
1x trimmer (volume main board)
1x 8 DIP switches bank (ic11 main board)
Notes
main PCB is marked: "PH2"
main PCB is labeled: "03814367" and "280402" and "N°132073"
ROMs PCB is marked: "PH1"
Working
On top of main PCB there is a small piggyback PCB. it is a replacement for MN6221 Melody-Alarm Generator - sound. There are 3 PROMs (dumped) and a few 74xx logics.
This board was in a cocktail table cabinet manufactured by Model Racing and labeled "Thunderbird".
Files
-

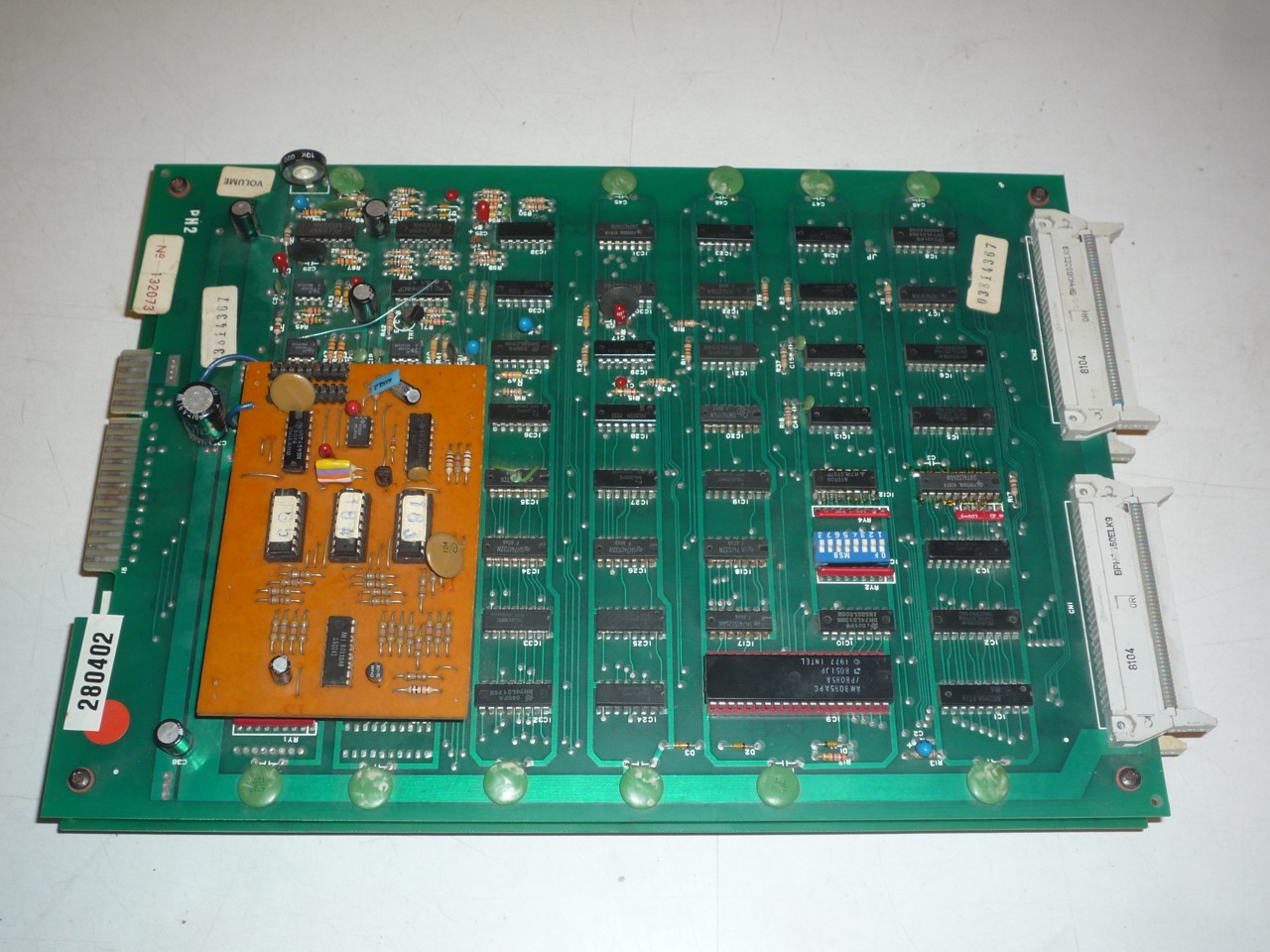

main PCB 1 component side
-

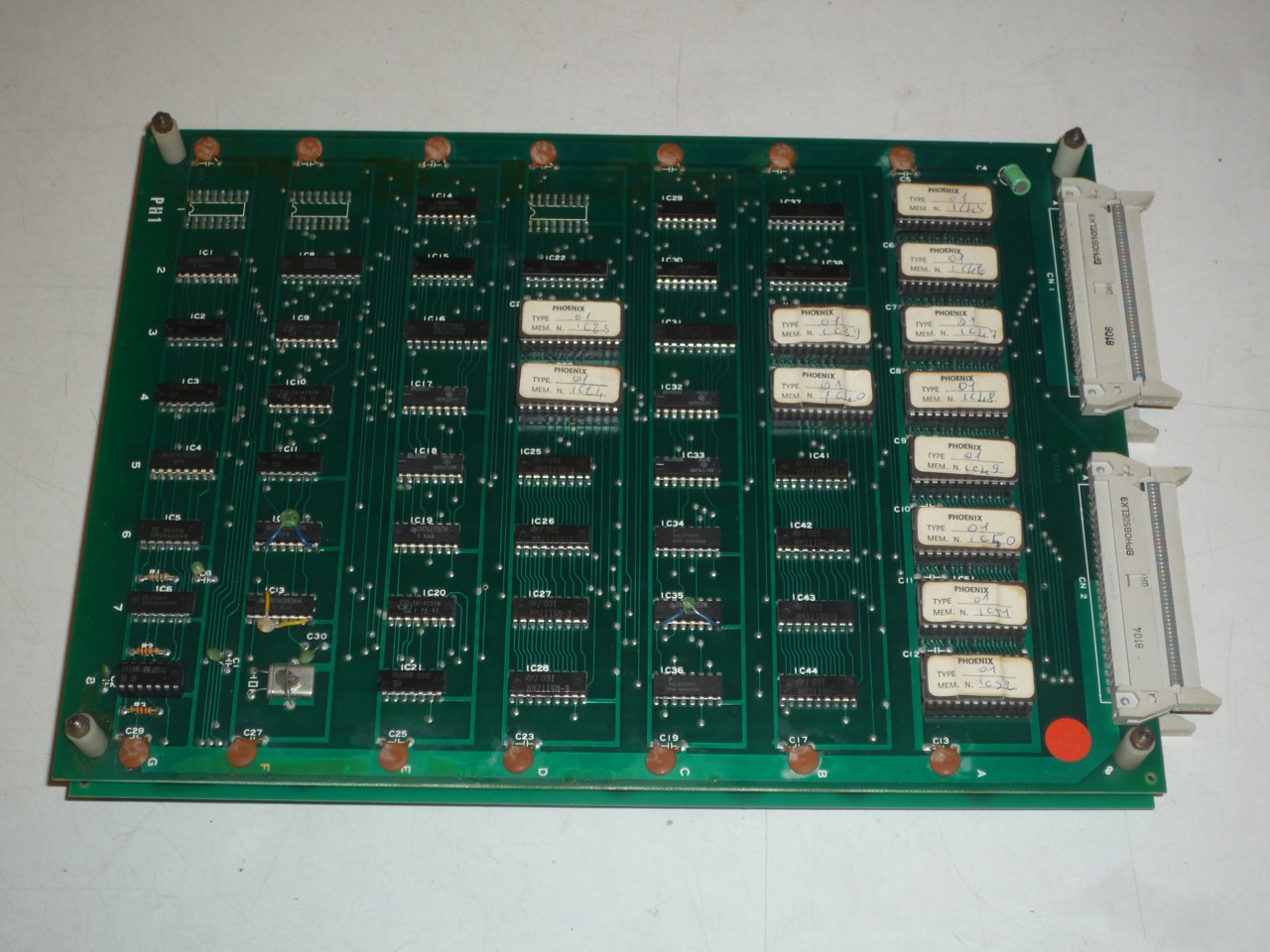

ROMs PCB 1 component side
-

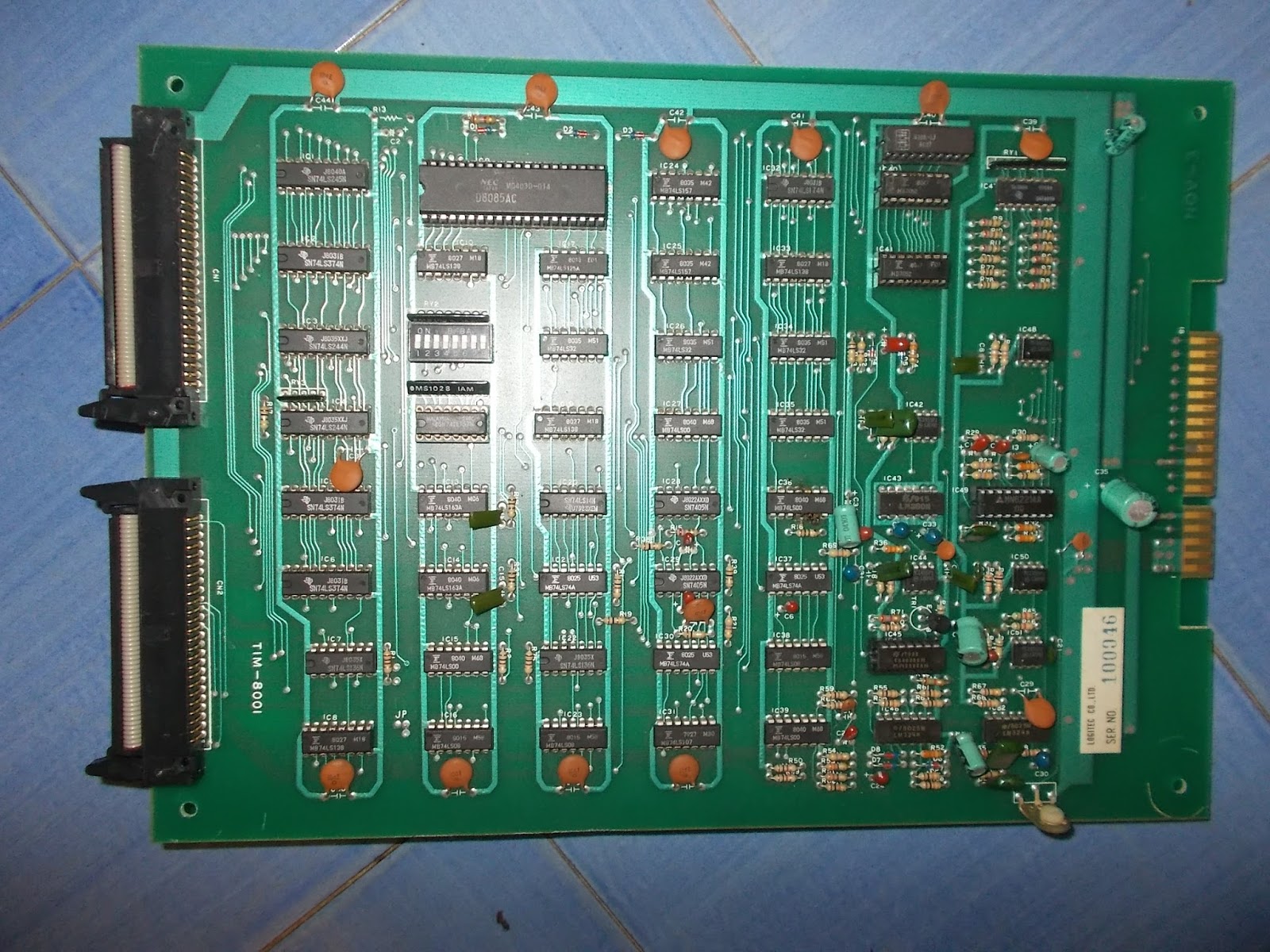

main PCB 2 component side
-

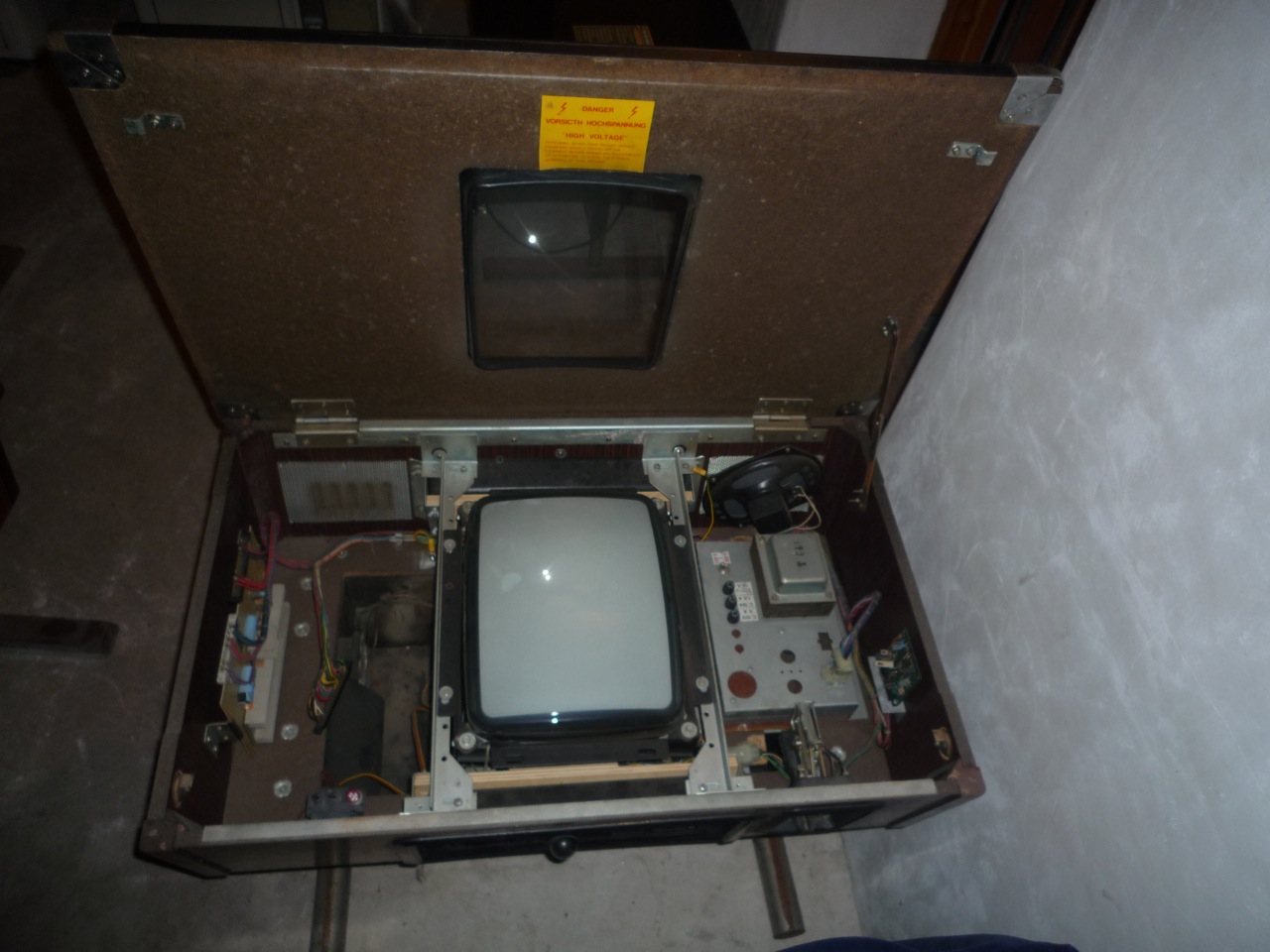

cabinet
-

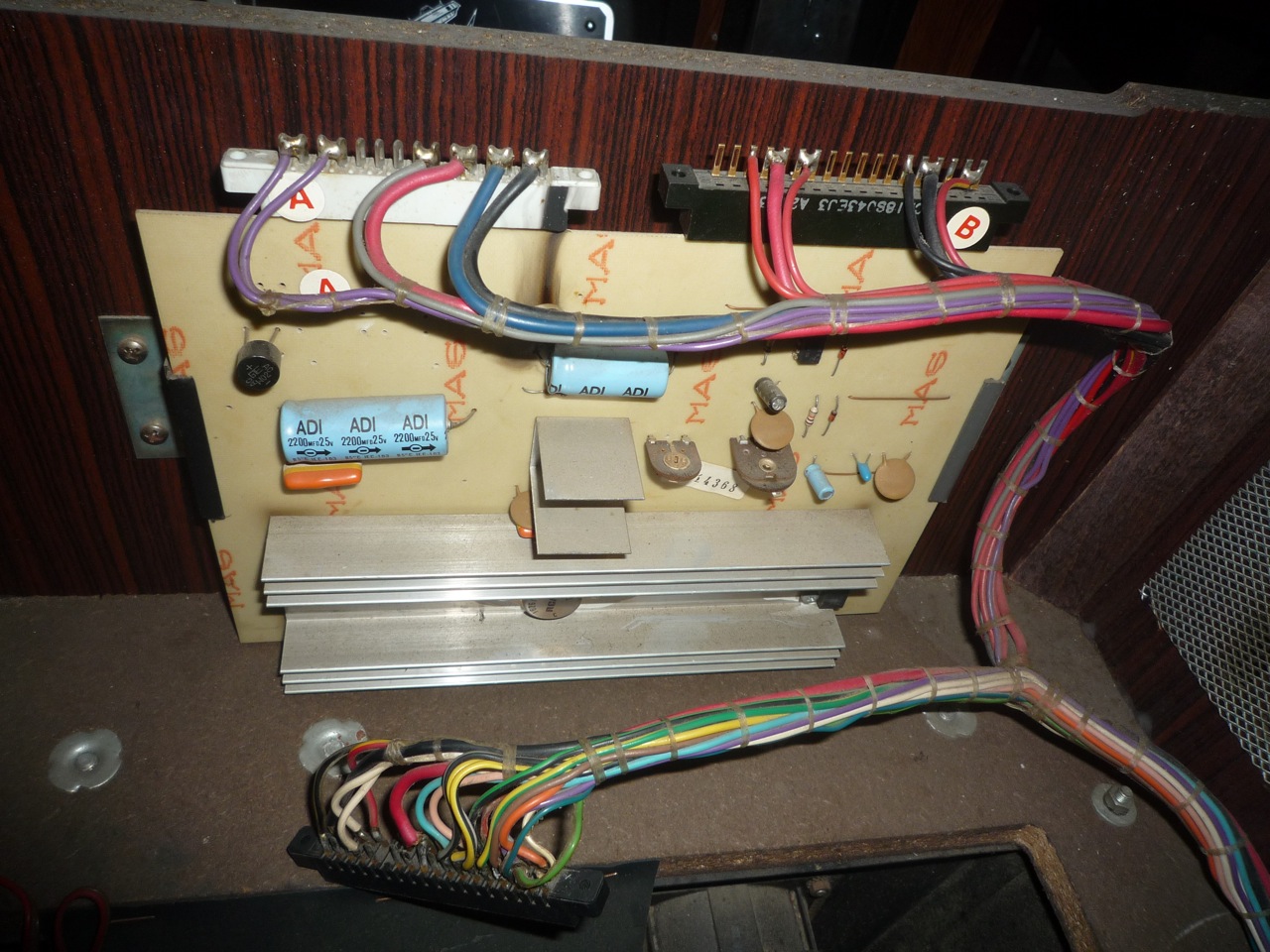

cabinet detail
-

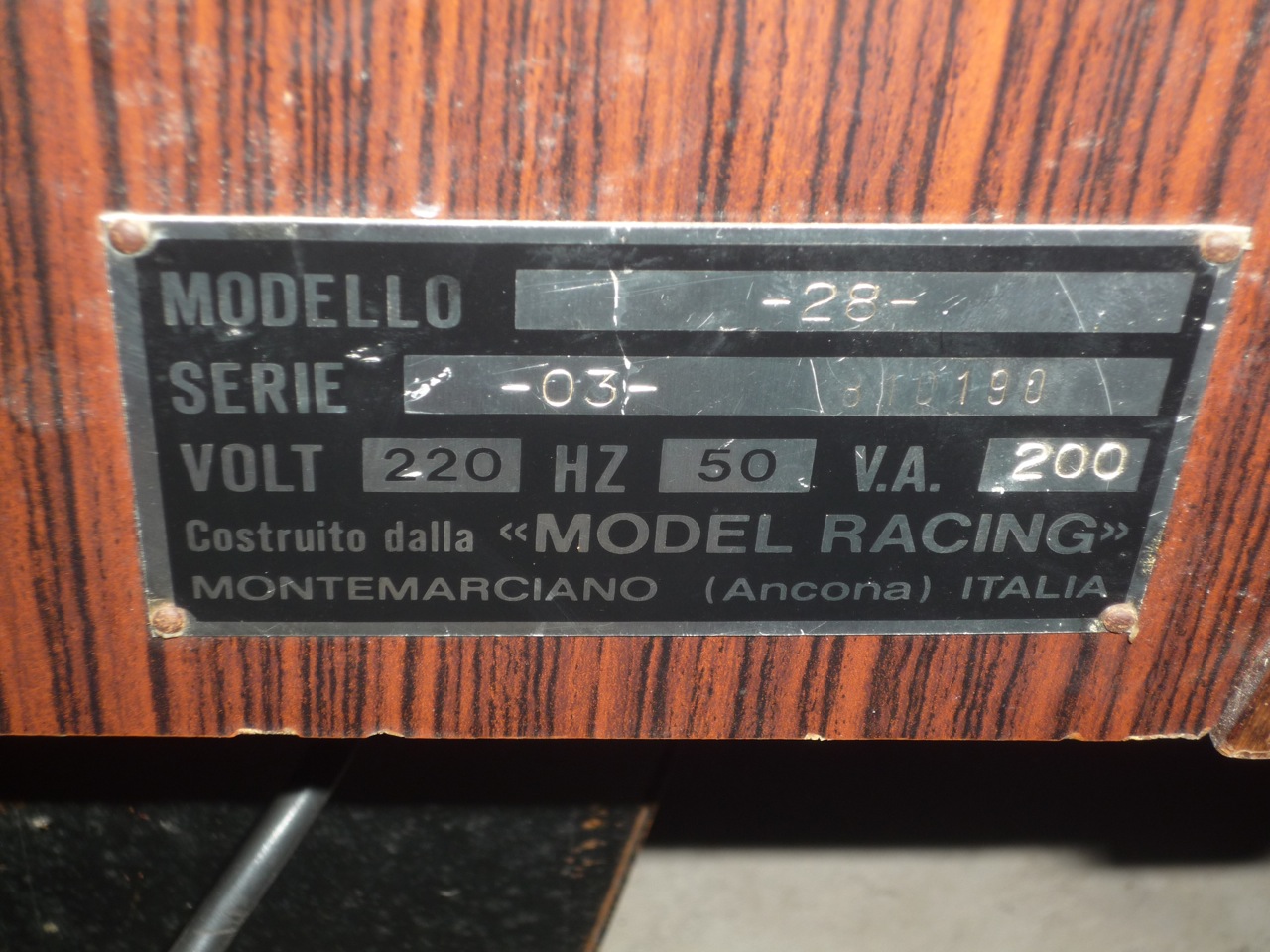

cabinet label
-
cabinet marquee
