NtCash (set 1)

EMU Infos

dumper	f205v
date	15/04/2008
emulator	MAME 0.125u4
dev	Roberto Fresca

PCB Infos

name	ntcash on Arcade Database
description	NtCash (set 1)
year	1999
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	HD64F3337CP16			32-bit Single-Chip Microcomputer - main (internal 60KB ROM not dumped)
1x	NEC D7759GC			ADPCM Speech Synthesizer LSIs - sound
1x	TDA2003	-		Audio Amplifier - sound
1x	oscillator	14.318180MHz
1x	oscillator	16.000

ROMs

QTY	Type	position	status
1x	M27C1001	0	dumped
4x	M27C4001	1,2,3,4	dumped

RAMs

QTY	Type	position
3x	TC551001CF-65L

PLDs

QTY	Type	position	status
2x	ispLSI1032E-70LJ		read protected

Others

1x 28x2 edge connector (not JAMMA)
1x RS232 connector
1x 14 legs connector
2x 8 DIP switches banks
1x red LED
1x trimmer (volume)
1x trimmer (unknown)

Notes

PCB is marked: "2-0235" and "L.C." on component side ("L.C." is the Italian for "Lato Componenti" which translates to "Components Side")
PCB is marked: "TE 04.99" and "L.S." on solder side ("L.S." is the Italian for "Lato Saldature" which translates to "Solders Side")
PCB is labelled: "TEST OK - 20/99" on component side

Files

•

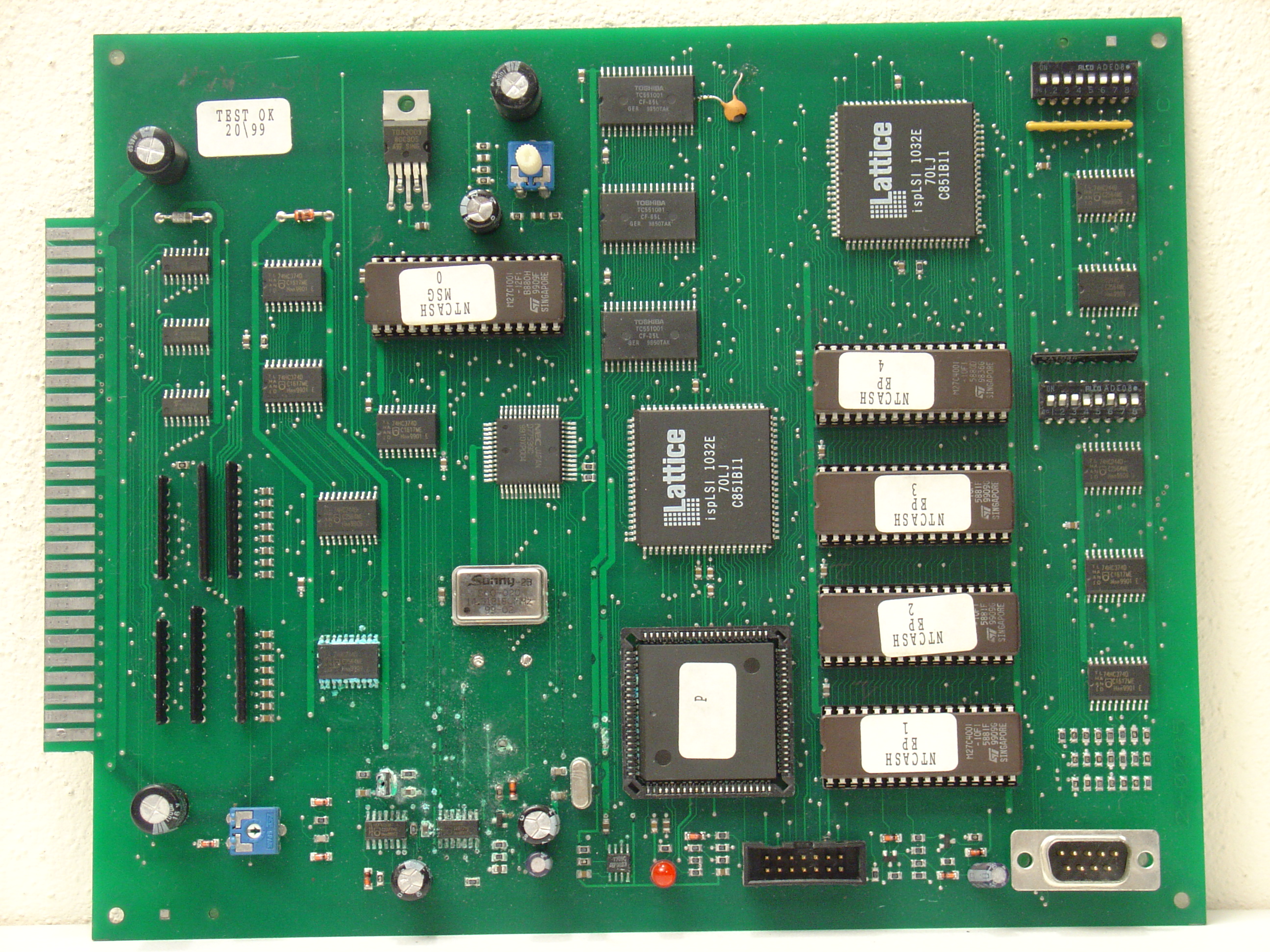

  PCB component side
•

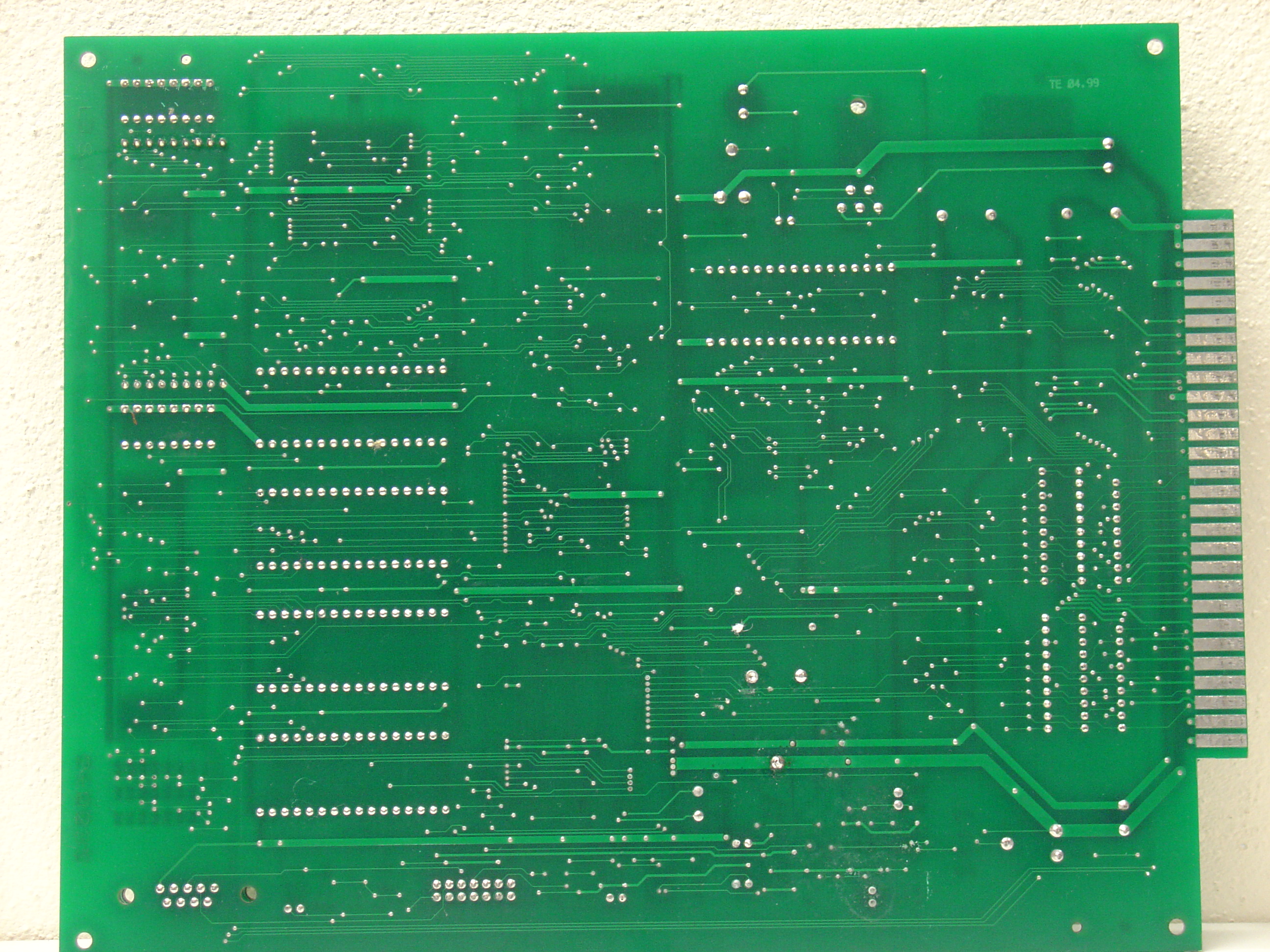

  PCB solder side
•
