EMU Infos
| dumper |
Rtw
|
| date |
04/04/2013
|
| emulator |
MAME 0.148u3
|
| dev |
ShouTime, f205v, R. Belmont
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
oscillator |
28.000 |
osc1 |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 1x |
M27C160 |
EPR-22993.ic22 |
dumped
|
| 15x |
M27W064 |
MPR-22978.ic1 - MPR-22992.ic15s |
dumped
|
| 1x |
X76F100 |
ic37 |
dumped
|
RAMs
PLDs
| QTY
|
Type
|
position
|
status
|
| 1x |
315-6213 |
ic41 |
read protected
|
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0025C
Protection IC: SEGA 315-5881 (317-0274-JPN)
Key: 0x280b8ef5
Files
-
Cart 1
-

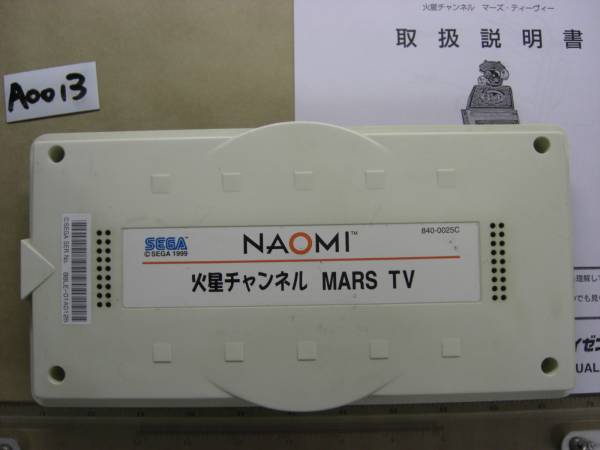

Cart 2
-

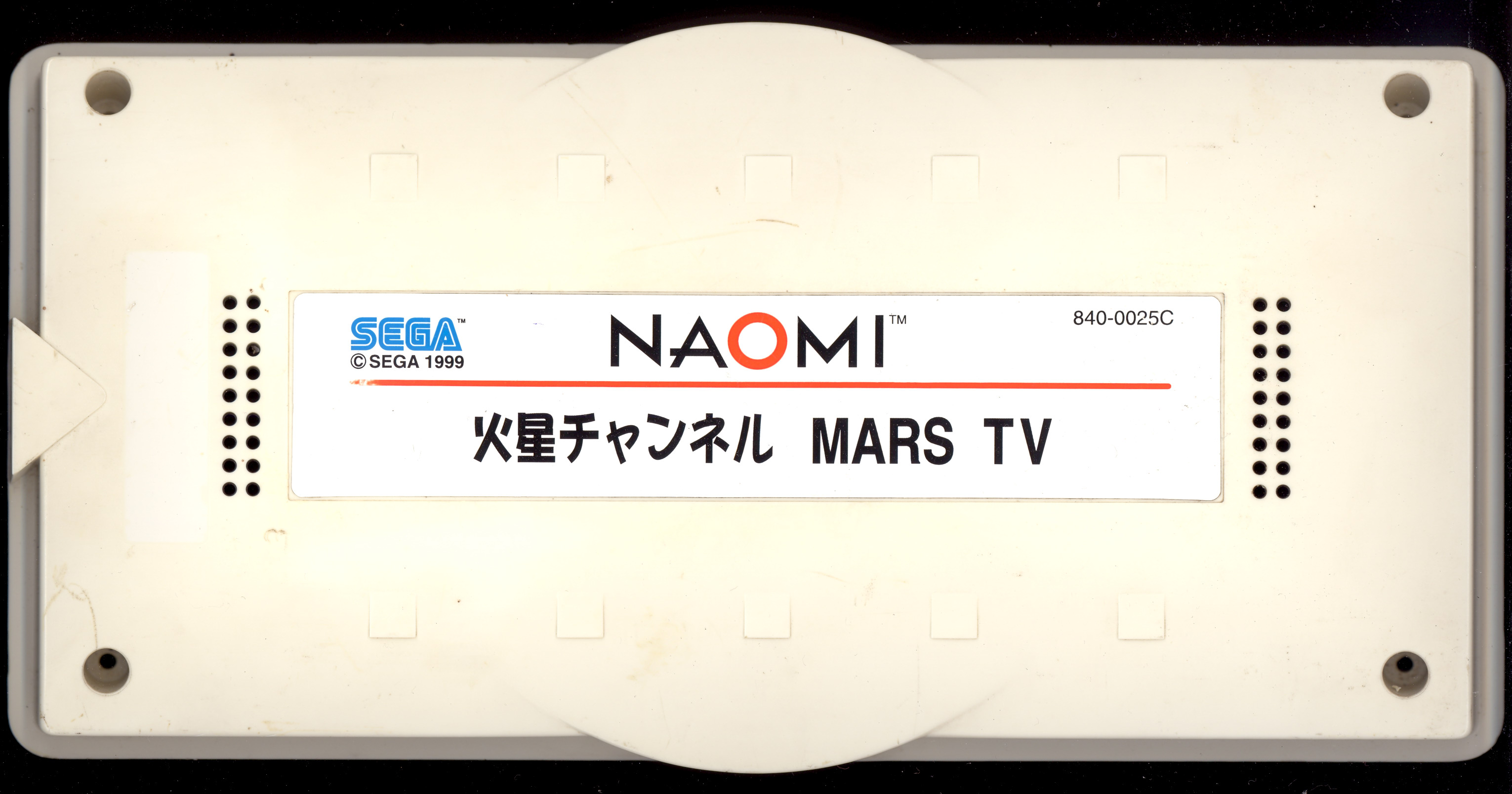

Cart 3
-

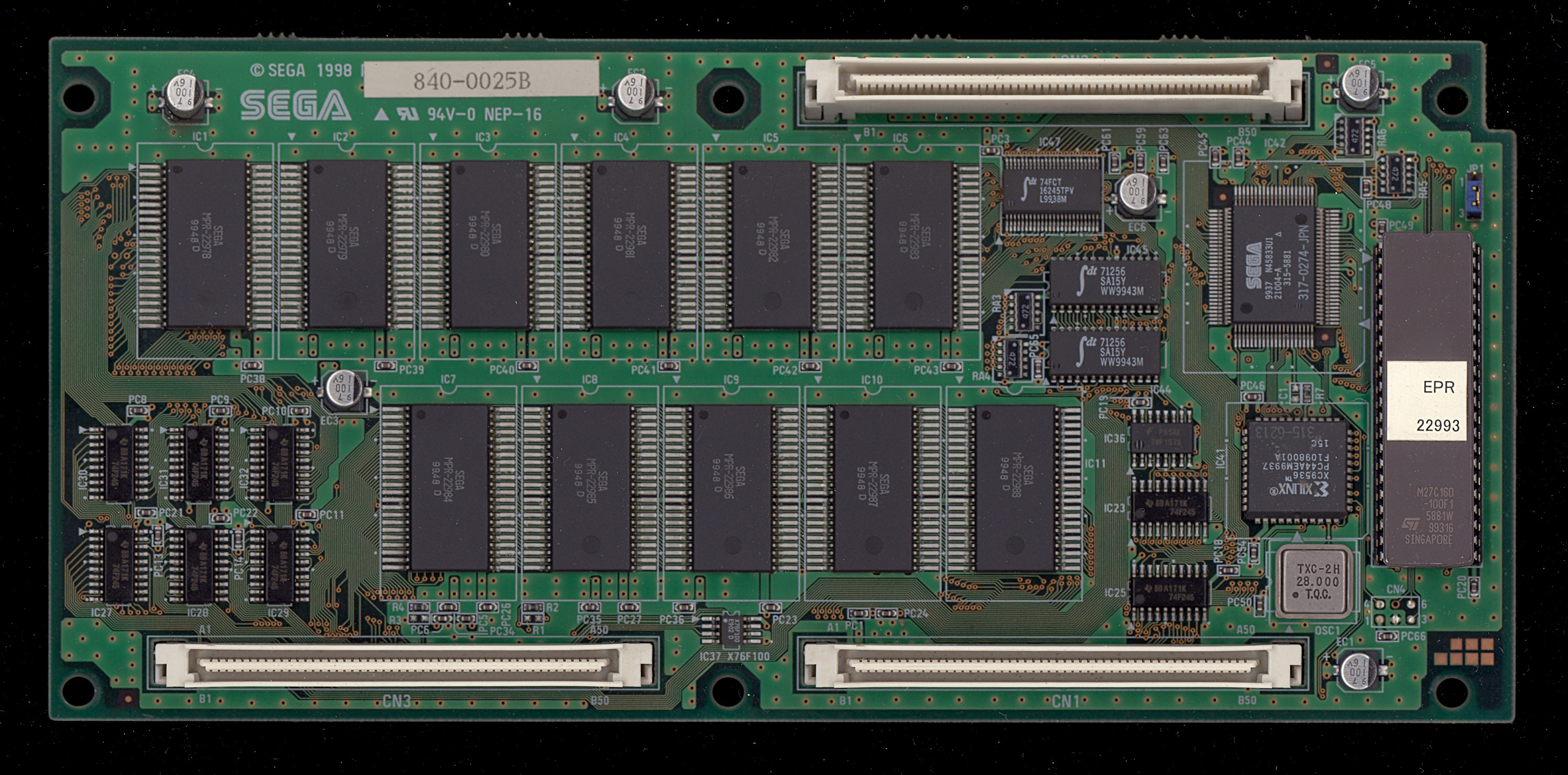

PCB component side
-
PCB solder side
-

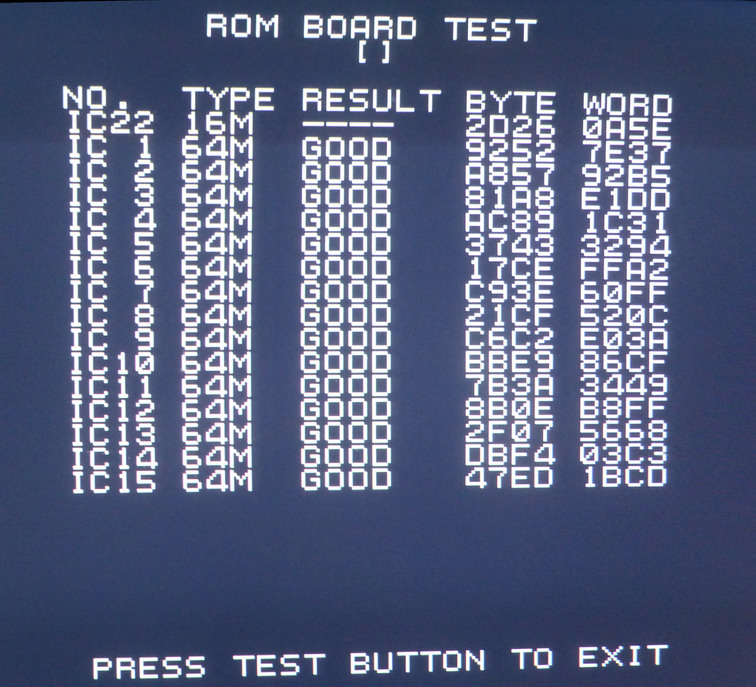

ROM board test
-
