EMU Infos
dumper |
f205v
|
date |
10/11/2019
|
emulator |
MAME 0.69
|
dev |
|
Technical references
CPUs
QTY
|
Type
|
clock
|
position
|
function
|
1x |
SCN68000CAN64 |
MHz(9.998@15) |
main PCB u7 |
16/32-bit Microprocessor - main
|
1x |
Z0840006PSC |
MHz(5.996@6) |
main PCB u52 |
8-bit Microprocessor - sound
|
1x |
YM2151 |
MHz(1.998@23) -MHz(3.997@24) |
sound PCB |
FM Operator Type-M (OPM) - sound
|
1x |
YM3012 |
MHz(1.998@2) |
sound PCB |
D/A Converter (DAC) - sound
|
1x |
TL084CN |
- |
sound PCB |
Operational Amplifier - sound
|
1x |
TDA2003 |
- |
main PCB u75 |
Audio Amplifier - sound
|
1x |
oscillator |
20.000 |
main PCB xl1 |
|
1x |
oscillator |
24.000 |
main PCB xl2 |
|
ROMs
RAMs
QTY
|
Type
|
position
|
1x |
MK6116N-15 |
main PCB u55
|
2x |
MCM2018AN45 |
main PCB u36,u37
|
2x |
HY6264LP-10 |
main PCB u1,u4
|
8x |
MCM2018AN45 |
ROMs PCB 5a,6a,13a,5b,6b,13b,5f,6f
|
2x |
KM62256ALP-10 |
ROMs PCB 1f,4f
|
PLDs
QTY
|
Type
|
position
|
status
|
1x |
GAL16V8-25HB1 |
ROMs PCB 18a |
read protected
|
1x |
PLHS18P8AN |
main PCB u51 |
read protected
|
1x |
unknown PAL (DIP24-300mil) |
main PCB u13 |
read protected
|
Others
1x 28x2 JAMMA edge connector
2x 50 pins flat cable connector from main PCB to ROMs PCB
1x DIP40-600mil connector from main PCB to sound PCB
1x trimmer (volume)(main PCB V1)
2x 8 DIP switches banks (main PCB u58,u60)
Notes
main PCB is marked: "F/P" on component side
main PCB is marked: "F/P" on solder side
ROMs PCB is marked: "F/P" on component side
sound PCB is marked: "LC" on component side ("LC" is the Italian for "Lato Componenti" which translates to "Components Side")
sound PCB is marked: "LS" on solder side ("LS" is the Italian for "Lato Saldature" which translates to "Solders Side")
Files
-

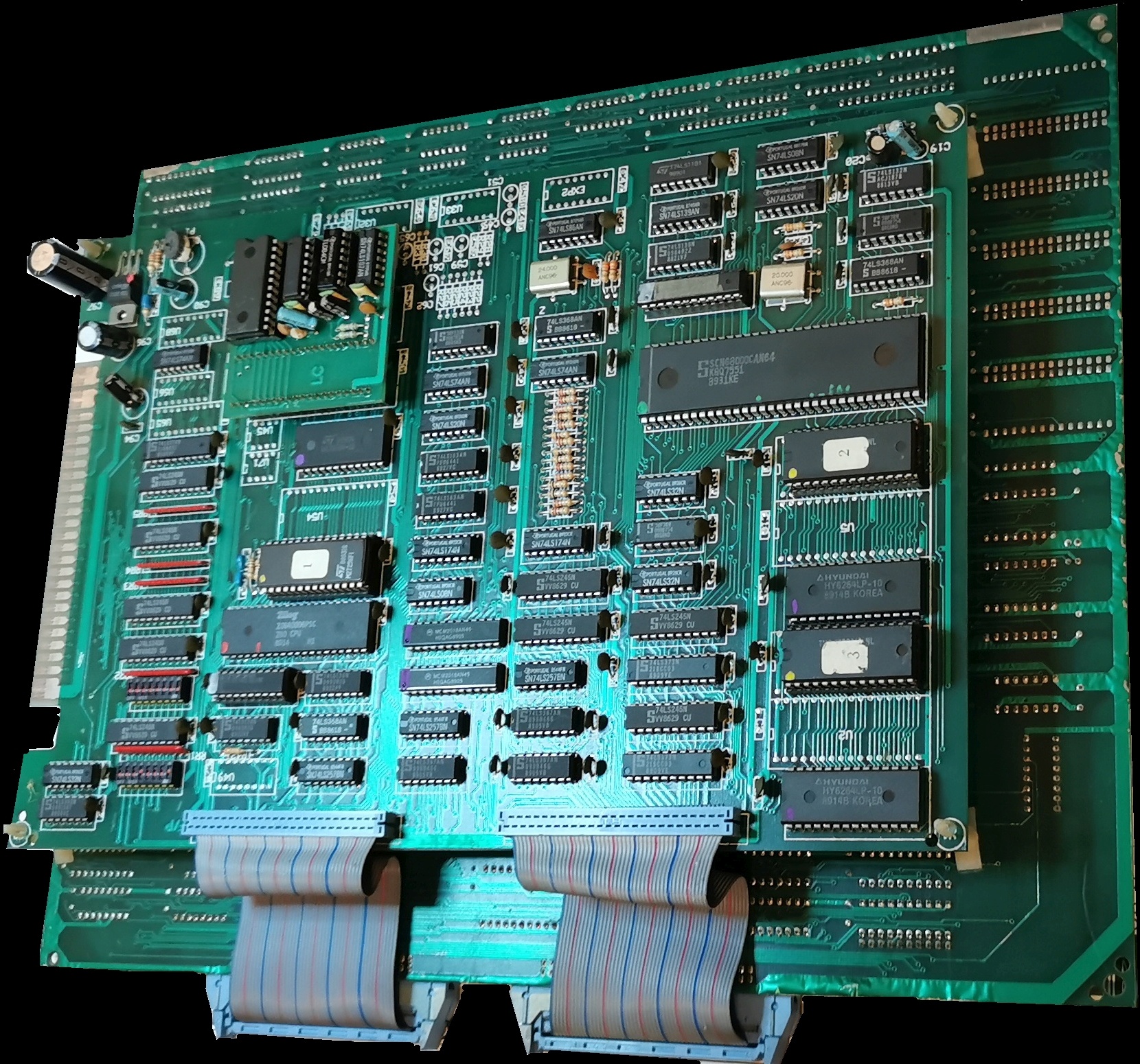

assembled PCBs
-

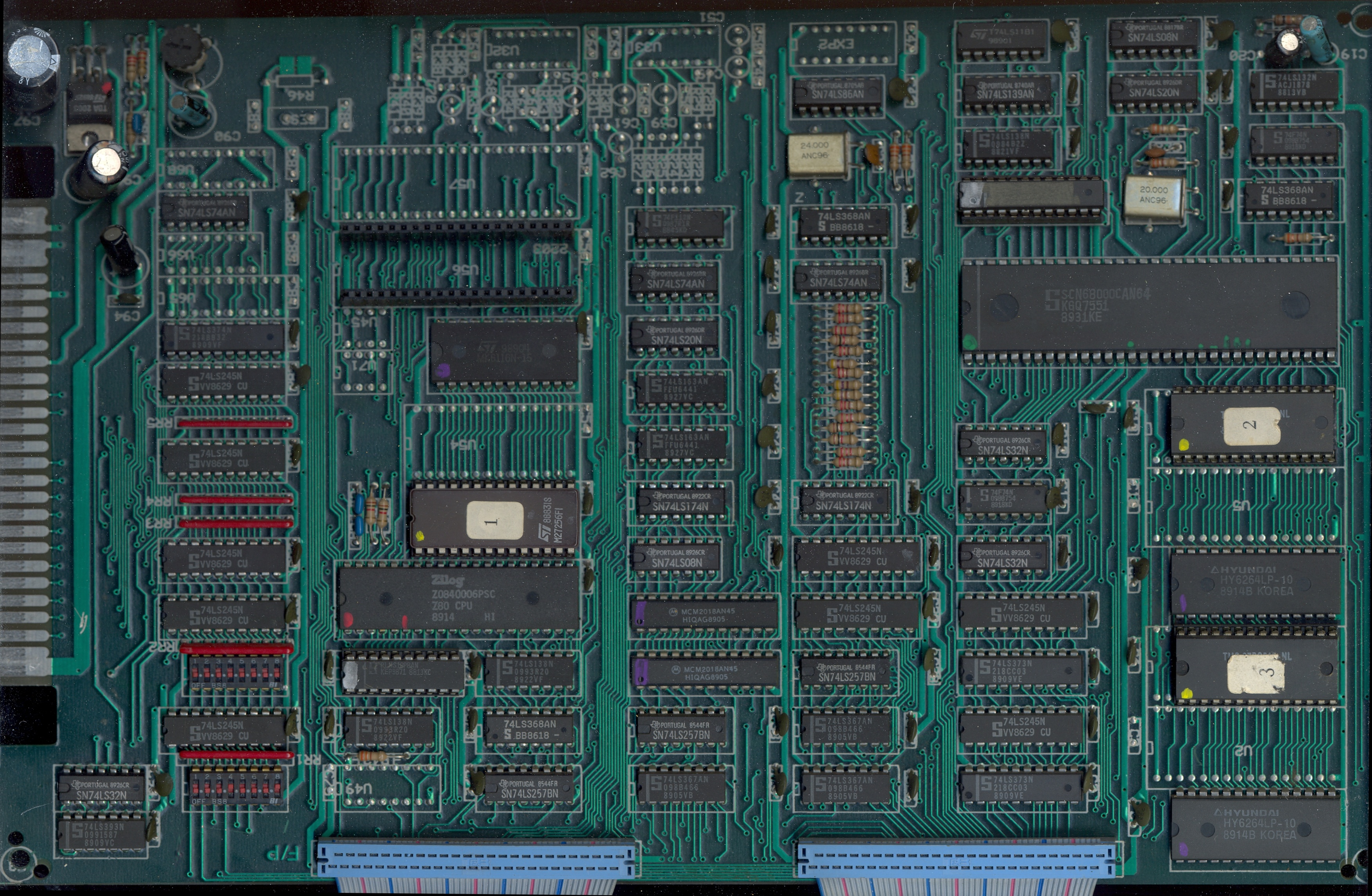

main PCB component side
-

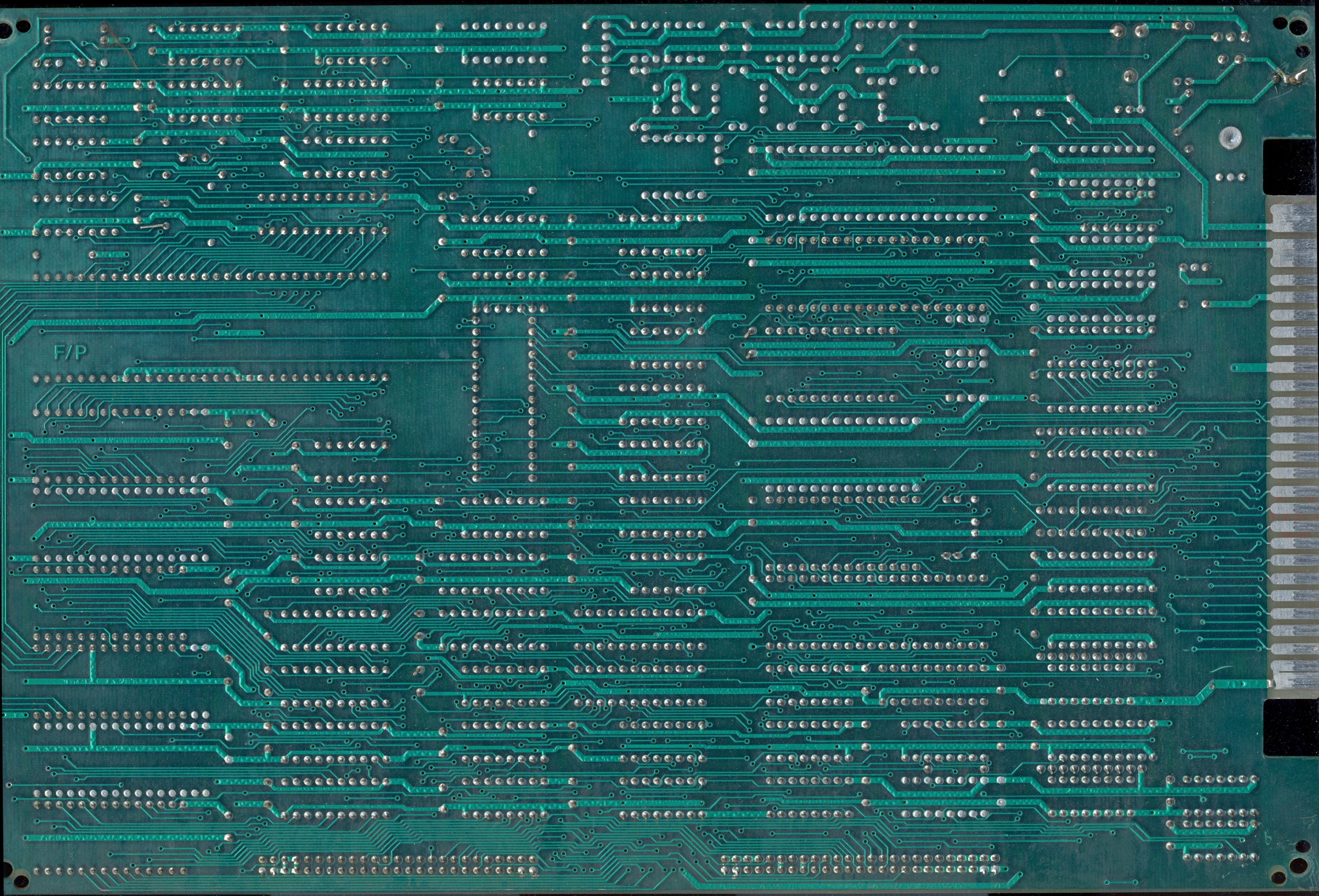

main PCB solder side
-

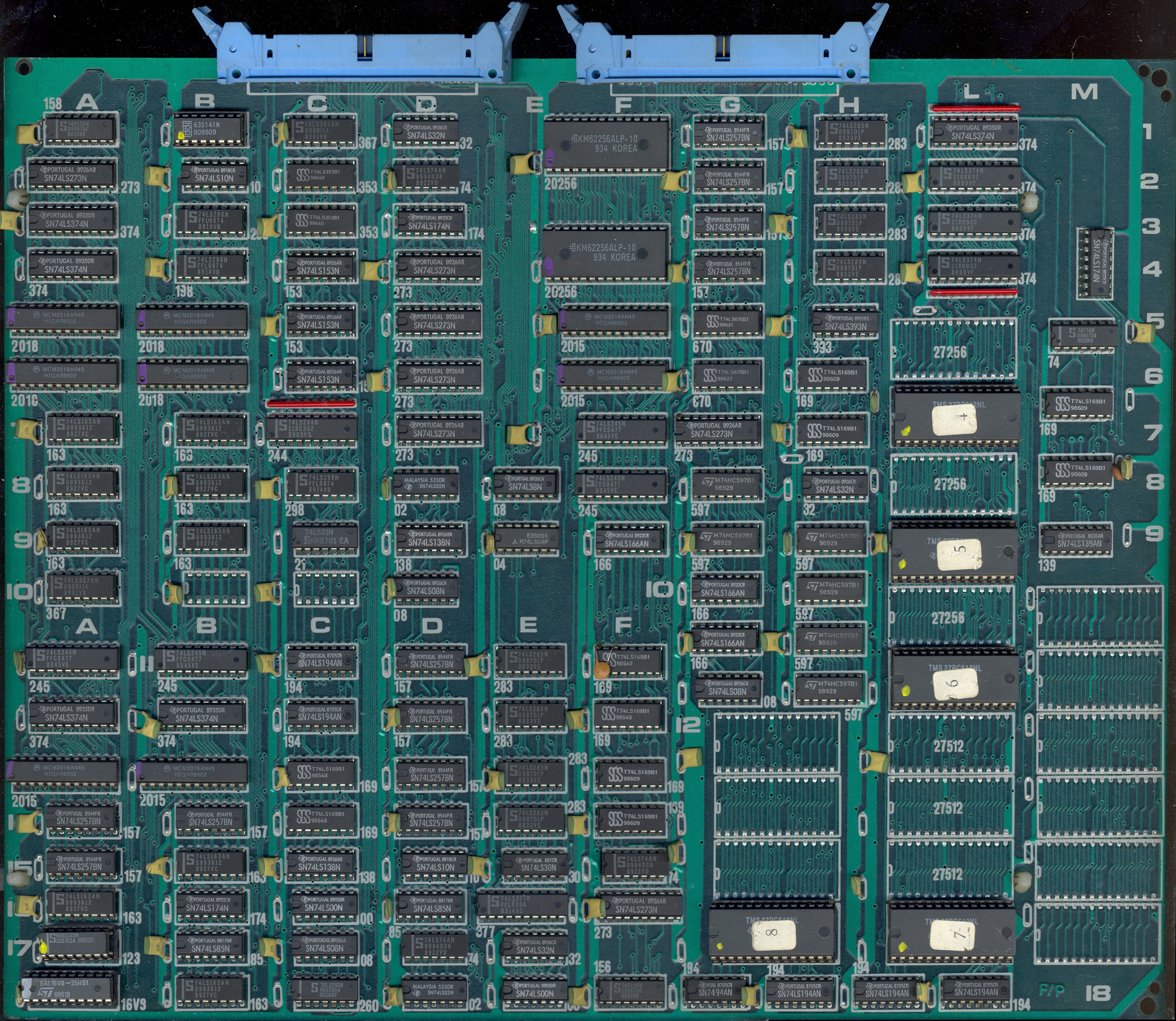

ROMs PCB component side
-

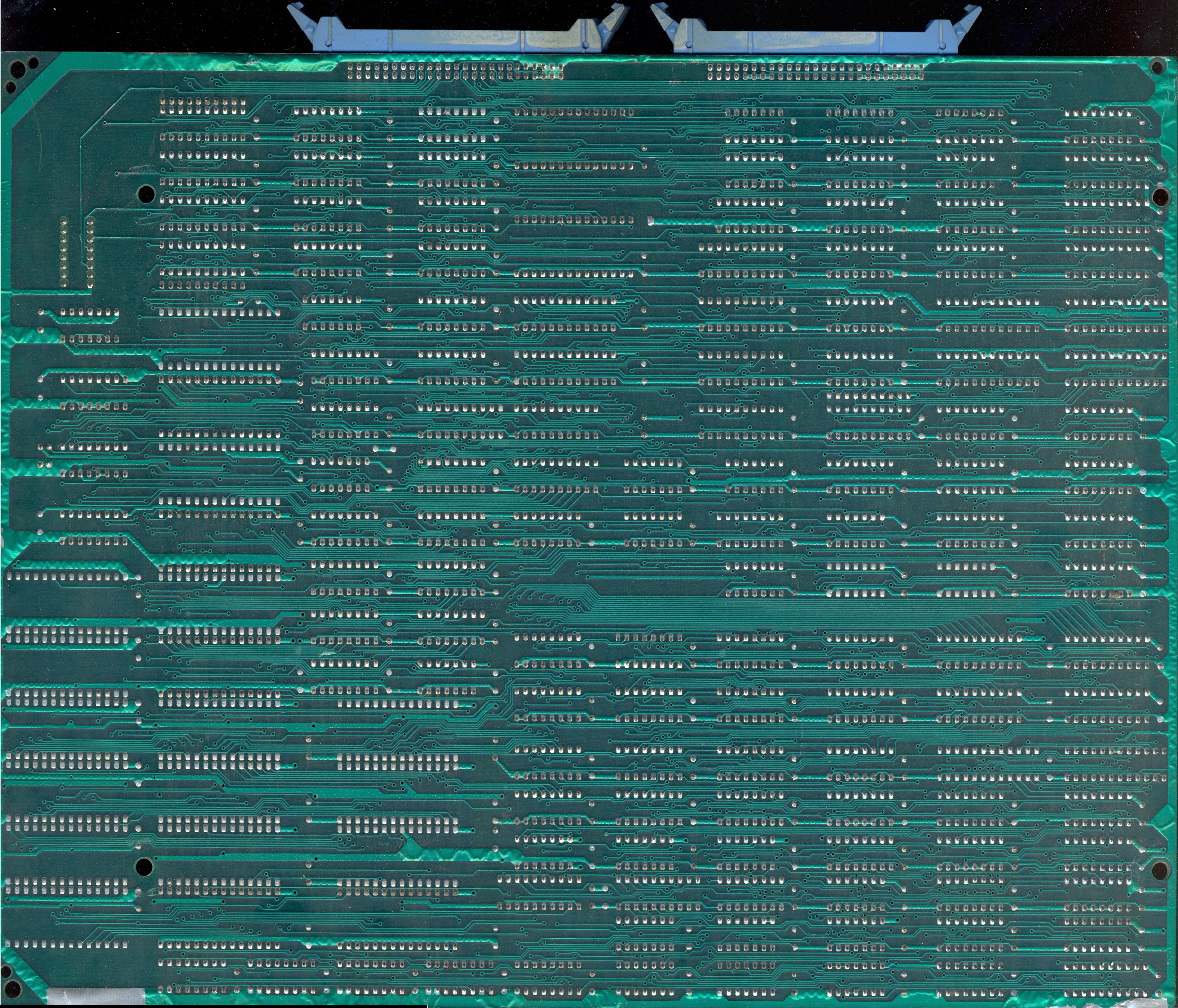

ROMs PCB solder side
-

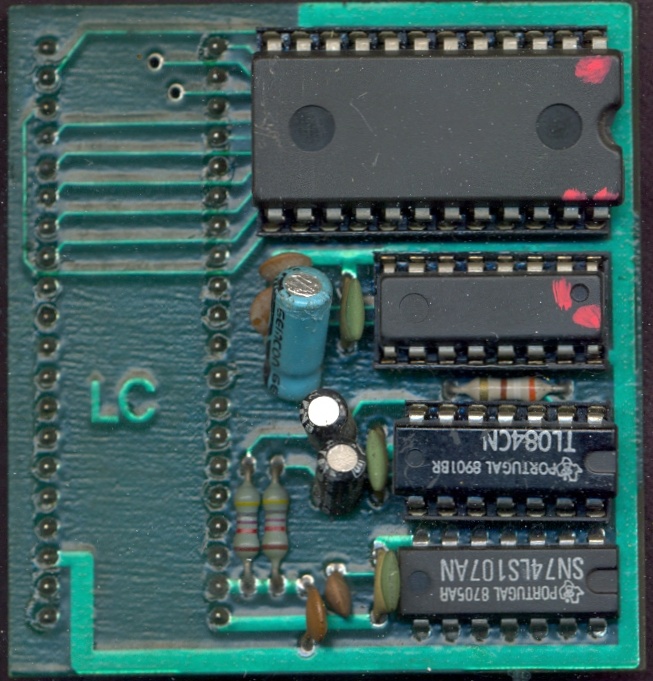

sound PCB component side
-

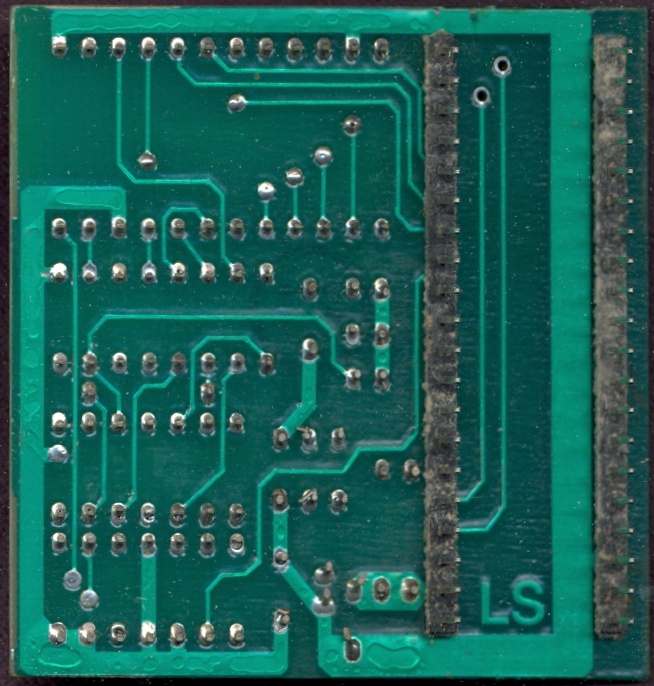

sound PCB solder side
-

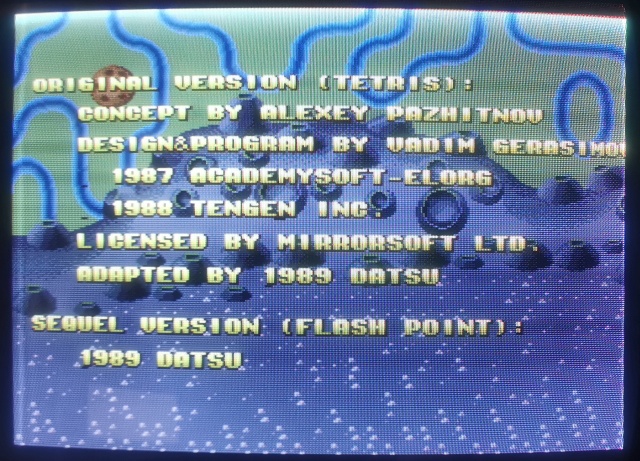

Disclaimer
-

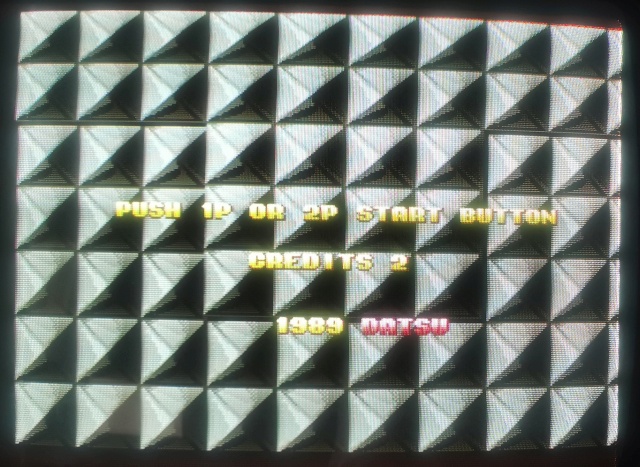

Start
-

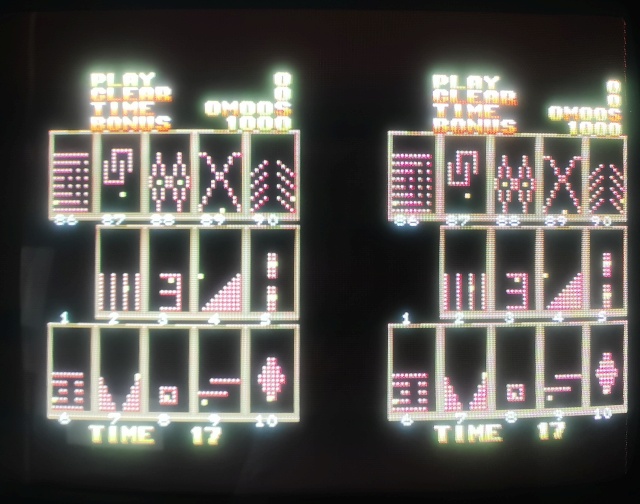

Select
-

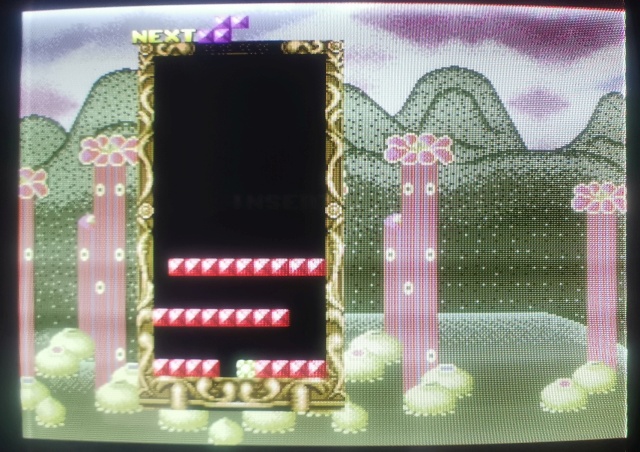

In game 1
-

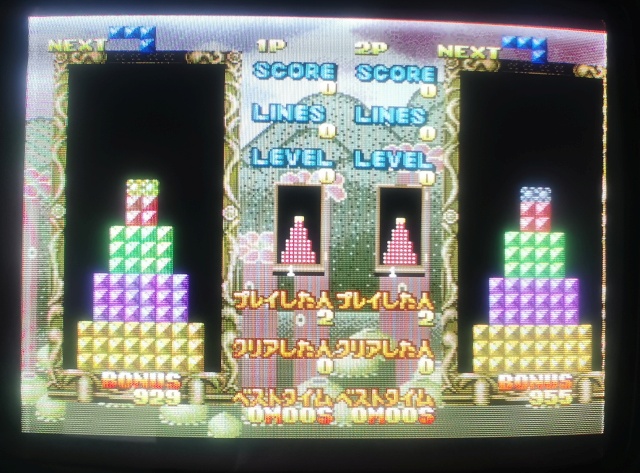

In game 2
