EMU Infos
| dumper |
f205v
|
| date |
16/10/2010
|
| emulator |
MAME 0.169
|
| dev |
David Haywood
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
SCN68000CAN64 |
|
main PCB 9h |
16/32-bit Microprocessor - main
|
| 1x |
UM6502 |
|
main PCB 7d |
8-bit Microprocessor - sound
|
| 1x |
MC3403 |
|
main PCB 14e |
Quad Operational Amplifier - sound
|
| 1x |
GL358 |
|
main PCB 13b |
Dual Operational Amplifier - sound
|
| 1x |
YM2203C |
|
main PCB 12a |
FM Operator Type-M (OPM) - sound
|
| 2x |
YM3014B |
|
main PCB 13d, 13e |
D/A Converter (DAC) - sound
|
| 1x |
YM3812 |
|
main PCB 9b |
FM Operator Type-L II (OPL II) - sound
|
| 1x |
MC68705R3P |
|
ROMs PCB 1l |
8-bit EPROM Microcomputer Unit - main (not dumped)
|
| 1x |
M5205 |
|
ROMs PCB 12c |
ADPCM Speech Syntesis IC - sound
|
| 1x |
oscillator |
24.000MHz |
main PCB 2a |
|
| 1x |
oscillator |
16.0000 |
main PCB 12n |
|
| 1x |
blu resonator |
CSB-400P |
ROMs PCB 12b |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 4x |
27256 |
main PCB 1-4 |
dumped
|
| 4x |
27512 |
main PCB 5-8 |
dumped
|
| 7x |
27256 |
ROMs PCB 15,20-23,28,29 |
dumped
|
| 9x |
27512 |
ROMs PCB 9-14,27-30 |
dumped
|
| 2x |
N82S129AN |
main PCB 2q,3p |
dumped
|
| 1x |
N82S131N |
main PCB 5q |
dumped
|
| 1x |
N82S137N |
main PCB 8u |
dumped
|
| 1x |
N82S129AN |
ROMs PCB 12c |
dumped
|
RAMs
| QTY
|
Type
|
position
|
| 2x |
HY6264 |
main PCB 12c,12d
|
| 14x |
TMM2018 |
main PCB 1e,2e,5k,5l,5m,5n,5o,5p,7m,7n,8b,11s,11t,11u
|
| 2x |
TMM2064 |
ROMs PCB 8n,8o
|
| 4x |
TMM2018 |
ROMs PCB 8f,8g,8j,8k
|
PLDs
Others
1x 28x2 edge connector
3x 50 pins flat cable connector from main board to roms board
1x trimmer (volume)
1x 8x2 switches DIP
Notes
Files
-

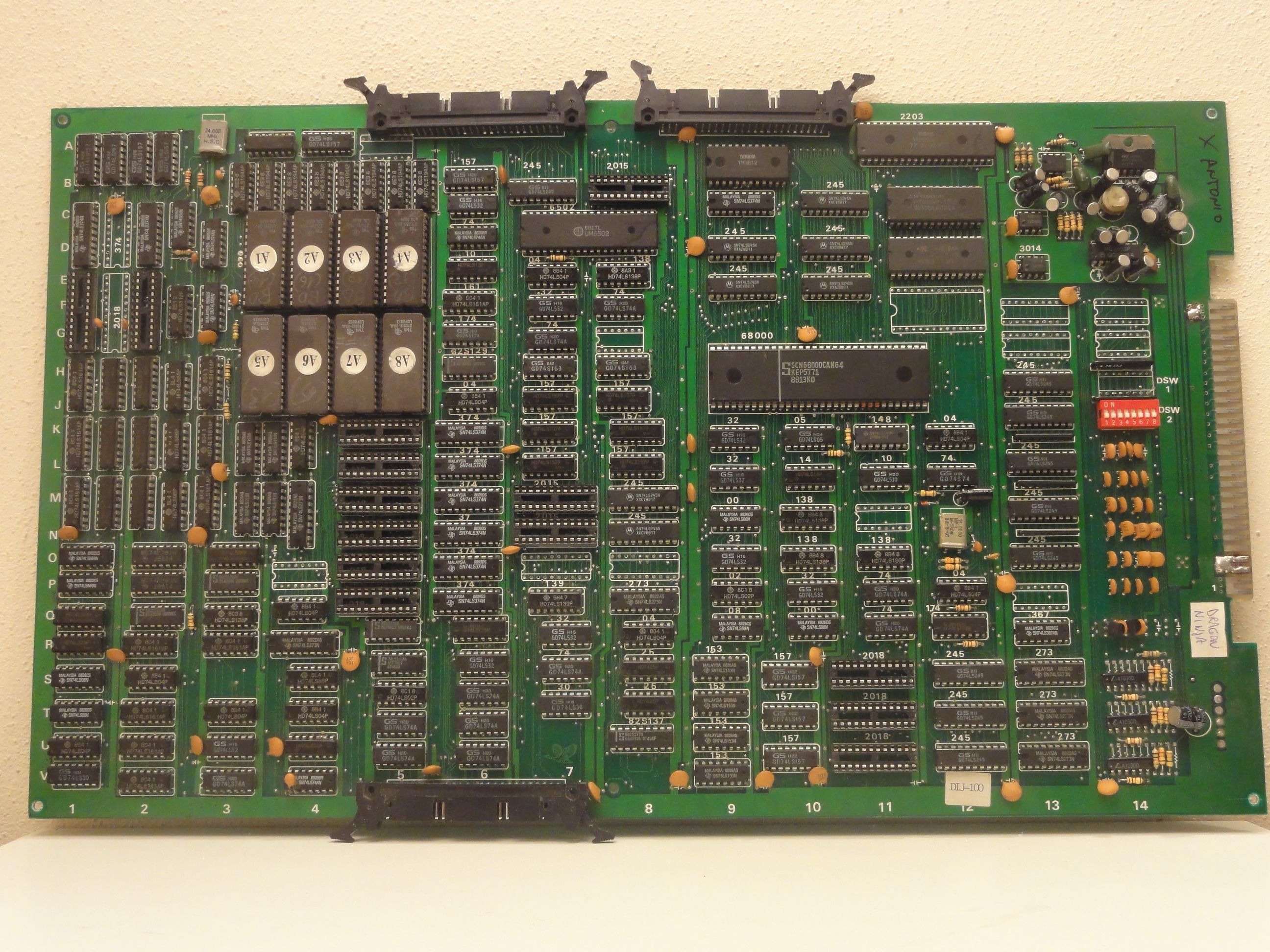

main PCB component side
-

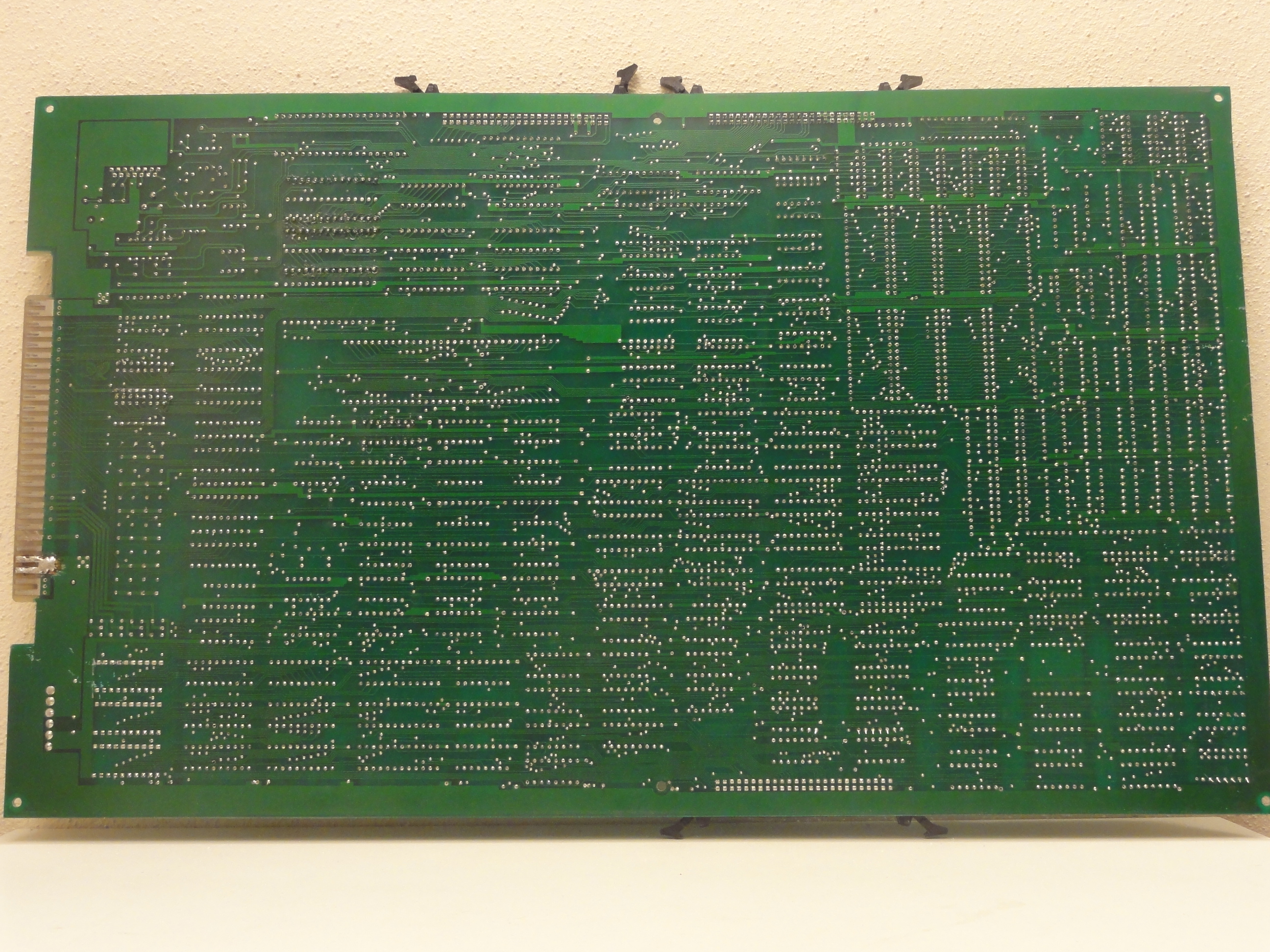

main PCB solder side
-

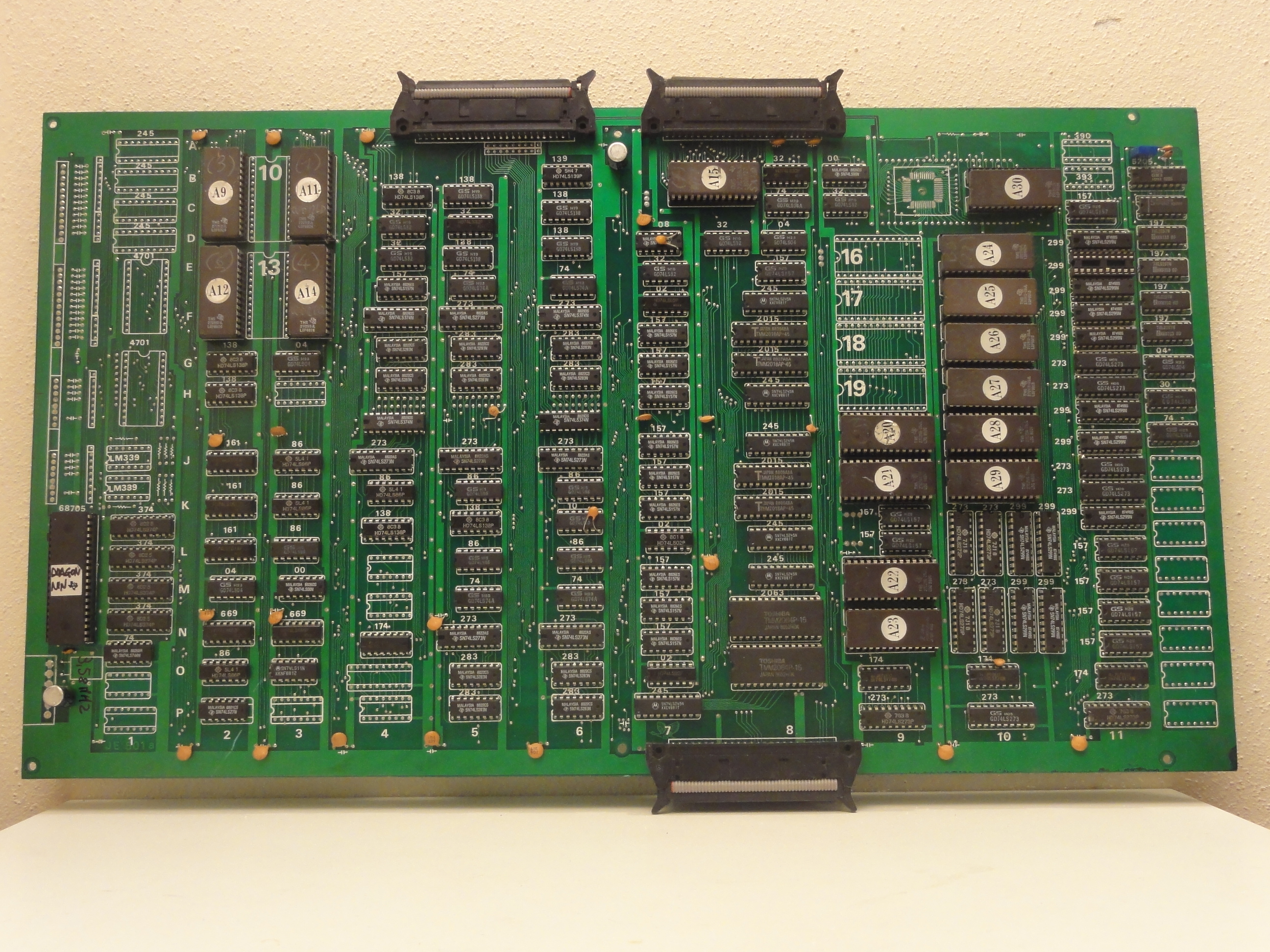

ROMs PCB component side
-

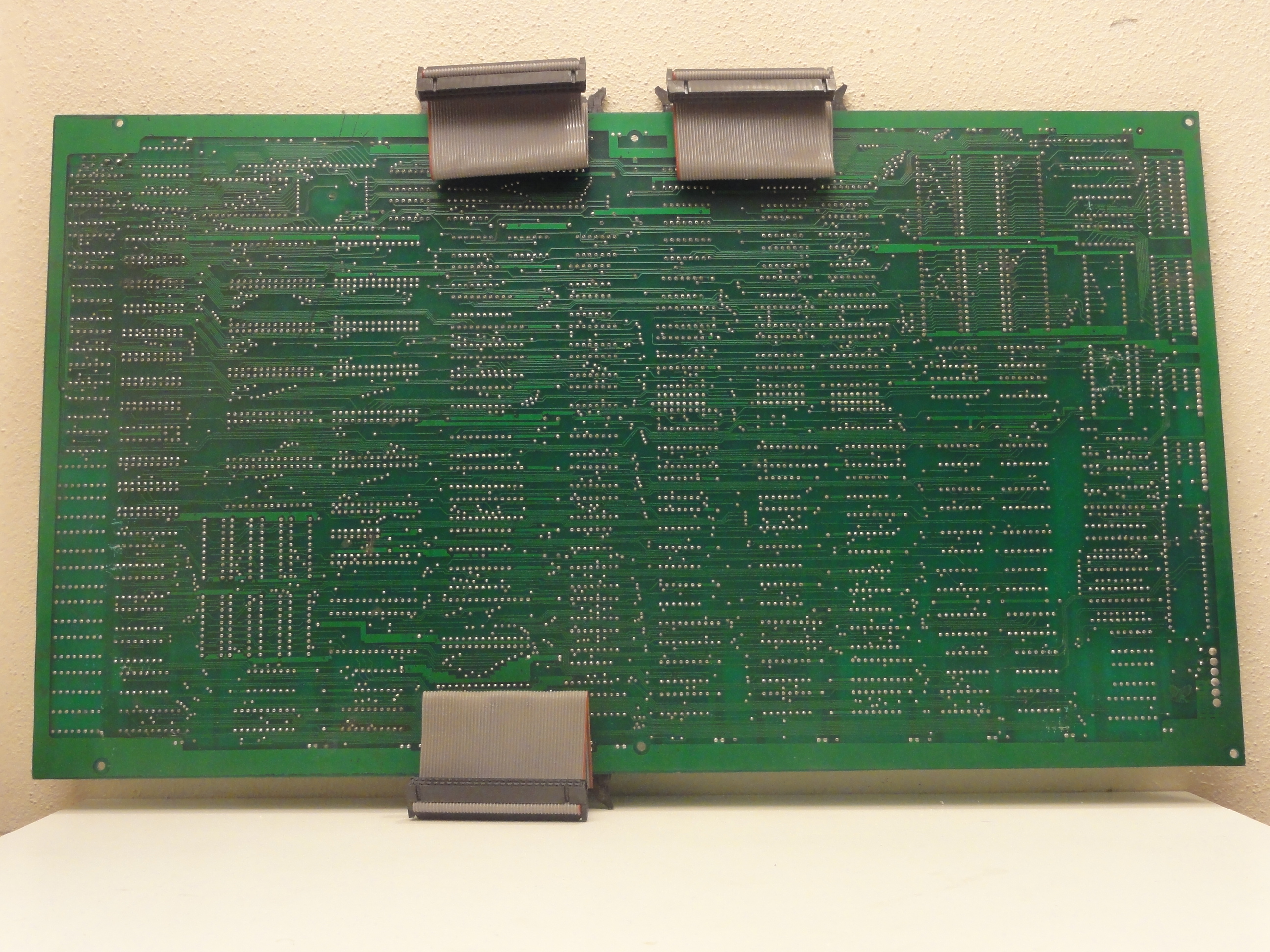

ROMs PCB solder side
-

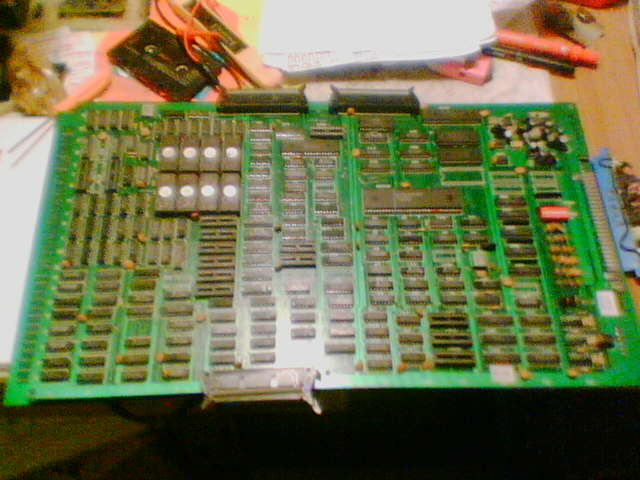

assembled PCBs
932
main PCB component side
main PCB solder side
ROMs PCB component side
ROMs PCB solder side
assembled PCBs
