Double Dragon (bootleg with 3xM6809, set 3)

EMU Infos

dumper	Maru79, f205v
date	19/04/2008
emulator
dev

PCB Infos

name	1802
description	Double Dragon (bootleg with 3xM6809, set 3)
year	1987
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
2x	MC68B09EP		7a,7c	8-bit Microprocessor - main
1x	EF68A09EP		7m	8-bit Microprocessor - sound
2x	YM2203C		7r,7t	FM Operator Type-N (OPM) - sound
2x	YM3014		10q,10r	D/A Converter (DAC) - sound
2x	OKI M5205		9s,9t	ADPCM Speech Syntesis IC - sound
2x	LM324N	-	11r,11s	Quad Operational Amplifier - sound
1x	TDA2003	-	10o	Audio Amplifier - sound
1x	oscillator	20.000	5t
1x	oscillator	24.000	8a

ROMs

QTY	Type	position	status
7x	TMM24256A	2-8	dumped
13x	M27512ZB	1,9-20	dumped
3x	N82S129N	4h,5o,5p	dumped
1x	N82S147N	6g	dumped

RAMs

QTY	Type	position
4x	AM2149-35DC	2i,2j,4k,4l
3x	UM2148-1	11a,11b,11c
2x	UM6114	4q,4r
2x	TMM2016BP-10	5i,8q
1x	TMM2064P-10	7k
1x	D4364C-15L	3a

PLDs

QTY	Type	position	status
1x	PAL16R4A-2	8g	dumped
1x	PAL16R6A-2CN	2f	dumped

Others

1x 28x2 JAMMA edge connector
1x trimmer (11o)(volume)
2x 8 DIP switches banks (10h,10m)

Files

•

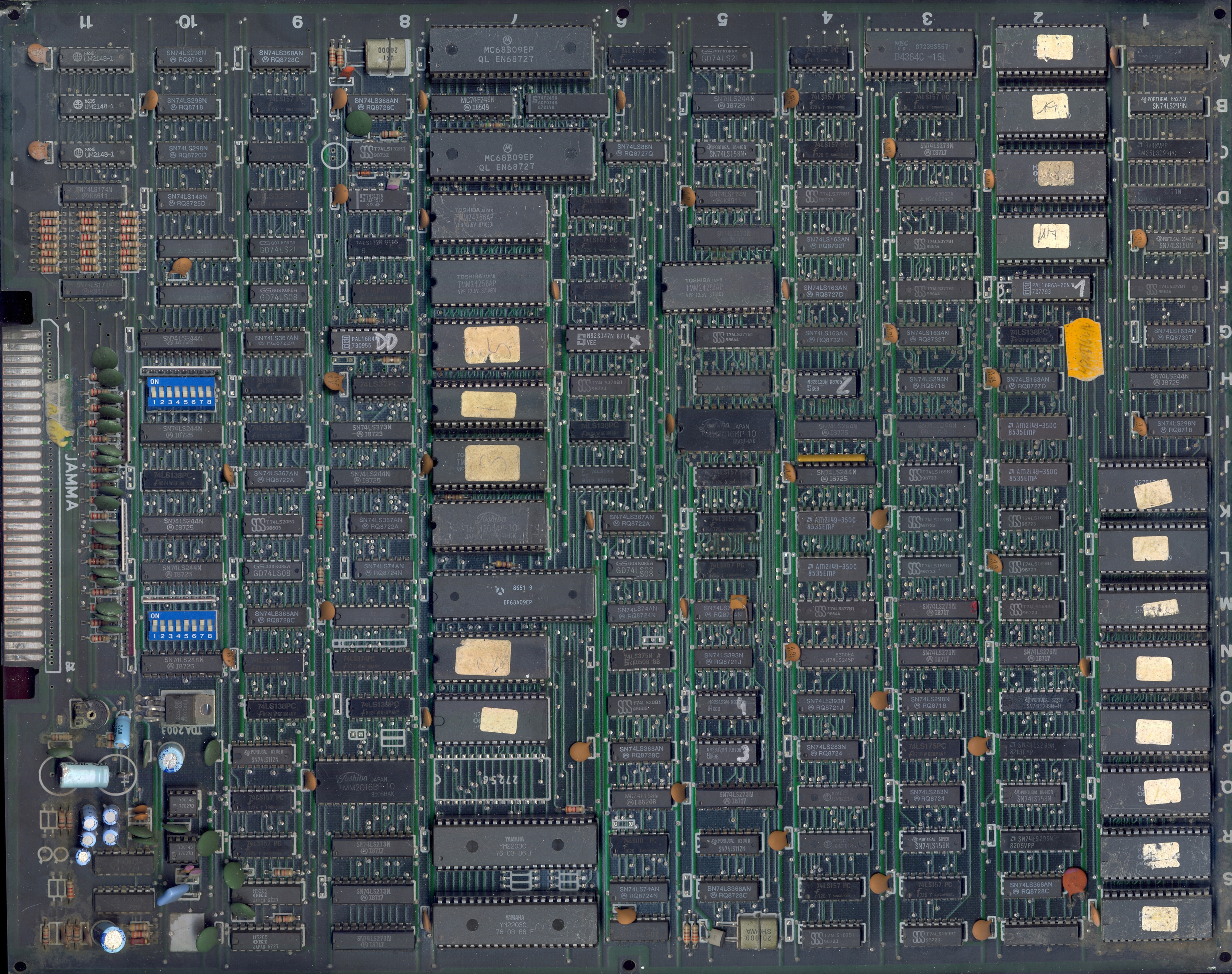

  PCB component side
•

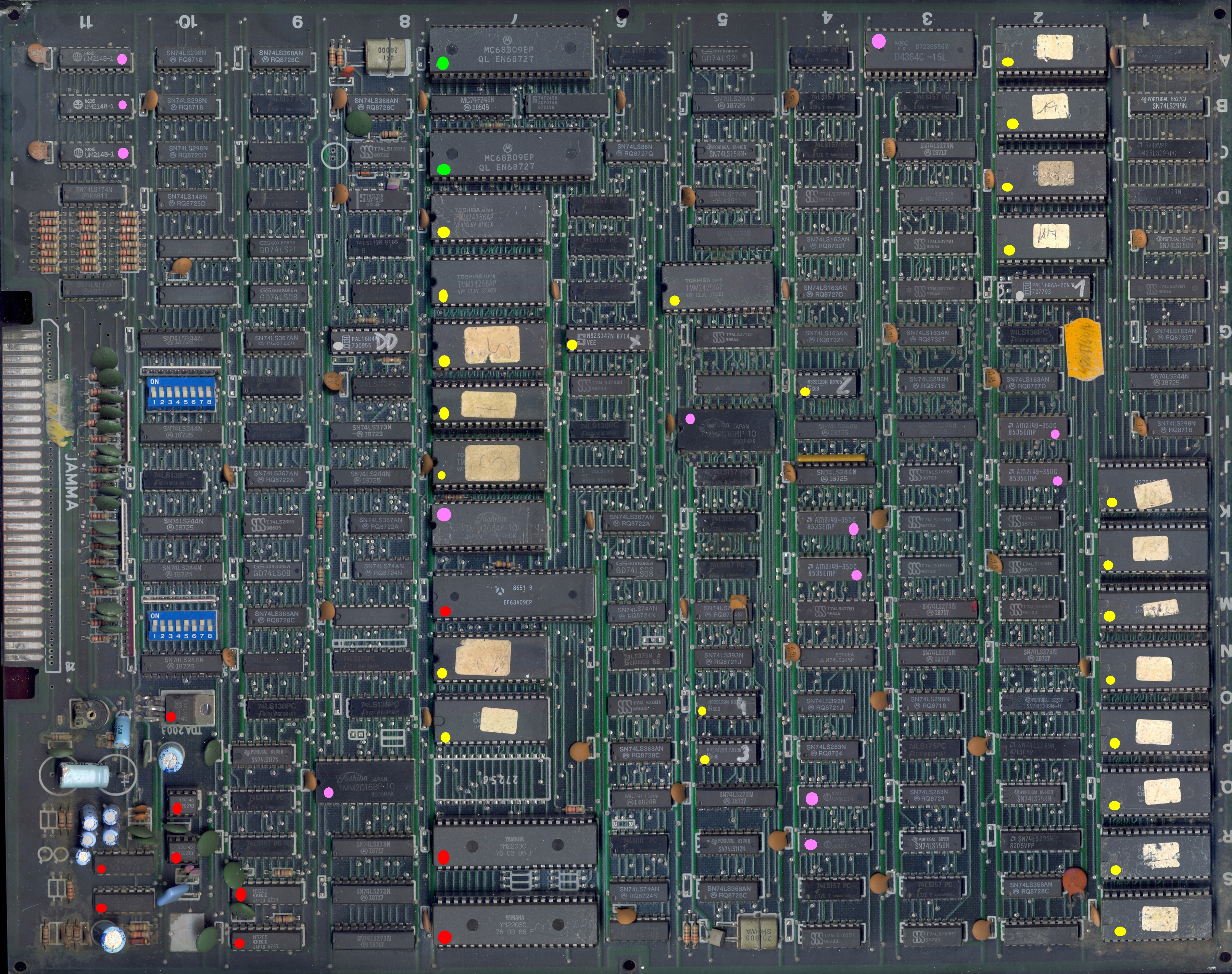

  PCB component side notes
•

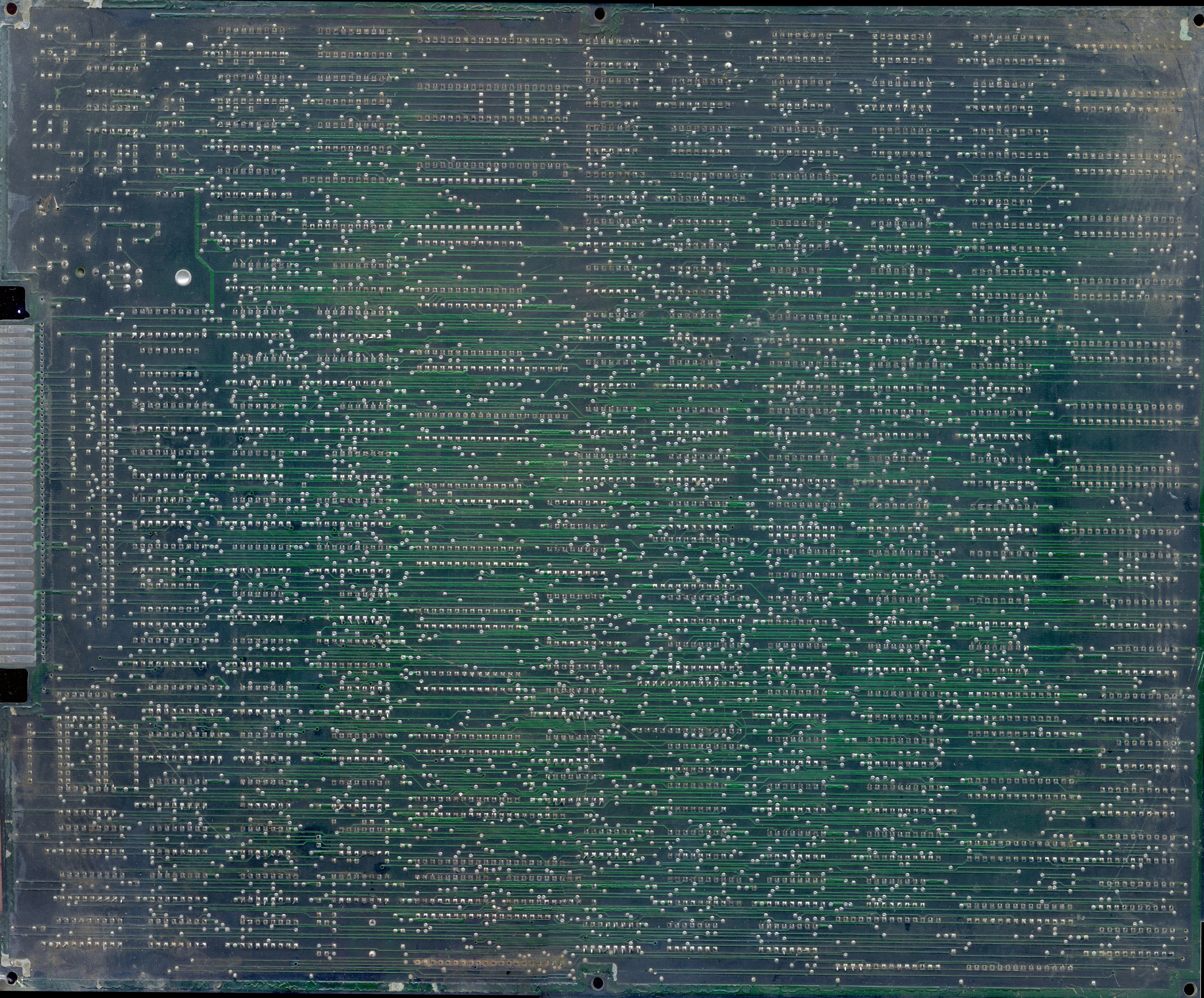

  PCB solder side
•
