Crush Roller (Italian bootleg of -Crush Roller (bootleg set 4)-)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 11/04/2005 |
| emulator | MAME 0.118u6 |
| dev | David Haywood |
| name | crushs on Arcade Database |
| description | Crush Roller (Italian bootleg of Crush Roller (bootleg set 4)) |
| year | 198? |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80 | MHz | daughter board | 8-bit Microprocessor - main |
| 1x | AY-3-8912 | MHz | daughter board | Programmable Sound Generator - sound |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 6x | TMS2532 | dumped |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
update 20060317 Now we have a full PCB (and a blister of spare roms); they are a bootleg of an original Sidam PCB.
This is the same game as Crush Roller (bootleg set 4), on a different PCB, manufactured by a bootleger
Files
-

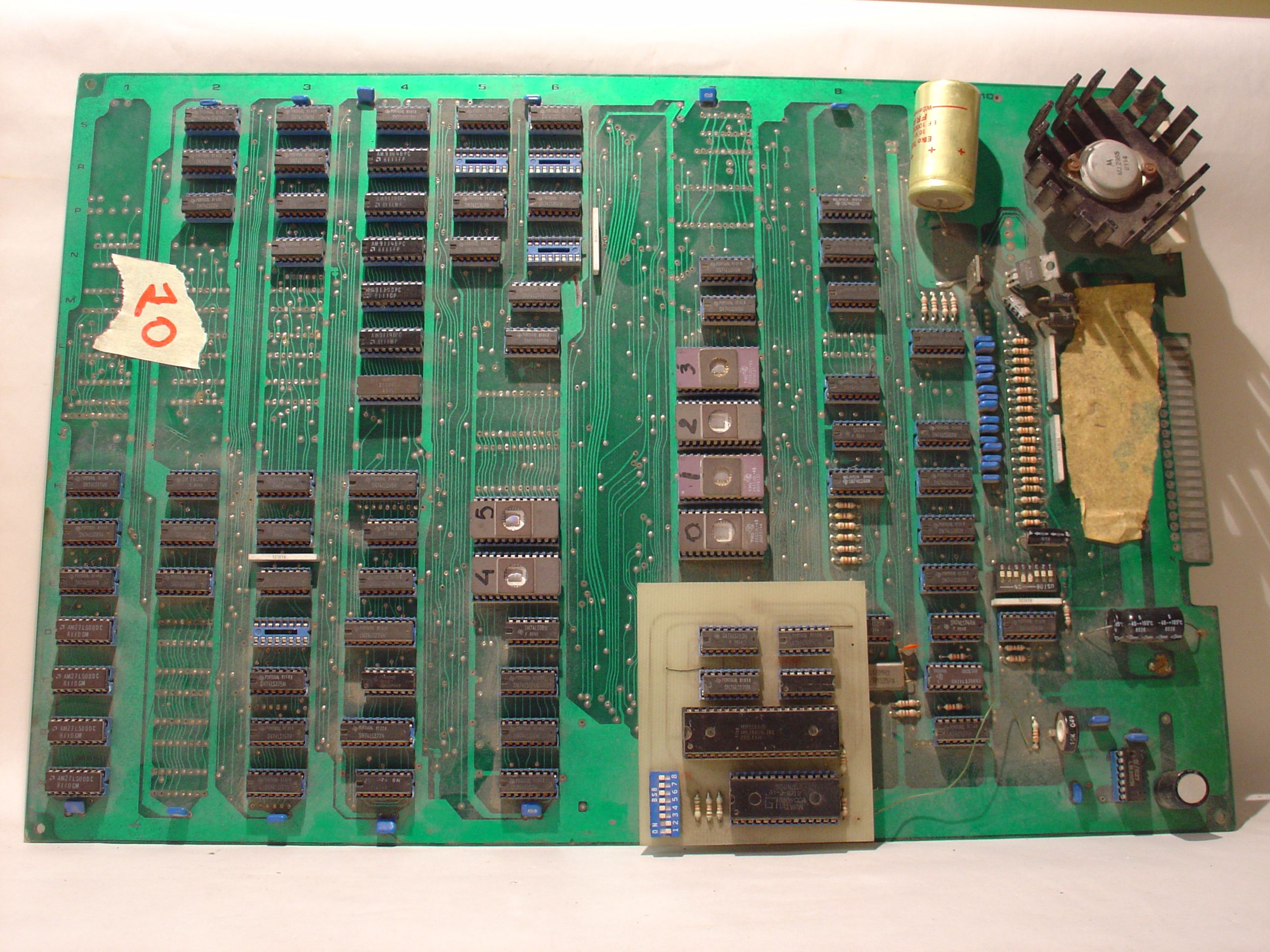

PCB component side -

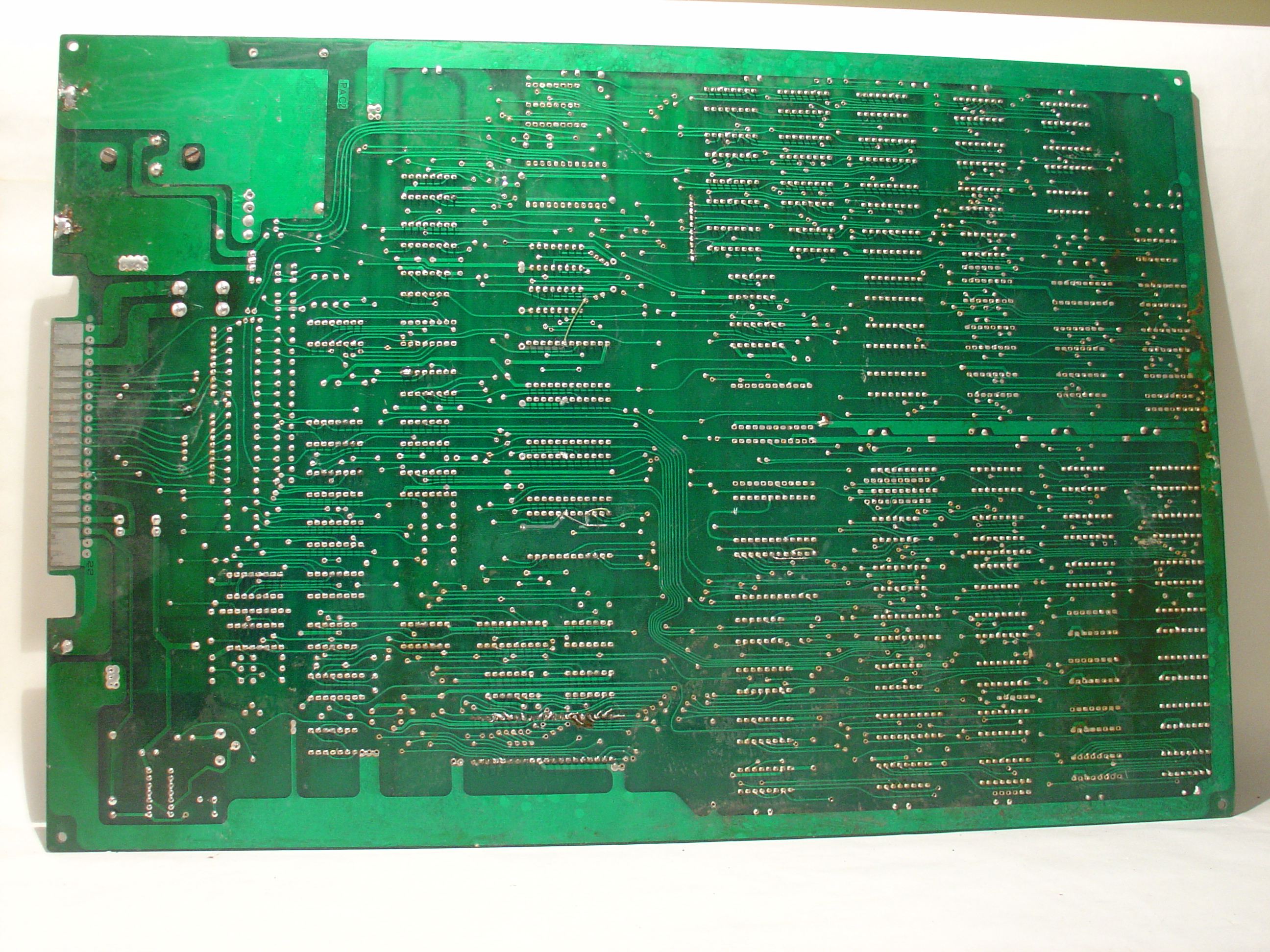

PCB solder side
