4 in 1 MAME bootleg (PLZ-V001)

EMU Infos

dumper	Tirino73
date	27/01/2010
emulator	MAME 0.147u2
dev	David Haywood

PCB Infos

name	4in1b on Arcade Database
description	4 in 1 MAME bootleg (PLZ-V001)
year	2004
manufacturer	Play Zone

Technical references

CPUs

QTY	Type	clock	position	function

ROMs

QTY	Type	position	status
1x	27C4096		dumped
1x	28F160		dumped
1x	93C66		dumped

RAMs

QTY	Type	position

PLDs

QTY	Type	position	status

Notes

Working
This romfile comes from a bootleg pcb.
Like 39in1 and 48in1 it is an hacked Mame emulator modified to run as coin-op.
This version allow to play only the first four games of the list (Ms.Pacman,Galaga,Frogger,Donkey Kong) so i suppose that is one of the first version of it.
Hardware is the same of 39in1 and 48in1.
I cannot dump 93c66 eeprom security data and 29c160 flash rom with gfx/fonts/romfiles data since they are in SMD format,but i think that they are the same of other versions (the data of second device surely).
Rom definition:
pzv001-4 main program
eprom is 27c4096

--

• Update 2010-03-11: eeprom data dumped. Decryption is different from 39in1

Files

•

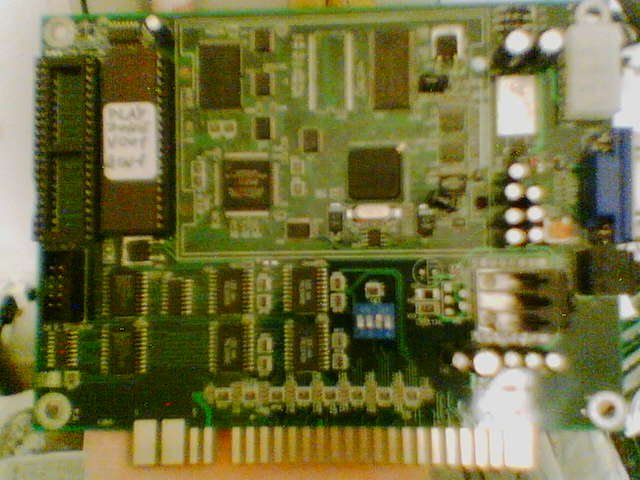

  PCB component side 1
•

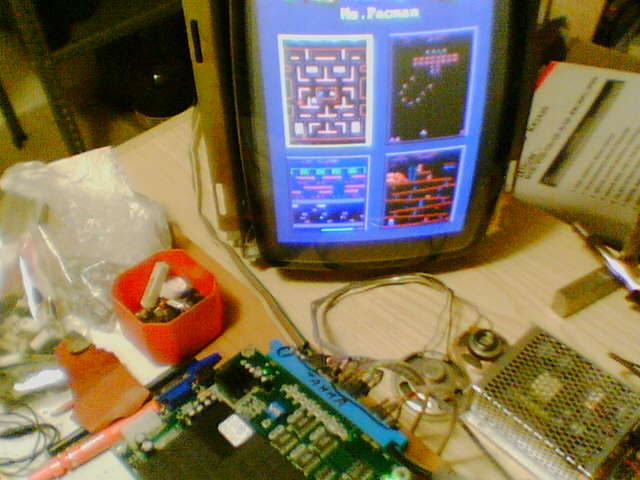

  PCB component side 2
•

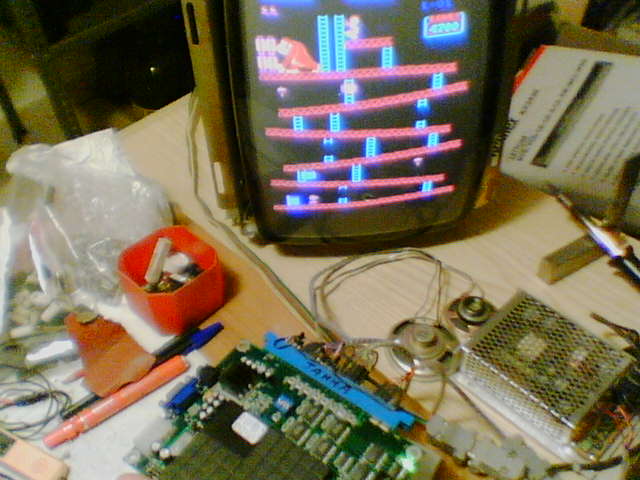

  In game 1
•

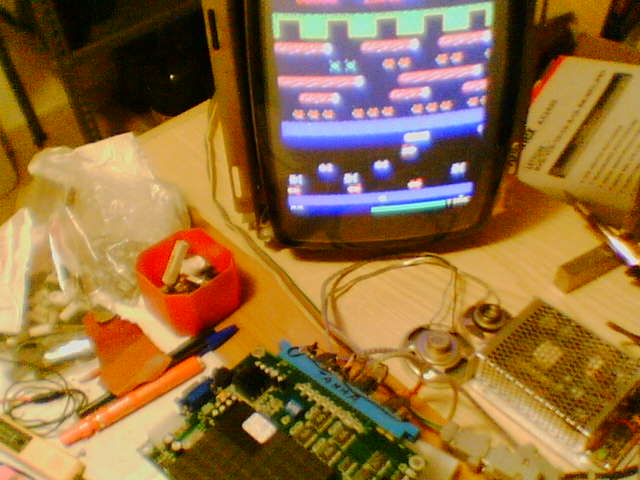

  In game 2
•

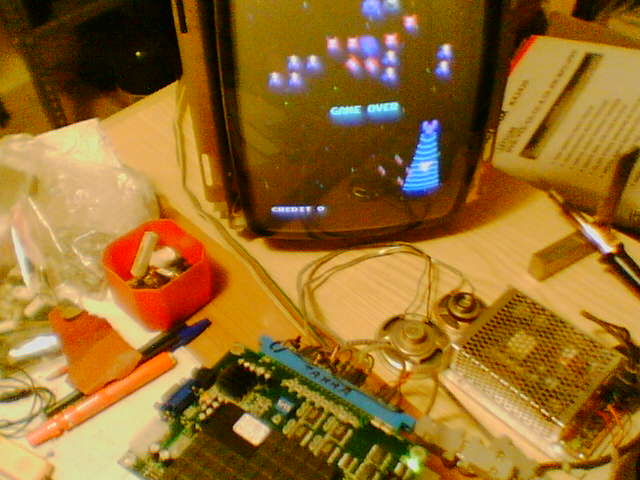

  In game 3
•

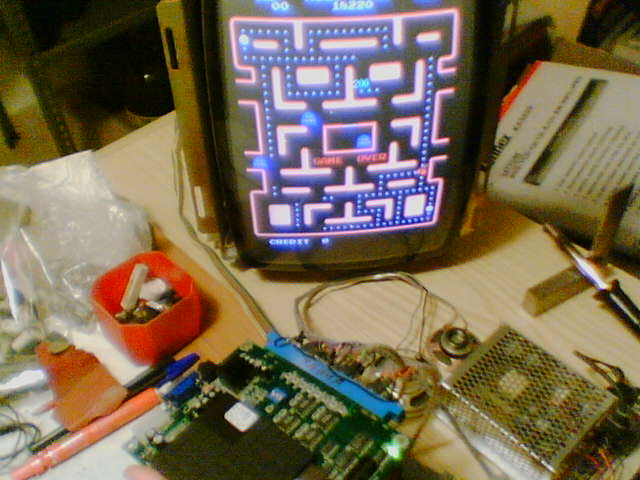

  In game 4
•
  Read me
