Space Attack (bootleg of Space Invaders)
From Citylan
| dumper | Guru |
| date | 02/05/2005 |
| emulator | MAME 0.53 |
| dev | MASH |
| name | spaceatt on ProgettoEMMA v on Arcade Database |
| description | Space Attack (bootleg of Space Invaders) |
| year | 1978 |
| manufacturer | Video Games GmbH |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | INS8080AD | 2G | 8-bit Microprocessor - main | |
| 1x | oscillator | 7B |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 5x | MM2708Q | 1A,1B,1F,1G,1H | dumped |
| 1x | 2708JL | 1C | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 16x | MM5280D-055 | 8G,8H-15G-15H |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 22x2 edge connector
1x 36X2 male edge connector from main PCB to video PCB
Notes
PCB is marked: "DIS. S060" on component side
Video PCB is missing.
Files
-

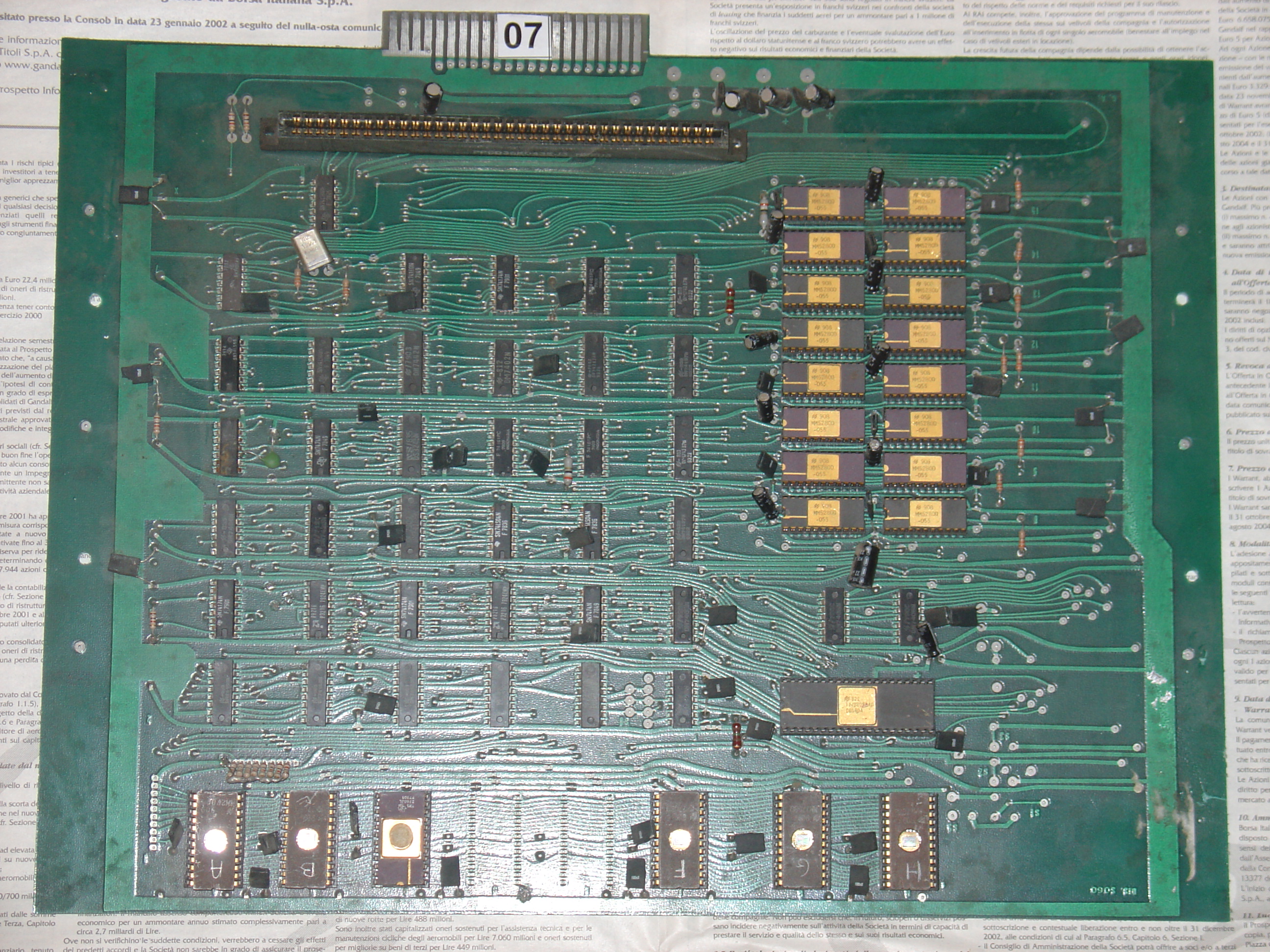

PCB component side
-

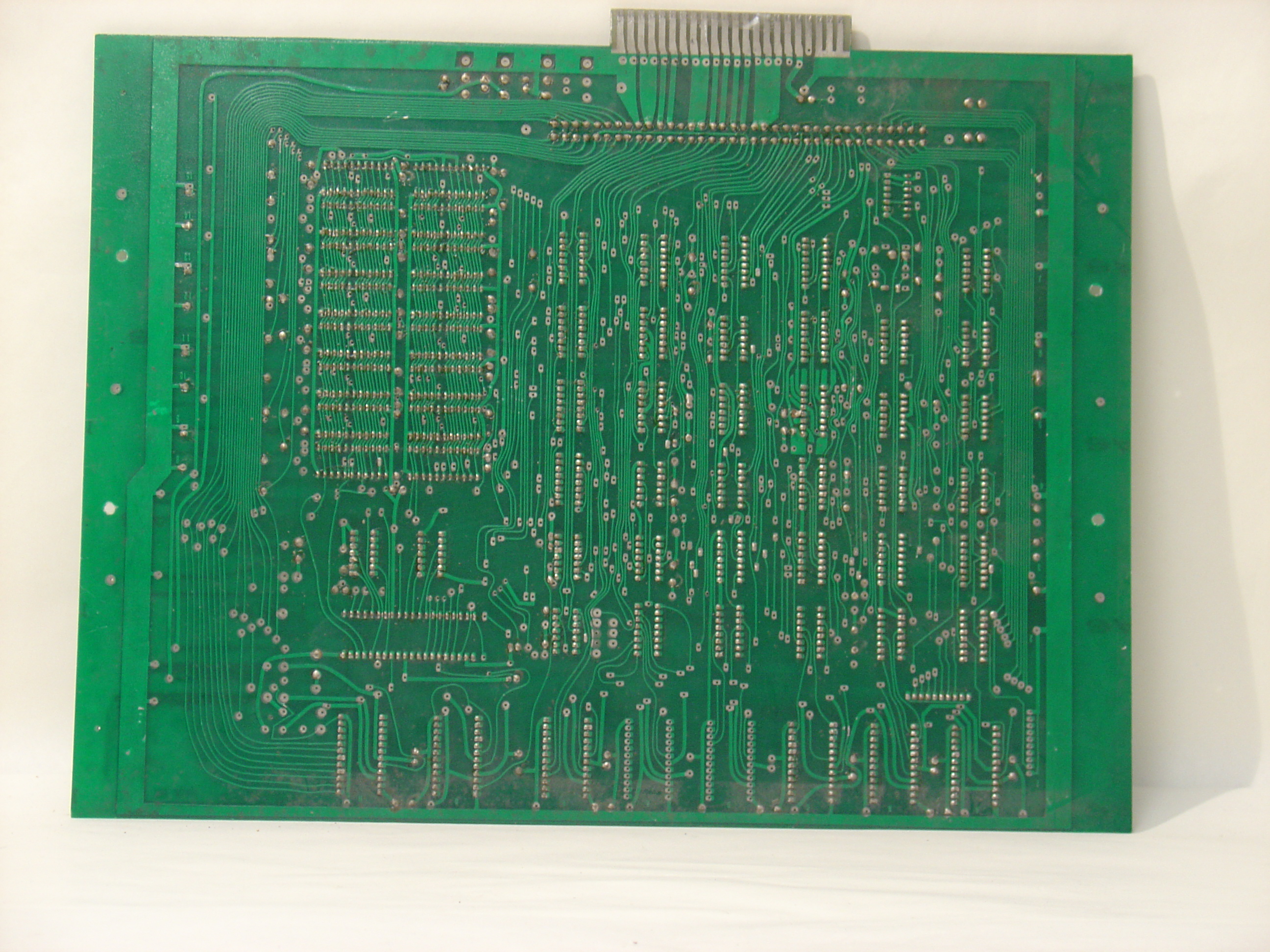

PCB solder side
-
layout
