Gun Fight (set 2)
From Citylan
| dumper | f205v |
| date | 13/11/2016 |
| emulator | MAME 0.139u4 |
| dev | Mariusz Wojcieszek, Siftware |
| name | gunfighto on ProgettoEMMA gunfighto on Arcade Database |
| description | Gun Fight (set 2) |
| year | 1976 |
| manufacturer | Model Racing |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | C8080A-1885A | 2g | 8-bit Microprocessor - main | |
| 1x | oscillator | unmarked | 7b |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | D3604-4 | 1a,1b,1c,1d,1e,1f,1g,1h | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 16x | TMS4060NL | 0-15 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 0x |
Others
1x 18x2 edge connector
1x 36x2 female edge connector receptor
Notes
PCB is marked "002B"
Files
-

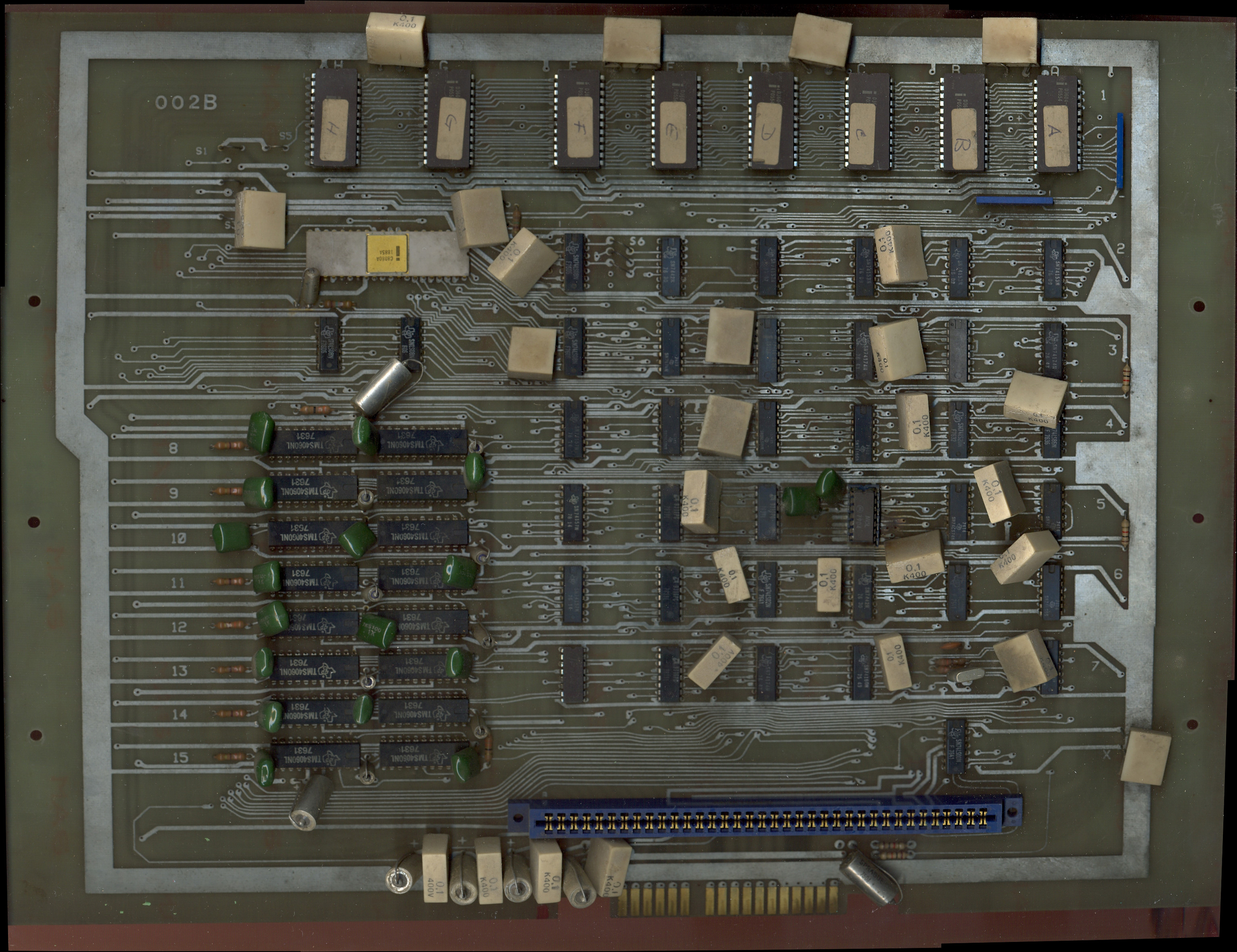

PCB component side
-

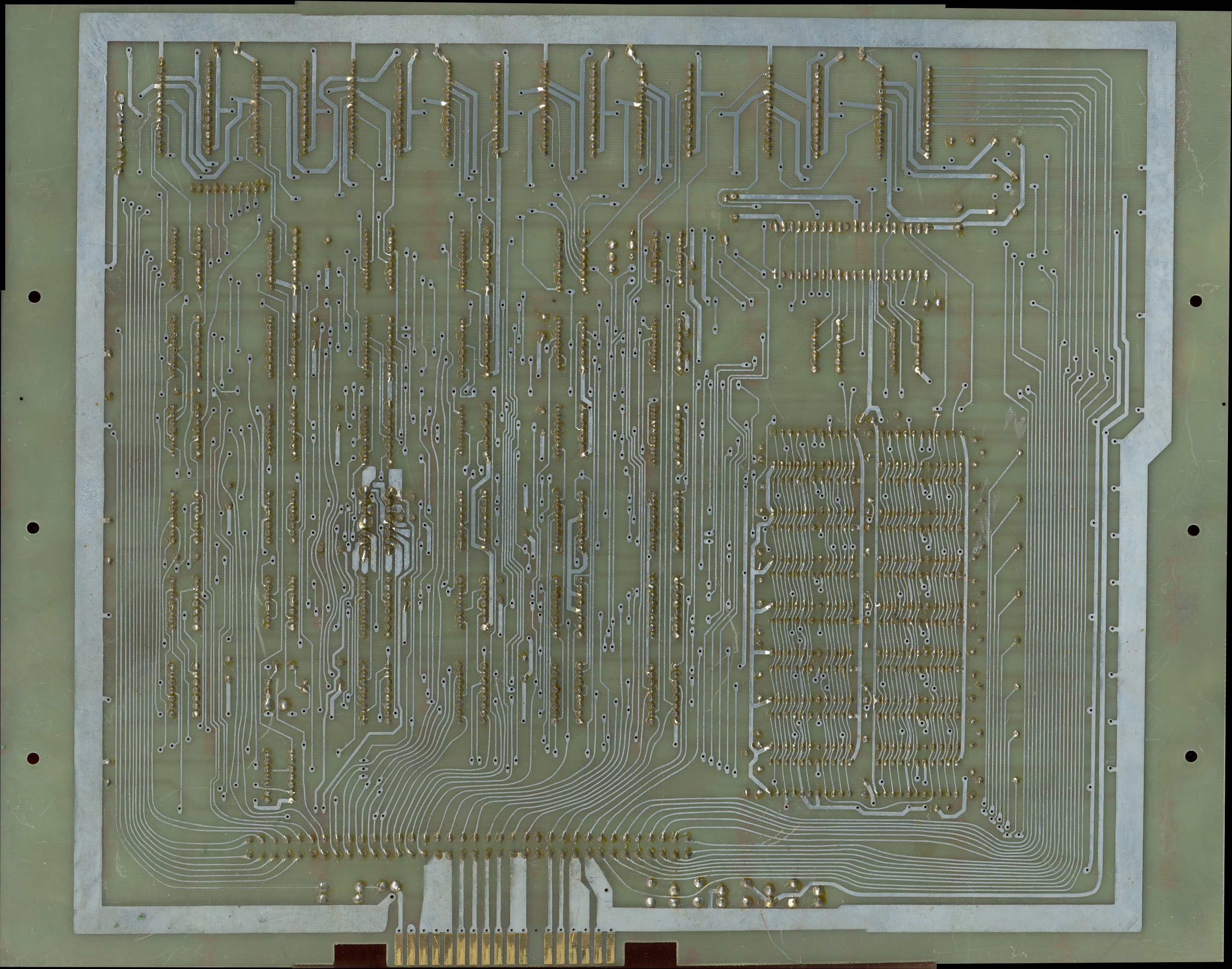

PCB solder side
