Lunar Rescue (Sidam bootleg 2)
From Citylan
| dumper | f205v, Gnoppi |
| date | 01/07/2005 |
| emulator | |
| dev |
| name | 74 |
| description | Lunar Rescue (Sidam bootleg 2) |
| year | 1979 |
| manufacturer | Sidam |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | 8080 | 1h | 8-bit Microprocessor - main | |
| 4x | LM3401N | 2b,4b,6b,8b | Quad Operational Amplifier - sound | |
| 1x | oscillator | no marks |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | TMS2516 | 0 | dumped |
| 6x | MK2716 | 1-6 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 16x | MM5280N | 3h-8h,3j-8j |
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP
Notes
Layout is very very similar to other Sidam games.
It's a clone of "Lunar Rescue"
ATTENTION: ROMS N° 4 AND 6 ARE PROBABLY BAD DUMPS!!
I have 2 identical PCBs, they differ only by EPROM #4.
Files
-

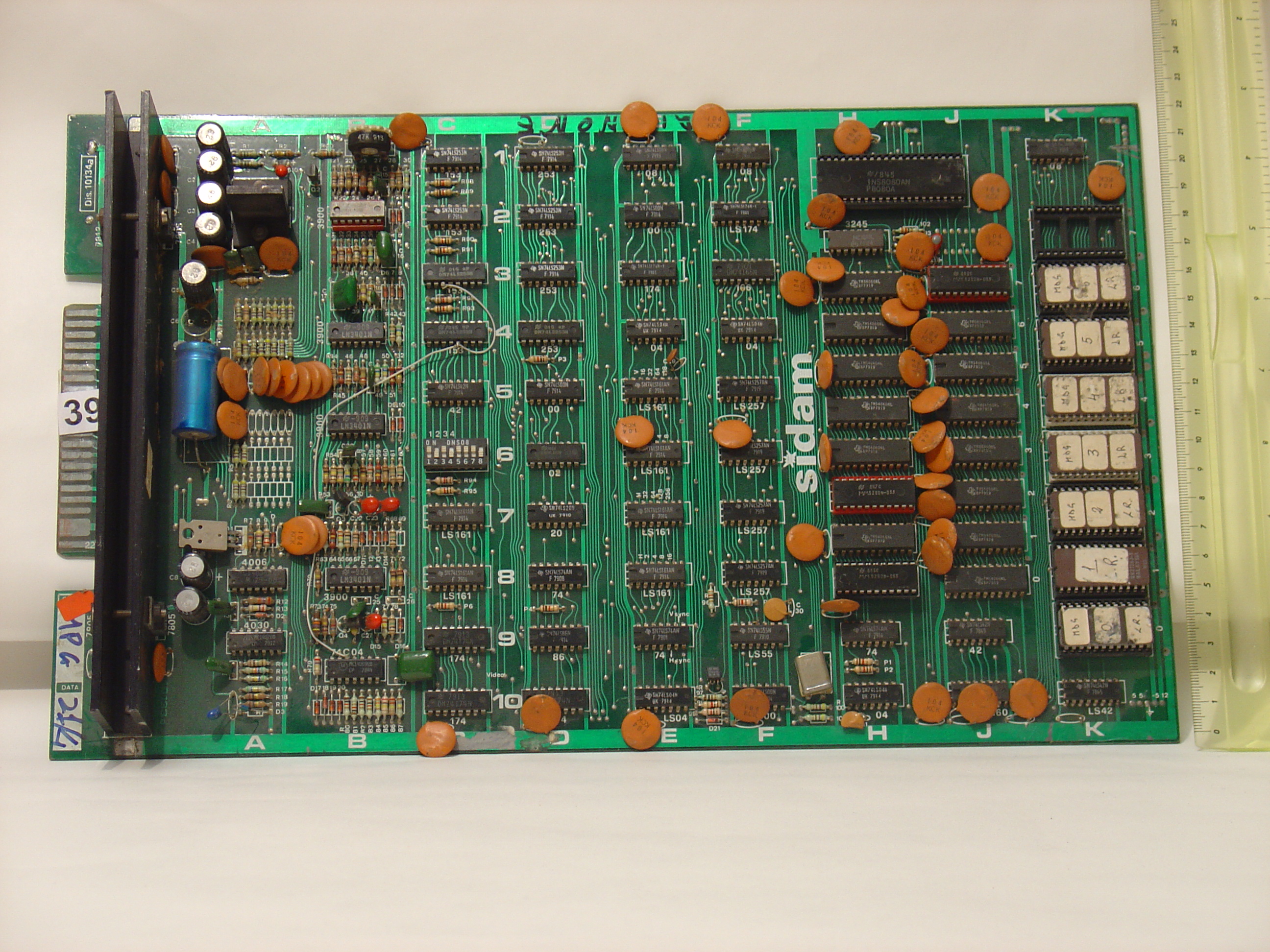

PCB component side
-

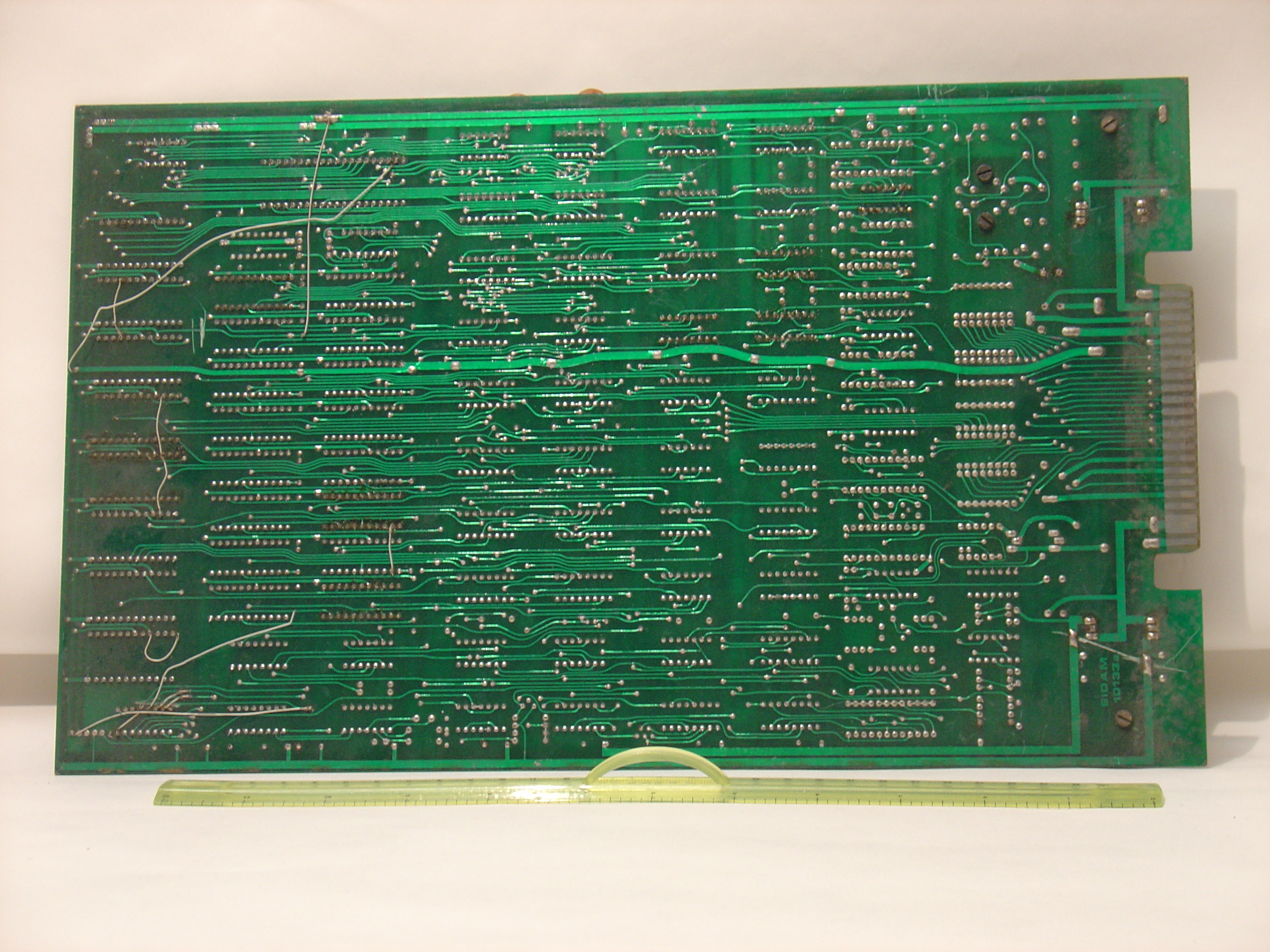

PCB solder side
-
ROMs
74
