Revision as of 13:57, 7 January 2020

EMU Infos
dumper f205v
date 23/03/2019
emulator
dev
PCB Infos
name 1665
description Seibu Cup Soccer :Selection: (bootleg, Italian)
year 1992.11.06
manufacturer

Technical references

CPUs

QTY Type clock position function
1x MC68000P12F 14.99MHz 1st PCB main board 68000 16/32-bit Microprocessor - main
1x Z0840006PSC 3.996MHz 1st PCB main board Z80 8-bit Microprocessor - sound
1x M6295 0.999MHz 1st PCB main board 6295 4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x LM358N - 1st PCB main board 358 Dual Operational Amplifier - sound
1x TDA2002 - 1st PCB main board 2002 Audio Amplifier - sound
1x oscillator 15.000000MHz 1st PCB main board close to main
1x oscillator 40.000000MHz 1st PCB main board close to sound
1x oscillator 8.00MHz 1st PCB main board close to sound
1x MC68000P12F 14.99MHz(@15) 2nd PCB main PCB 16/32-bit Microprocessor - main
1x Z0840006PSC 3.996MHz(@6) 2nd PCB main PCB 8-bit Microprocessor - sound
1x M6295 999,1KHz(@6) 2nd PCB main PCB 4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x LM358 - 2nd PCB main PCB Dual Operational Amplifier - sound
1x TDA2002 - 2nd PCB main PCB Audio Amplifier - sound
1x oscillator 40.000000MHz 2nd PCB main PCB
1x oscillator 15.000000MHz 2nd PCB main PCB
1x oscillator 8.00MHz 2nd PCB main PCB

ROMs

QTY Type position status
3x AM27C512 1st PCB main board 1, ROMs board 12,13 dumped
1x TMS27C010A 1st PCB main board 2 dumped
11x M27C4001 1st PCB main board 3-11, ROMs board 14,15 dumped
1x AM27C512 2nd PCB main PCB 1 dumped
1x TMS27C010A 2nd PCB main PCB 2 dumped
9x M27C4001 2nd PCB main PCB 3-11 dumped
2x AM27C512 2nd PCB sub PCB 12-13 dumped
2x M27C4001 2nd PCB sub PCB 14-15 dumped

RAMs

QTY Type position
4x HY62256ALP-10 1st PCB main board 6264
1x AM9128-15PC 1st PCB main board 6116
2x MCM2018AN35 1st PCB main board 2018
6x TC514256AP-70 1st PCB main board 44256
4x HY62256ALP-10 1st PCB ROMs board
1x AM9128-15PC 2nd PCB main PCB
2x MCM2018AN35 2nd PCB main PCB
4x HY6264ALP-10 2nd PCB main PCB
6x TC514256AP-70 2nd PCB main PCB
4x HY6264ALP-10 2nd PCB sub PCB

PLDs

QTY Type position status
2x TPC1020AFN-084C 1st PCB main board OBJ,BKG read protected
1x TPC1020AFN-084C 1st PCB ROMs board read protected
1x GAL22V10-25LP 1st PCB main board 22V8-1 read protected
2x GAL22V10-25LP 1st PCB main board 22V10-2,4 read protected
2x GAL16V8-20HB1 1st PCB main board 16V8-5,6 read protected
4x 20AS15HB1 1st PCB main board 20V8-7,8,9,10 read protected
4x GAL16V8S-20HB1 1st PCB ROMs board read protected
2x TPC1020AFN-084C 2nd PCB main PCB read protected
1x TPC1020AFN-084C 2nd PCB sub PCB read protected
4x 20AS15HB1 2nd PCB main PCB read protected
3x GAL22V10-25LP 2nd PCB main PCB read protected
2x GAL16V8S-20HB1 2nd PCB main PCB read protected
4x GAL16V8S-20HB1 2nd PCB sub PCB read protected

Others

1x 28x2 JAMMA edge connector (main board, both PCBs)
2x 10 legs connector (main board J3,J4, both PCBs)
2x 50 pins flat cable connector from main PCB to ROMs PCB, both PCBs
1x trimmer (main board RV1, both PCBs)
3x 8 DIP switches banks (main board S1,S2,S3, both PCBs)

Notes

both PCBs: main PCB is marked: "SOCCER 1", "rev.5" and "lc" on component side ("lc" is the Italian for "Lato Componenti" which translates to "Components Side")
both PCBs: main PCB is marked: "SOCCER 1", "rev.5" and "ls" on component side ("ls" is the Italian for "Lato Saldature" which translates to "Solders Side")
both PCBs: ROMs PCB is marked: "CALCIO 2", "rev.3" and "lc" on component side ("CALCIO is the Italian for "SOCCER"; "lc" is the Italian for "Lato Componenti" which translates to "Components Side")
both PCBs: ROMs PCB is marked: "CALCIO 2", "rev.3" and "ls" on component side ("CALCIO is the Italian for "SOCCER"; "ls" is the Italian for "Lato Saldature" which translates to "Solders Side")
1st PCB: main PCB is labelled: "SOCCER" on solder side
2nd PCB: main PCB is labelled: "6.11.92" on solder side

Files

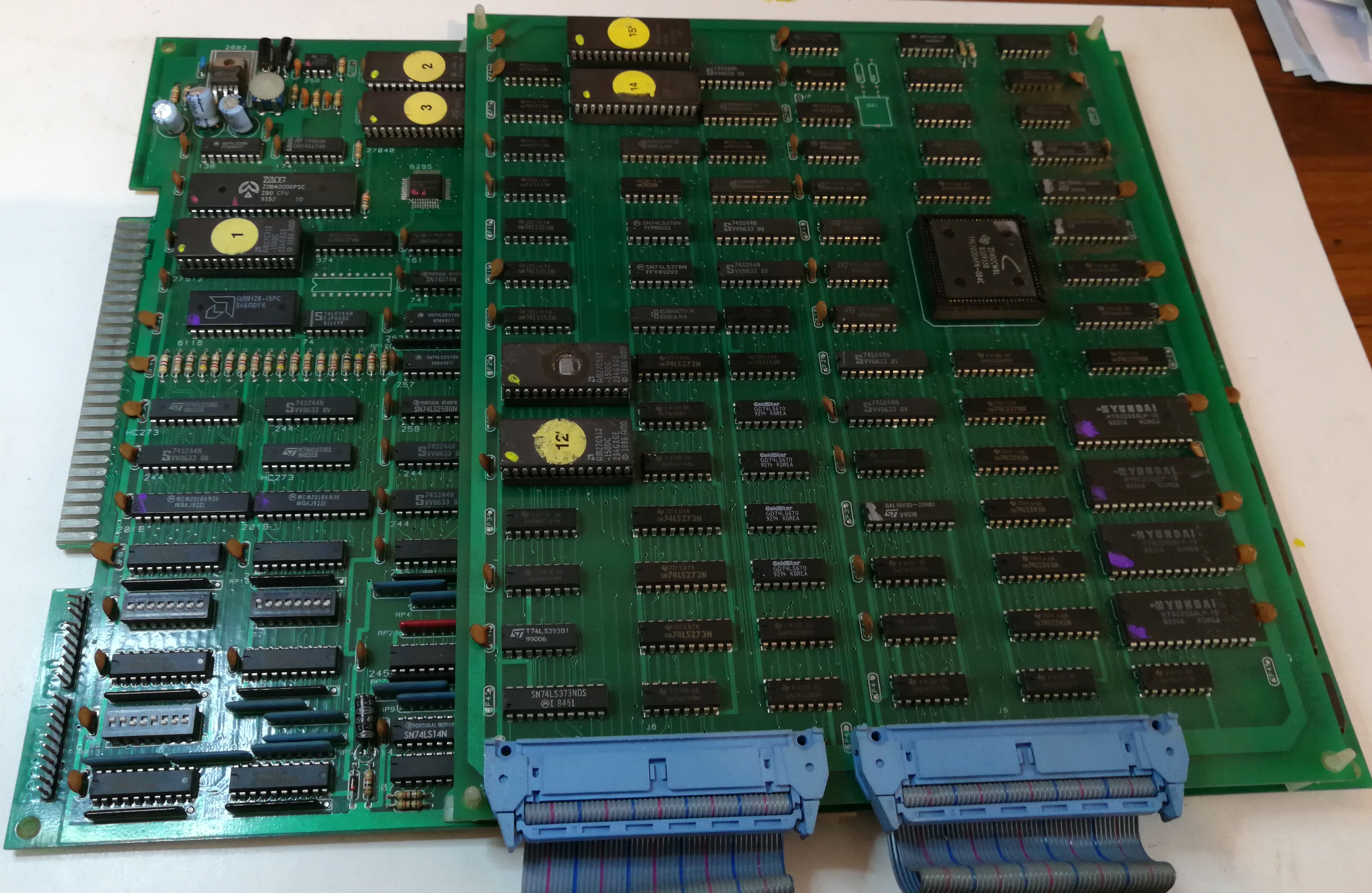

  • 1st PCB assembled PCBs

    1st PCB assembled PCBs

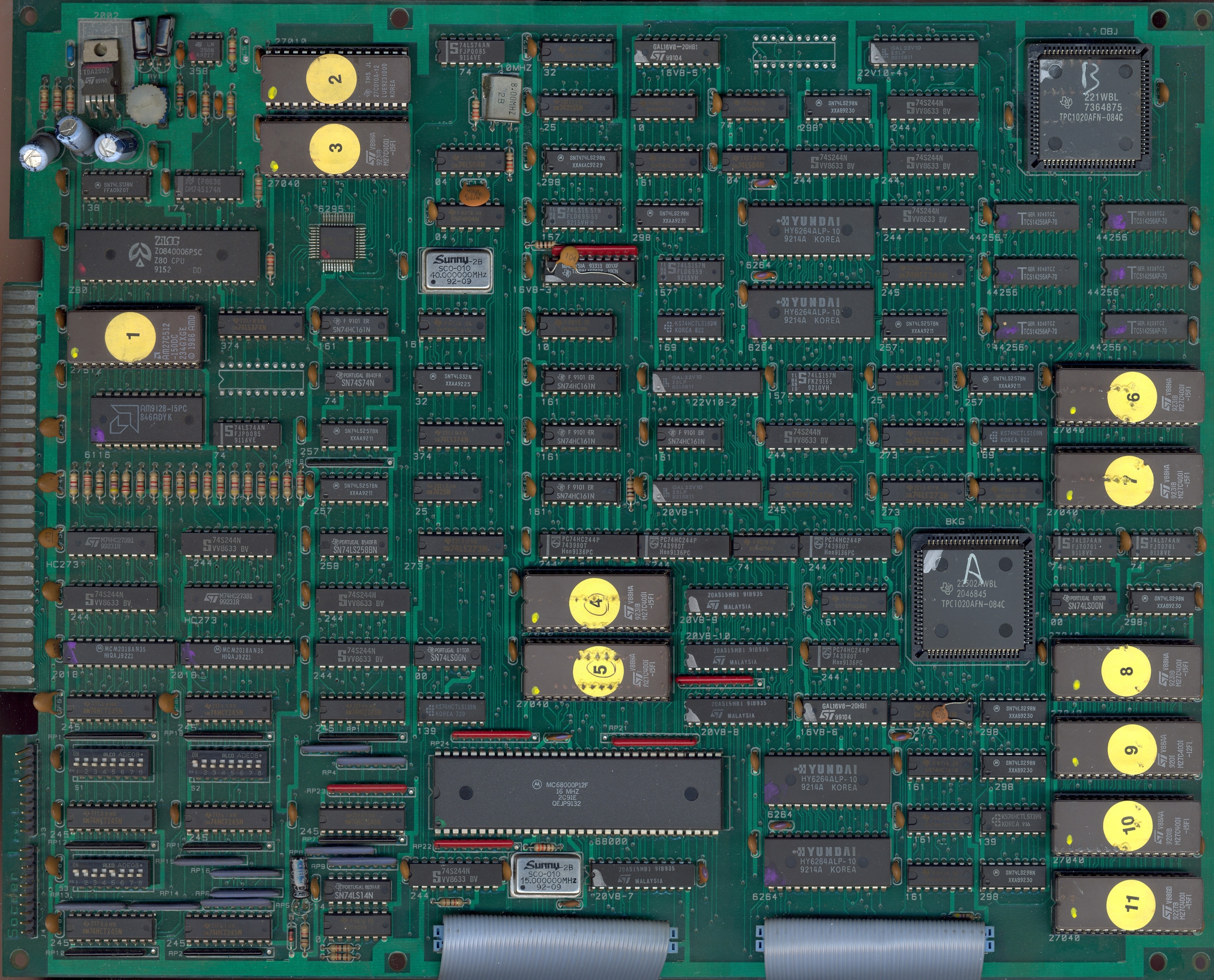

  • 1st PCB main PCB component side

    1st PCB main PCB component side

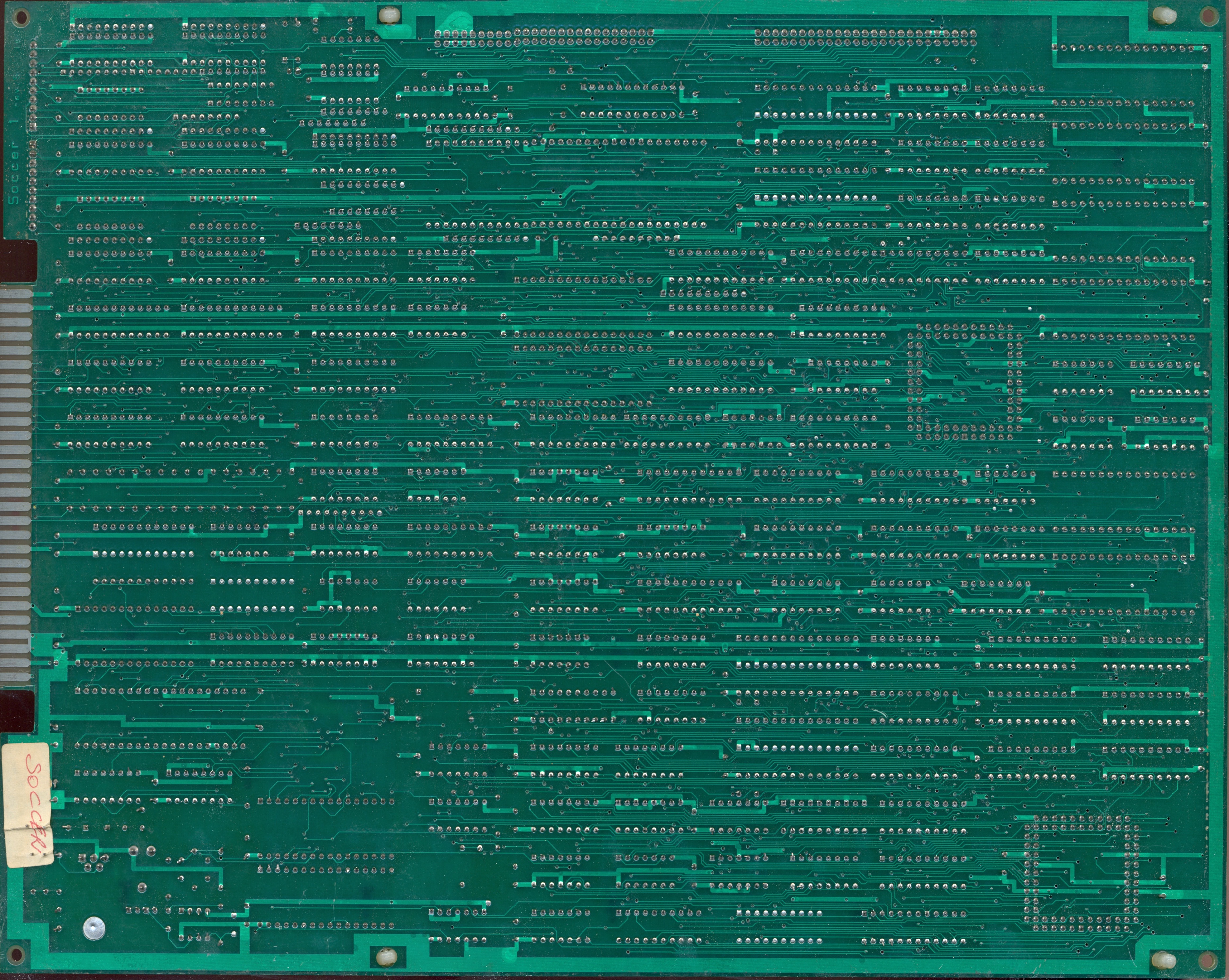

  • 1st PCB main PCB solder side

    1st PCB main PCB solder side

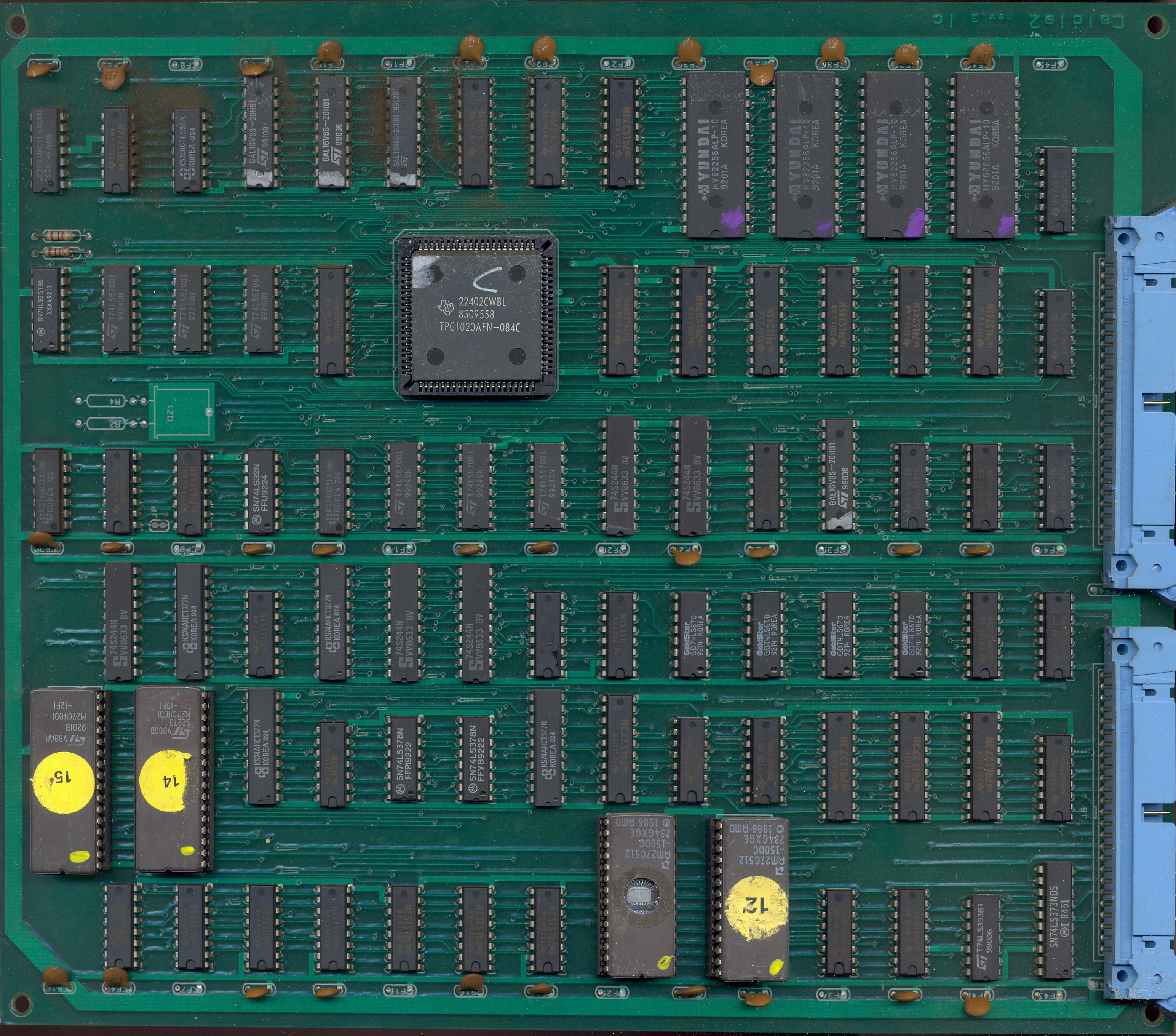

  • 1st PCB ROMs PCB component side

    1st PCB ROMs PCB component side

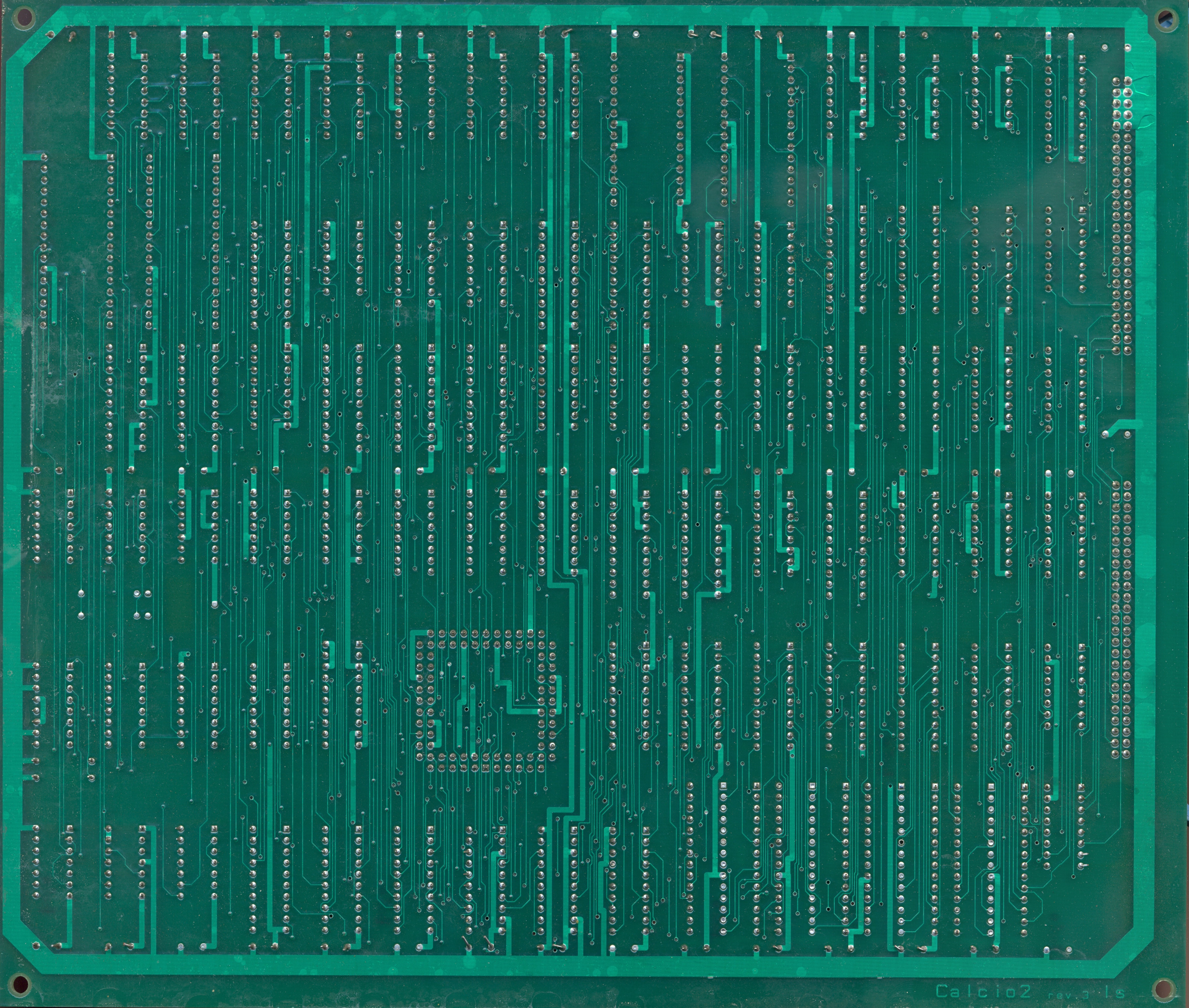

  • 1st PCB ROMs PCB solder side

    1st PCB ROMs PCB solder side

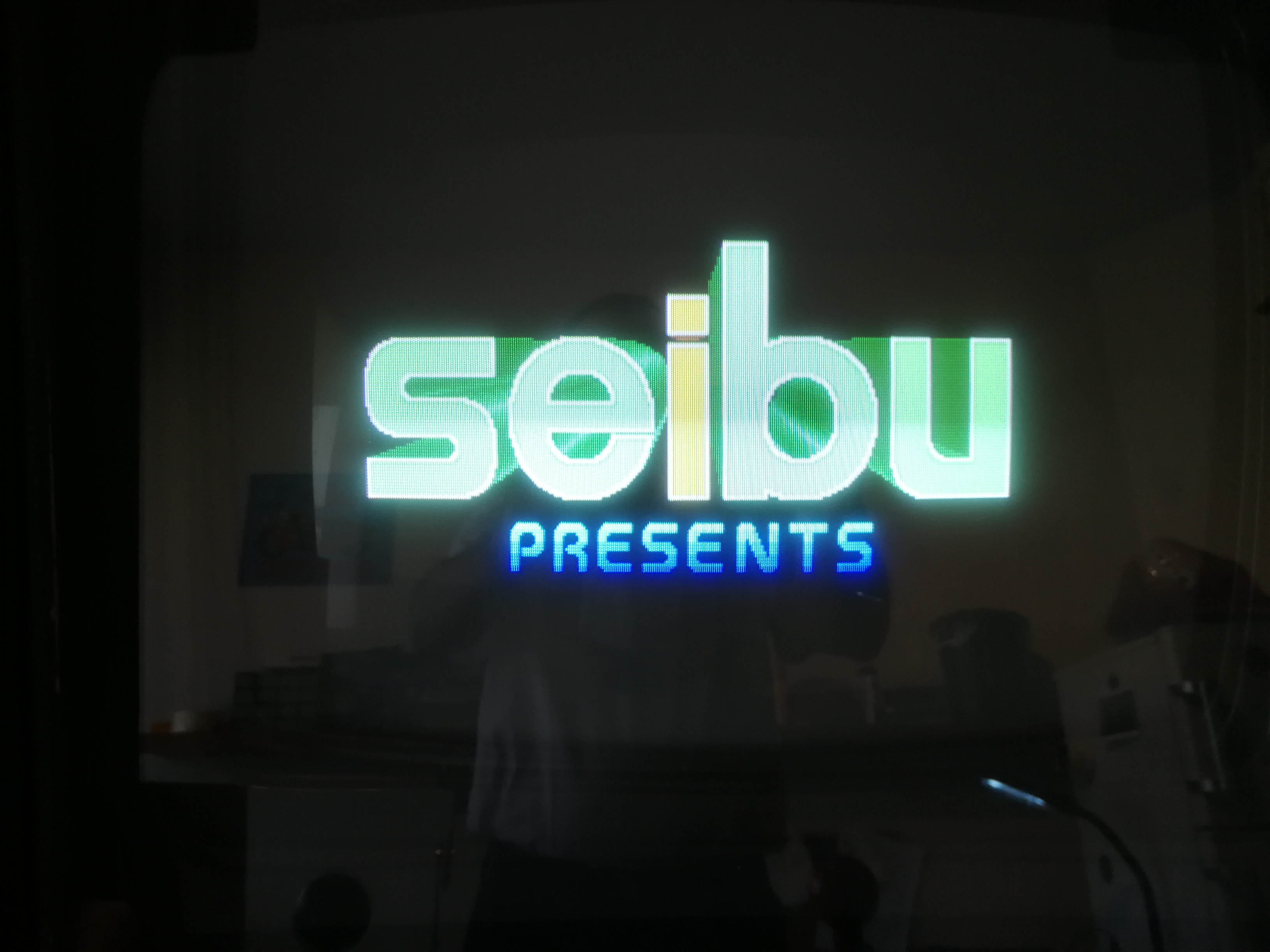

  • 1st PCB Boot screen

    1st PCB Boot screen

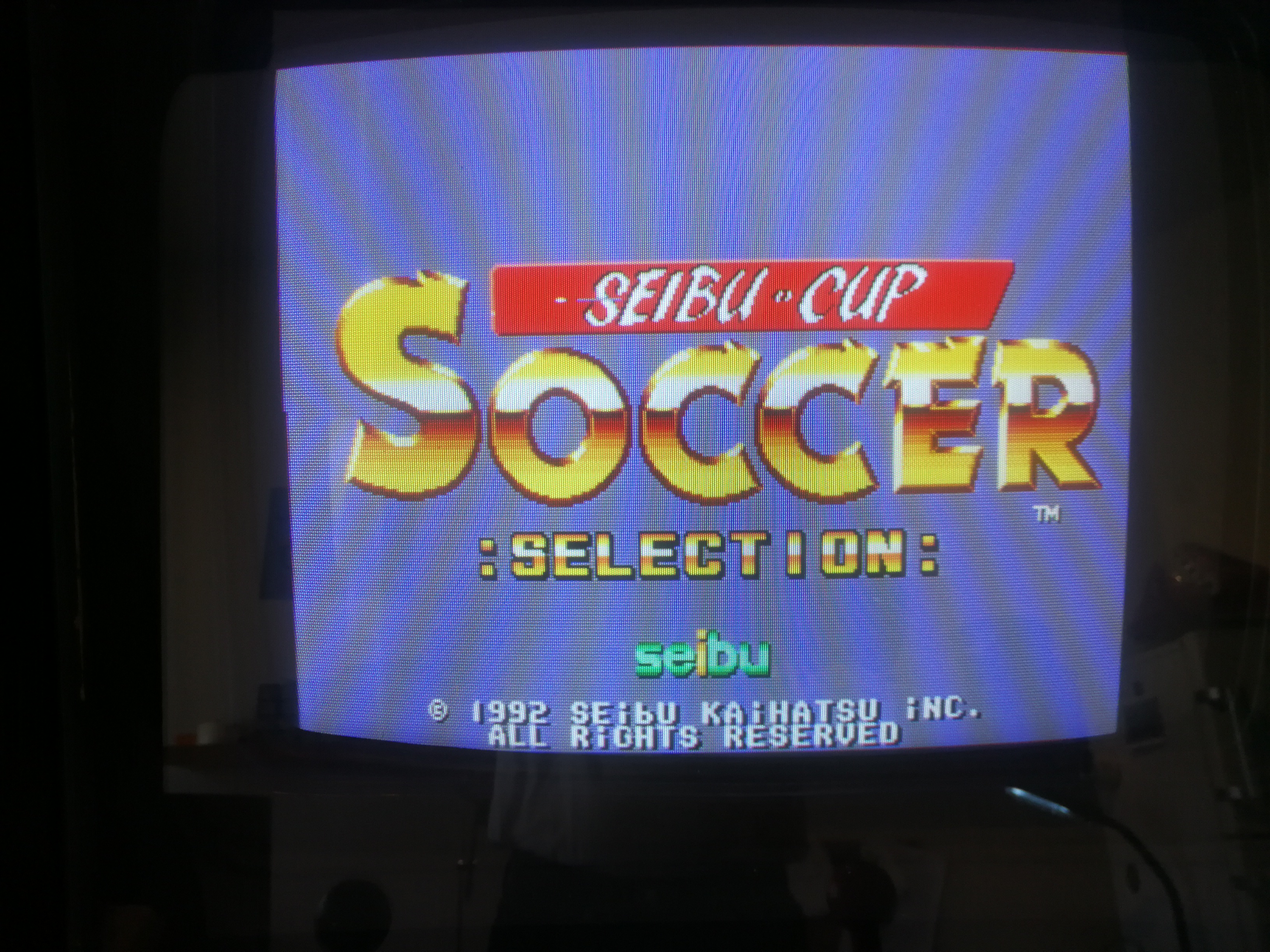

  • 1st PCB Title

    1st PCB Title

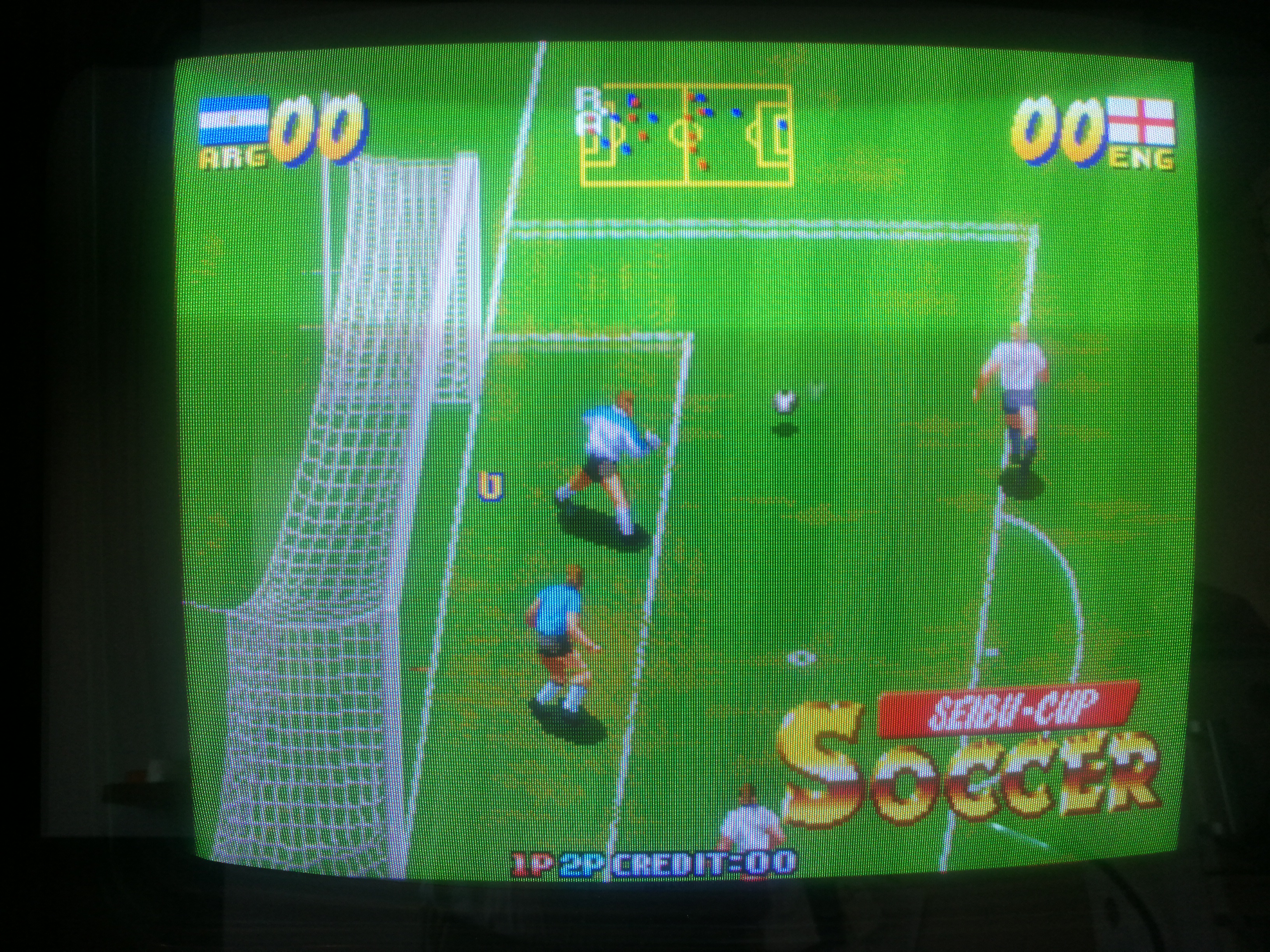

  • 1st PCB In game

    1st PCB In game

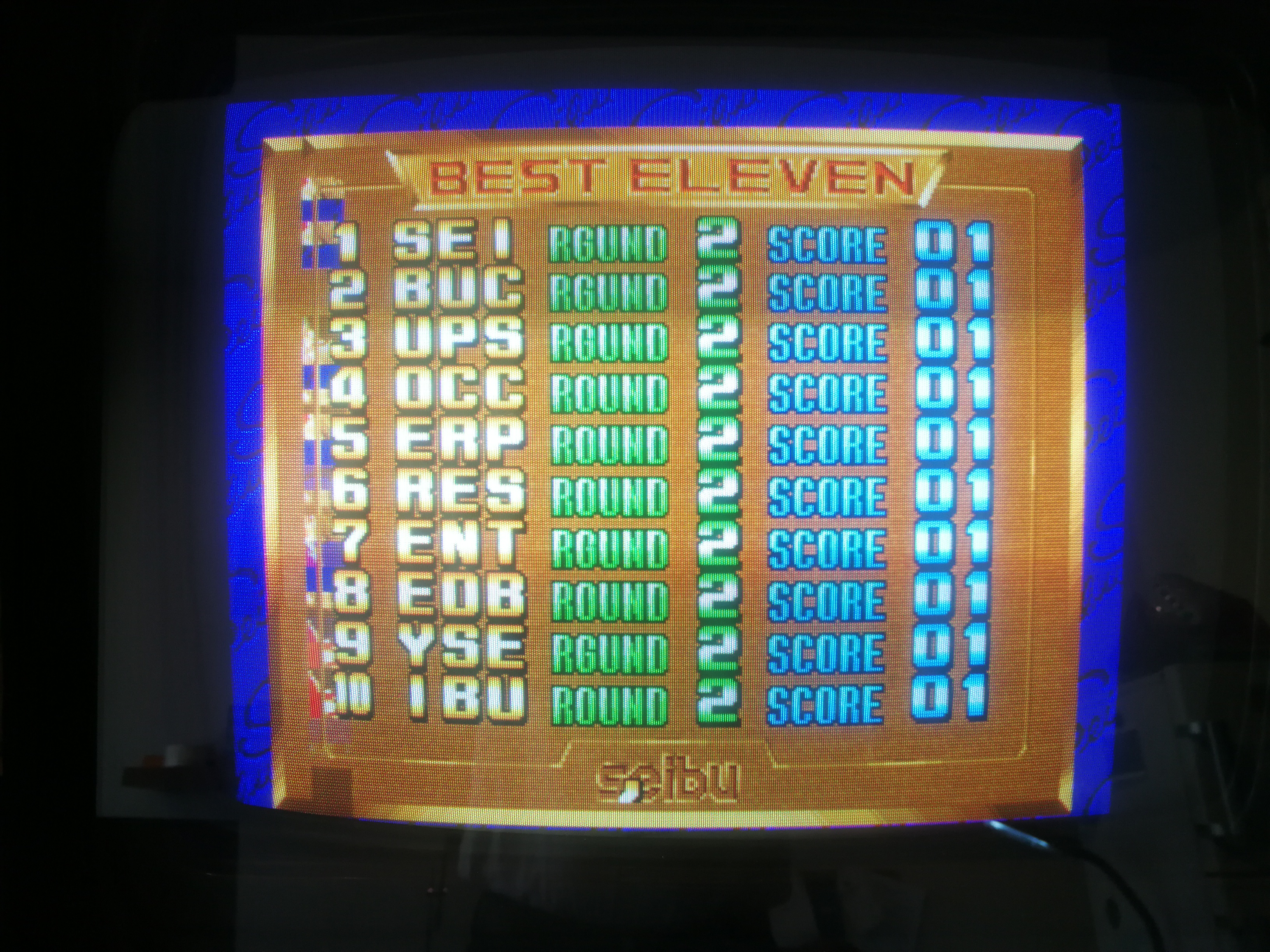

  • 1st PCB Hiscore

    1st PCB Hiscore

  • 1st PCB ROMs

    1st PCB ROMs

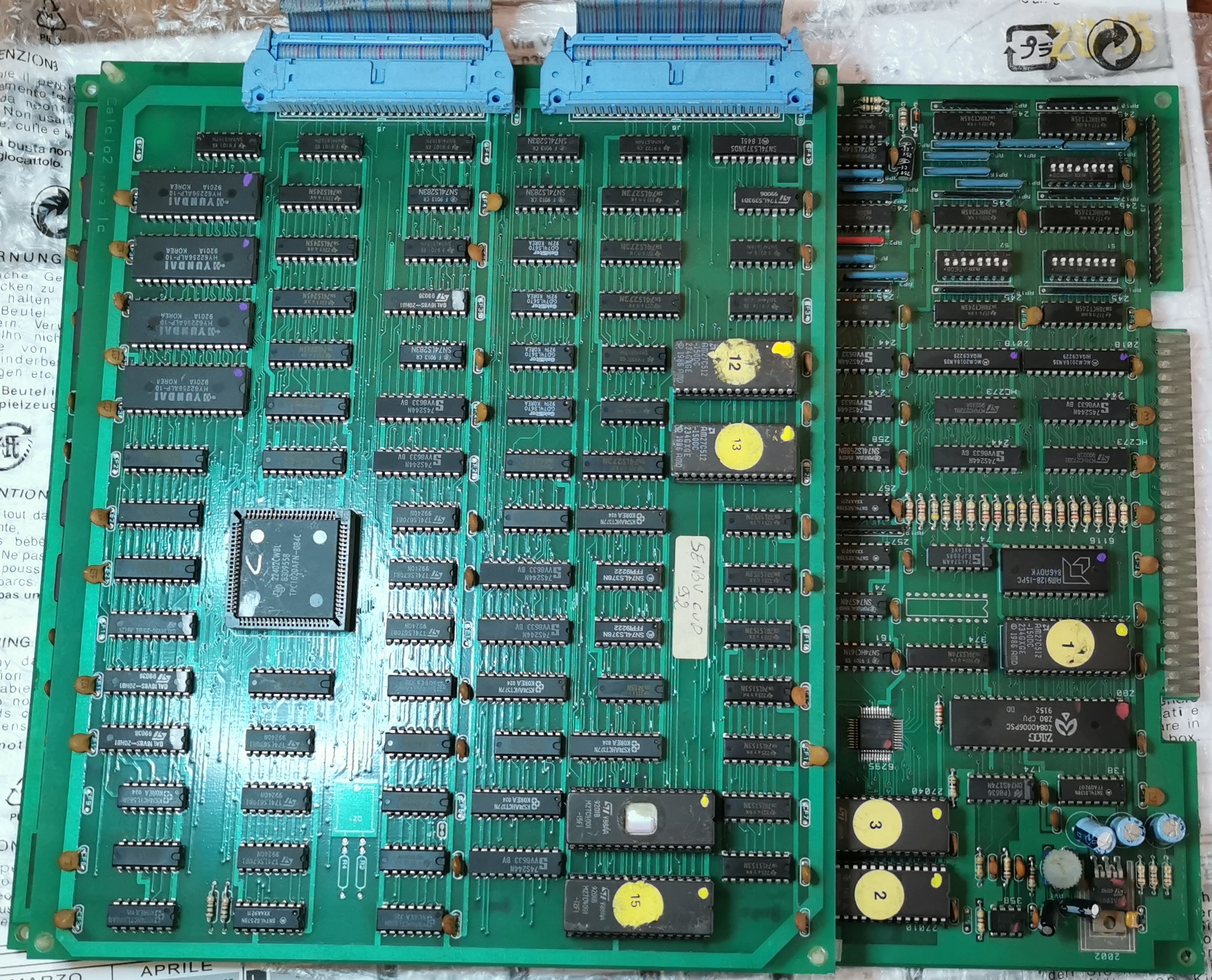

  • assembled PCBs

    assembled PCBs

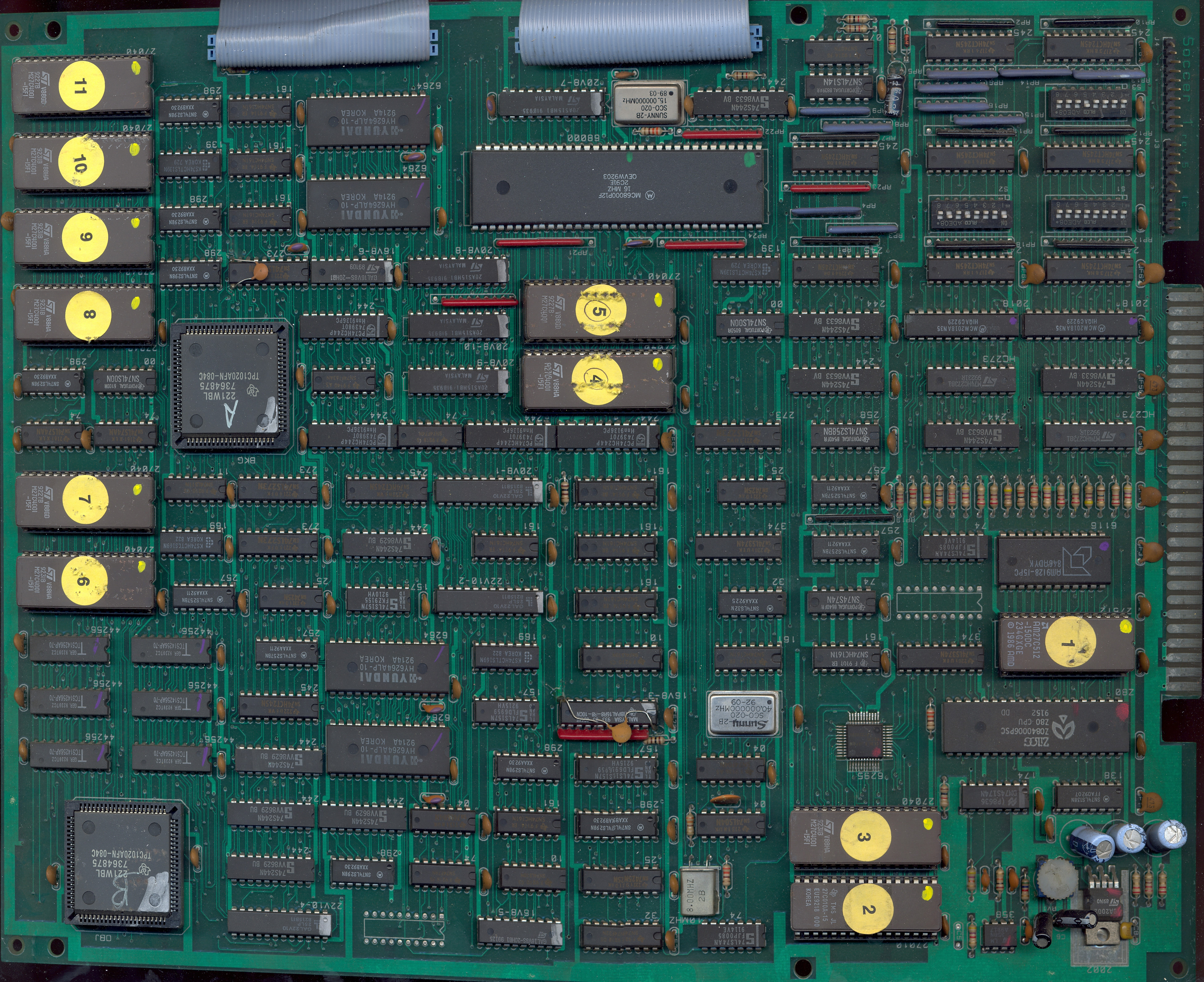

  • 2nd PCB main PCB component side

    2nd PCB main PCB component side

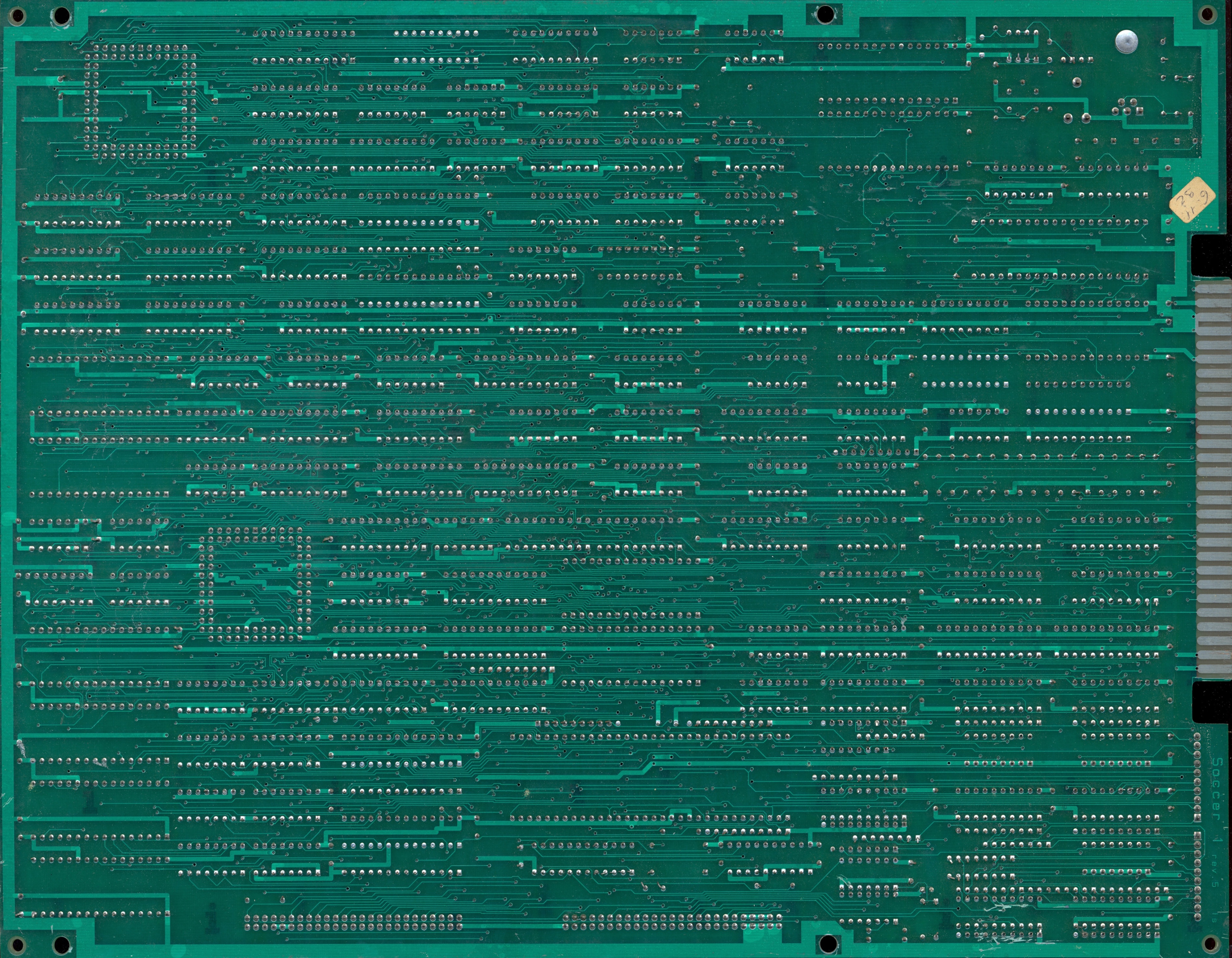

  • 2nd PCB main PCB solder side

    2nd PCB main PCB solder side

  • 2nd PCB sub PCB component side

    2nd PCB sub PCB component side

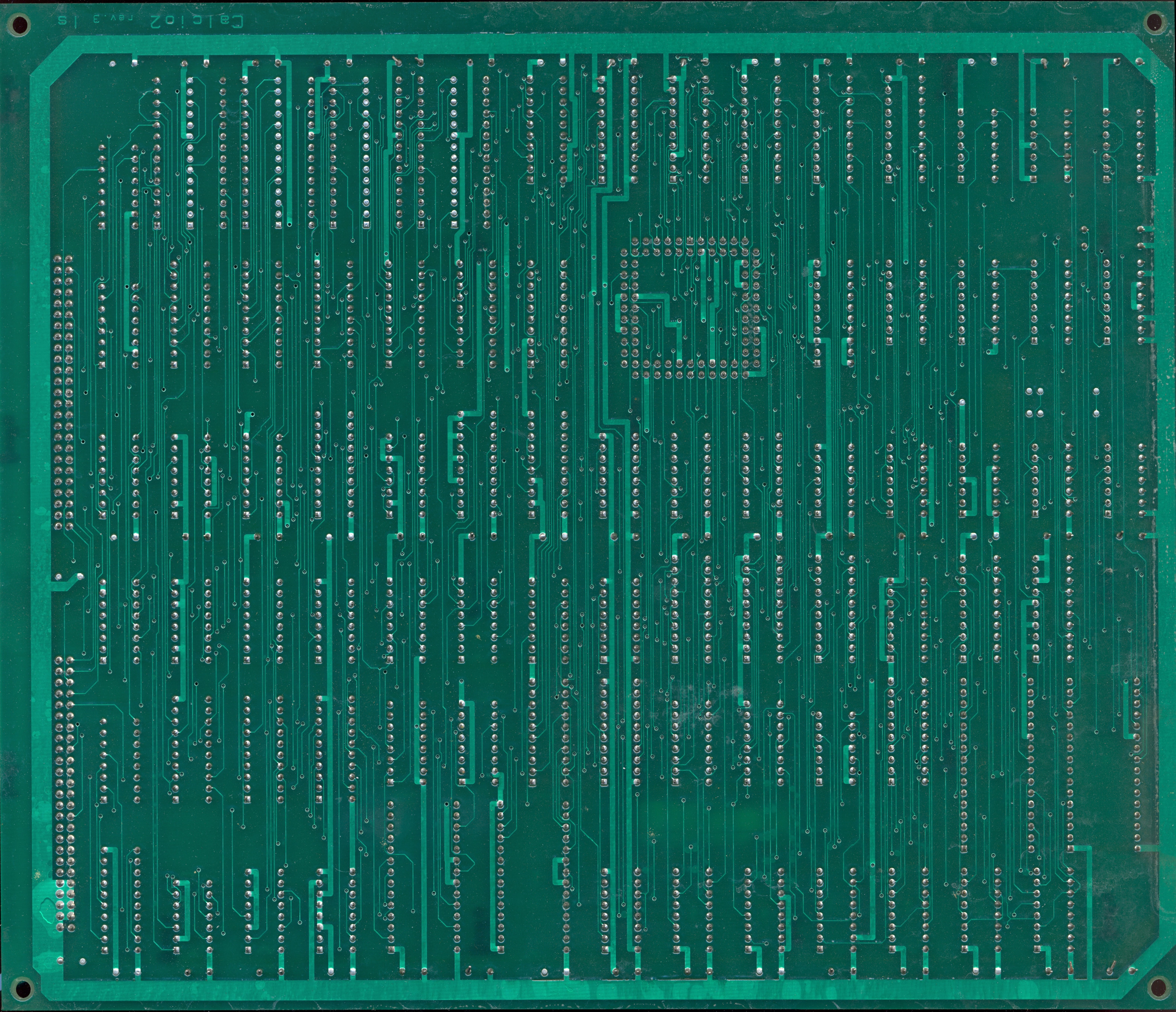

  • 2nd PCB sub PCB solder side

    2nd PCB sub PCB solder side

  • 2nd PCB ROMs (identical to 1st, just a few better IC positions)

    2nd PCB ROMs (identical to 1st, just a few better IC positions)
