Seibu Cup Soccer :Selection: (bootleg, set 4)

EMU Infos
dumper	f205v
date	23/03/2019
emulator	MAME 0.218
dev	Osso

PCB Infos
name	cupsocsb4 on ProgettoEMMA cupsocsb4 on Arcade Database
description	Seibu Cup Soccer :Selection: (bootleg, set 4)
year	1992.11.06
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	MC68000P12F	14.99MHz	1st PCB main board 68000	16/32-bit Microprocessor - main
1x	Z0840006PSC	3.996MHz	1st PCB main board Z80	8-bit Microprocessor - sound
1x	M6295	0.999MHz	1st PCB main board 6295	4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	LM358N	-	1st PCB main board 358	Dual Operational Amplifier - sound
1x	TDA2002	-	1st PCB main board 2002	Audio Amplifier - sound
1x	oscillator	15.000000MHz	1st PCB main board close to main
1x	oscillator	40.000000MHz	1st PCB main board close to sound
1x	oscillator	8.00MHz	1st PCB main board close to sound

1x	MC68000P12F	14.99MHz(@15)	2nd PCB main PCB	16/32-bit Microprocessor - main
1x	Z0840006PSC	3.996MHz(@6)	2nd PCB main PCB	8-bit Microprocessor - sound
1x	M6295	999,1KHz(@6)	2nd PCB main PCB	4-Channel Mixing ADCPM Voice Synthesis LSI - sound
1x	LM358	-	2nd PCB main PCB	Dual Operational Amplifier - sound
1x	TDA2002	-	2nd PCB main PCB	Audio Amplifier - sound
1x	oscillator	40.000000MHz	2nd PCB main PCB
1x	oscillator	15.000000MHz	2nd PCB main PCB
1x	oscillator	8.00MHz	2nd PCB main PCB

ROMs

QTY	Type	position	status
3x	AM27C512	1st PCB main board 1, ROMs board 12,13	dumped
1x	TMS27C010A	1st PCB main board 2	dumped
11x	M27C4001	1st PCB main board 3-11, ROMs board 14,15	dumped

1x	AM27C512	2nd PCB main PCB 1	dumped
1x	TMS27C010A	2nd PCB main PCB 2	dumped
9x	M27C4001	2nd PCB main PCB 3-11	dumped
2x	AM27C512	2nd PCB sub PCB 12-13	dumped
2x	M27C4001	2nd PCB sub PCB 14-15	dumped

RAMs

QTY	Type	position
4x	HY62256ALP-10	1st PCB main board 6264
1x	AM9128-15PC	1st PCB main board 6116
2x	MCM2018AN35	1st PCB main board 2018
6x	TC514256AP-70	1st PCB main board 44256
4x	HY62256ALP-10	1st PCB ROMs board

1x	AM9128-15PC	2nd PCB main PCB
2x	MCM2018AN35	2nd PCB main PCB
4x	HY6264ALP-10	2nd PCB main PCB
6x	TC514256AP-70	2nd PCB main PCB
4x	HY6264ALP-10	2nd PCB sub PCB

PLDs

QTY	Type	position	status
2x	TPC1020AFN-084C	1st PCB main board OBJ,BKG	read protected
1x	TPC1020AFN-084C	1st PCB ROMs board	read protected
1x	GAL22V10-25LP	1st PCB main board 22V8-1	read protected
2x	GAL22V10-25LP	1st PCB main board 22V10-2,4	read protected
2x	GAL16V8-20HB1	1st PCB main board 16V8-5,6	read protected
4x	20AS15HB1	1st PCB main board 20V8-7,8,9,10	read protected
4x	GAL16V8S-20HB1	1st PCB ROMs board	read protected

2x	TPC1020AFN-084C	2nd PCB main PCB	read protected
1x	TPC1020AFN-084C	2nd PCB sub PCB	read protected
4x	20AS15HB1	2nd PCB main PCB	read protected
3x	GAL22V10-25LP	2nd PCB main PCB	read protected
2x	GAL16V8S-20HB1	2nd PCB main PCB	read protected
4x	GAL16V8S-20HB1	2nd PCB sub PCB	read protected

Others

1x 28x2 JAMMA edge connector (main board, both PCBs)
2x 10 legs connector (main board J3,J4, both PCBs)
2x 50 pins flat cable connector from main PCB to ROMs PCB, both PCBs
1x trimmer (main board RV1, both PCBs)
3x 8 DIP switches banks (main board S1,S2,S3, both PCBs)

Notes

both PCBs: main PCB is marked: "SOCCER 1", "rev.5" and "lc" on component side ("lc" is the Italian for "Lato Componenti" which translates to "Components Side")
both PCBs: main PCB is marked: "SOCCER 1", "rev.5" and "ls" on component side ("ls" is the Italian for "Lato Saldature" which translates to "Solders Side")
both PCBs: ROMs PCB is marked: "CALCIO 2", "rev.3" and "lc" on component side ("CALCIO is the Italian for "SOCCER"; "lc" is the Italian for "Lato Componenti" which translates to "Components Side")

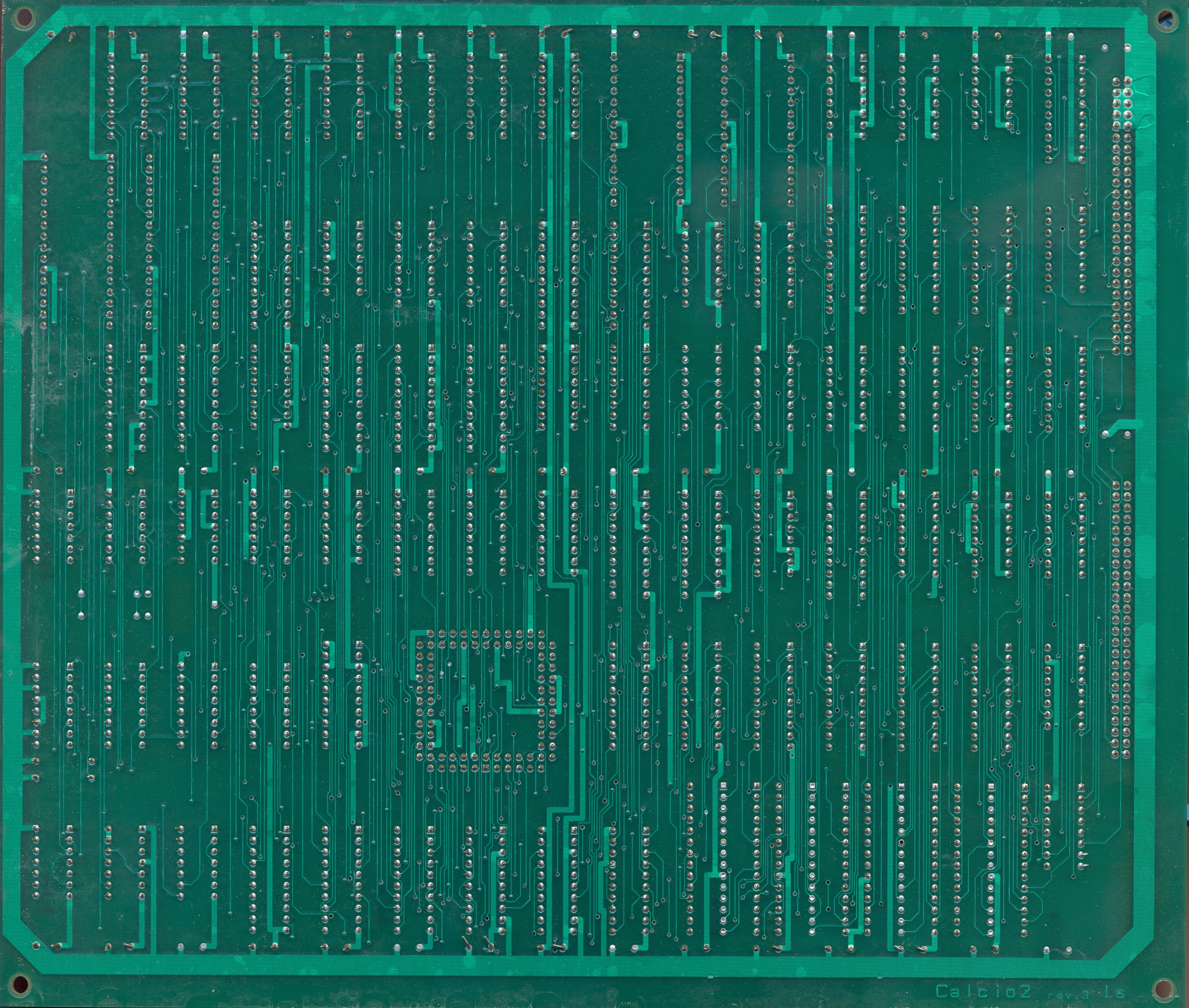

both PCBs: ROMs PCB is marked: "CALCIO 2", "rev.3" and "ls" on component side ("CALCIO is the Italian for "SOCCER"; "ls" is the Italian for "Lato Saldature" which translates to "Solders Side")
1st PCB: main PCB is labelled: "SOCCER" on solder side
2nd PCB: main PCB is labelled: "6.11.92" on solder side

update 20200104: dumped a second PCB for the same game, PCB N.1685 (incorrectly called "bootleg, set 4")

update 20200107: Osso correctly identified PCB N.1685 as identical to 1665.
