Revision as of 12:54, 8 January 2017
| dumper | f205v |
| date | 28/02/2016 |
| emulator | |
| dev |
| name | 1380 |
| description | Head On 2 (Italian bootleg) |
| year | 1979 |
| manufacturer | UG |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z80CPU-8400W00 | 8-bit Microprocessor - main | ||
| 1x | oscillator | 15468.48KHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | F2708 | 1-8 | dumped |
| 2x | DM74S288N | 1,2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 8x | 4027 |
PLDs
| QTY | Type | position | status |
|---|
Others
2x 22x2 edge connector (1,2)
1x 10x2 edge connector (3)
Notes
It's a strange mix, EPROMs from original "Sega Head On 2", PROMs from bootleg "Sidam Head On 2"
Files
-

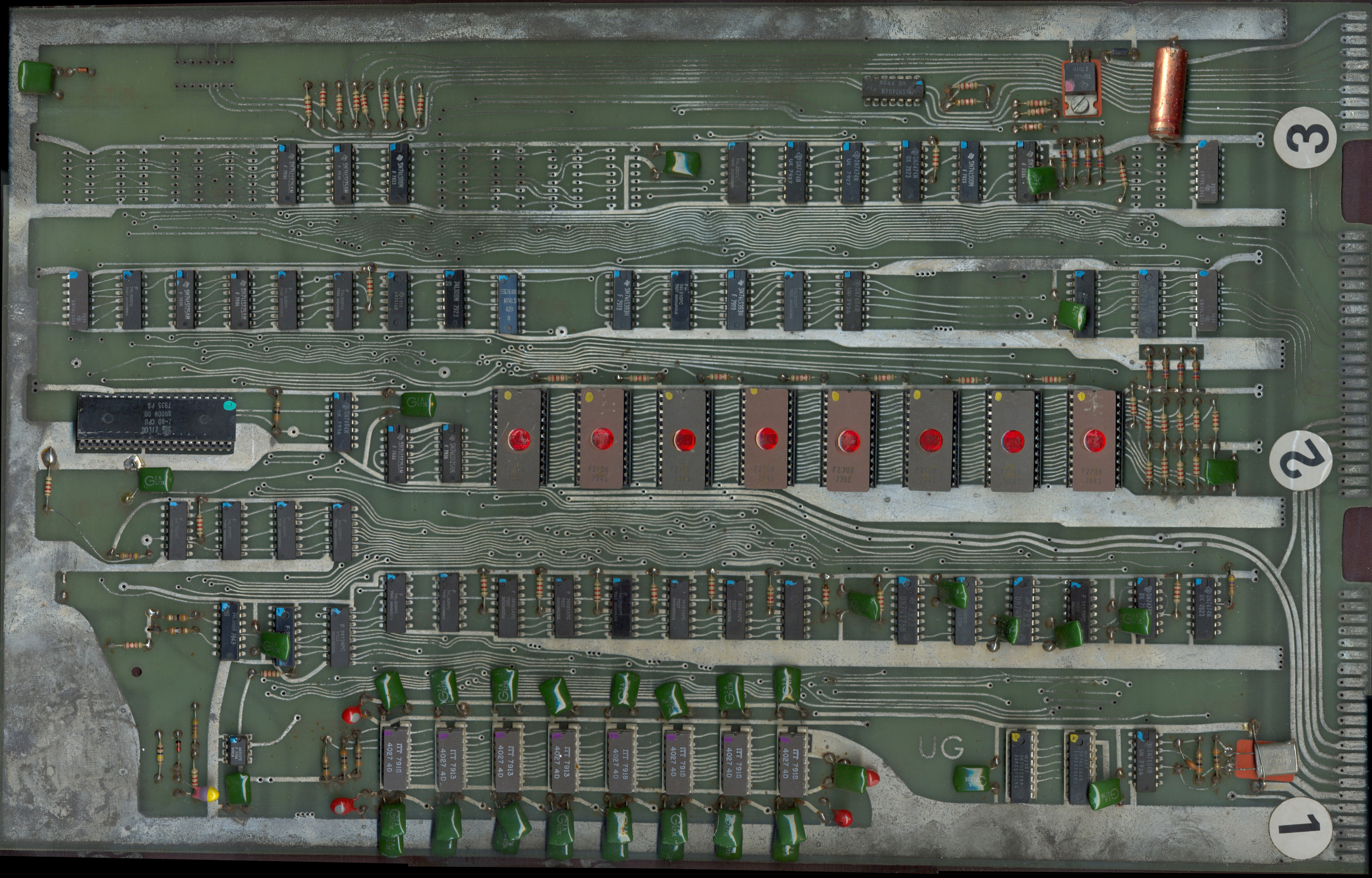

PCB component side
-

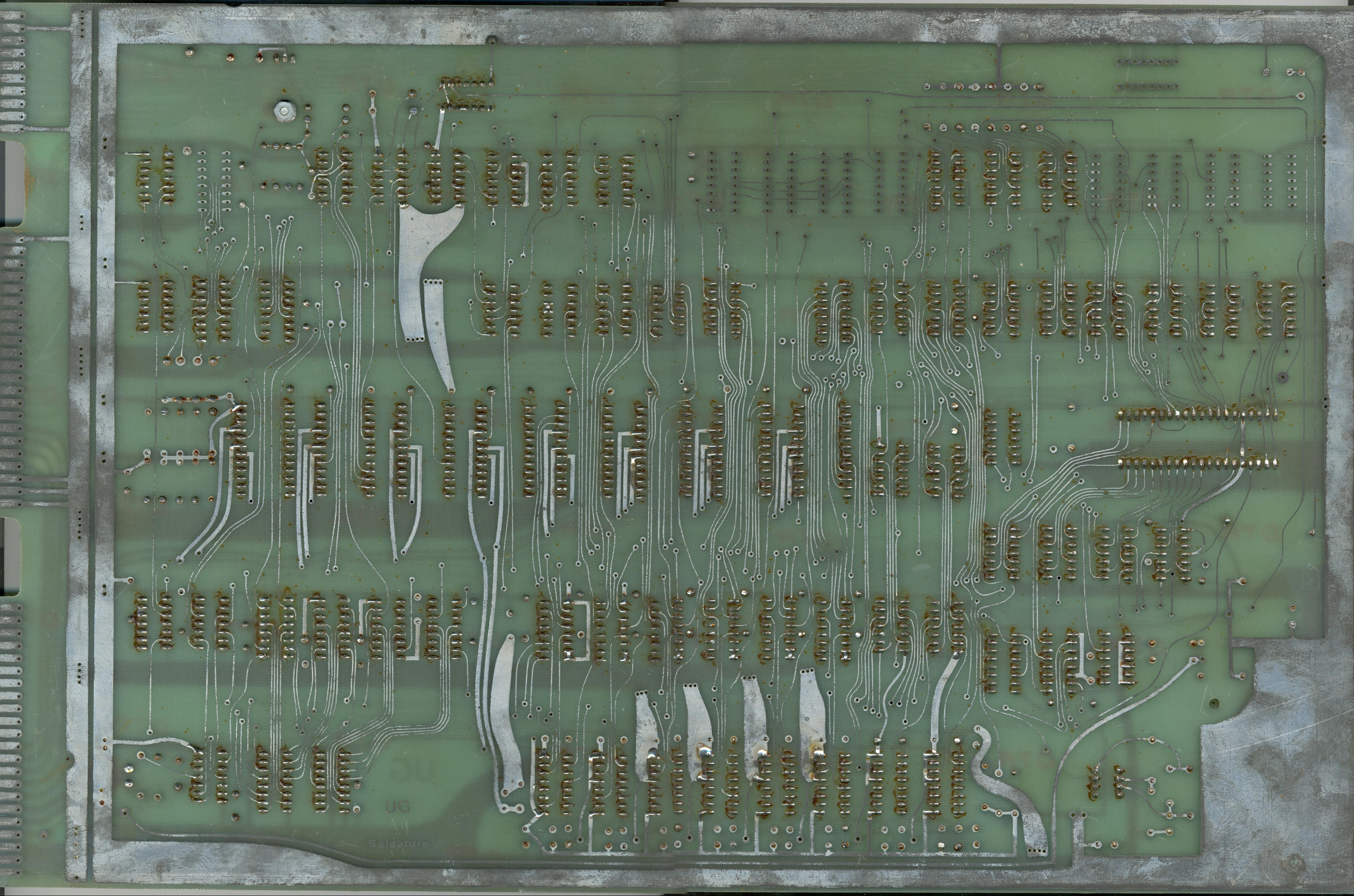

PCB solder side
-
ROMs
1380
