EMU Infos
| dumper |
Smitdogg
|
| date |
12/12/2015
|
| emulator |
MAME 0.169
|
| dev |
MetalliC
|
Technical references
CPUs
| QTY
|
Type
|
clock
|
position
|
function
|
| 1x |
oscillator |
28.000 |
osc1 |
|
ROMs
| QTY
|
Type
|
position
|
status
|
| 1x |
M27C160 |
EPR-21707A.ic22 |
dumped
|
| 19x |
M27W064 |
MPR-21708.ic1 - MPR-21726.ic19s |
dumped
|
| 1x |
X76F100 |
ic37 |
dumped
|
RAMs
PLDs
| QTY
|
Type
|
position
|
status
|
| 1x |
315-6213 |
ic41 |
read protected
|
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0003C
Protection IC: SEGA 315-5881 (317-0249-COM)
Key: 0x28012b41
Files

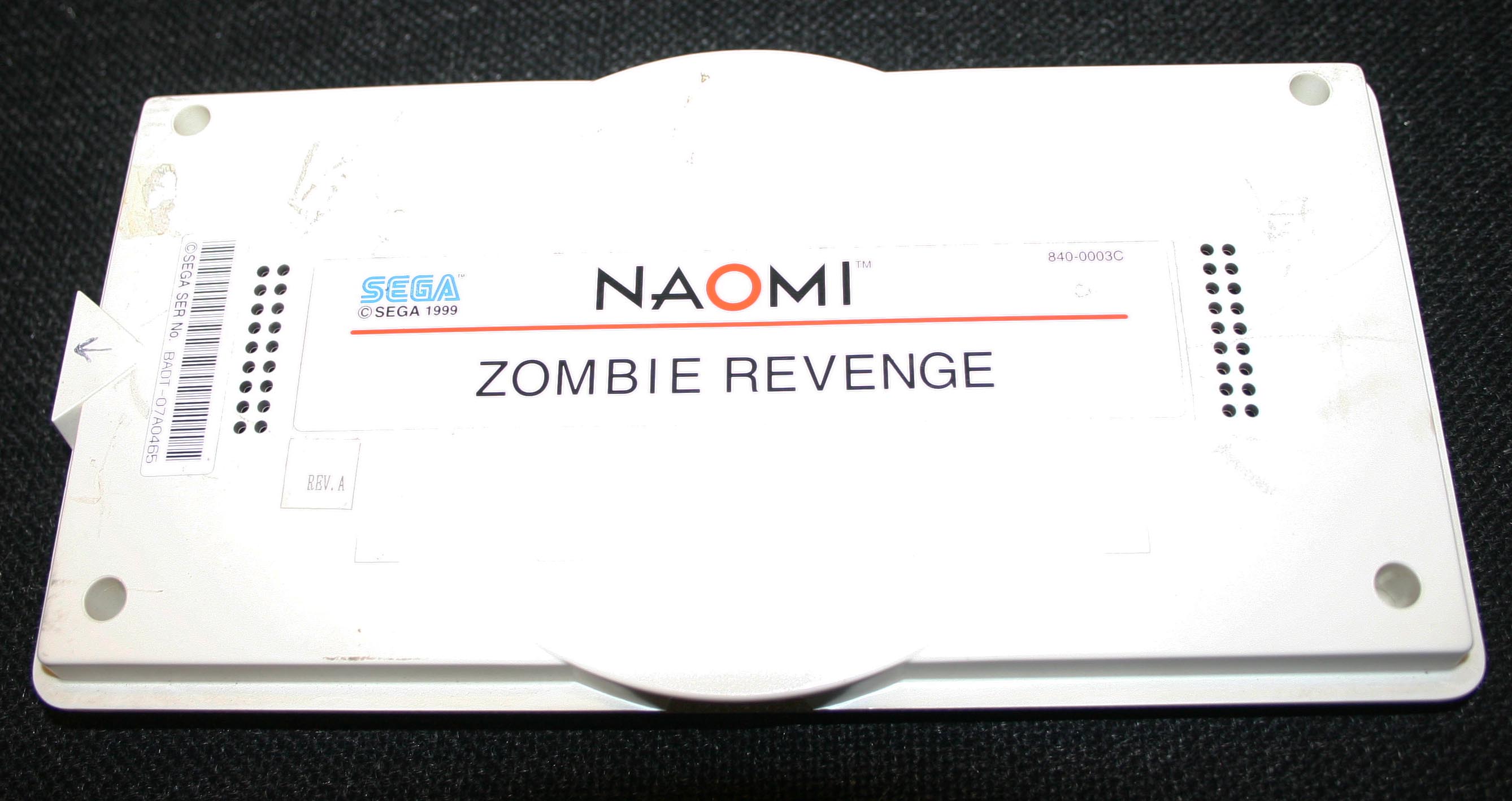

Cart 1
Cart 2

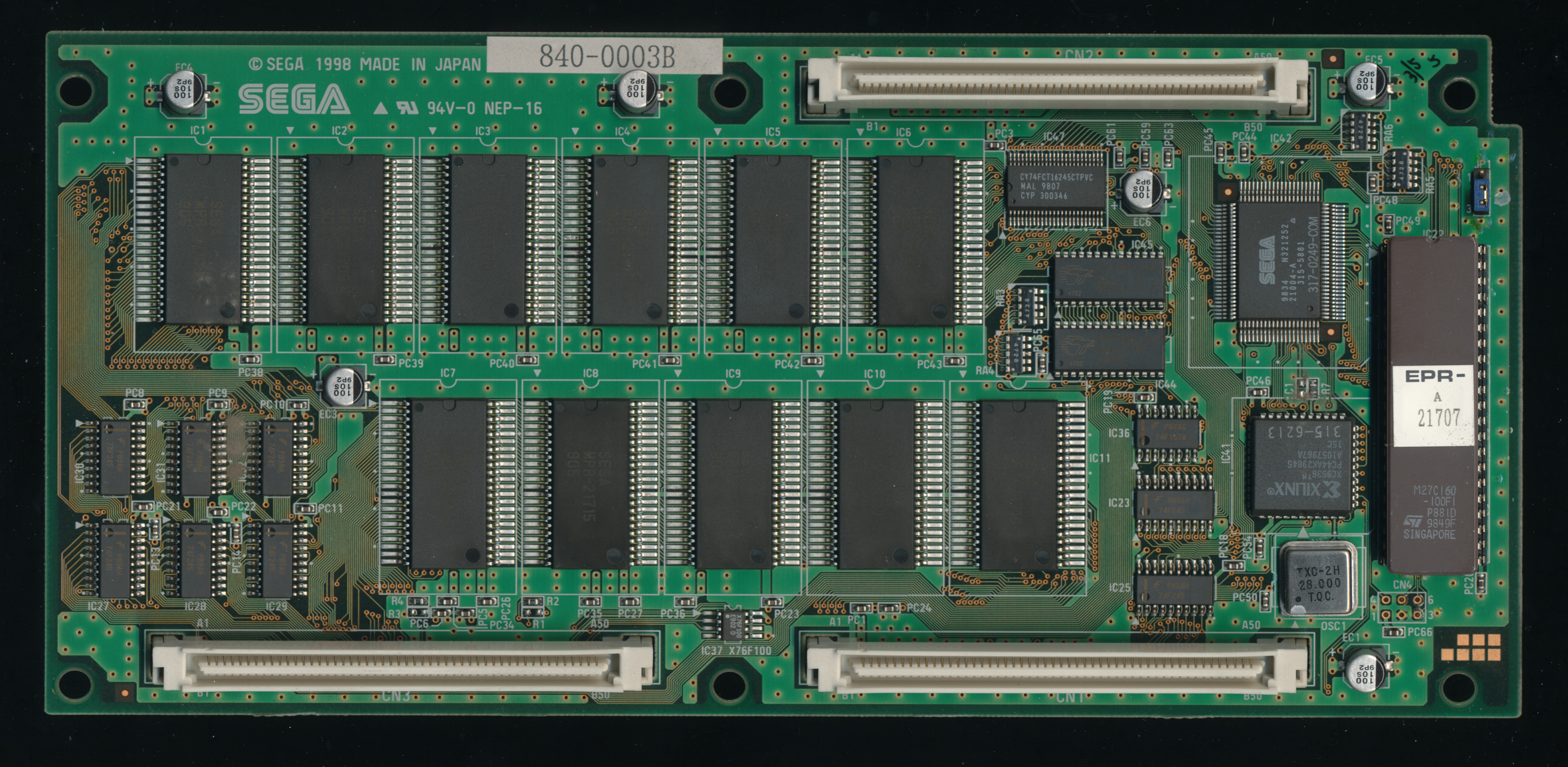

PCB component side

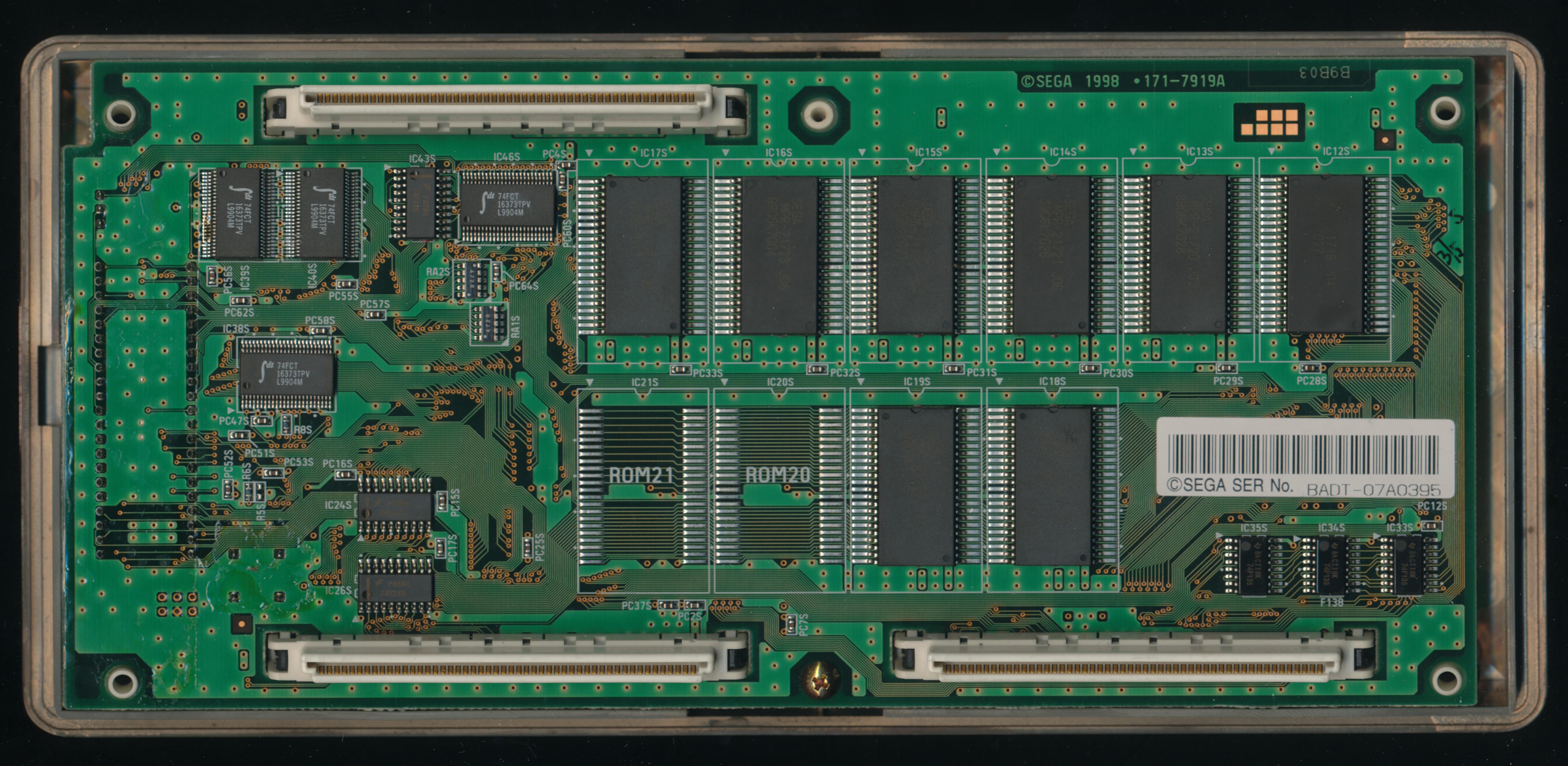

PCB solder side
