X Five Jokers (Ver 1.12)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 12/05/2010 |
| emulator | MAME 0.138u1 |
| dev | f205v |
| name | x5jokers on ProgettoEMMA x5jokers on Arcade Database |
| description | X Five Jokers (Ver 1.12) |
| year | 200x |
| manufacturer | Electronic Projects |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | M30624FGAFP | u11 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | MSM6295 | u28 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | u33 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | u32 | Audio Amplifier - sound | |
| 1x | oscillator | 16.000MHz | u27 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 4x | M27C4001 | 1,2,3,S | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 3x | uPD431000AGW-70LL | u20,u21,u22 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | ispLSI1032E-70LJ | u12,u13 | not dumped |
Others
1x 28x2 edge connector
1x 8x2 ISP connector
1x RSR232 connector (JP15)
1x 8 legs connector (JP16)
1x 7 legs connector (JP17)
1x 4 legs connector (JP18)
2x trimmer (volume,spark)
1x pushbutton (TEST)
1x red LED
1x battery 3.6V
Notes
Files
-

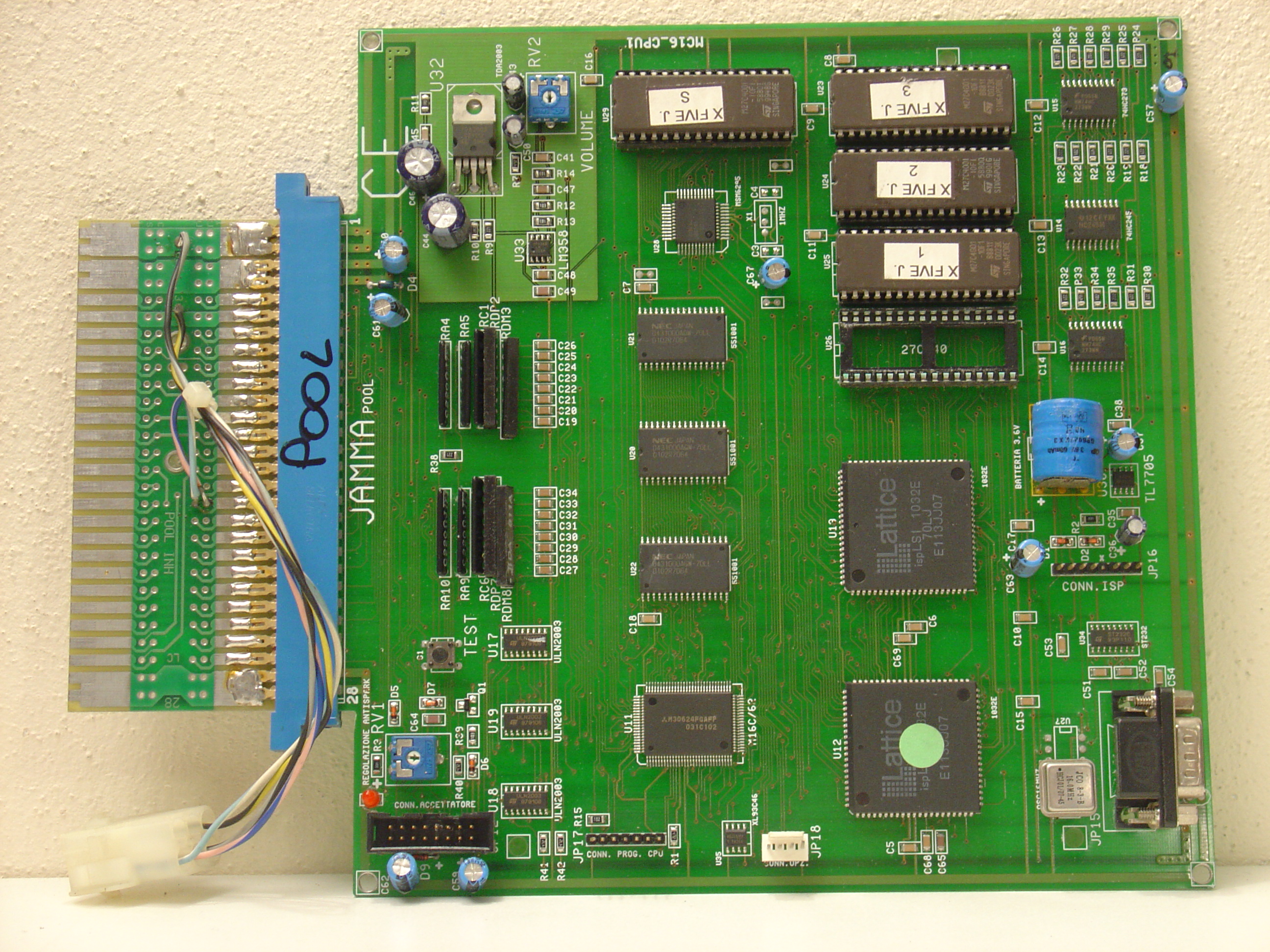

PCB component side 1
-

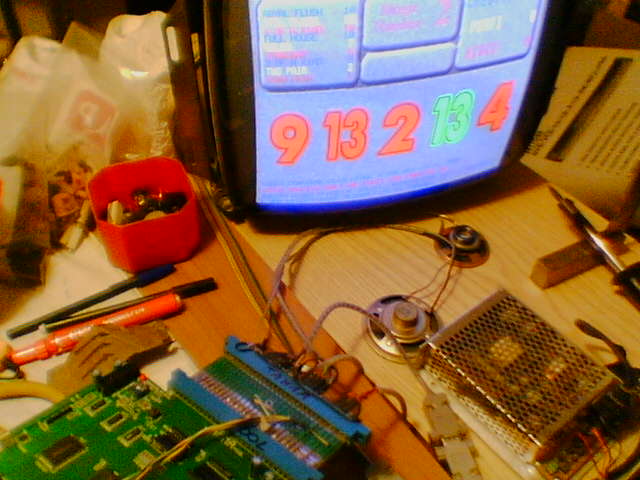

PCB component side 2
-

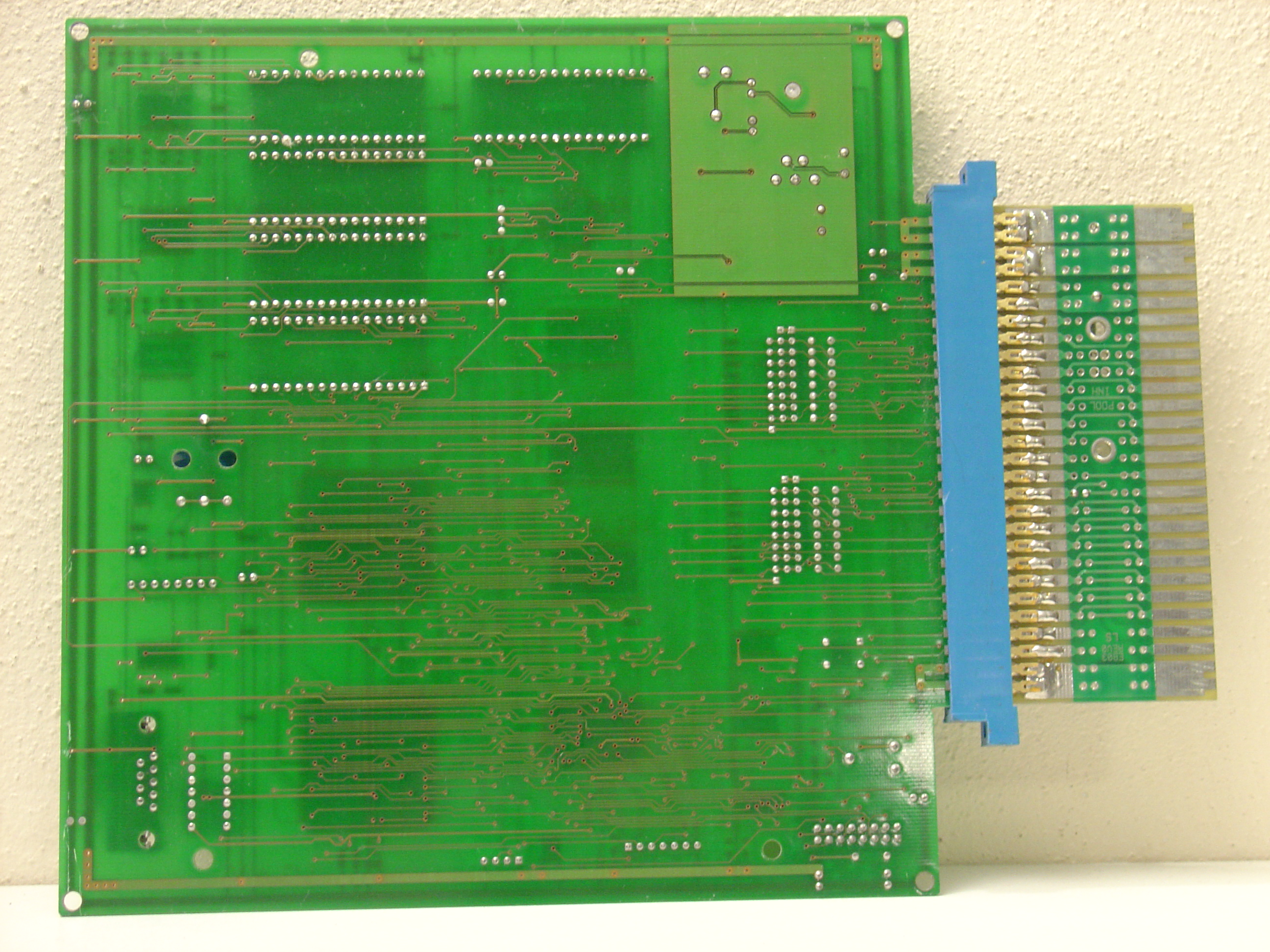

PCB solder side
-

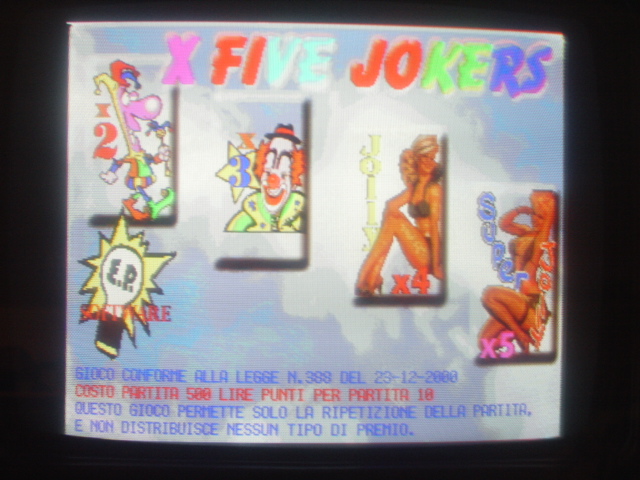

Title
-

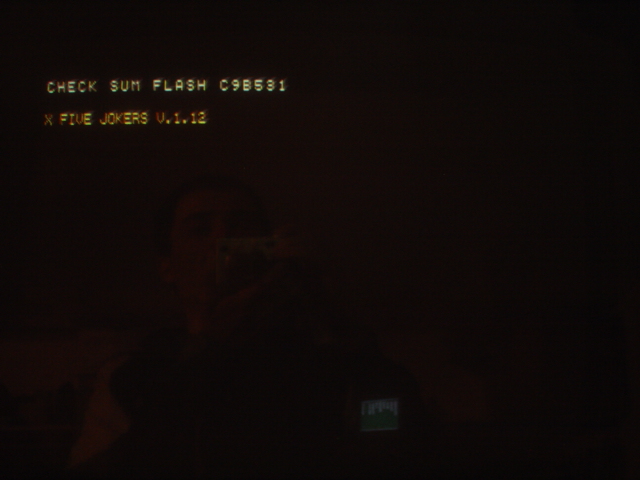

Boot screen
-

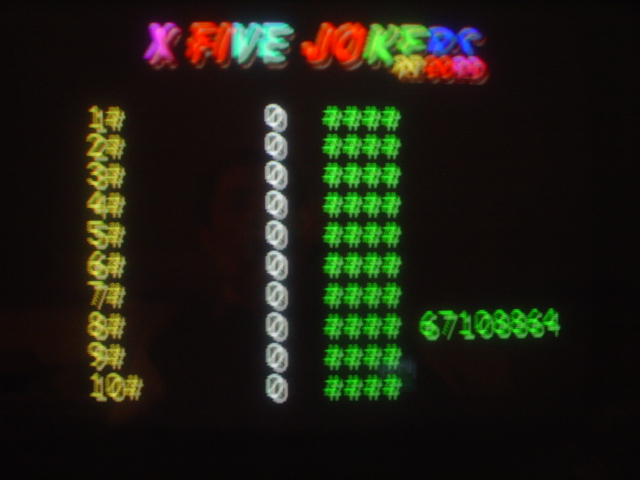

Hi scores
-

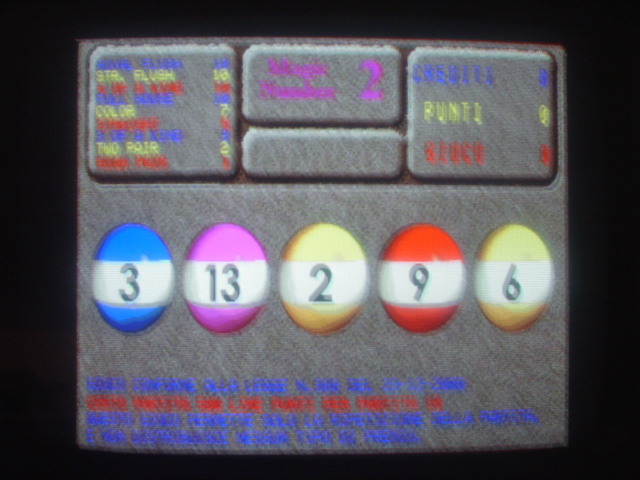

In game 1
-
In game 2
-

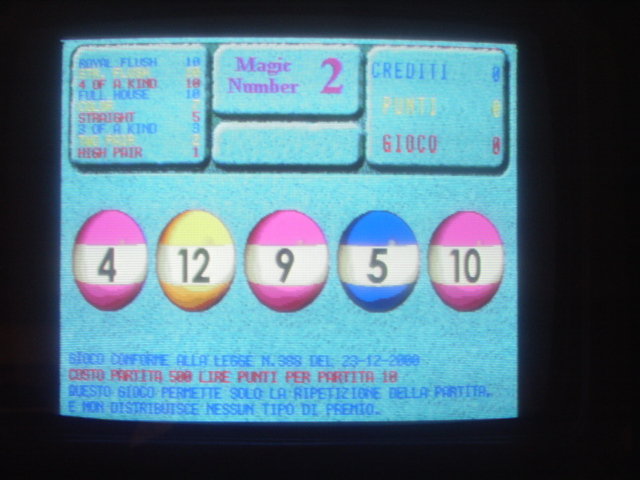

In game 3
-

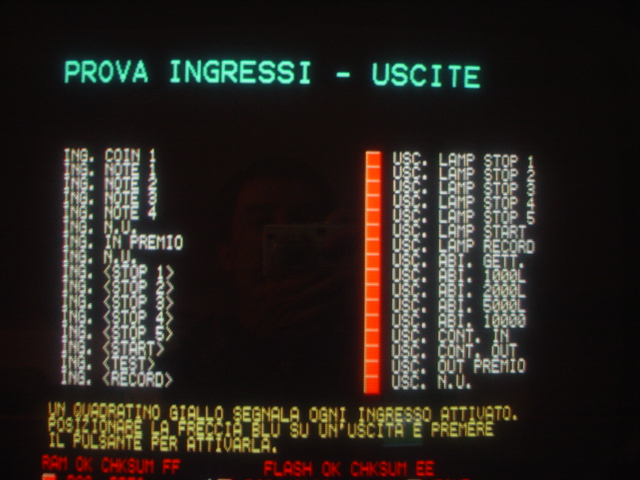

Test screen 1
-

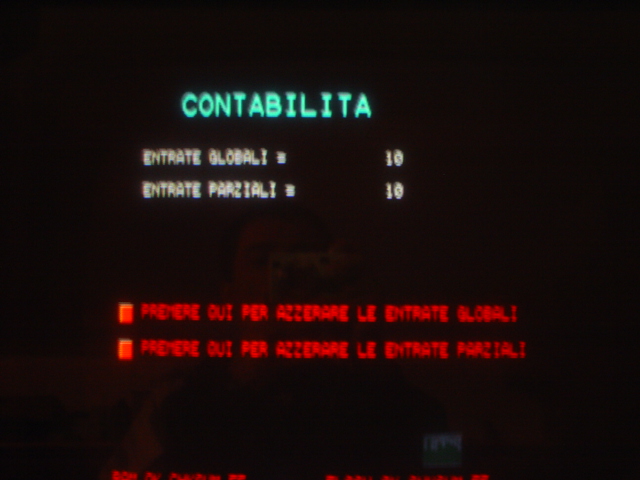

Test screen 2
-

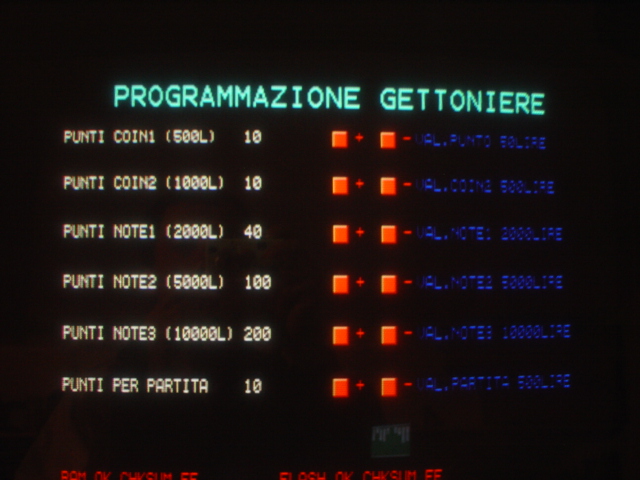

Test screen 3
-

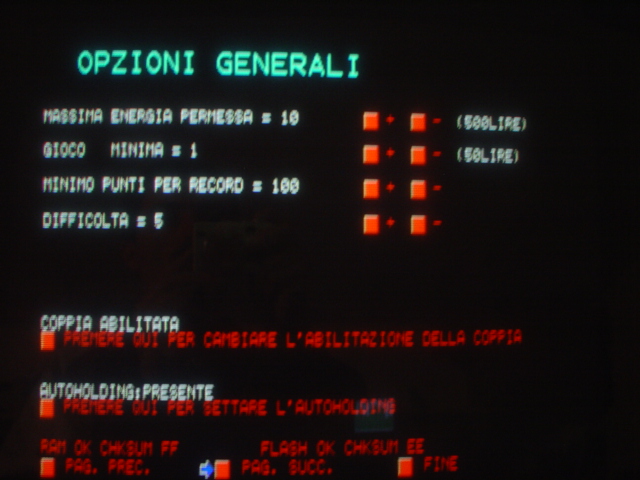

Test screen 4
-

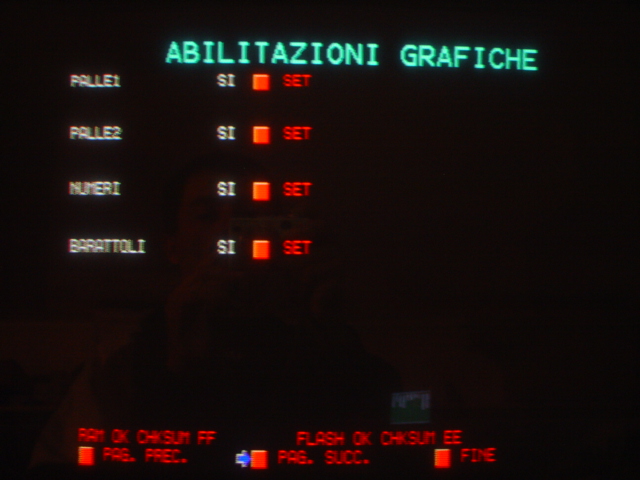

Test screen 5
-

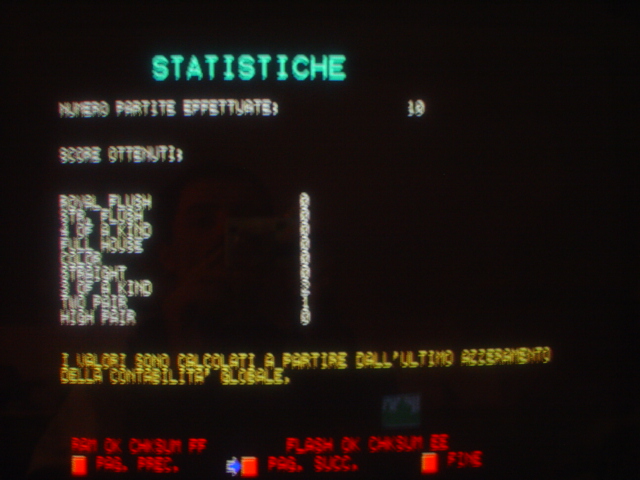

Test screen 6
-

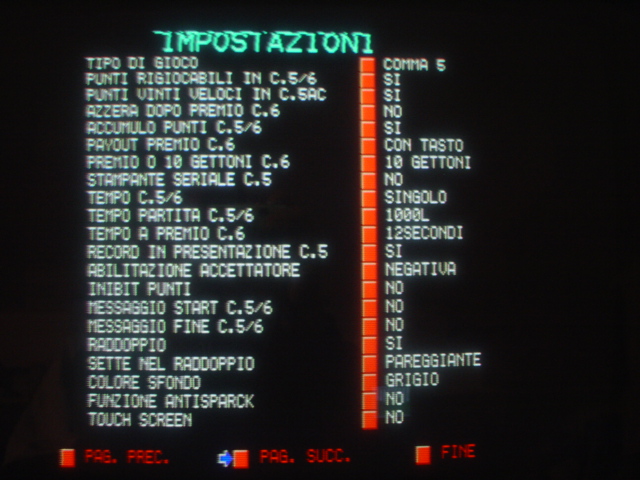

Test screen 7
