World Kicks PCB (Japan, WKC1 Ver.A)
From Citylan
Jump to navigationJump to search
| dumper | Someone |
| date | 03/02/2014 |
| emulator | MAME 0.153 |
| dev | R. Belmont |
| name | wldkickspj on ProgettoEMMA wldkickspj on Arcade Database |
| description | World Kicks PCB (Japan, WKC1 Ver.A) |
| year | 2000.07.21 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28MHz | osc1 (3j) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 9x | MaskROM 128Mb TSOP48 | MA3 - MA11 | dumped |
| 2x | DA28F640J5 | FL1, FL2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IS61C256AH-15J | 4p, 5p |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | EPM7064S | NAODEC2A(1h), NAODEC1B(2k) | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: MASK B F2
Cart N°: 25509801 WKC1 Ver.A
Protection IC: SEGA 315-5881 (317-5040-COM)
Key: 0x052e2901
uses Namco V226 JVS I/O (not dumped) - "PCB" means upright version, uses analog button on control panel to kick the ball
Files
-

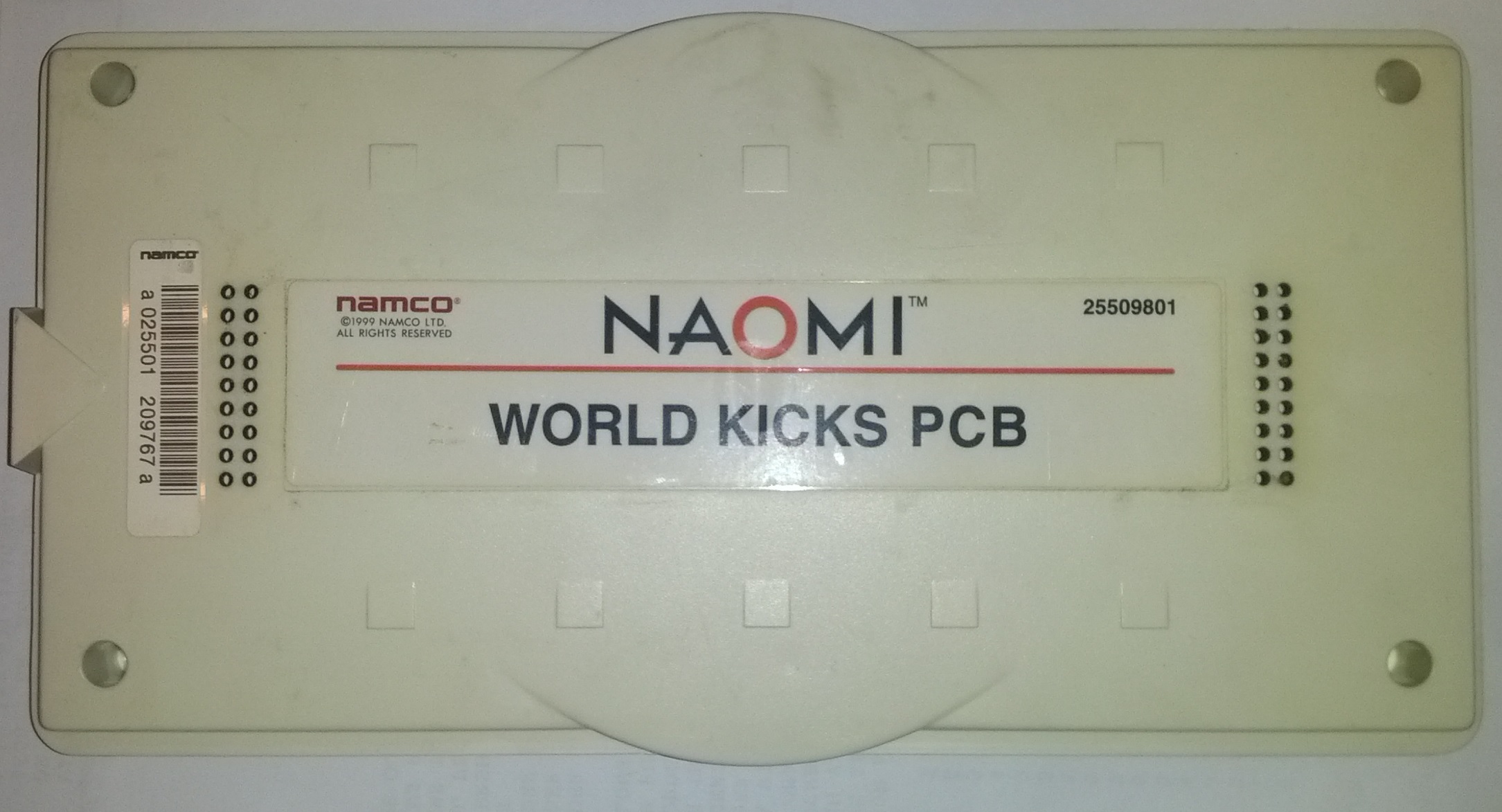

cart 1
-

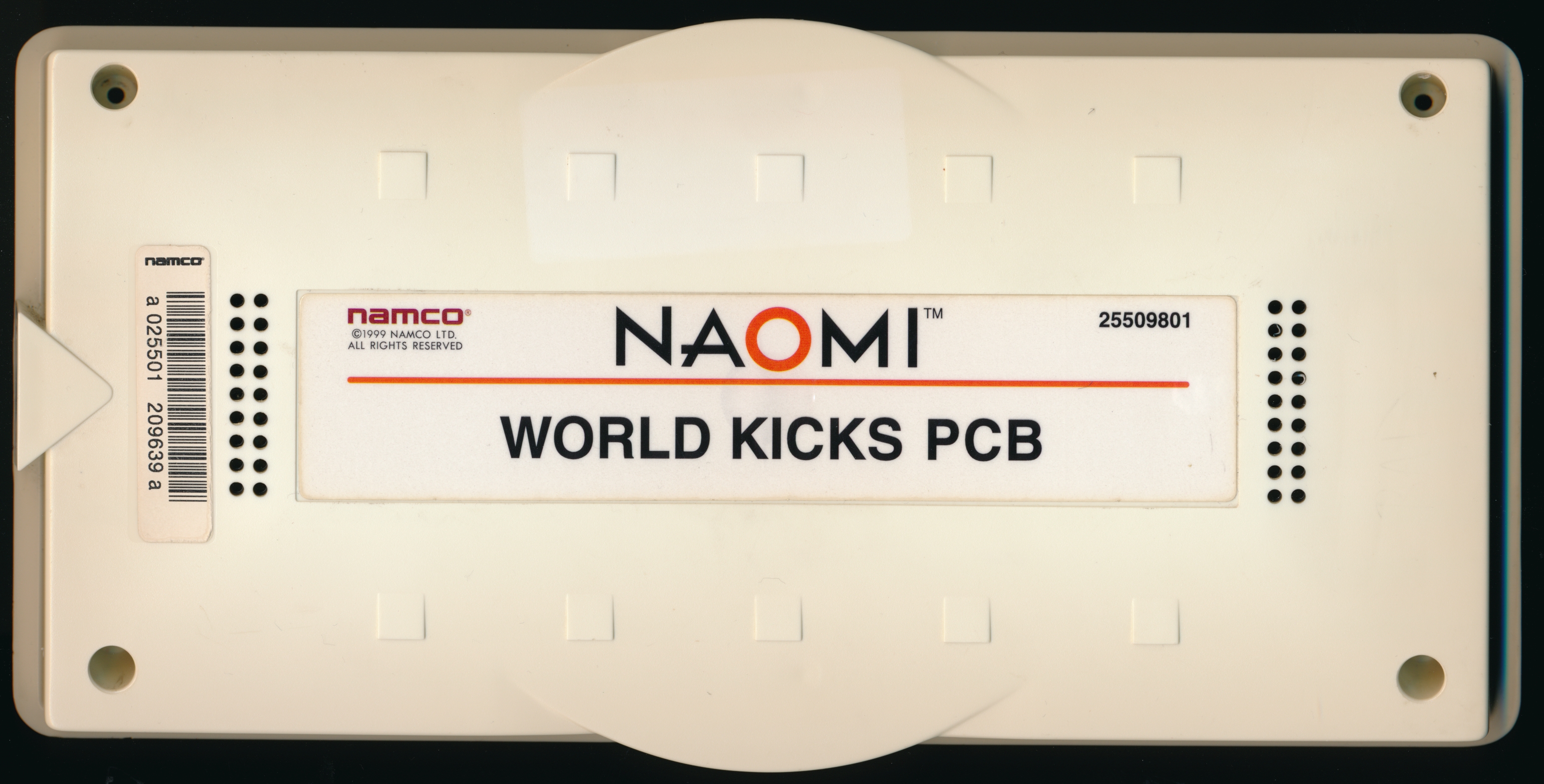

cart 2
-

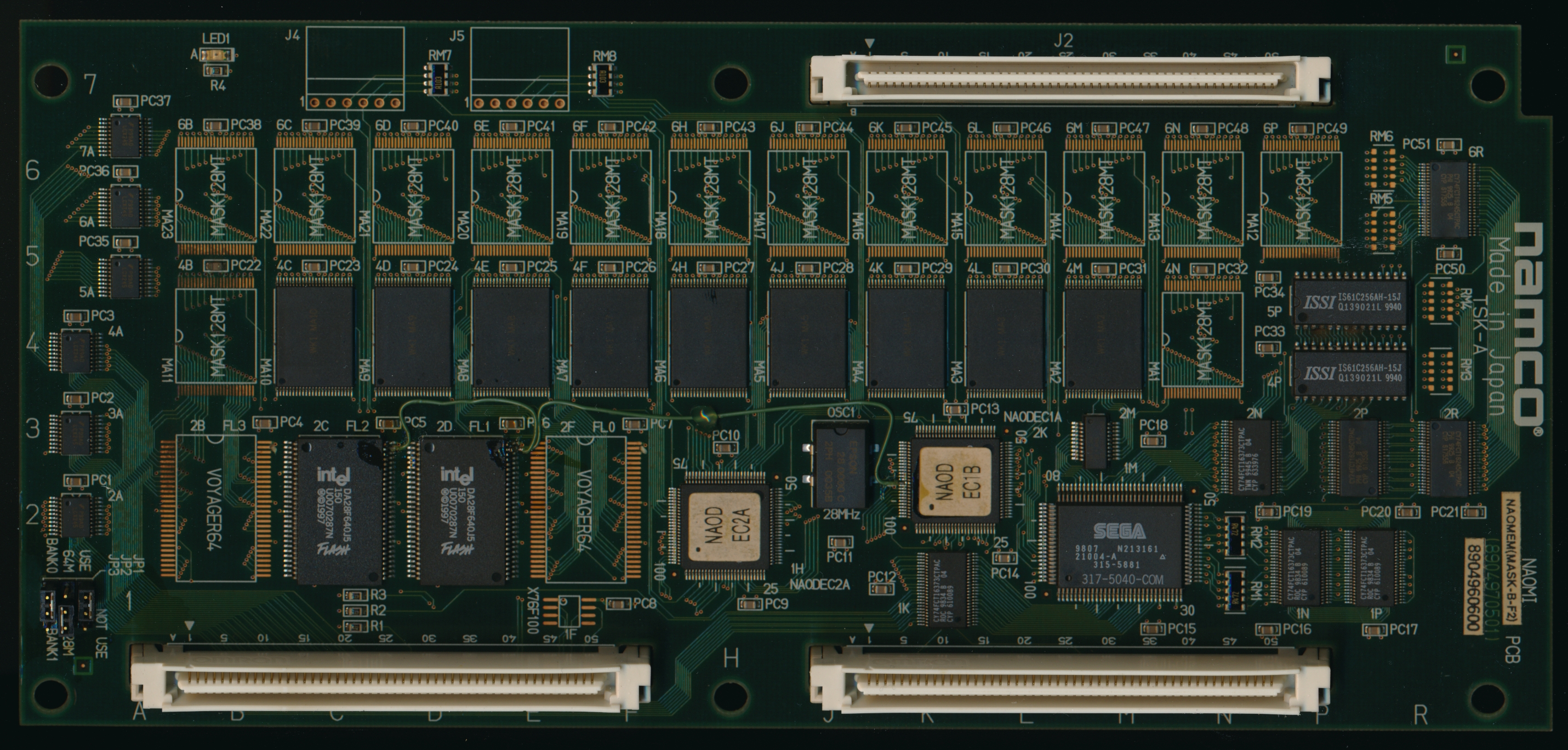

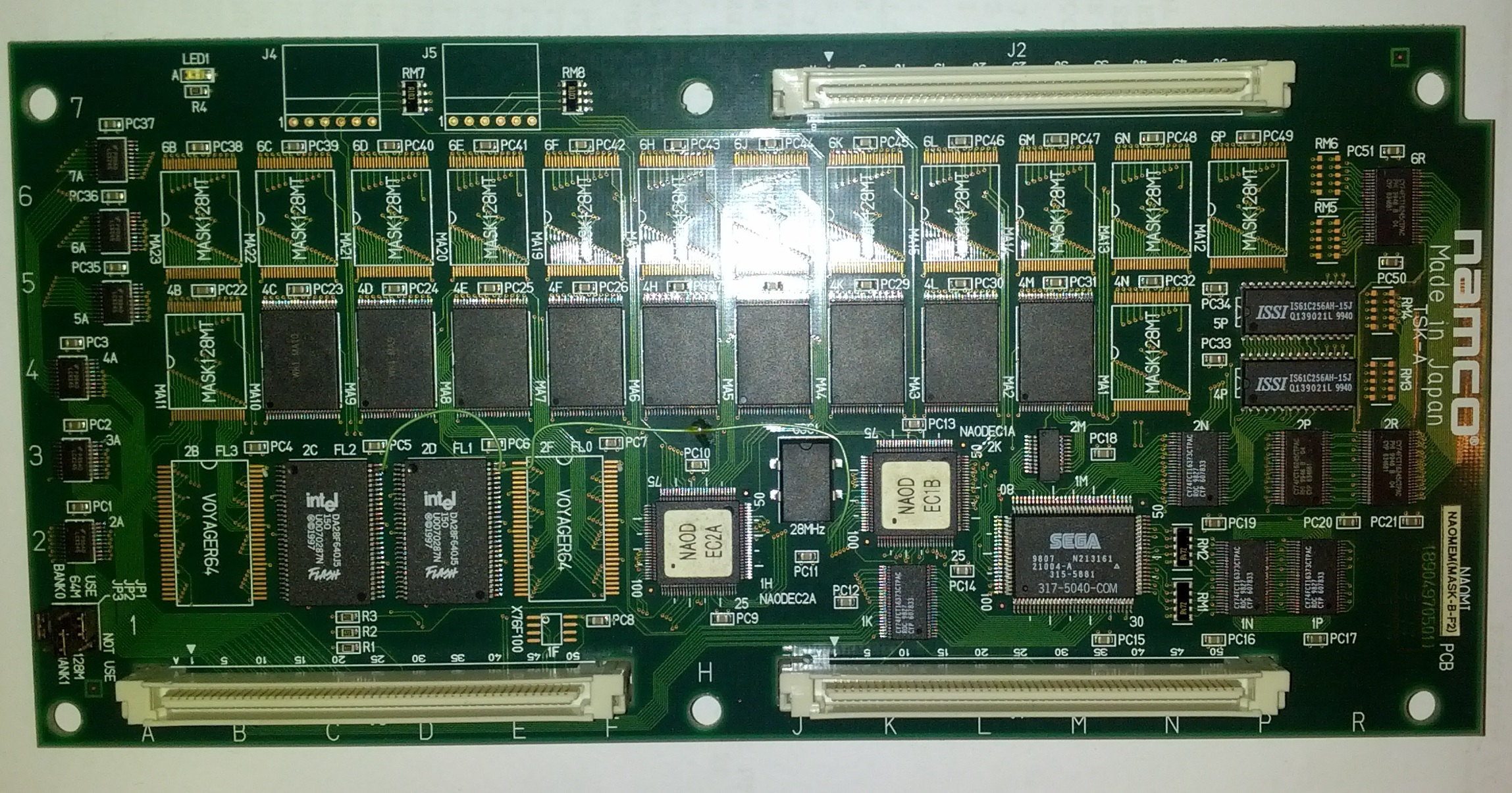

PCB component side 1
-
PCB component side 2
-

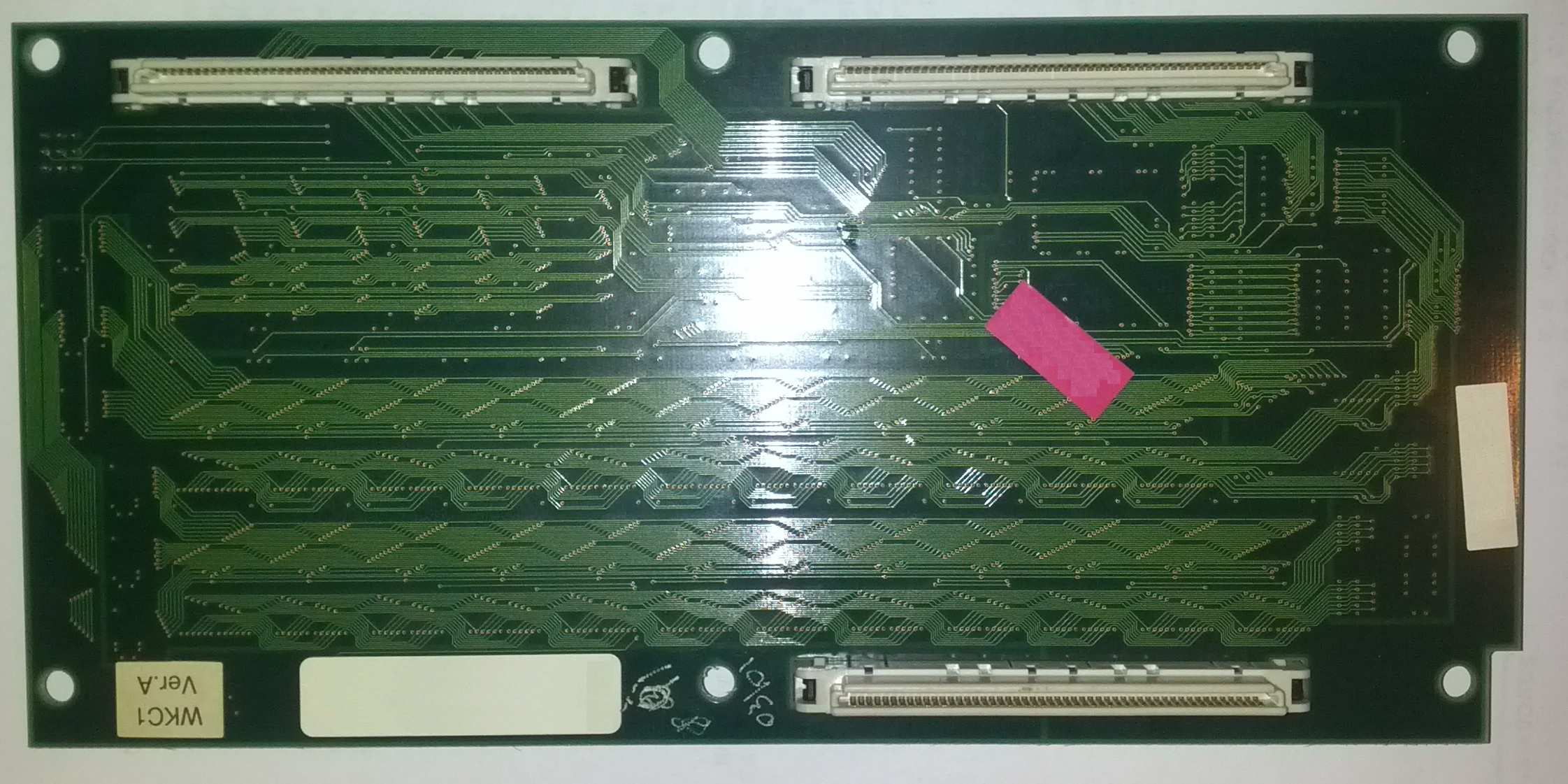

PCB solder side 1
-

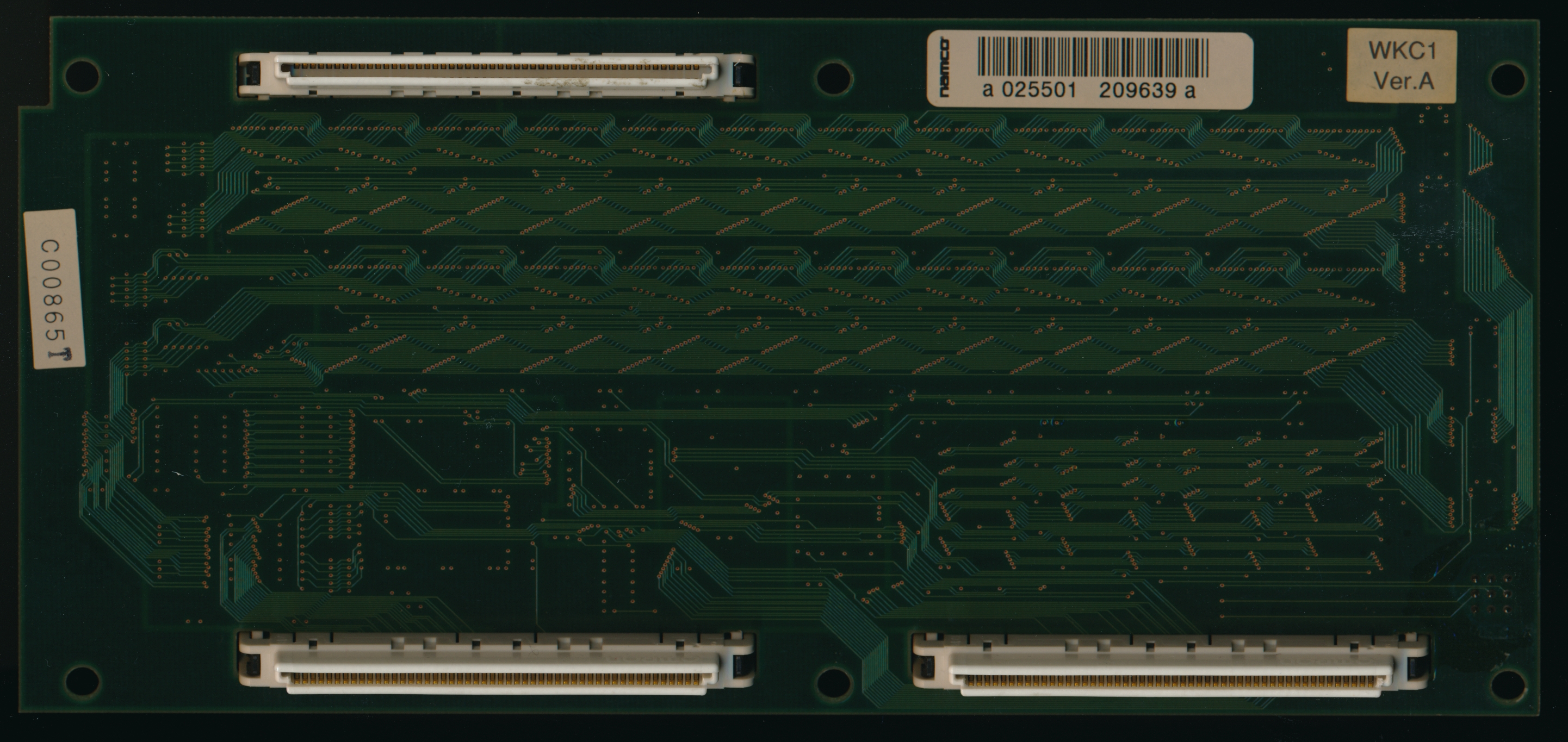

PCB solder side 2
-

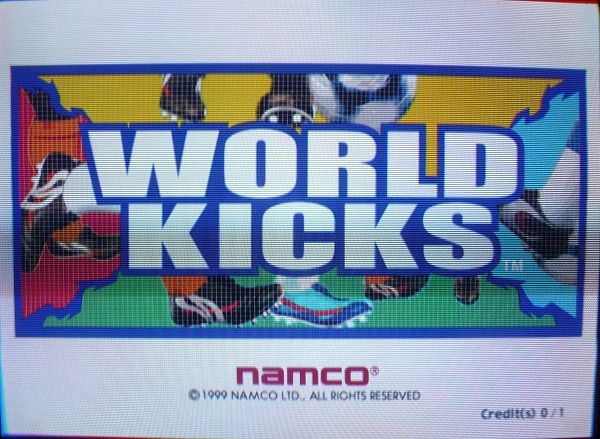

Title
-

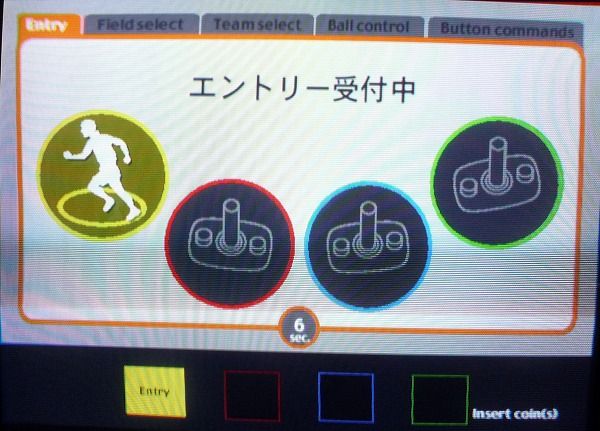

Intro
1203
