World Kicks (World, WK2 Ver.A)
From Citylan
Jump to navigationJump to search
| dumper | Someone |
| date | 05/02/2011 |
| emulator | MAME 0.140u2 |
| dev | The Dumping Union, R. Belmont |
| name | wldkicks on ProgettoEMMA wldkicks on Arcade Database |
| description | World Kicks (World, WK2 Ver.A) |
| year | 2000.03.03 |
| manufacturer | Namco |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28MHz | osc1 (3j) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 9x | MaskROM 128Mb TSOP48 | MA3 - MA11 | dumped |
| 2x | DA28F640J5 | FL1, FL2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IS61C256AH-15J | 4p, 5p |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | EPM7064S | NAODEC2A(1h), NAODEC1A(2k) | not dumped |
Others
Notes
It's a NAOMI cart.
Cart type: MASK B F2
Cart N°: 25209801 WK2 Ver. A
Protection IC: SEGA 315-5881 (317-5040-COM)
Key: 0x052e2901
Files
-

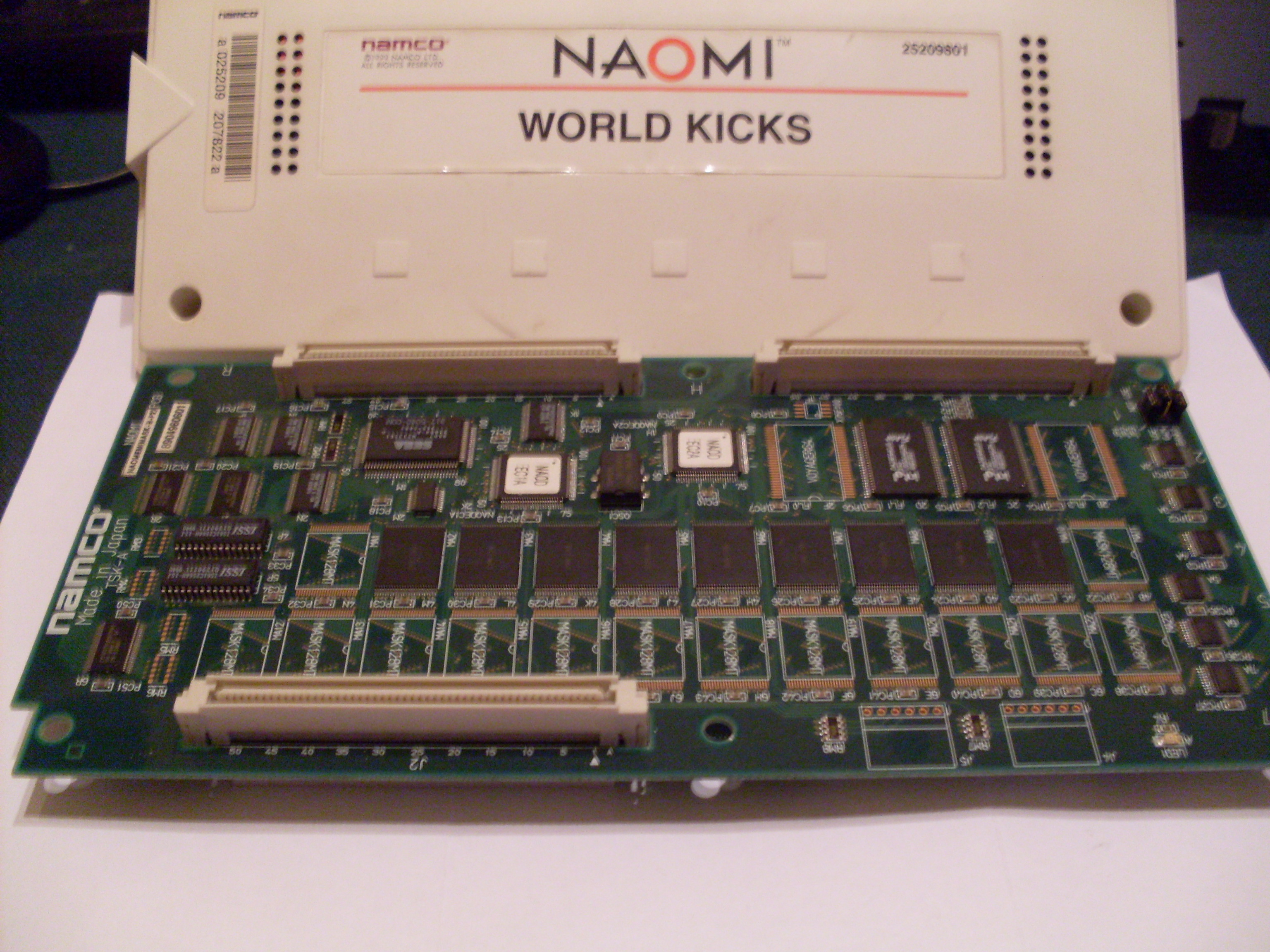

cart - PCB component side
-

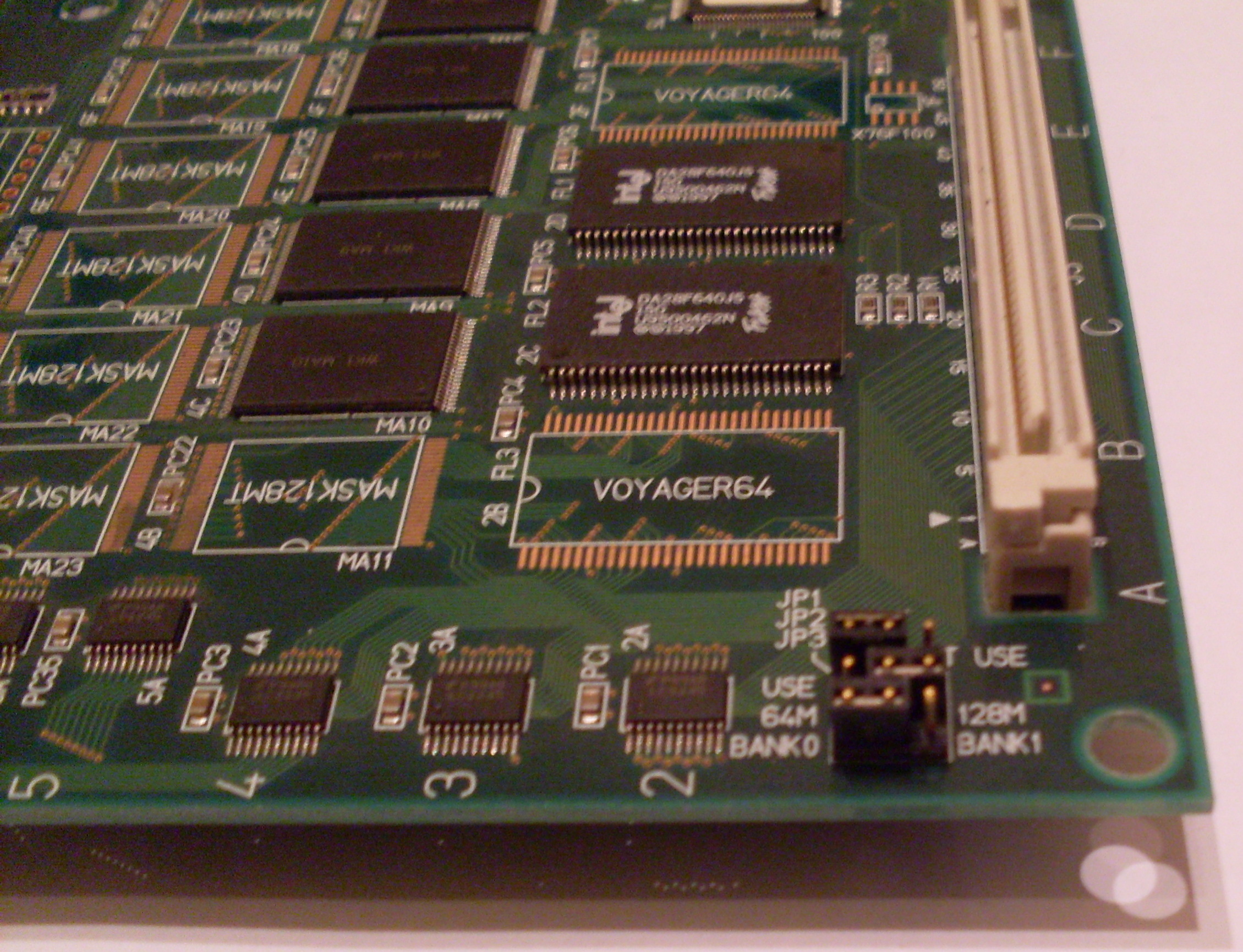

PCB component side detail 1
-

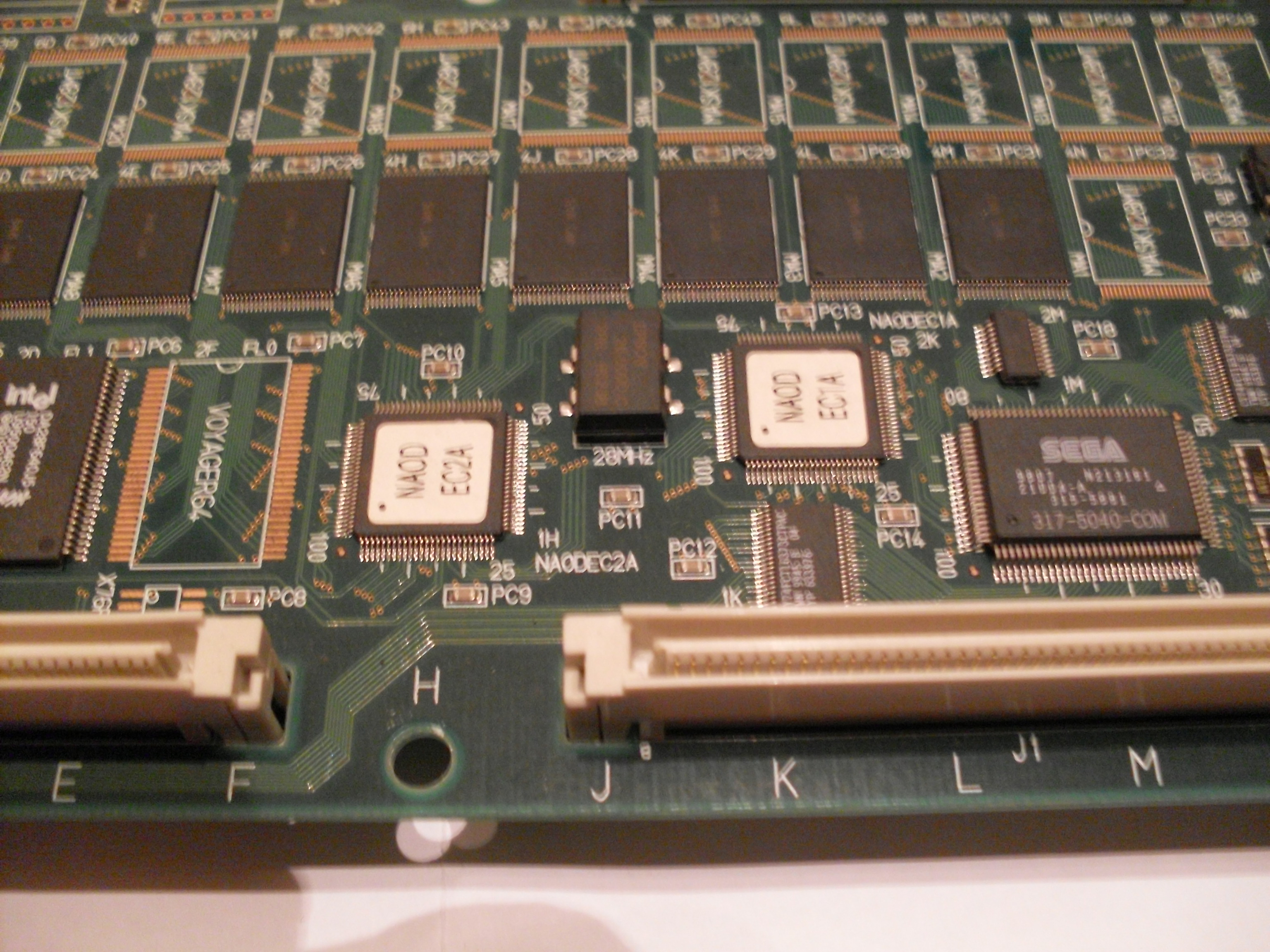

PCB component side detail 2
-

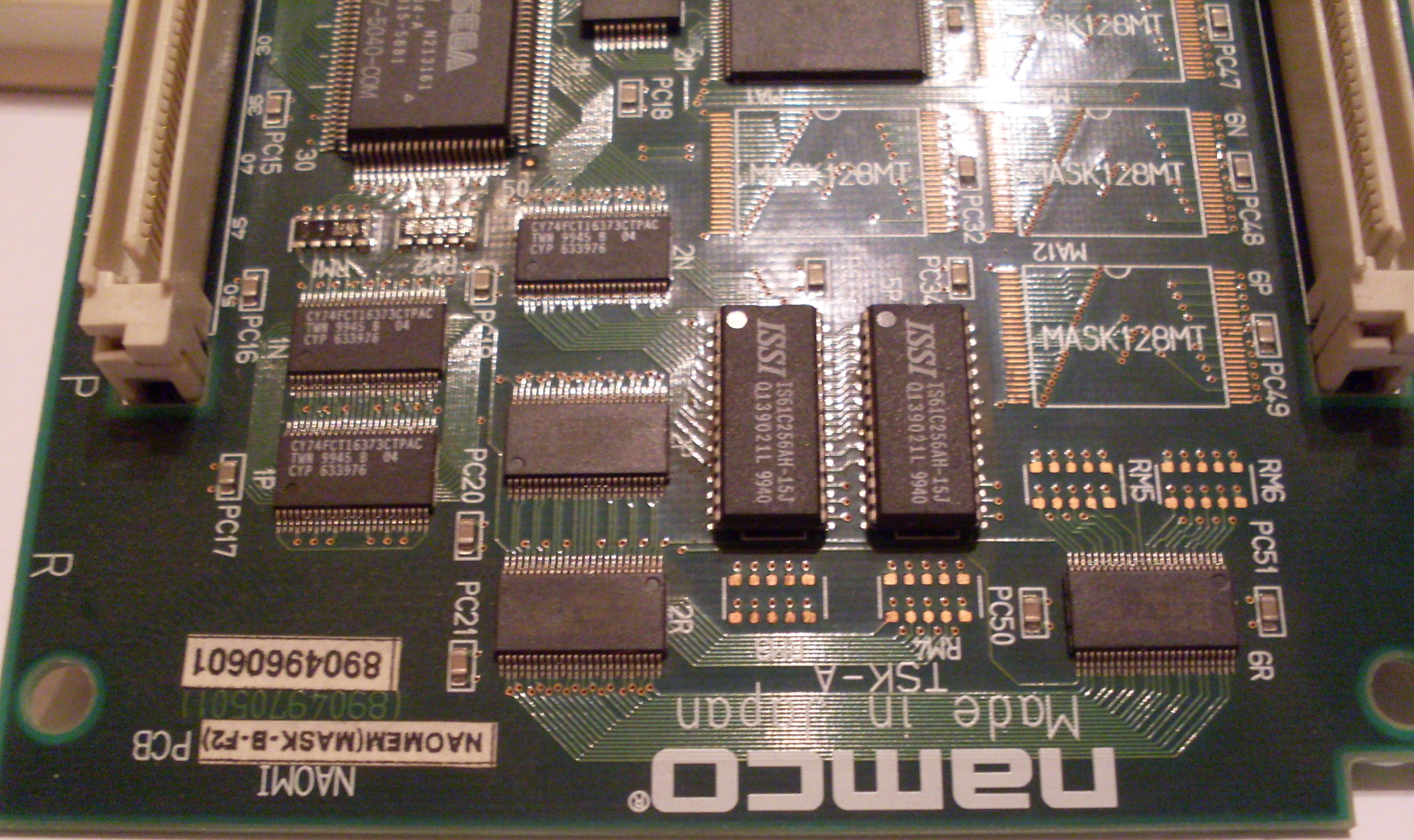

PCB component side detail 3
-

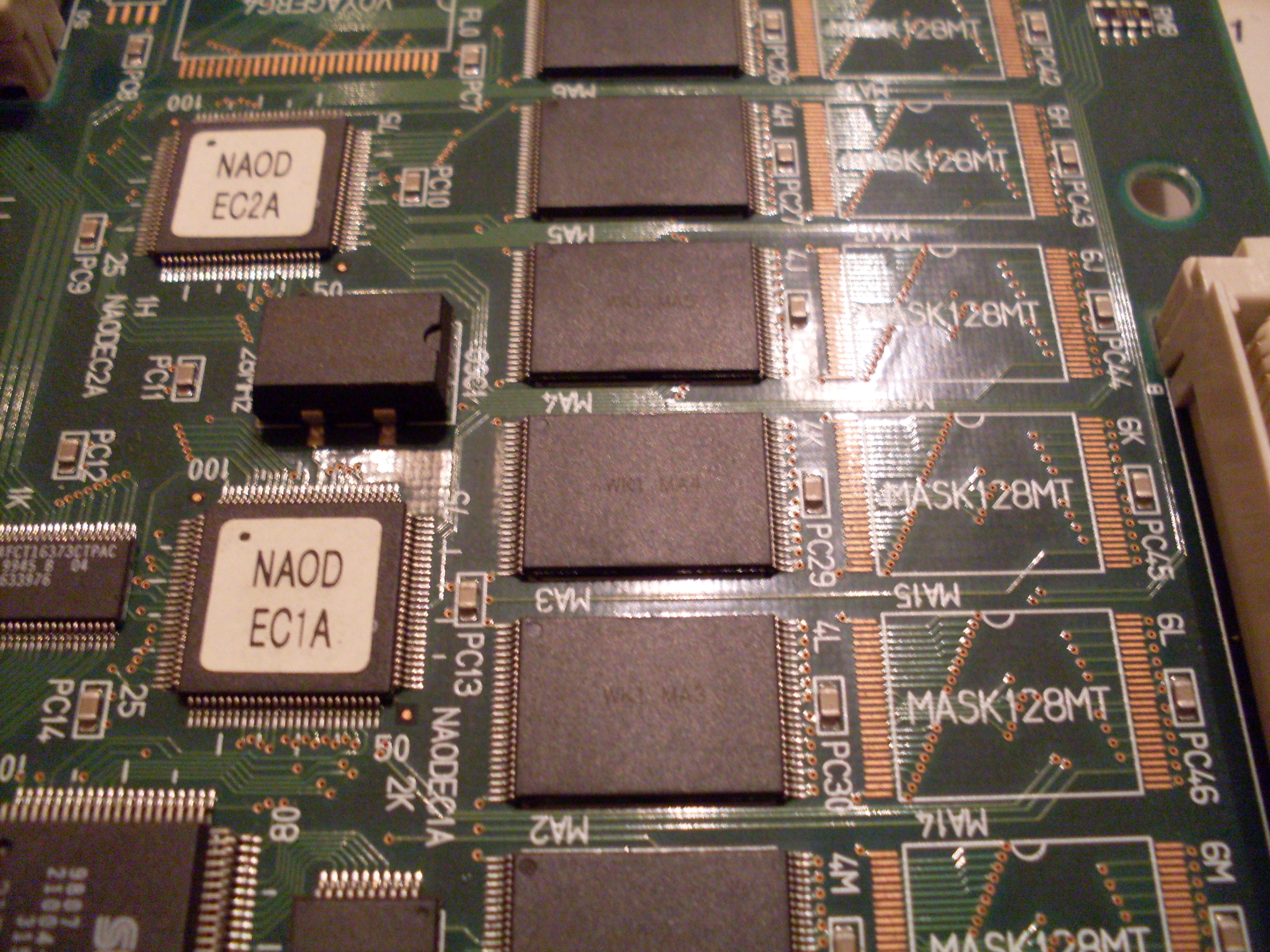

PCB component side detail 4
-

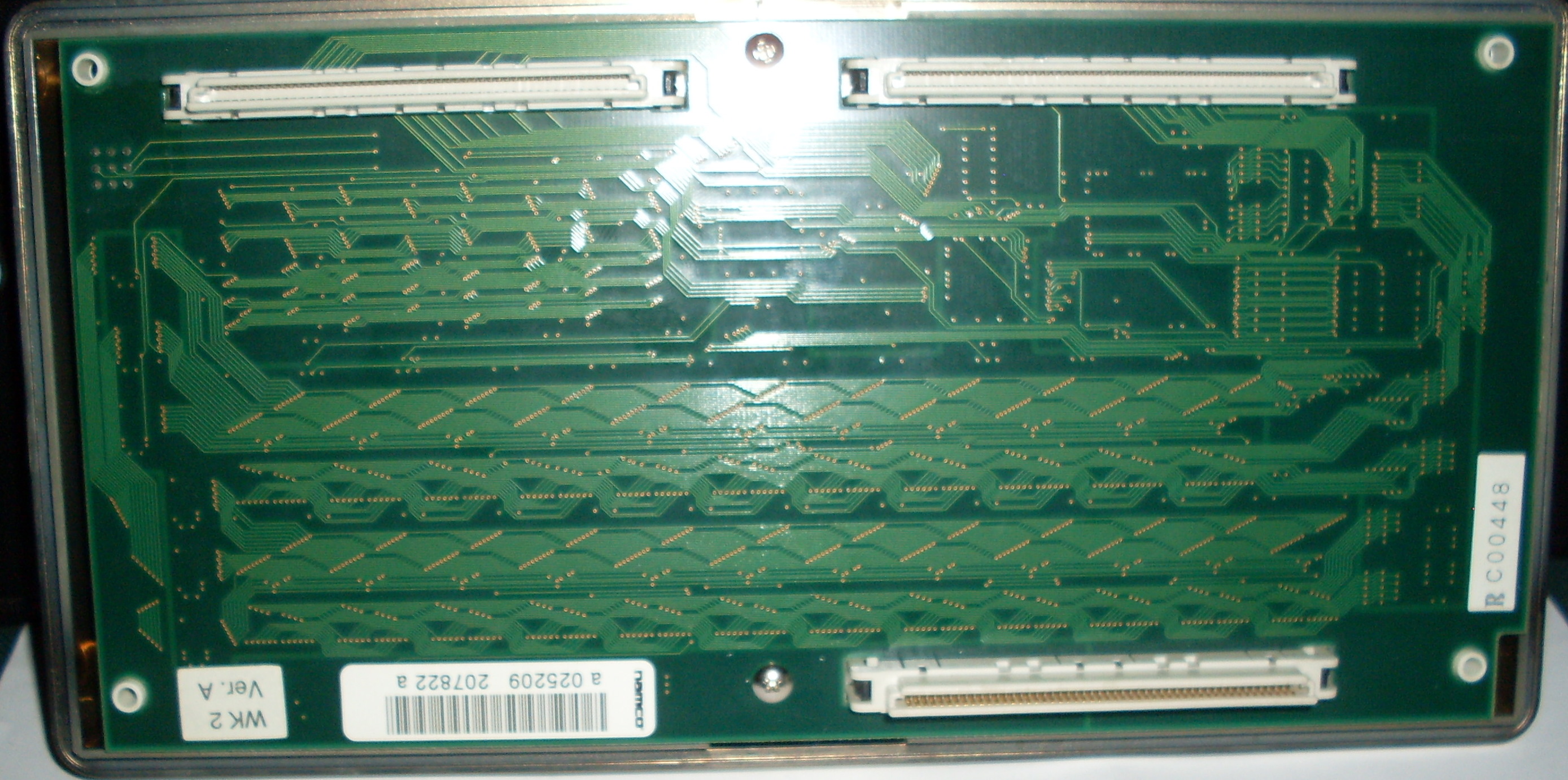

PCB solder side
-

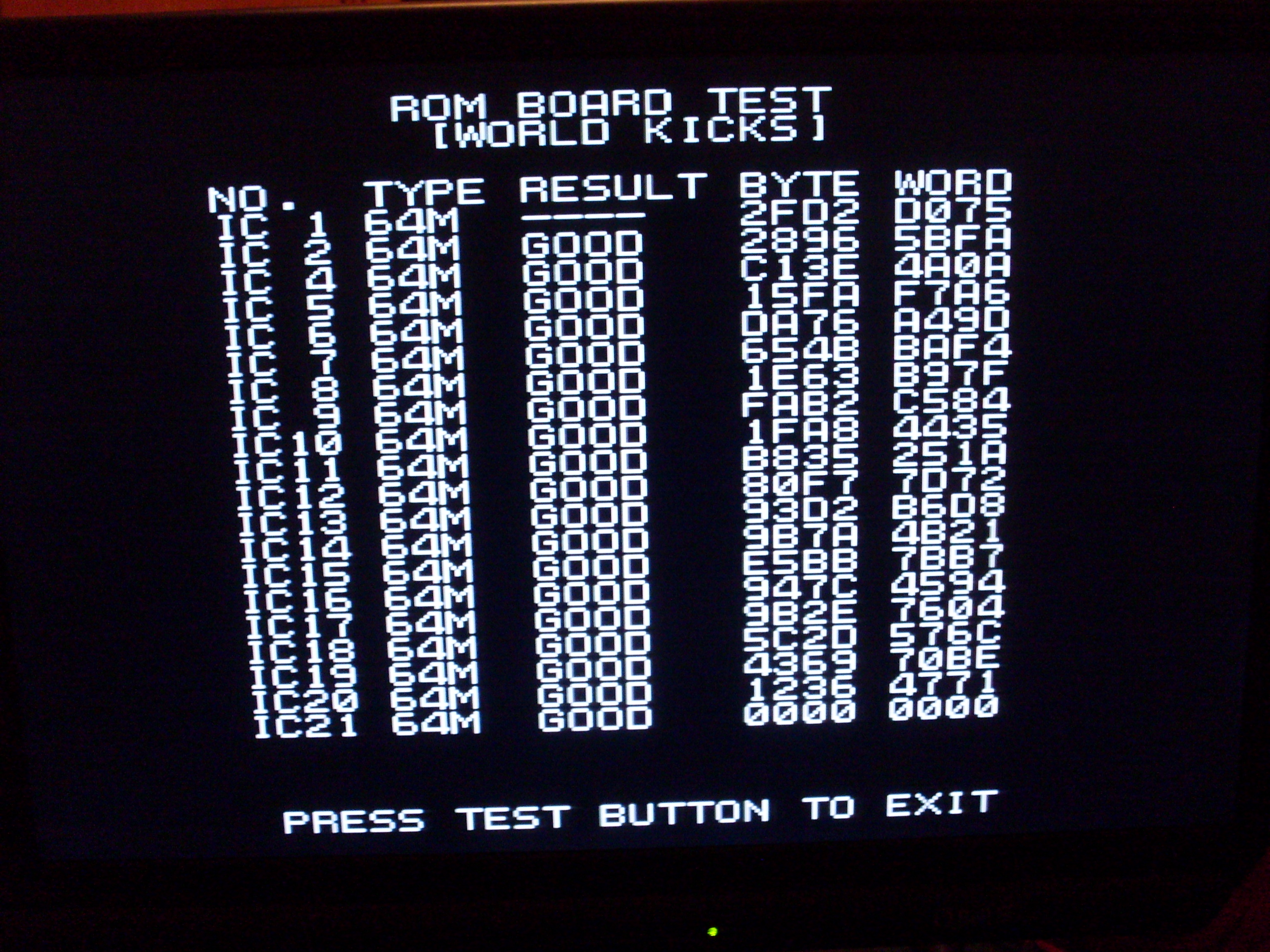

ROM board test
