World Cup (Ver 1.5)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 16/09/2018 |
| emulator | MAME 0.203 |
| dev | Osso |
| name | wcup on ProgettoEMMA wcup on Arcade Database |
| description | World Cup (Ver 1.5) |
| year | 2001 |
| manufacturer | Nazionale Elettronica |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | H8/3048 HD64F3048F16 | ic1 | 16-bit Single-Chip Microcomputer - main (internal ROM not dumped) | |
| 1x | U6295 | ic24 | 4-Channel Mixing ADCPM Voice Synthesis LSI - sound | |
| 1x | LM358N | ic27 | Dual Operational Amplifier - sound | |
| 1x | TDA2003 | ic26 | Audio Amplifier - sound | |
| 1x | oscillator | 30.0MHz | osc1 | |
| 1x | red resonator ZTB1000J | x1 | ||
| 1x | oscillator | 32.768 | small piggyback X1 (close to DS1302) |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | MX26C1000 | 1 | dumped |
| 2x | M27C4001 | 2,3 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | MB8464C-70L | ic13,ic14 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | ispLSI2064-80LJ | ic12 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 12 legs connector (CN1)
1x 12 DIP switches bank (CN2,CN3)
1x trimmer (P1 VOLUME)
1x trimmer (P2 SPARK)
1x battery 3.6V (BAT1)
Notes
PCB is marked: "CE H83048" on component side
PCB is marked: "H83048 bottom" on solder side
PCB is labeled: "WORLD CUP Versione 1.5" on component side
---
It is the same game as World Cup (Ver 1.4) but with less RAM
Files
-

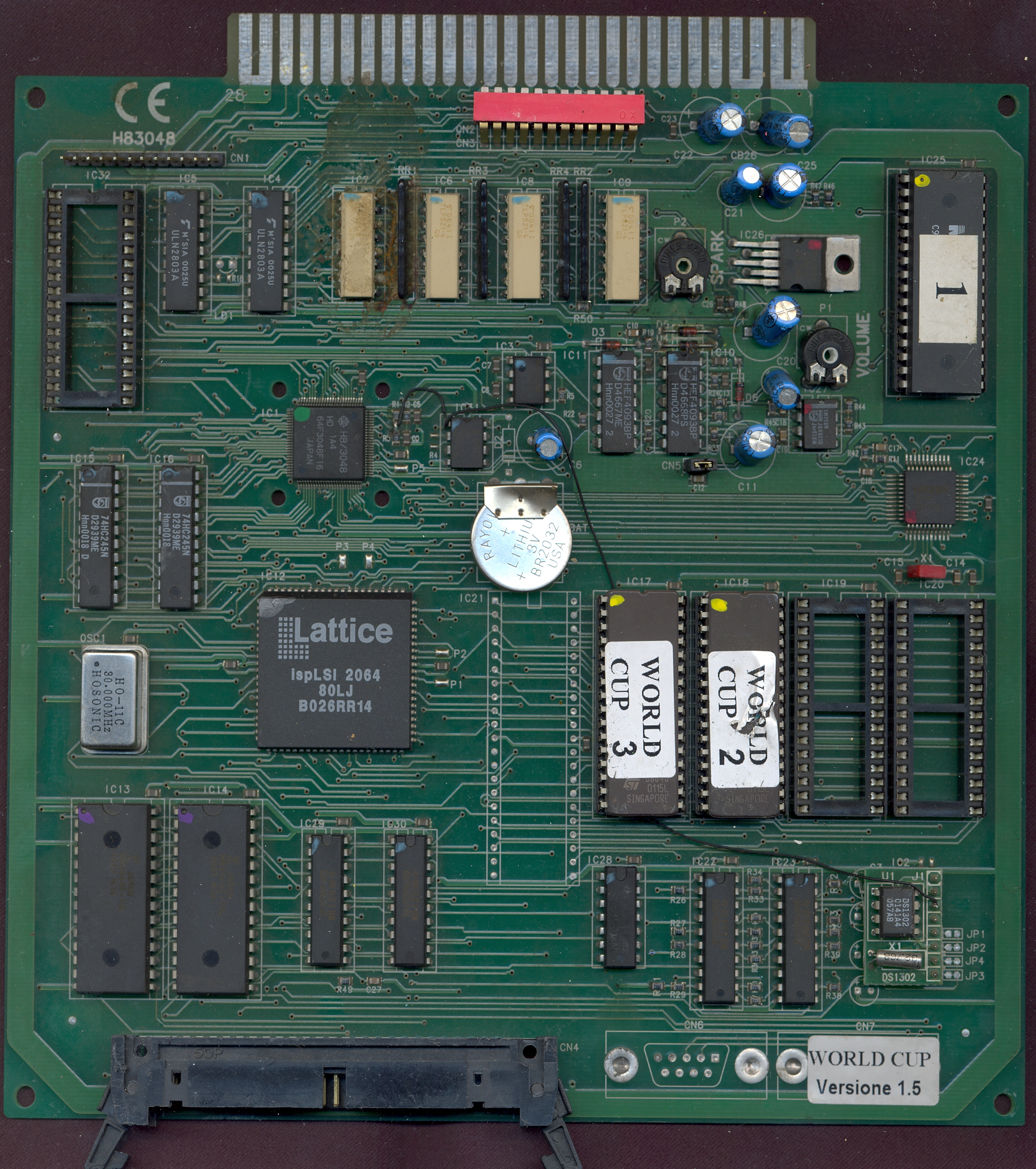

PCB component side
-

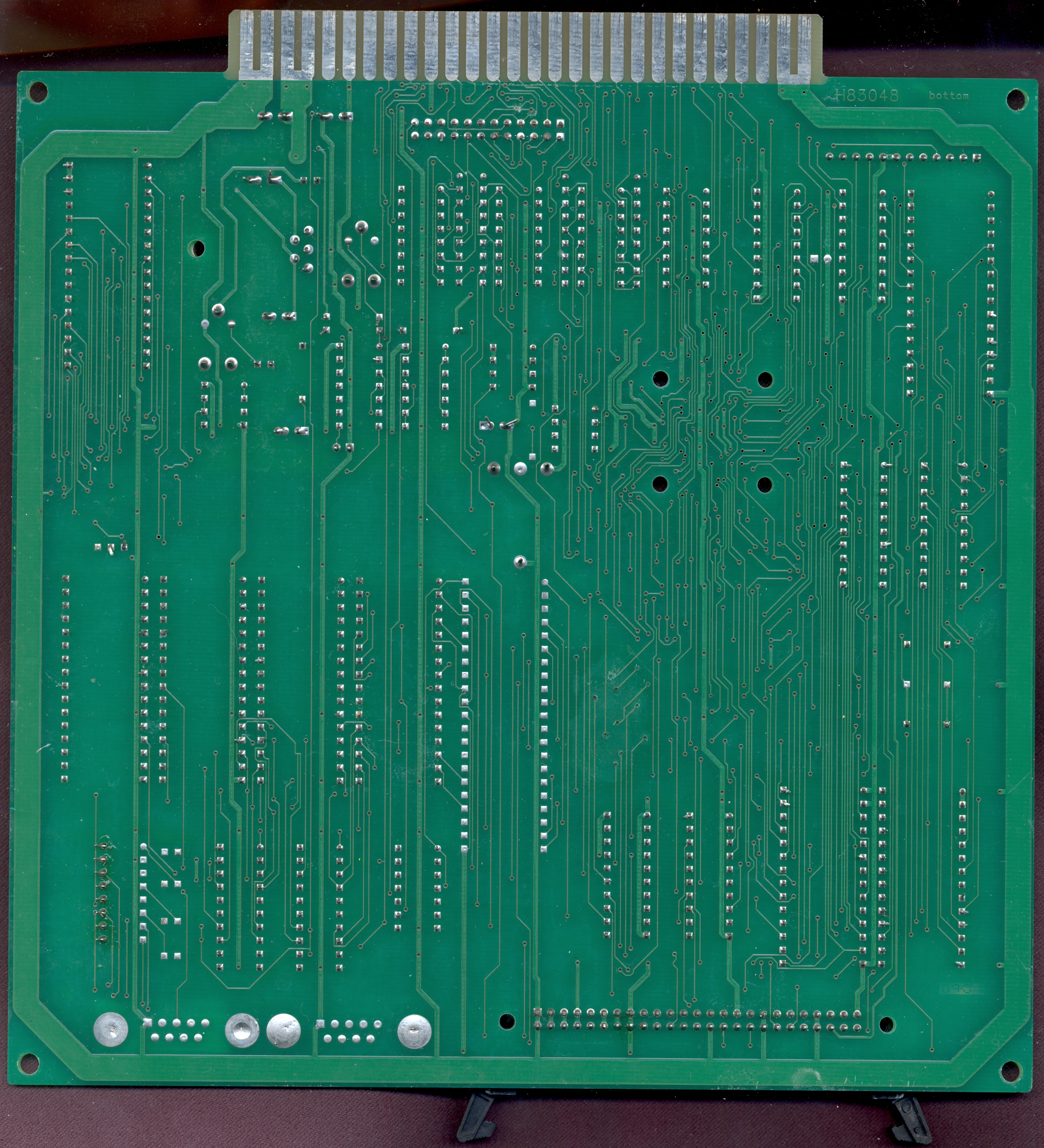

PCB solder side
-

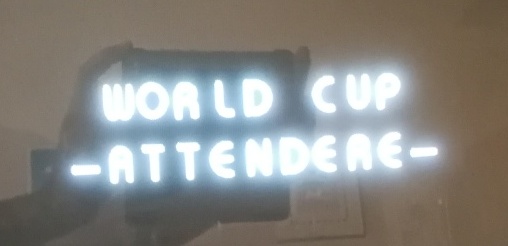

title
-

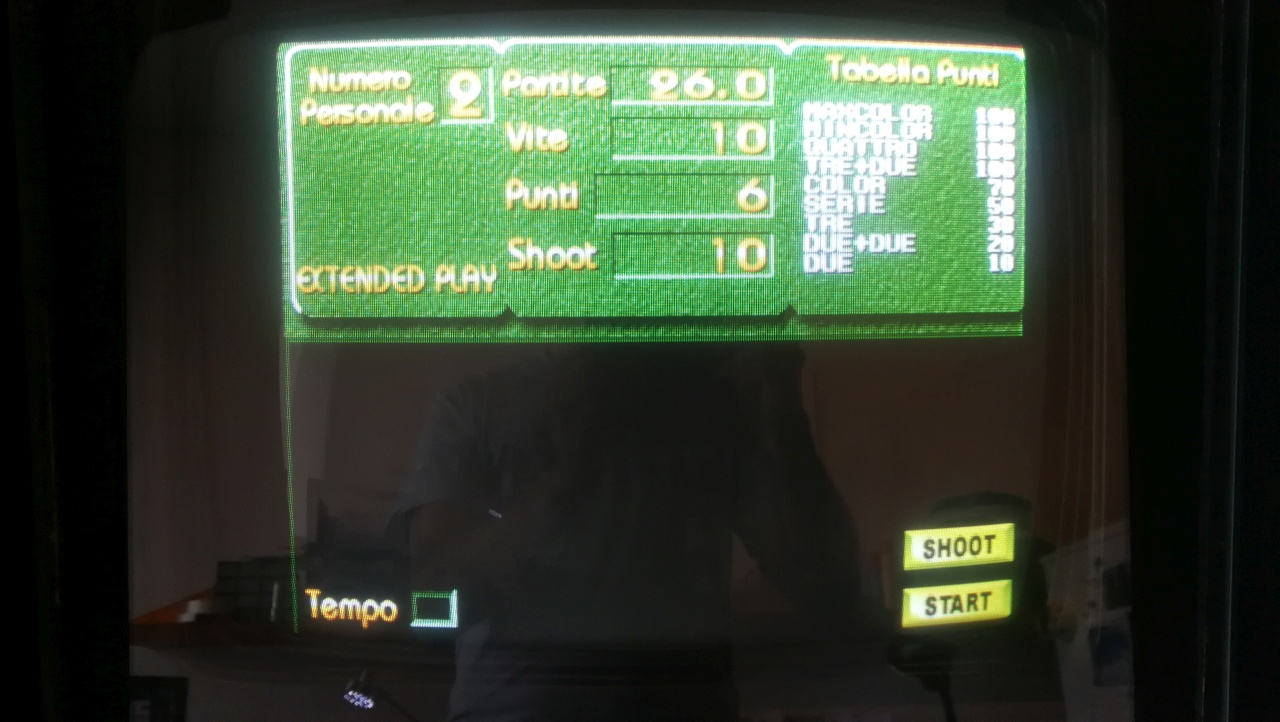

in game 1
-

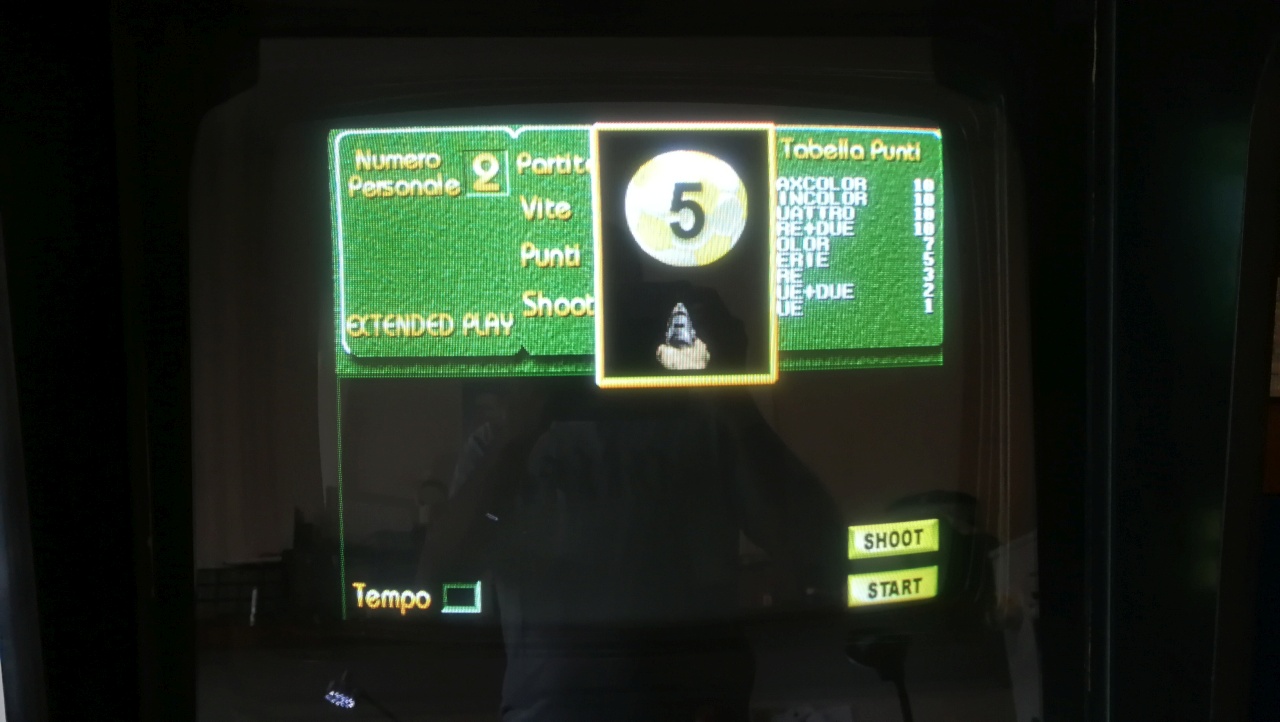

in game 2
-

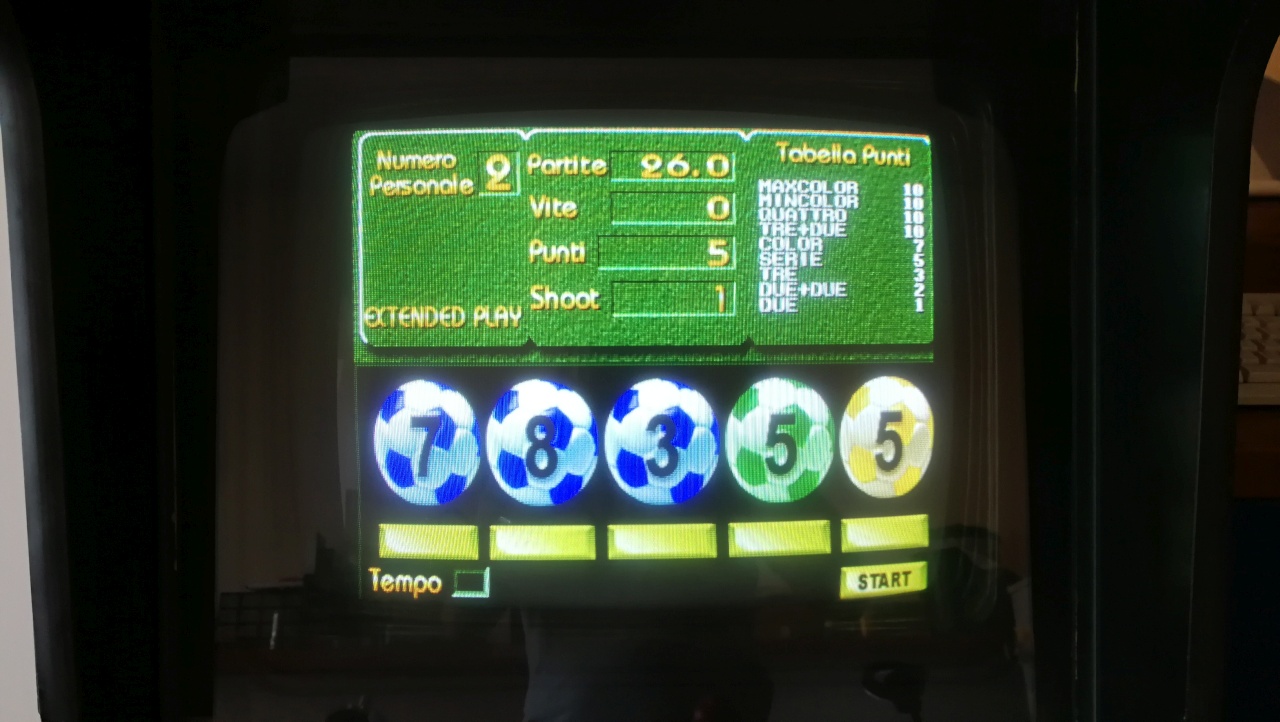

in game 3
