Wonder Boy in Monster Land (bootleg)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 31/07/2006 |
| emulator | |
| dev |
| name | 447 |
| description | Wonder Boy in Monster Land (bootleg) |
| year | 1987 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | D8255AC-2 | PCB 1 | Programmable Peripheral Interface | |
| 2x | Z8400APS-Z80A-CPU | PCB 1 | 8-bit Microprocessor - main | |
| 2x | SN76489 | PCB 1 | Digital Complex Sound Generator - sound | |
| 1x | oscillator | 8.00 | PCB 1 | |
| 1x | D8255AC-2 | PCB 2 | Programmable Peripheral Interface | |
| 2x | LH0080A-Z80A-CPU | PCB 2 | 8-bit Microprocessor - main | |
| 2x | SN76489 | PCB 2 | Digital Complex Sound Generator - sound | |
| 1x | oscillator | 20.000 | PCB 2 | |
| 1x | oscillator | 8.00 | PCB 2 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 8x | P27256 | 4,5,6,7,8,9,10,11 PCB 1 | dumped |
| 1x | M27C256 | 3 PCB 1 | dumped |
| 2x | M27512 | 2,22 PCB 1 | dumped |
| 4x | 74S287 | PCB 1 | not dumped yet |
| 11x | TMM24256 | PCB 2 | dumped |
| 1x | 82S129 | PCB 2 | not dumped yet |
RAMs
| QTY | Type | position |
|---|
PLDs
| QTY | Type | position | status |
|---|
Others
1x 22x2 edge connector
1x trimmer (volume)
2x 8x2 switches DIP
Notes
2 PCBs available, same roms, slightly different hardware
Files
-

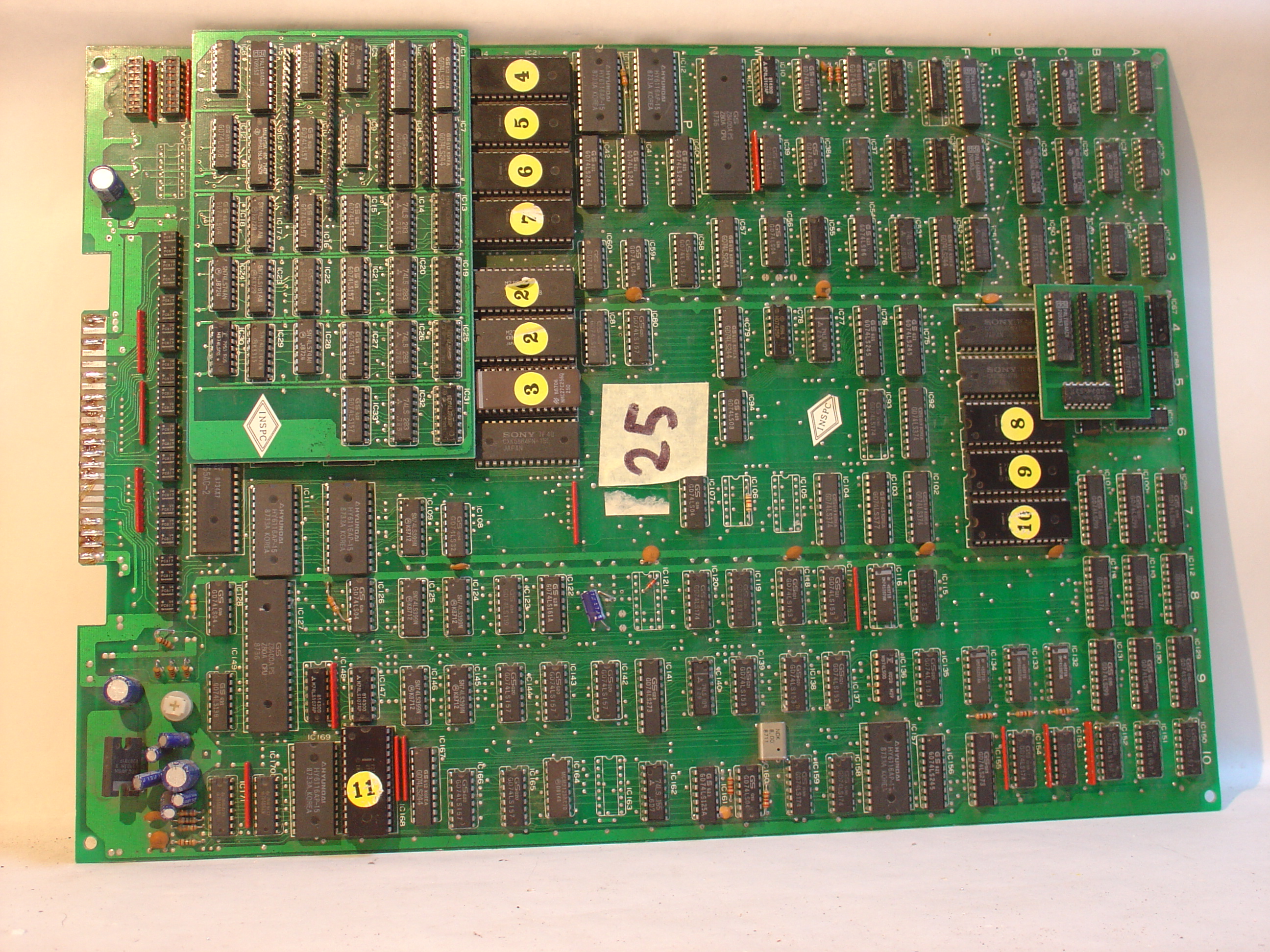

PCB 1 component side
-

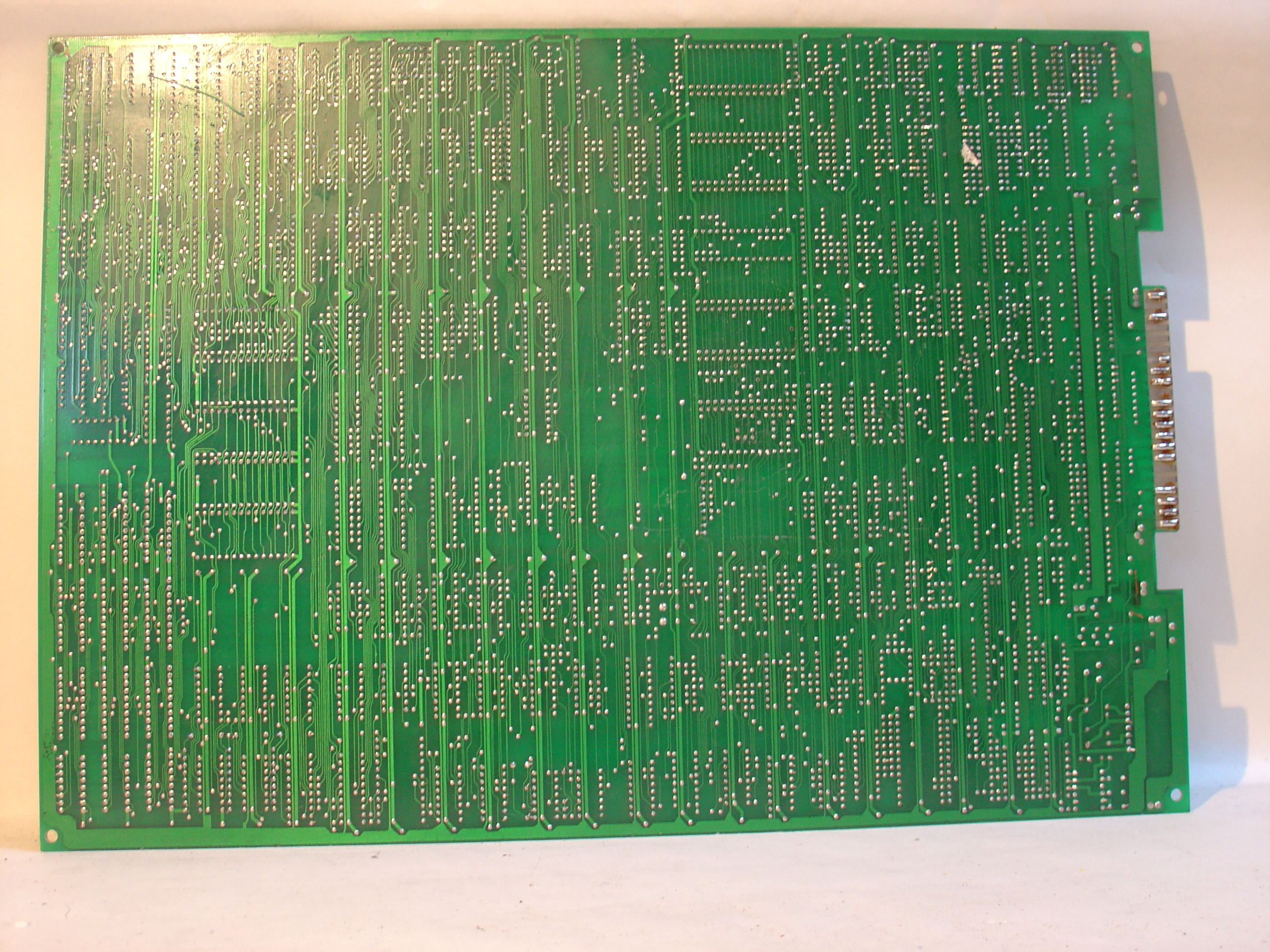

PCB 1 solder side
-

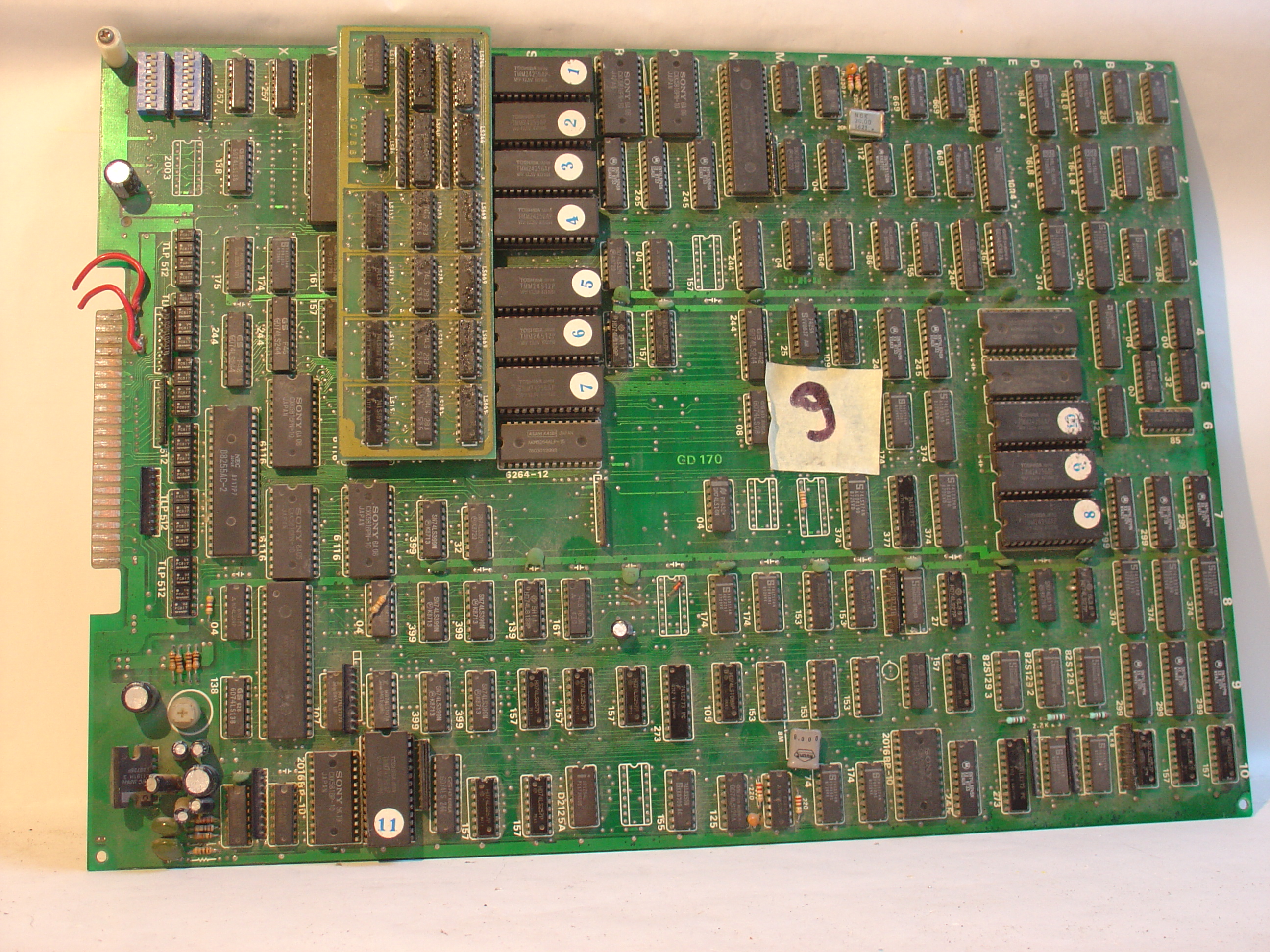

PCB 2 component side
-

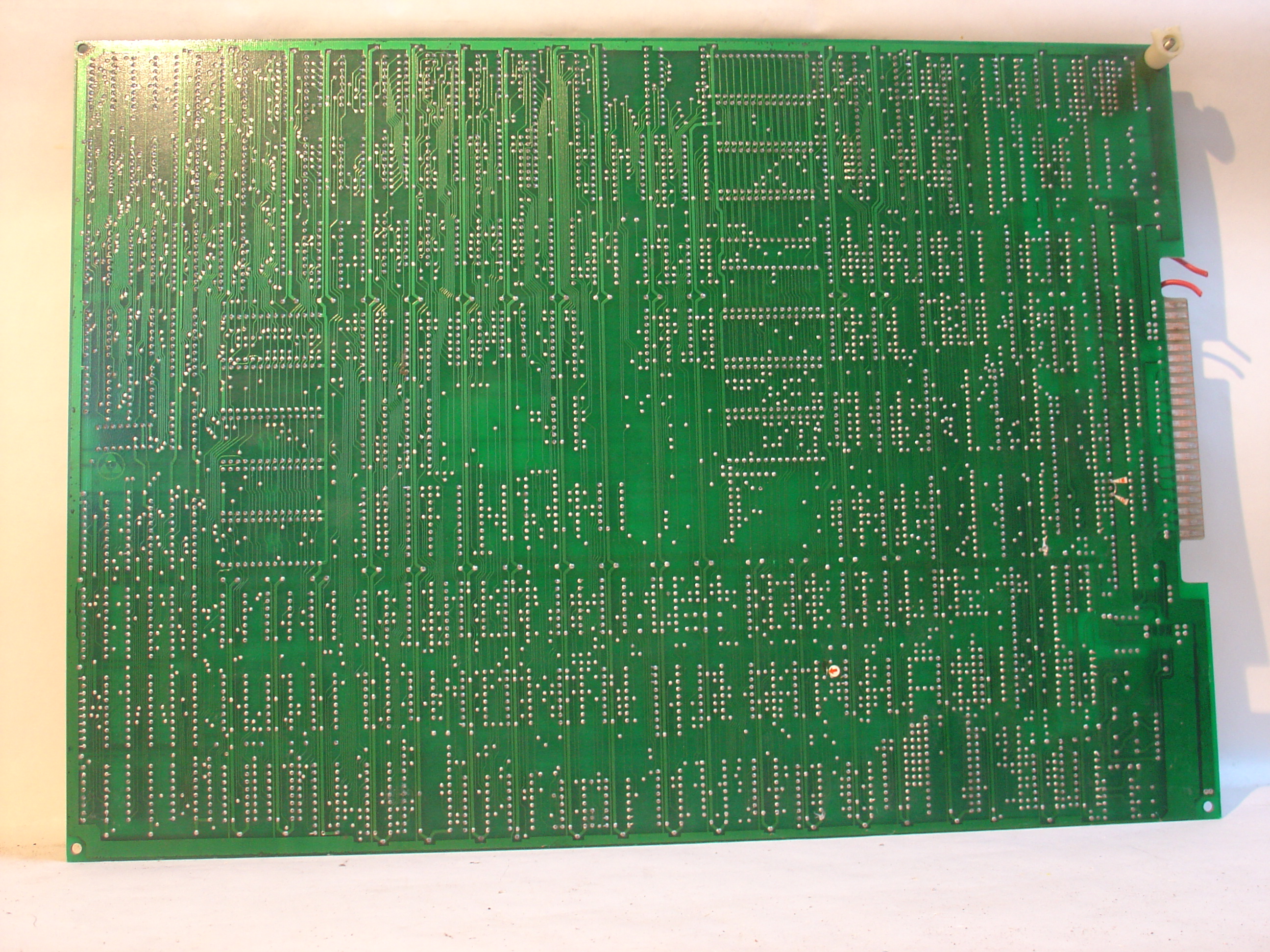

PCB 2 solder side
-
ROMs
447
