Win Win Bingo (Ver. GM.05.1, May 11 2006)
From Citylan
Jump to navigationJump to search
| dumper | Filippo Tarderia |
| dump date | 25/11/2009 |
| emulator | MAME 0.138u1 |
| dev | f205v, Filippo Tarderia |
| name | winbingoa on ProgettoEMMA winbingoa on Arcade Database |
| description | Win Win Bingo (Ver. GM.05.1, May 11 2006) |
| year | 20060511 |
| manufacturer | Astro Corp. |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | ASTRO F02 2005-09-17 | u1 | maybe FPGA | |
| 1x | ASTRO V102PX-006 | u10 | ||
| 1x | ASTRO V06 0430 | u32 | ||
| 1x | oscillator | 24.000MHz | OS1 | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 2x | MX29F1610MC | u26,u30 | dumped |
| 2x | F29C51001T | u25,u31 | dumped |
| 1x | MX27C4000PC-12 | u35 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | HM62C64P | u24,u27 |
| 4x | HM6116P | u28,u29,u33,u34 |
| 2x | HM62C64P | u39,u41 |
PLDs
| QTY | Type | position | status |
|---|
Others
Notes
PCB is marked: "ASTRO M1.2", "CS350P016" and "0546" on component side
update 20100102: new dump and info
Files
-

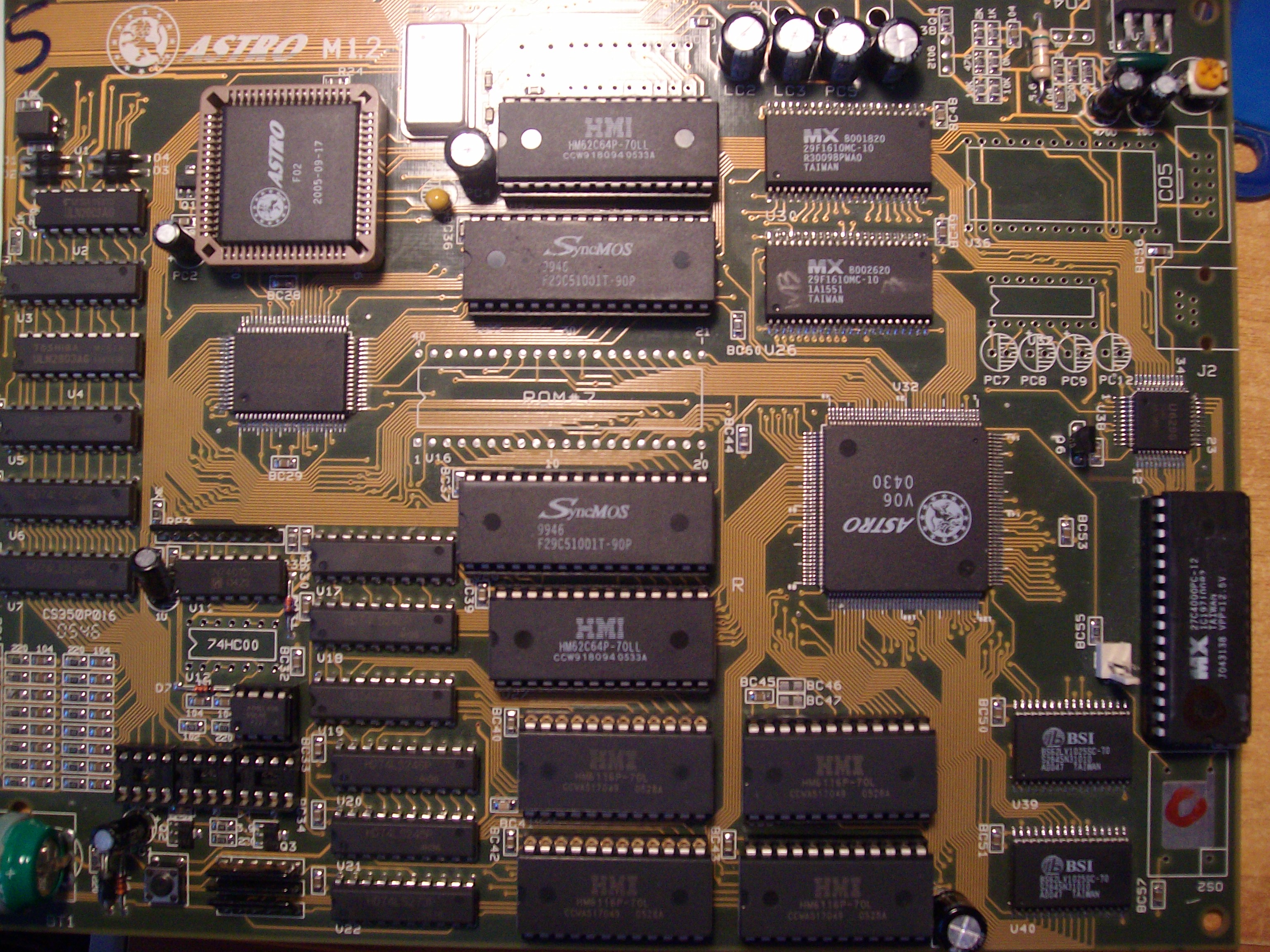

PCB component side
-
