Win Cherry (ver 0.16 - 19990219)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 13/04/2013 |
| emulator | MAME 0.153 |
| dev | Roberto Fresca |
| name | wcherry on ProgettoEMMA wcherry on Arcade Database |
| description | Win Cherry (ver 0.16 - 19990219) |
| year | 1999 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | Z0840006PSC-Z80CPU | 8-bit Microprocessor - main | ||
| 1x | KC89C72 | Programmable Sound Generator - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 12.000MHz |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 27C256 | ic9 | dumped |
| 1x | 27C512 | ic2 | dumped |
| 1x | M27C1001 | ic6 | dumped |
| 1x | AM27C29PC | not dumped yet |
RAMs
| QTY | Type | position |
|---|---|---|
| 1x | CY62256LL-70PC | |
| 1x | LP6264D-70LL |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | XC9572-PC84ASJ-15c | read protected | |
| 1x | XC95108-PC84ASJ-15c | read protected |
Others
1x 28x2 JAMMA edge connector
2x pushbutton (MANAG. - STATIS.)
1x trimmer (volume)
5x 8x2 switches DIP
1x battery (missing)
Notes
Files
-

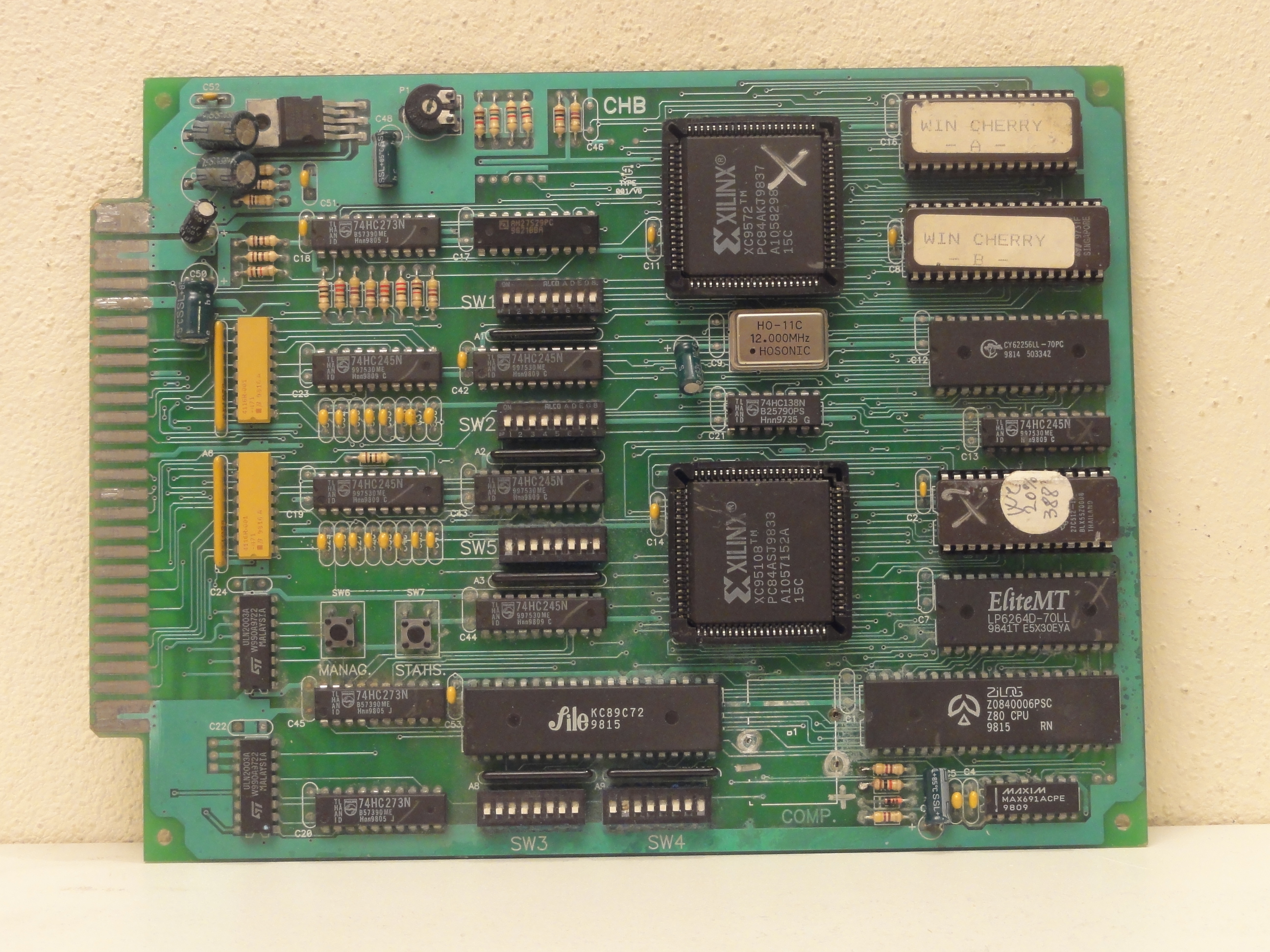

PCB component side
-

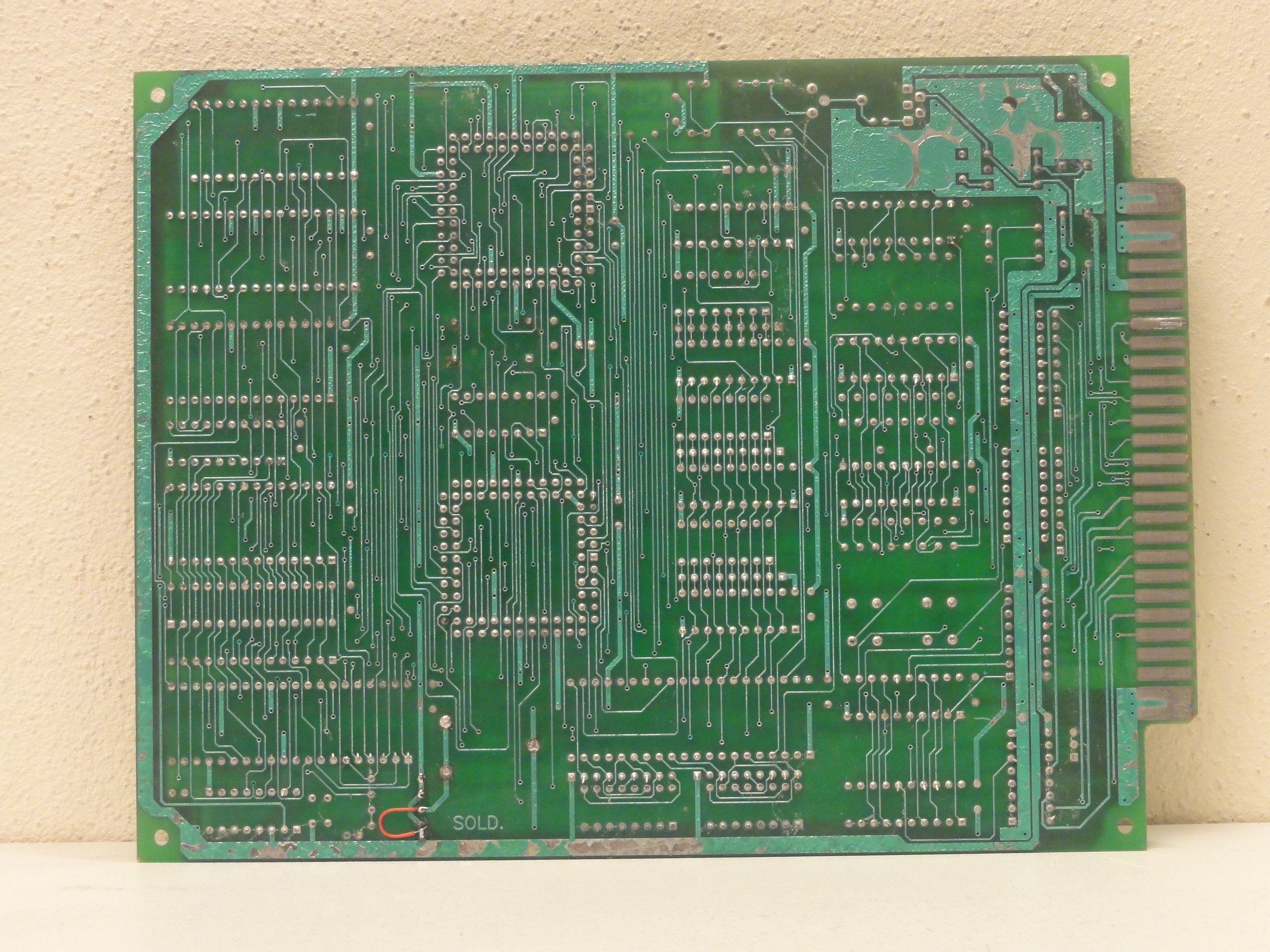

PCB solder side
