Vs. Super Mario Bros. (bootleg with Z80, set 2)

EMU Infos

dumper	Dante Profeta
date	06/02/2008
emulator	MAME 0.135u3
dev	f205v

PCB Infos

name	suprmriobl2 on Arcade Database
description	Vs. Super Mario Bros. (bootleg with Z80, set 2)
year	1986
manufacturer

Technical references

CPUs

QTY	Type	clock	position	function
1x	R6502AP			8-bit Microprocessor - main
1x	Z8400APS-Z80CPU			8-bit Microprocessor - sound
2x	SN76489			Digital Complex Sound Generator - sound
1x	TA75902P			Quad Operational Amplifier - sound
1x	TDA2003			Audio Amplifier - sound
1x	oscillator	16.000		main

ROMs

QTY	Type	position	status
3x	TMS2764JL	1,2,5	dumped
2x	HN27256G	3,4	dumped
2x	6301-1	1,2	dumped

RAMs

QTY	Type	position
10x	TMS4164
1x	CXK5813D
4x	KM6816
1x	HM6264LP

PLDs

QTY	Type	position	status
1x	EP1200		not dumped
1x	PAL16L8	1	not dumped
1x	PAL16R6	2	not dumped
1x	PAL16R8	3	dumped
1x	PAL16L8	4	dumped
1x	PAL16R6	5	dumped
2x	PAL16R8	6,7	not dumped

Others

1x 18x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP

Notes

update 20130722 from Zab

     Vs. Super Mario Bros. (bootleg with Z80, set 2) PINOUTS
                          -------------

       ---------------------------------------------------
                   SOLDER SIDE  |  COMPONENT SIDE
       -------------------------+-------------------------
                     SPK + |  A | 1  | SPK - (GND)
                      + 12 |  B | 2  | GND
                           |  C | 3  |
                   1P LEFT |  D | 4  | 1P RIGHT
                           |  E | 5  | COIN
                      COIN |  F | 6  | COIN (NO COIN UP SOUND)
                           |  H | 7  |
                           |  J | 8  | 1P START
                   1P JUMP |  K | 9  |
                   2P LEFT |  L | 10 | 1P RUN
                           |  M | 11 | 2P RIGHT
                    2P RUN |  N | 12 |
                  2P START |  P | 13 | 2P JUMP
                       RED |  R | 14 | SYNC (COMP)
                     GREEN |  S | 15 | BLUE
                        +5 |  T | 16 | GND
                        +5 |  U | 17 | GND
                        +5 |  V | 18 | GND
       ---------------------------------------------------

Files

•

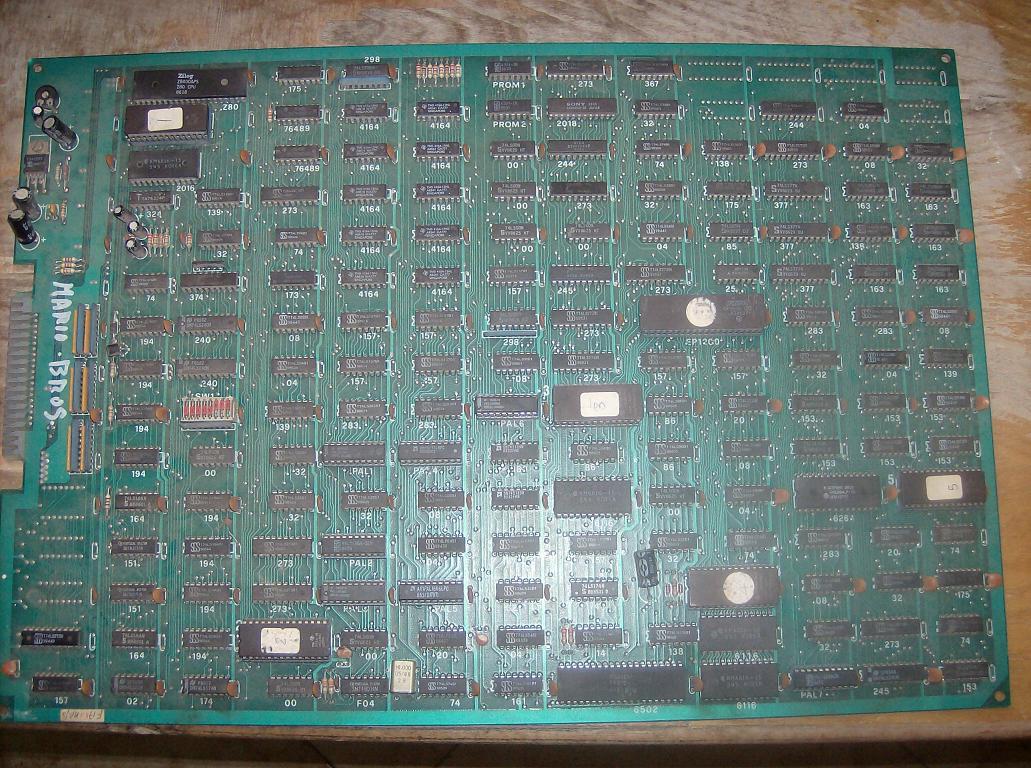

  PCB component side

•
