Vs. Super Mario Bros. (bootleg with Z80, set 1)
From Citylan
Jump to navigationJump to search
| dumper | f205v |
| date | 28/08/2006 |
| emulator | MAME 0.135u3 |
| dev | f205v |
| name | suprmriobl on Arcade Database |
| description | Vs. Super Mario Bros. (bootleg with Z80, set 1) |
| year | 1986 |
| manufacturer |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | R6502AP | 8-bit Microprocessor - main | ||
| 1x | Z8400APS-Z80CPU | 8-bit Microprocessor - sound | ||
| 2x | SN76489 | Digital Complex Sound Generator - sound | ||
| 1x | TA75902P | Quad Operational Amplifier - sound | ||
| 1x | TDA2003 | Audio Amplifier - sound | ||
| 1x | oscillator | 16.000 | main |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 3x | TMS2764JL | 1,2,5 | dumped |
| 1x | HN27256G | 3 | dumped |
| 1x | GI27256 | 4 | dumped |
| 2x | 6301-1 | 1,2 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 10x | TMS4164 | |
| 1x | CXK5813D | |
| 4x | KM6816 | |
| 1x | HM6264LP |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | EP1200 | not dumped | |
| 1x | PAL16L8 | 1 | not dumped |
| 1x | PAL16R6 | 2 | not dumped |
| 1x | PAL16R8 | 3 | dumped |
| 1x | PAL16L8 | 4 | dumped |
| 1x | PAL16R6 | 5 | dumped |
| 2x | PAL16R8 | 6,7 | not dumped |
Others
1x 18x2 edge connector
1x trimmer (volume)
1x 8x2 switches DIP
Notes
Files
-

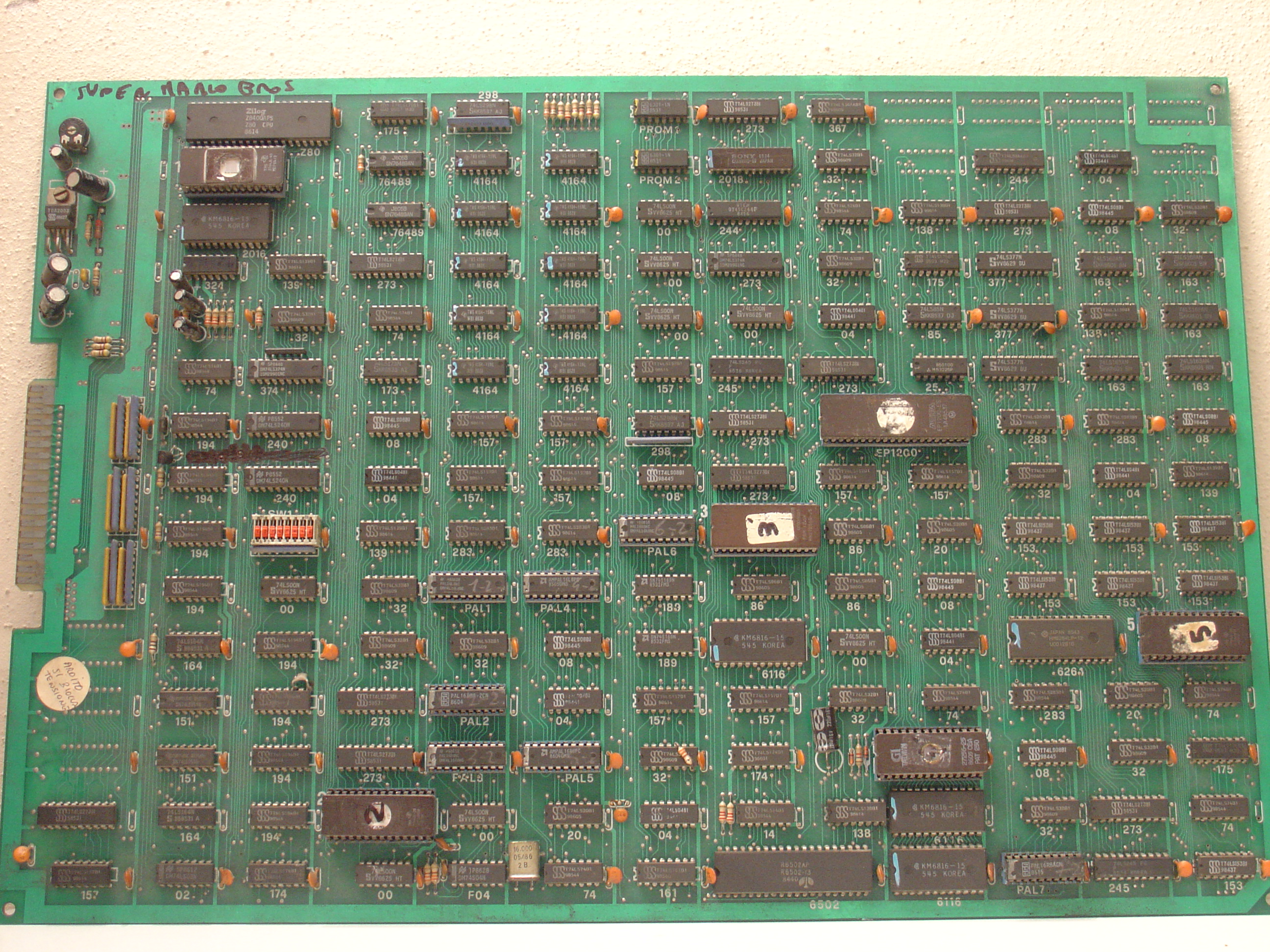

PCB component side
-

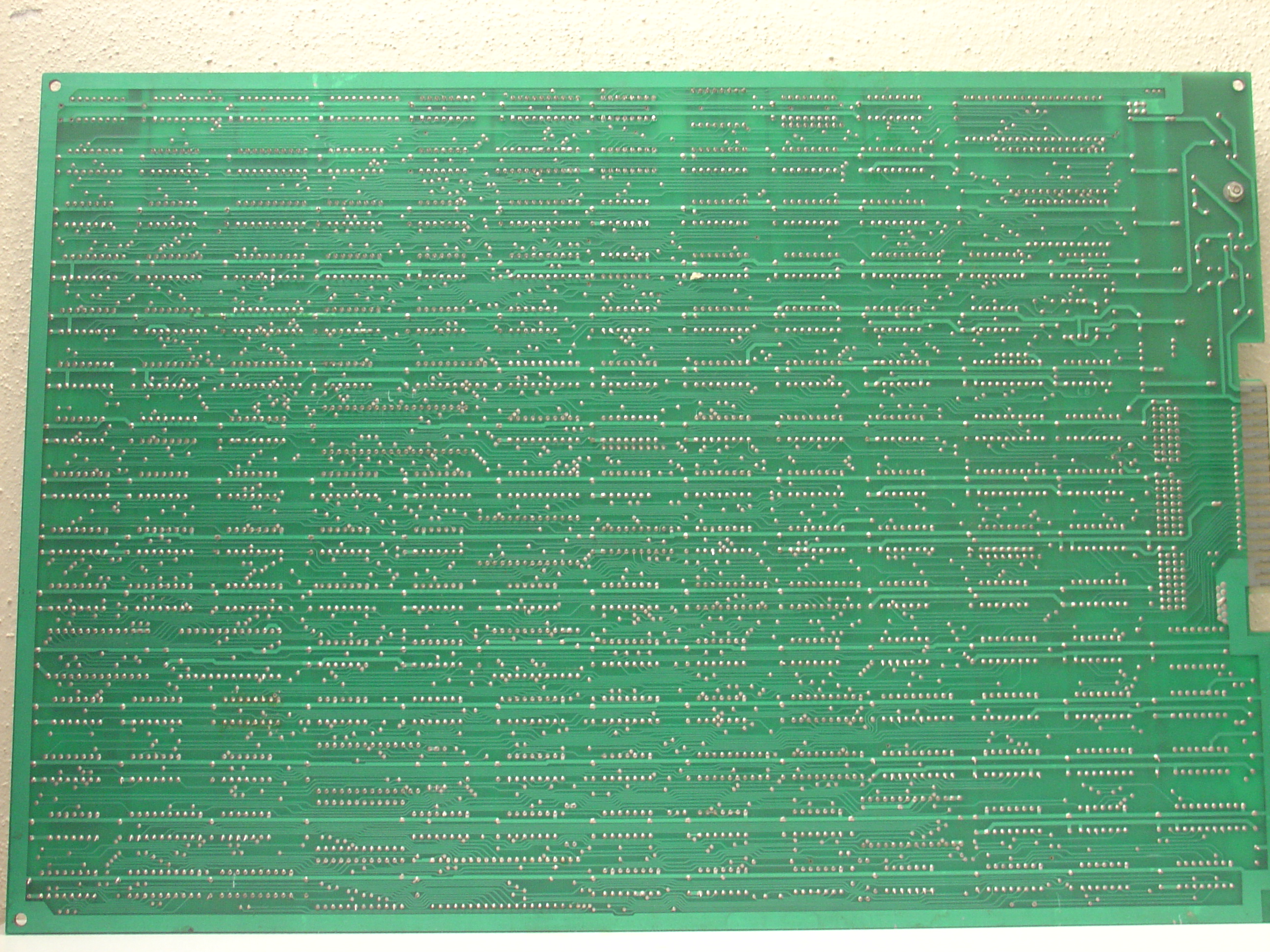

PCB solder side
-
PALs
