Virtua Striker 3 (World, Rev B)
From Citylan
Jump to navigationJump to search
| dumper | "someone" |
| dump date | 12/10/2009 |
| emulator | MAME 0.139u4 |
| dev | R.Belmont |
| name | vstrik3c on ProgettoEMMA vstrik3c on Arcade Database |
| description | Virtua Striker 3 (World, Rev B) |
| year | 2001.04.01 |
| manufacturer | Amusement Vision - Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 11x | MaskROM 128Mb TSOP48 | 23652.ic1-23662.ic11 | dumped |
| 1x | M27C322 | 23663B.ic22 | dumped |
| 1x | X76F100 | ic46 | not dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71V256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
| 1x | EPM7032 315-6319 | ic27 | read protected |
Others
Notes
It's a NAOMI 2 cart.
Cart type: 171-8132B
Cart N°: 840-0061C
Protection IC: SEGA 315-5881 (317-0310-COM)
Key: 0x2cee834a
Files
-

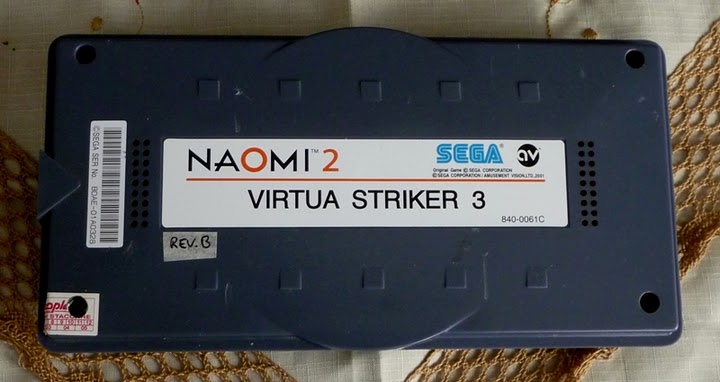

Cart
-

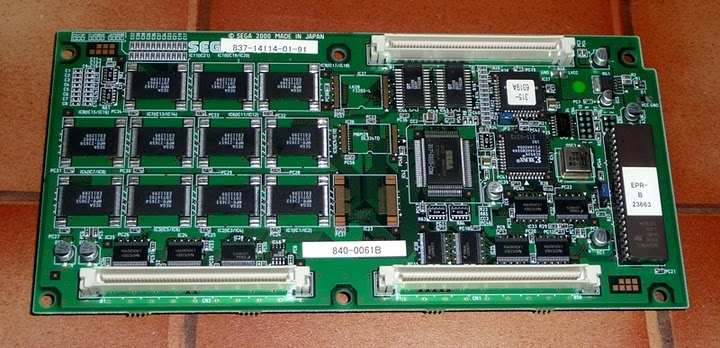

PCB component side 1
-

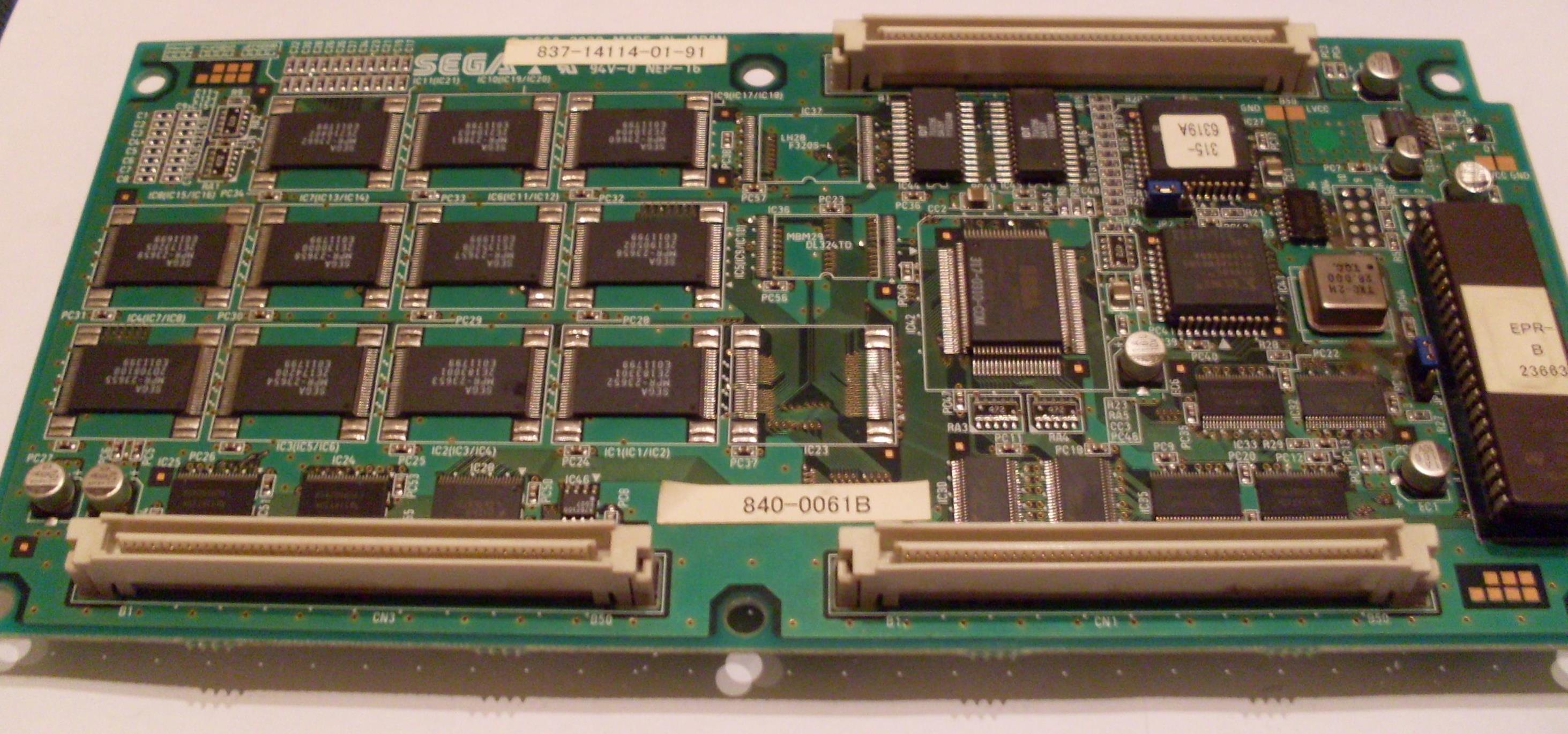

PCB component side 2
-

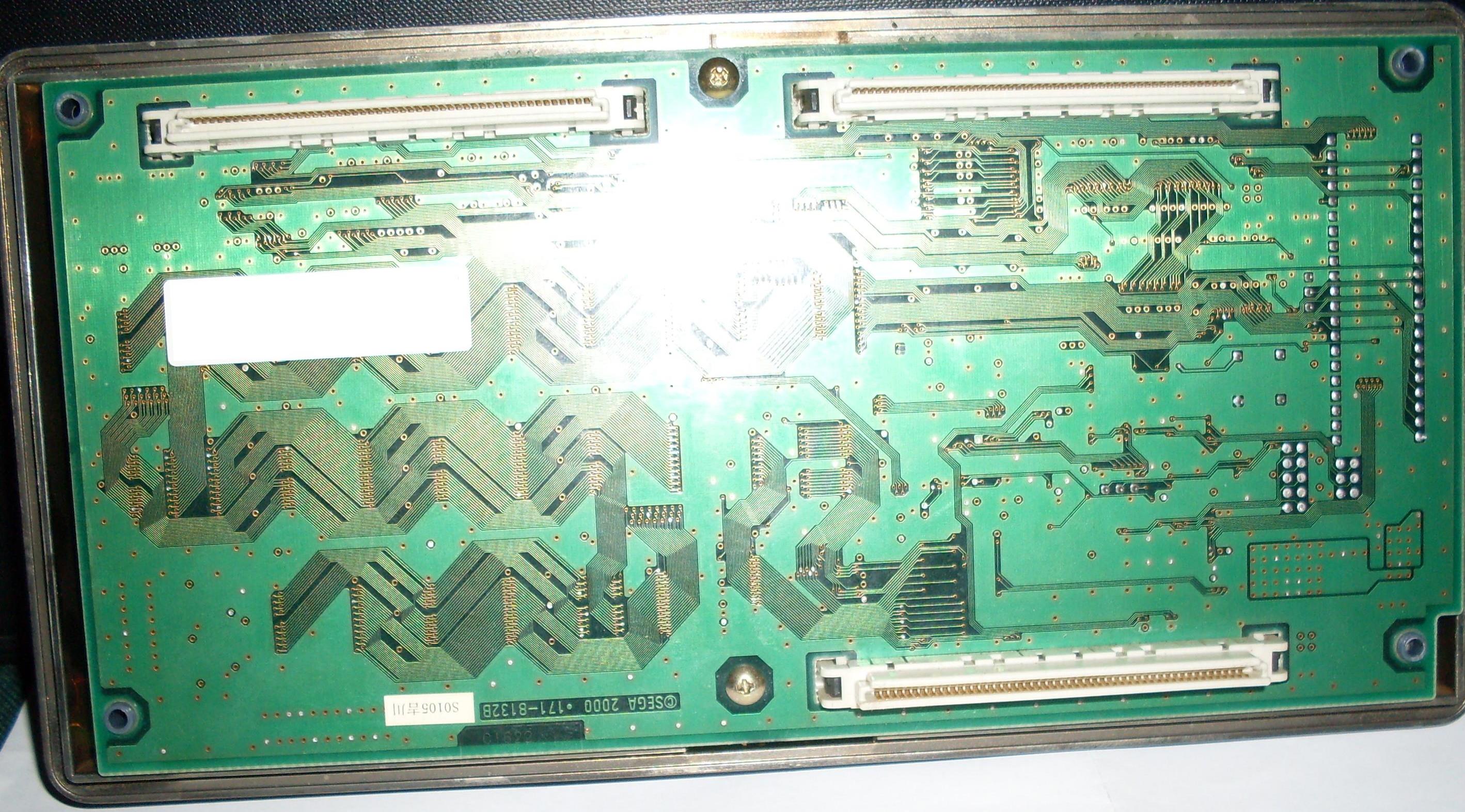

PCB solder side 1
-
PCB solder side 2
