Virtua Striker 2 Ver. 2000 (Rev C)
From Citylan
Jump to navigationJump to search
| dumper | someone |
| date | 04/02/2011 |
| emulator | MAME 0.114u1 |
| dev | Guru |
| name | vs2_2k on ProgettoEMMA vs2_2k on Arcade Database |
| description | Virtua Striker 2 Ver. 2000 (Rev C) |
| year | 1999.07.27 - 11:41 |
| manufacturer | Sega |
Technical references
CPUs
| QTY | Type | clock | position | function |
|---|---|---|---|---|
| 1x | oscillator | 28.000 | osc1 |
ROMs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | M27322 | EPR-21929C.ic22 | dumped |
| 14x | M27W064 | 21924.ic1 - 21922.ic14s | dumped |
| 1x | M27W032 | 21923.ic15s | dumped |
| 1x | X76F100 | ic37 | dumped |
RAMs
| QTY | Type | position |
|---|---|---|
| 2x | IDT71256 | ic44,ic45 |
PLDs
| QTY | Type | position | status |
|---|---|---|---|
| 1x | 315-6213 | ic41 | read protected |
Others
Notes
It's a NAOMI cart.
Cart type: 171-7919A
Cart N°: 840-0010C
Protection IC: SEGA 315-5881 (317-0258-COM)
Key: 0x28088b08
update 20170128: f205v confirmed dump, better pictures, instruction sheets
Files
-

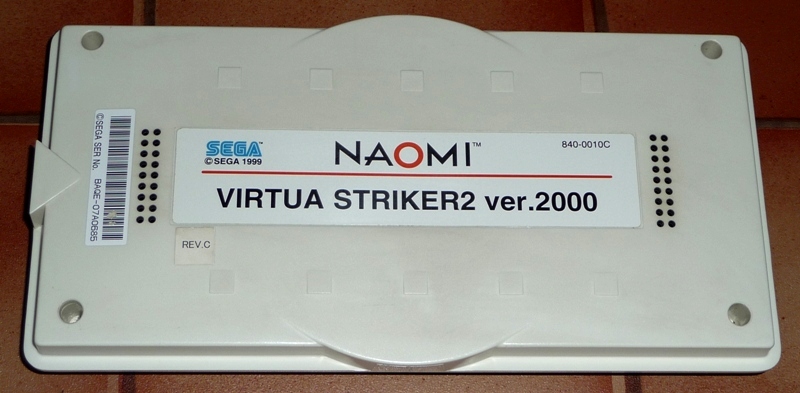

Cart 1
-

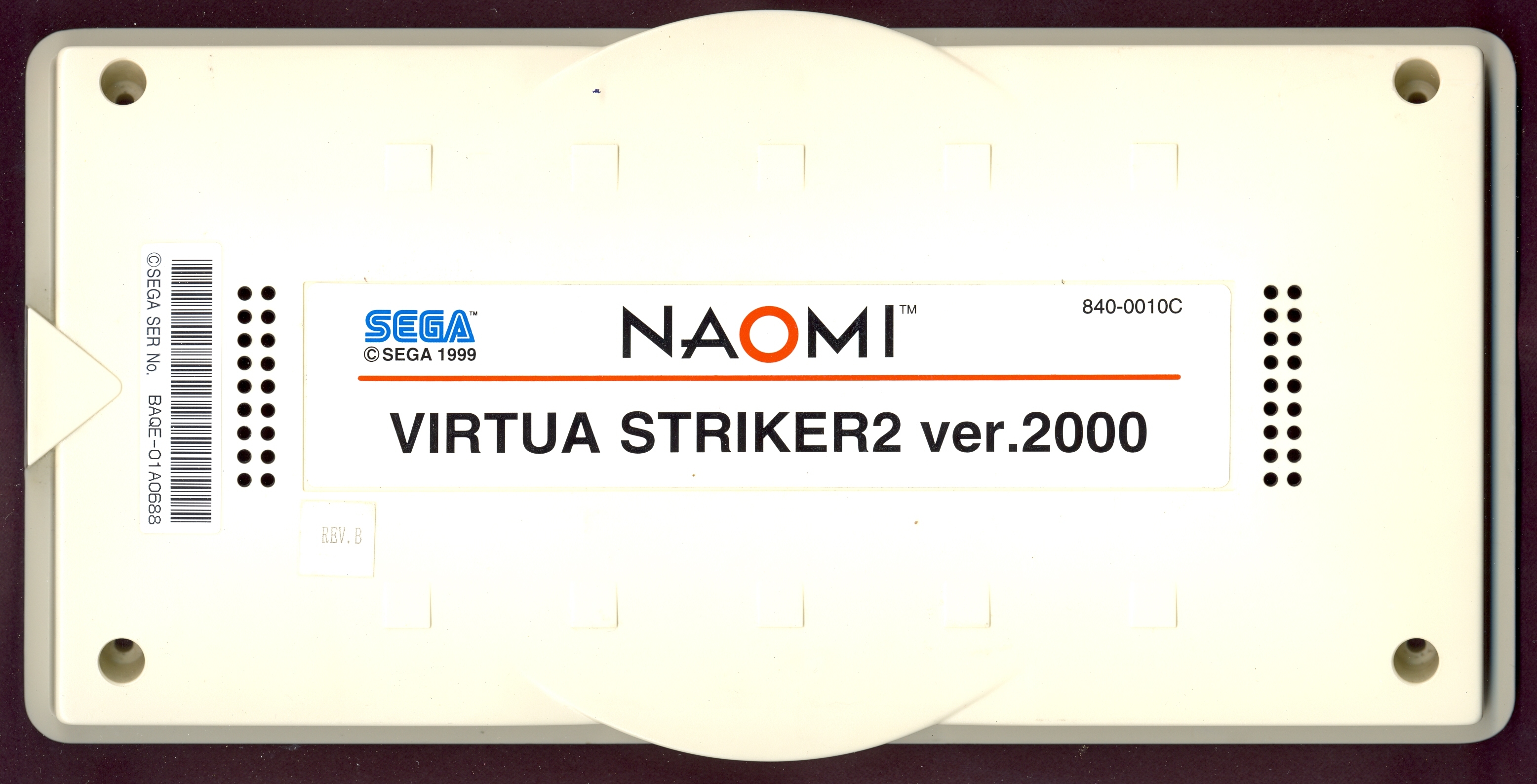

Cart 2
-

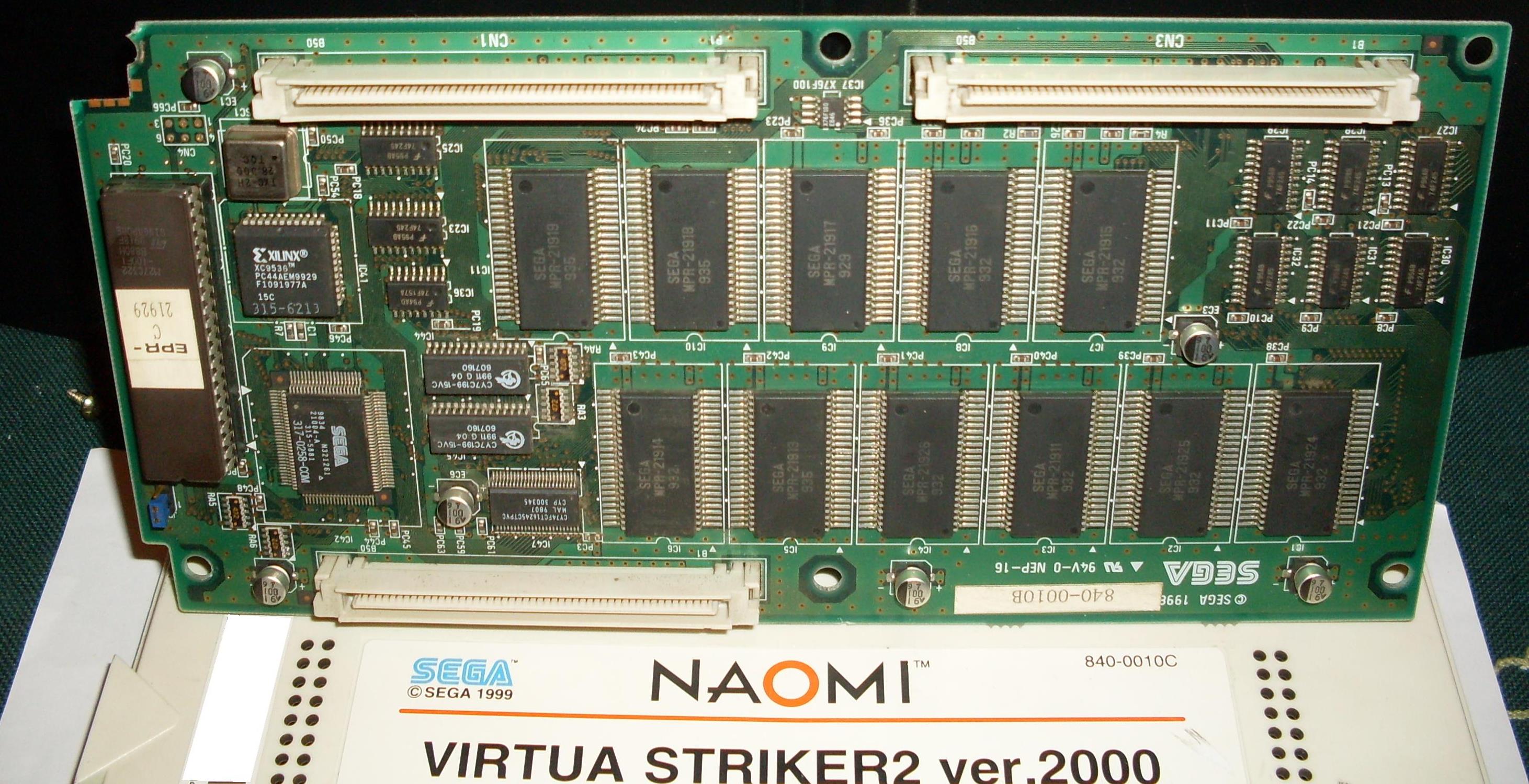

PCB component side 1
-

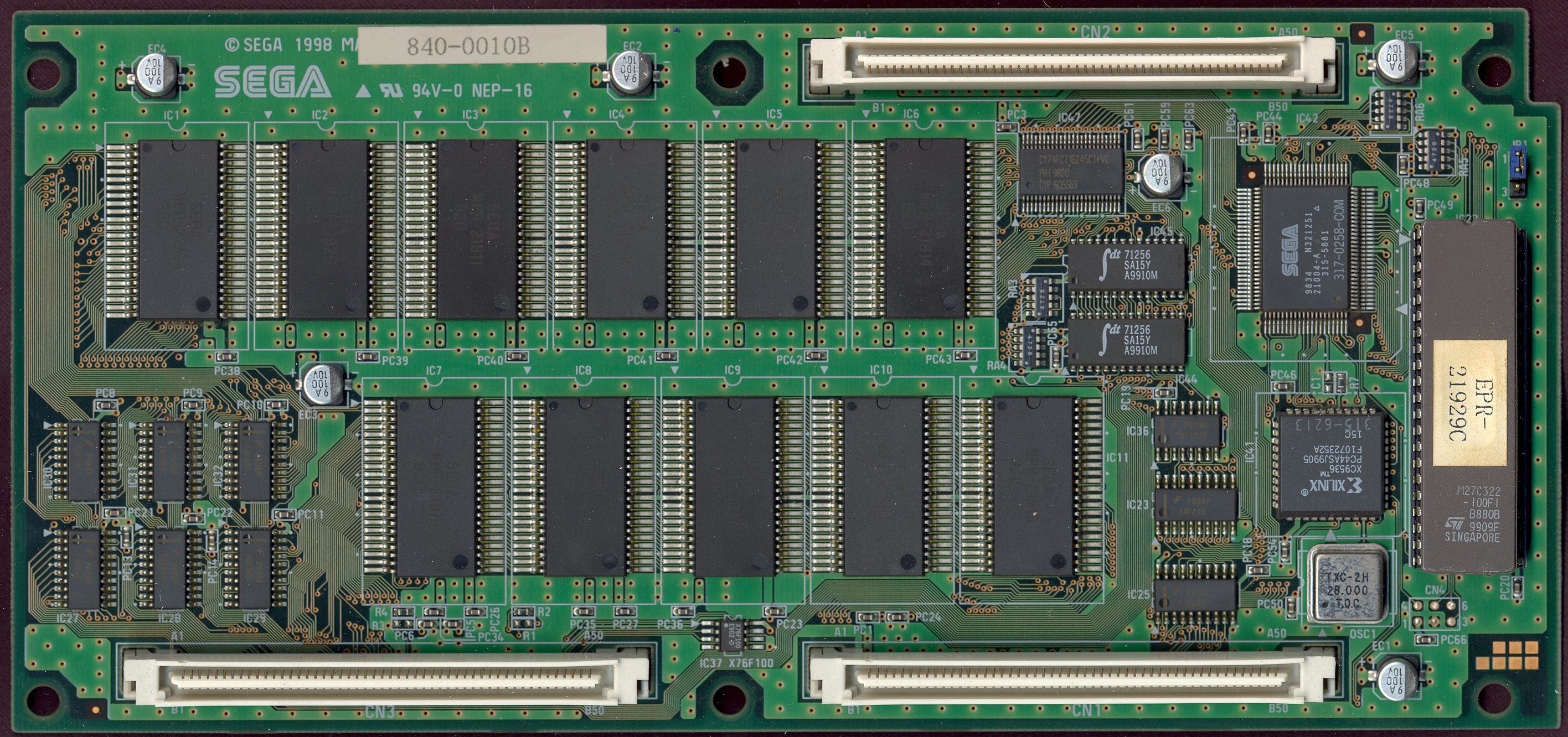

PCB component side 2
-

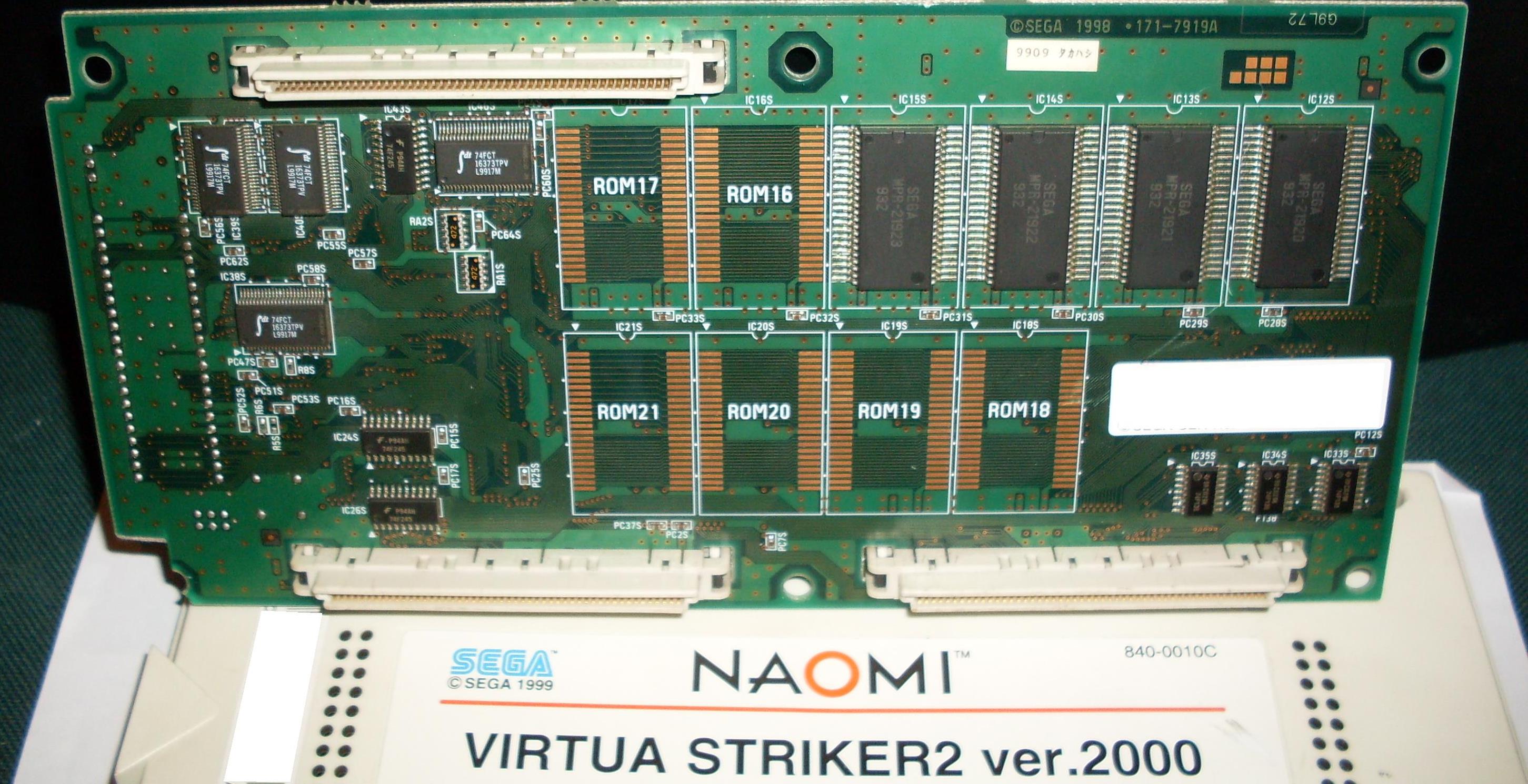

PCB solder side 1
-

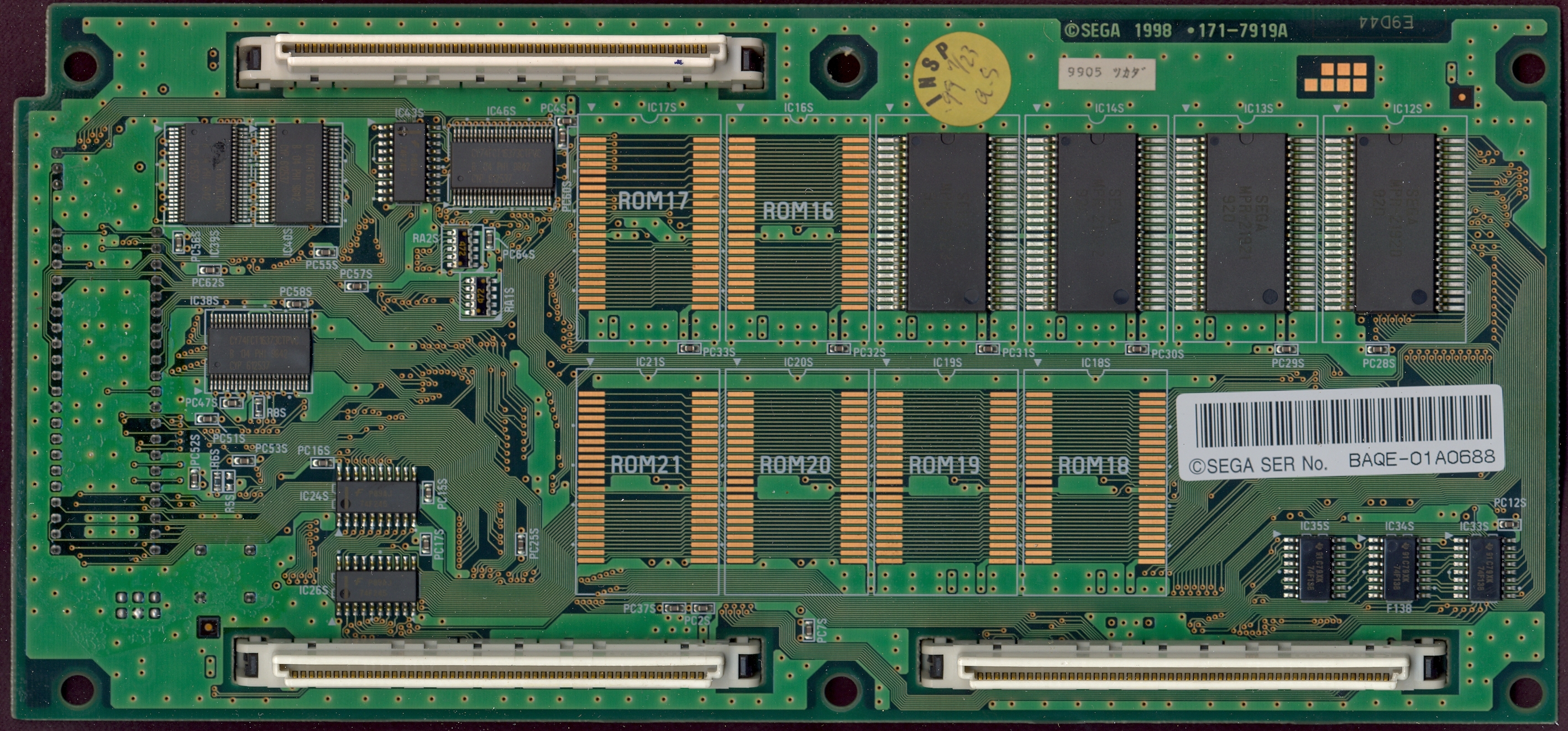

PCB solder side 2
-

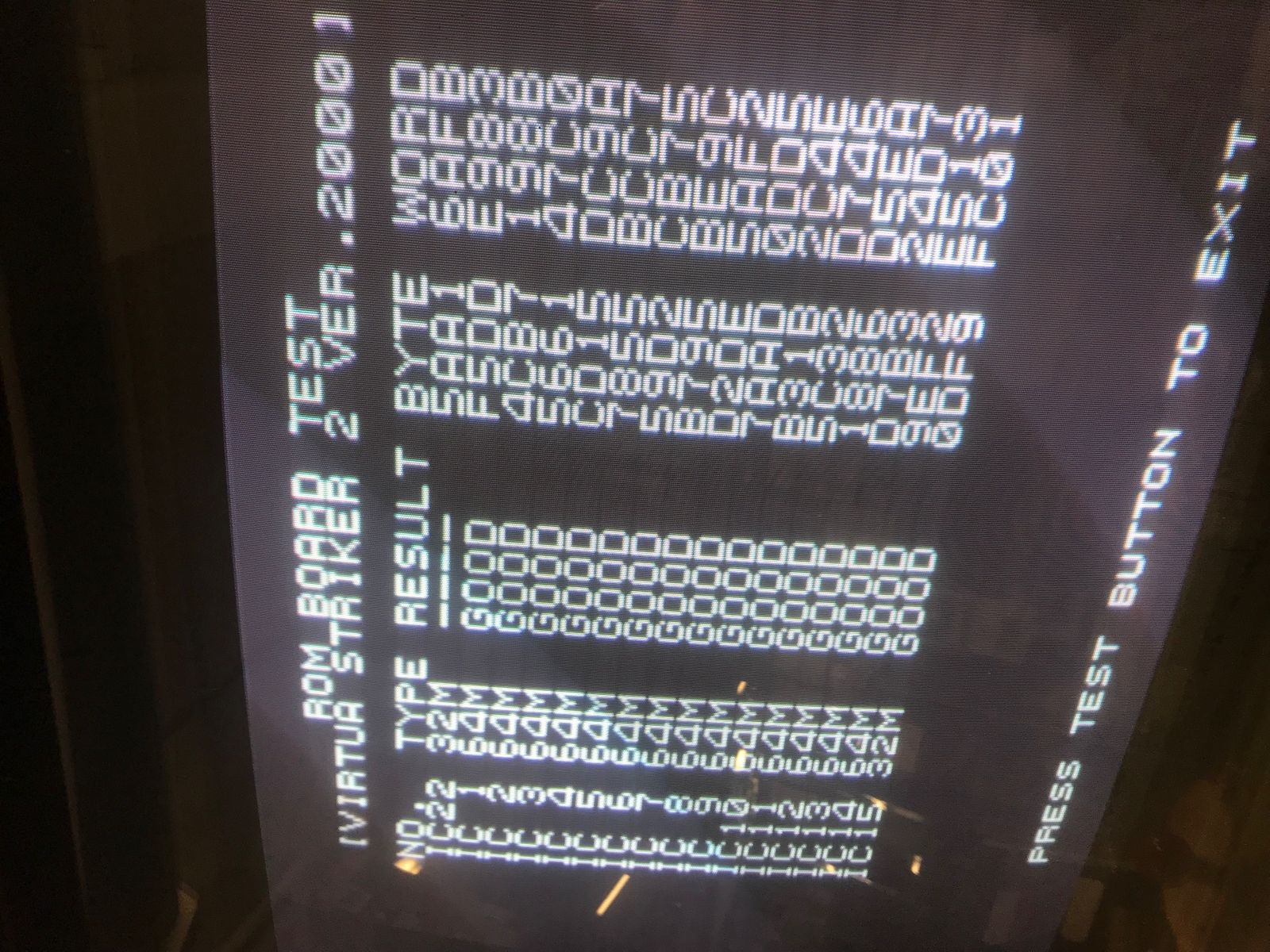

ROM board test
-
readme
-
instruction sheet 1
-
instruction sheet 2
