Virtua Bowling (World, V101XCM)
From Citylan
Jump to navigationJump to search
dumper | Corrado Tomaselli, f205v |
date | 19/10/2005 |
emulator | MAME 0.102u1 |
dev | Luca Elia |
name | vbowl on ProgettoEMMA vbowl on Arcade Database |
description | Virtua Bowling (World, V101XCM) |
year | 1996 |
manufacturer | IGS |
Technical references
CPUs
QTY | Type | clock | position | function |
---|---|---|---|---|
1x | 68000 | u33 | 16/32-bit Microprocessor - main | |
1x | IGS custom 003e | u12 | I/O handling (incorporates an 8255) | |
1x | IGS custom 011 | u65 | Video GFX | |
1x | IGS custom 012 | u20 | Protection device | |
1x | ICS2115 | u54 | WaveFront Synthesizer - Sound | |
1x | TDA1519 | Audio Amplifier - sound | ||
1x | oscillator | 22.000MHz | u63 | |
1x | oscillator | 33.8688 | y1 |
ROMs
QTY | Type | position | status |
---|---|---|---|
1x | 274096 | u45 | dumped |
2x | 27040 | u66,u67 | dumped |
1x | IGS B0601 | u68 | dumped |
1x | IGS B0602 | u69 | dumped |
RAMs
QTY | Type | position |
---|---|---|
2x | SRM2264LC90 | u46,u47 |
2x | UM6164DK-12 | u73,u74 |
PLDs
QTY | Type | position | status |
---|---|---|---|
3x | PAL DIP20-300mil | u24,u25,u75 | read protected |
3x | PAL DIP24-300mil | u48,u49,u50 | read protected |
Others
1x 28x2 JAMMA edge connector
1x 6 legs connector
1x 5 legs connector
1x 4 legs connector
1x trimmer (volume)
4x 8 DIP switches banks
Notes
PCB is marked: "MADE IN TAIWAN" and "NO-0101-1" on component side
PCB is marked: "125P239-1" and "9605" on solder side
PCB is labelled: "322269 ORIGINAL BY IGS" and "1996 TEST OK ORIGINAL BY I.G.S." on component side
update 20060801: We now have a correct u45 dump
Files
-
PCB component side 1
-

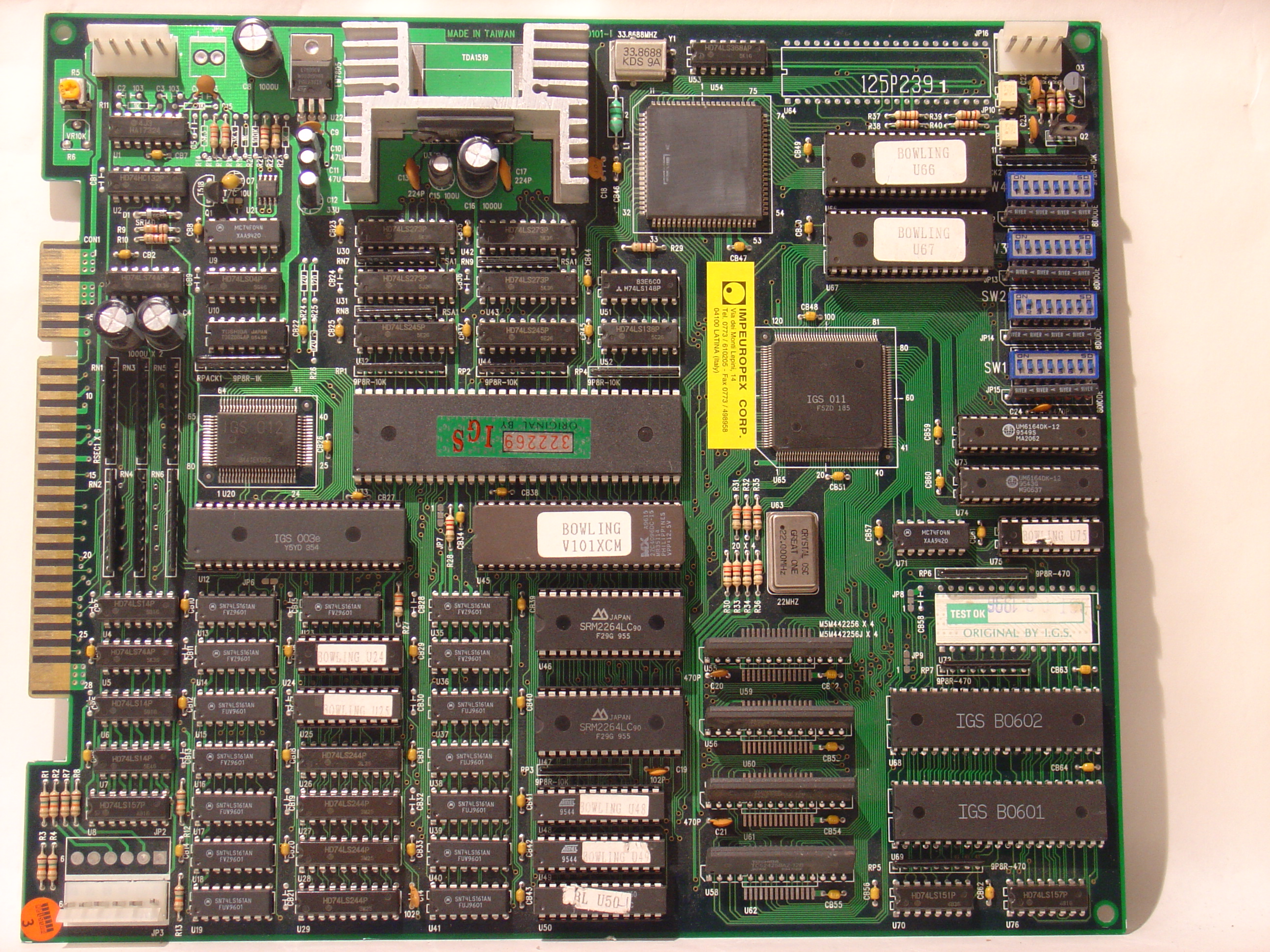

PCB component side 2
-

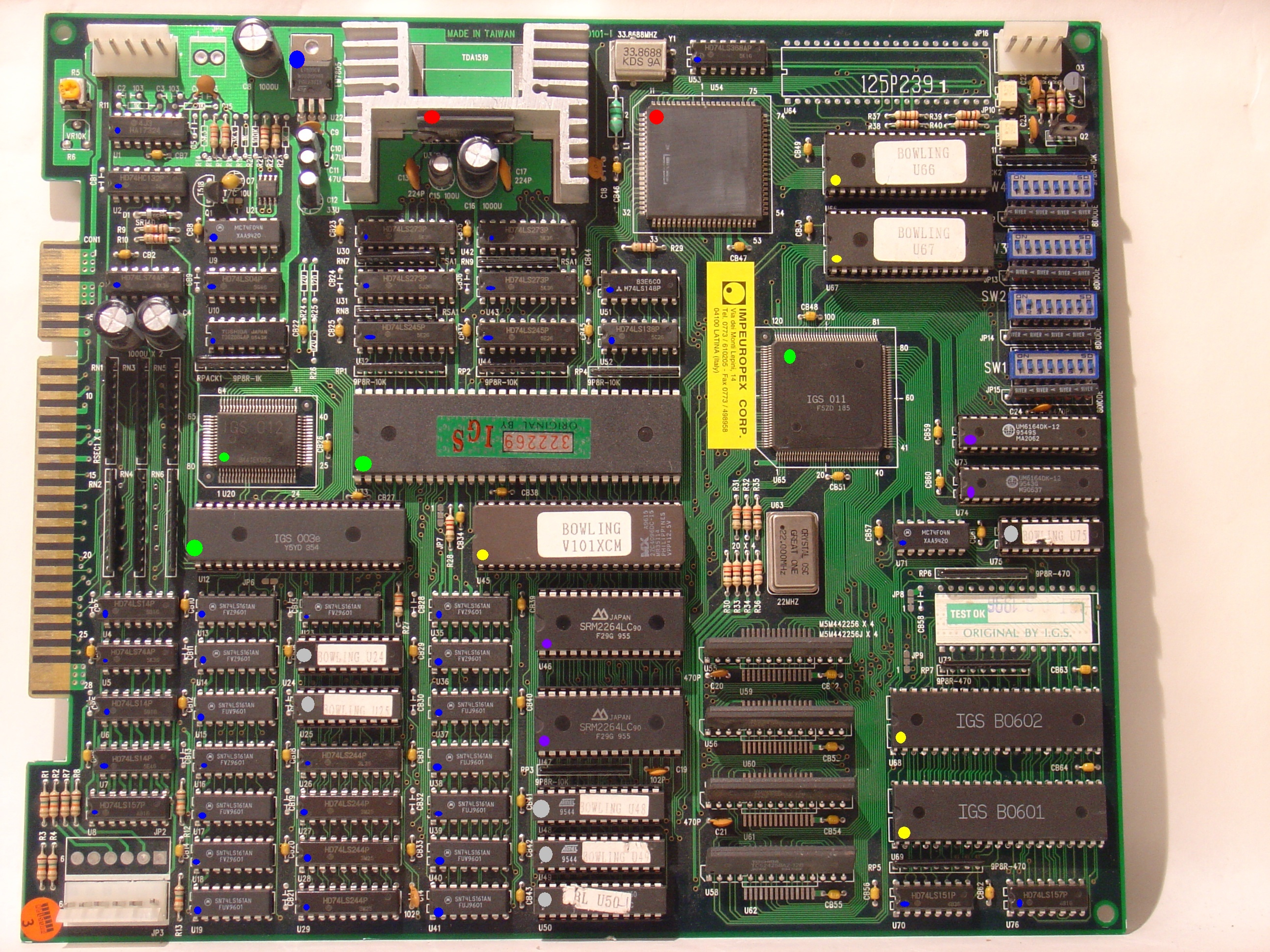

PCB component side notes
-

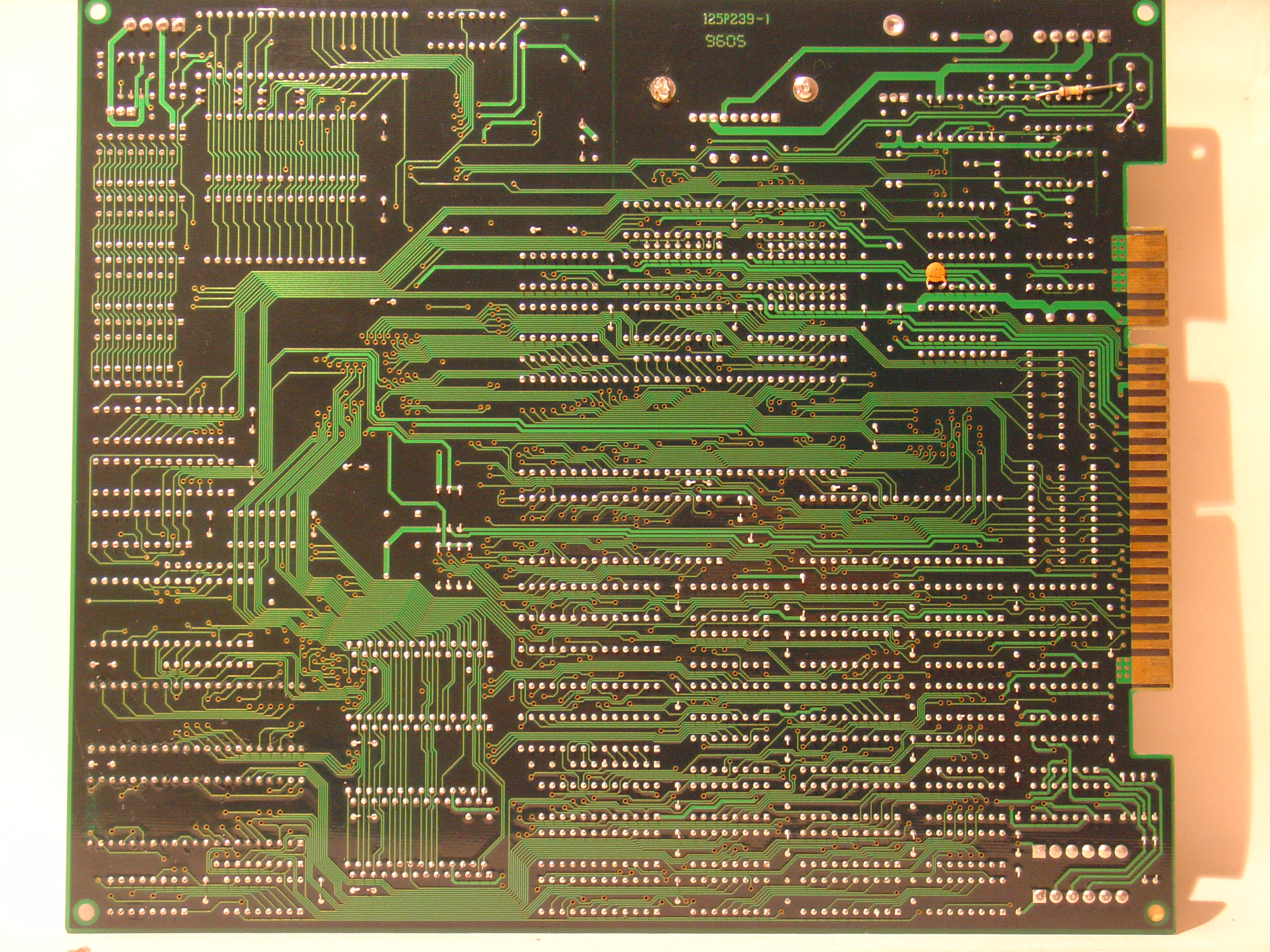

PCB solder side
-

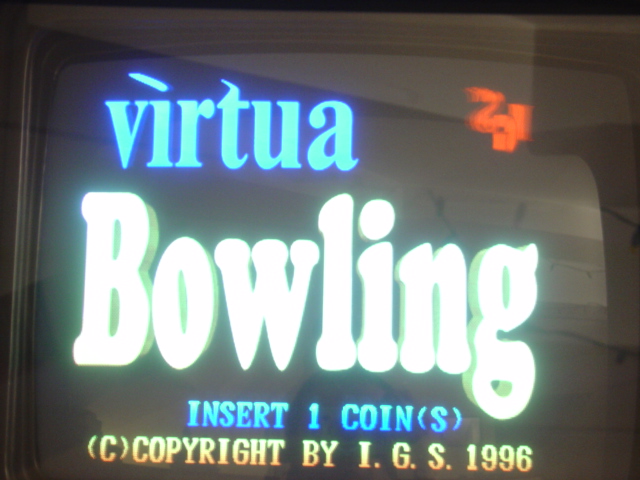

Title
-

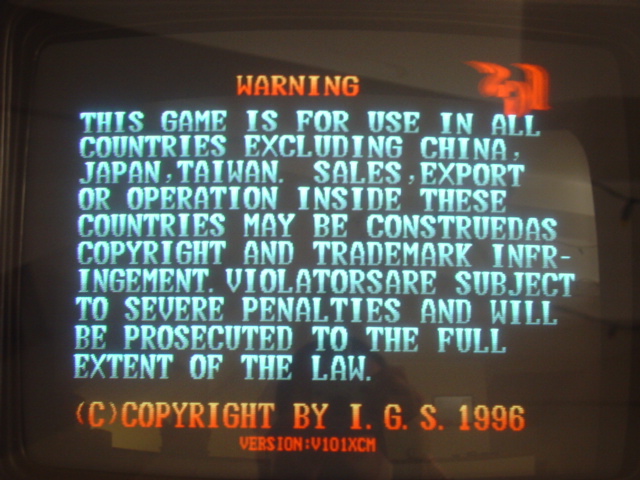

Disclaimer
-

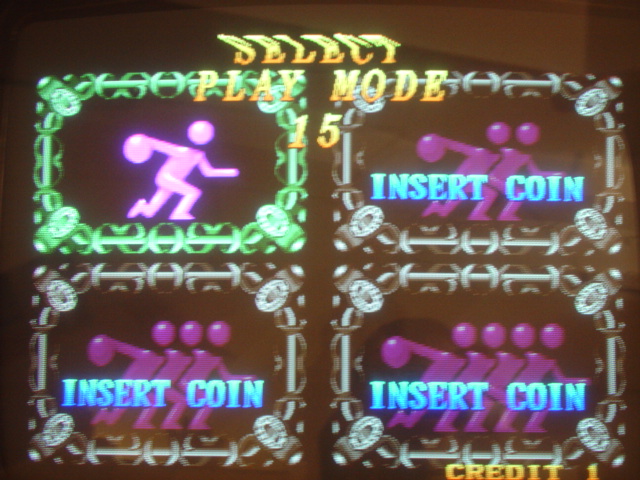

Game select
-

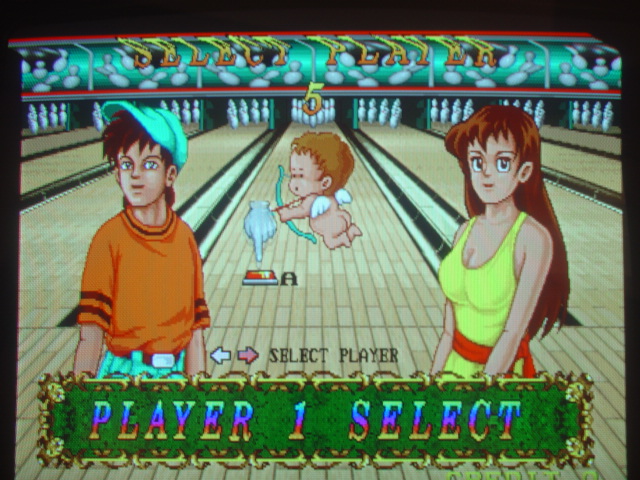

Player select
-

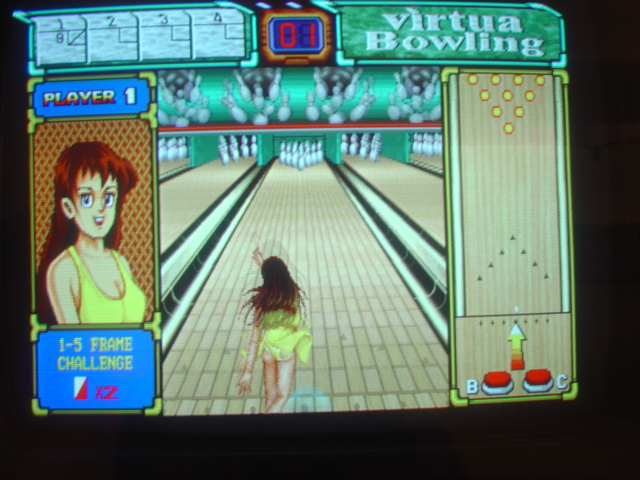

In game
-

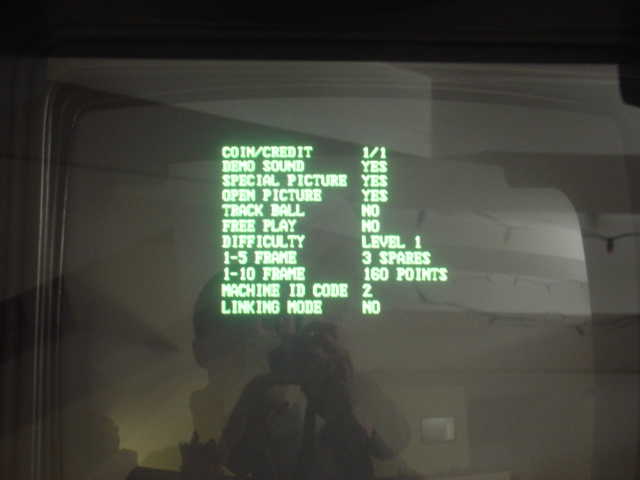

Test
-

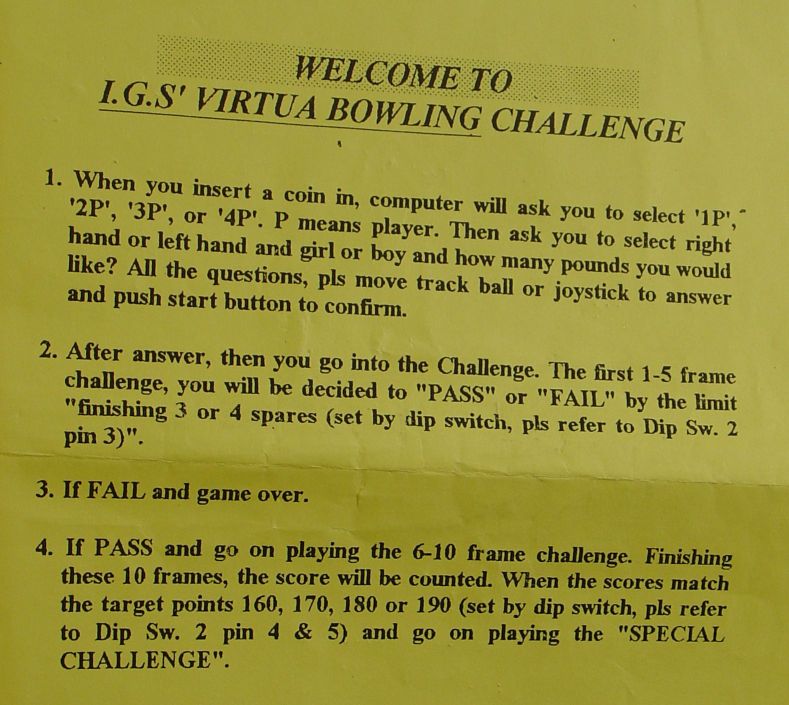

Instructions
-

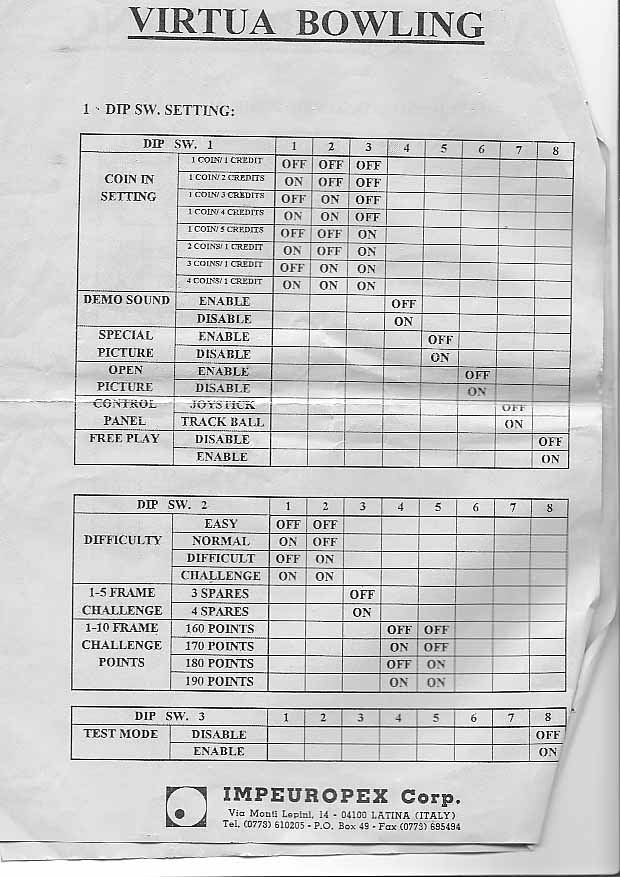

Manual
